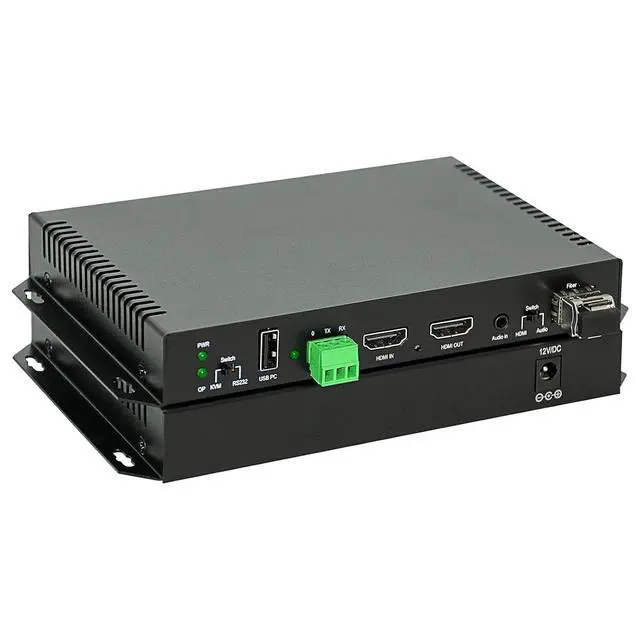

HDMI KVM Extender Over Fiber Optic, 1080@60hz, 10KM Uncompressed Transmission Over Single Mode 1 Core, Loop-Out Dual Output, KVM KB & Mouse, 3D,RS232, Optical Fiber Extender
- Product description OKH1001 is a fiber-based extender designed to extend uncompressed 1080@60hz Video signals and Keyboard and mouse up to10km(Using Single model core SFP) over duplex fiber cables. Main Product Features Max Resolution 1920×1080@60Hz Resolution is up to 1920x1080@60HZ Support RGB 4:4:4 YUV4:4:4 YUV:4:2:2 YUV4:2:0 Analog Audio Transmission Support analog stereo audio signal transmission Support video and audio synchronous transmission 7.1-channel PCM surround sound and compressed audio Single Mode One Core-10KM Single-mode one-core LC fiber, standard transmit distance is 10KM Suppoort point to point to transmit Dual HDMI Output In RX There're 2 HDMI output ports on RX. More convenient for user in use. RS232 Transmission Direction RS232 interface: Phoenix terminal RS232 Signal direction: Default Forward transmission (optional bidirectional) KVM Keyboard & Mouse Supports USB2.0 device keyboard and mouse. Single & Multi-mode Optional Default: Single model 1-core (10km) Multimode Dual-Core Module (300m), if need this mode, please write to us to send from factory. Packing List HDMI transmitter (TX) x 1 HDMI receiver (RX) x1 Power adapter x2 Optical fiber cable x1 User manual x1 Parameters Of Uncompression HDMI KVM Optical Fiber Extender ZY-OKH1001 Transmitter Input/Output Input: HDMI 1.4*1, RS232*1; Output: LC*1 Recevier Input/Output Input: LC*1; Output: HDMI 1.4*2, RS232*1 Video Resolutuion 1920×1080@60HZ, 720p/60Hz, 1080i/60Hz, 1080p/30Hz and so on Audio 3.5mm Ste
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

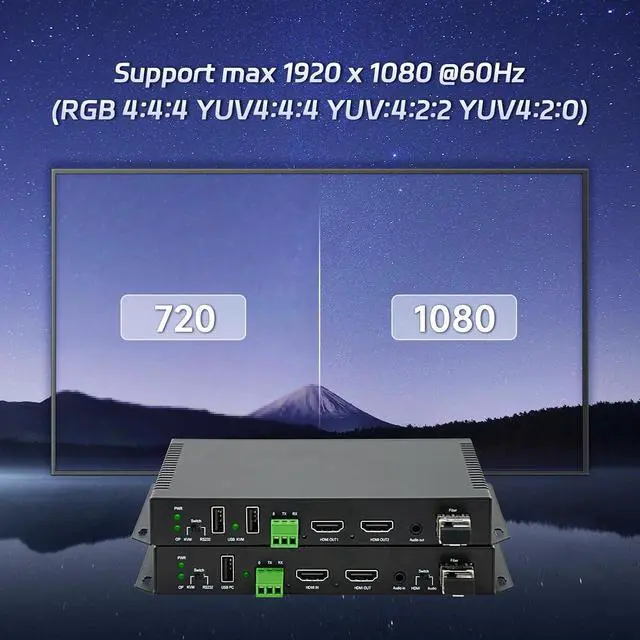

Uncompressed 1080@60hz TransmissionSupport RS232, compatible HDMI 1.4, HDCP standard. Support 1920x1080@60fps (YUV444, YUV
4:4: 4, YUV:
4:2: 2, YUV

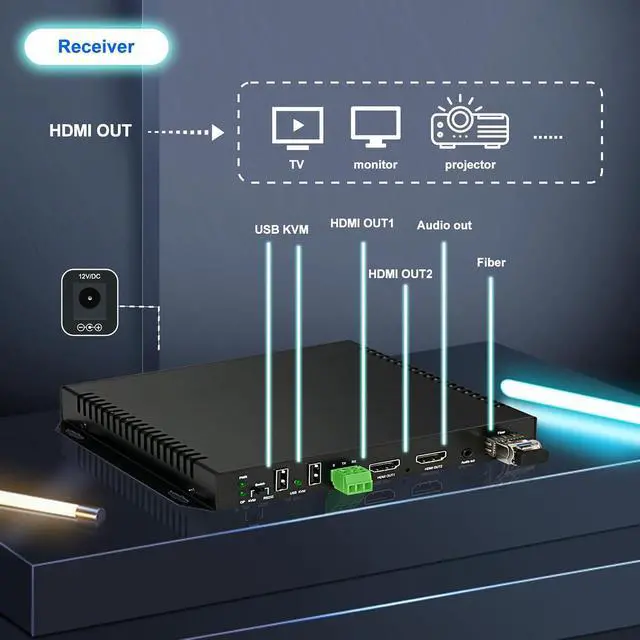

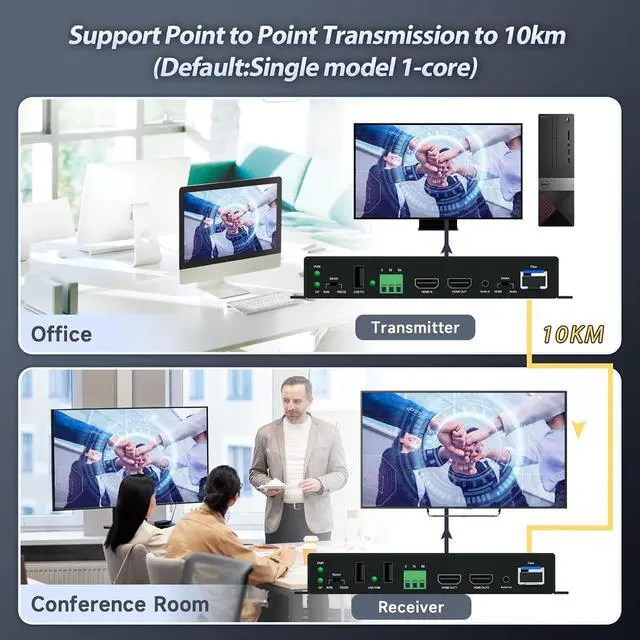

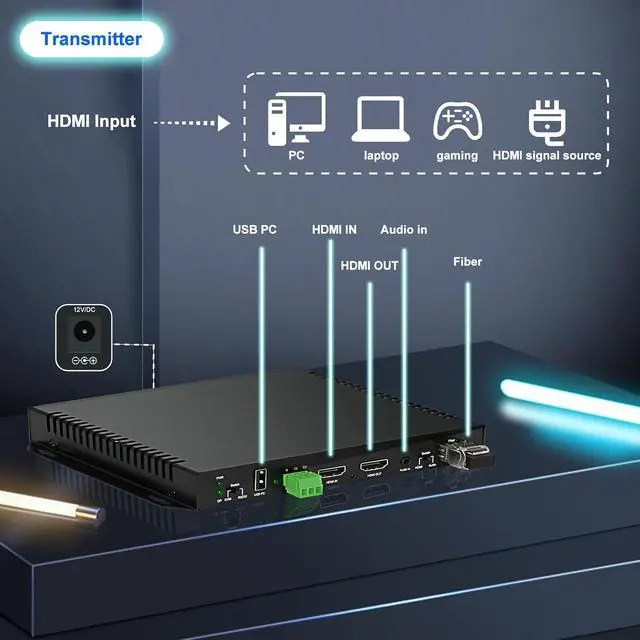

4:2: 0).; 10KM Single Mode 1 CoreSingle mode 1 core SFP, the default standard transmission distance is 10KM.; LC Interface for Optical FiberLC interface is adopted for optical fiber. Plug and play. Support hot swap.; HDMI Loop-out in TX & Dual HDMI Output in RXTheres an HDMI loop-out port in TX. And dual HDMI output ports in RX.; RS232 & Audio TransmissionRS232 has a Phoenix terminal interface. It can transmit 1 way in default. Theres an analog stereo audio port for signal transmission. Support video and audio synchronous transmission.
4:4: 4, YUV:
4:2: 2, YUV
4:2: 0).; 10KM Single Mode 1 CoreSingle mode 1 core SFP, the default standard transmission distance is 10KM.; LC Interface for Optical FiberLC interface is adopted for optical fiber. Plug and play. Support hot swap.; HDMI Loop-out in TX & Dual HDMI Output in RXTheres an HDMI loop-out port in TX. And dual HDMI output ports in RX.; RS232 & Audio TransmissionRS232 has a Phoenix terminal interface. It can transmit 1 way in default. Theres an analog stereo audio port for signal transmission. Support video and audio synchronous transmission.
