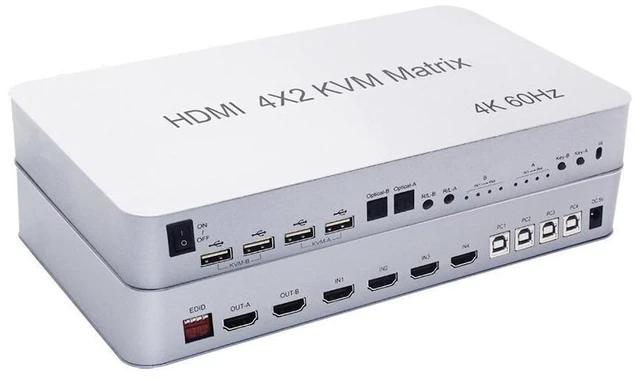

4K 60Hz HDMI KVM Matrix Switch with 4 HDMI Inputs and 2 Outputs Dual Monitor Extended Display USB 2.0 Keyboard Mouse Control for 4 Computers Audio Extractor with Optical Fiber and 3.5mm Output

Product Description:

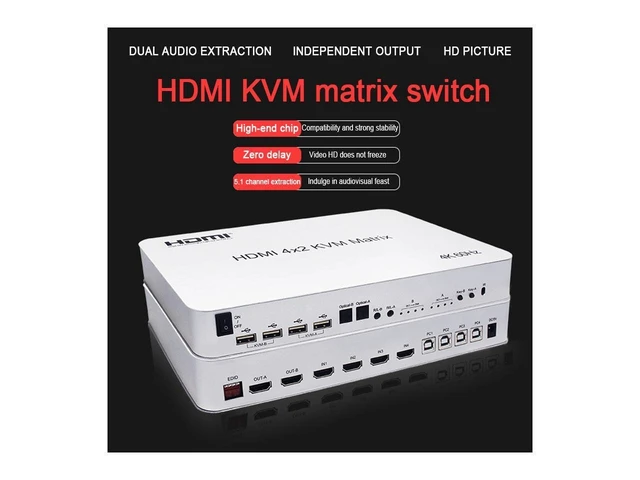

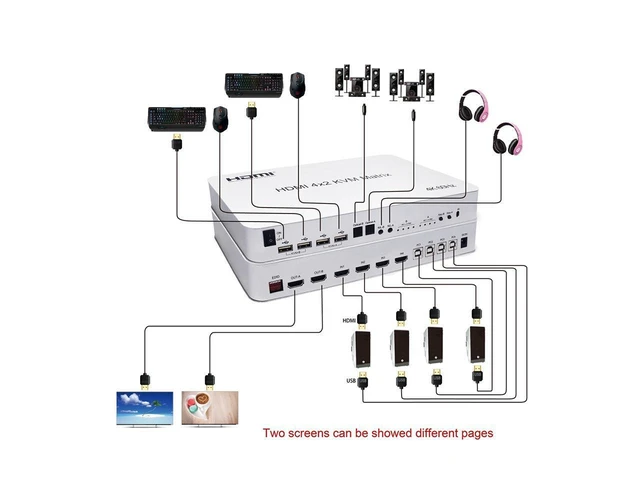

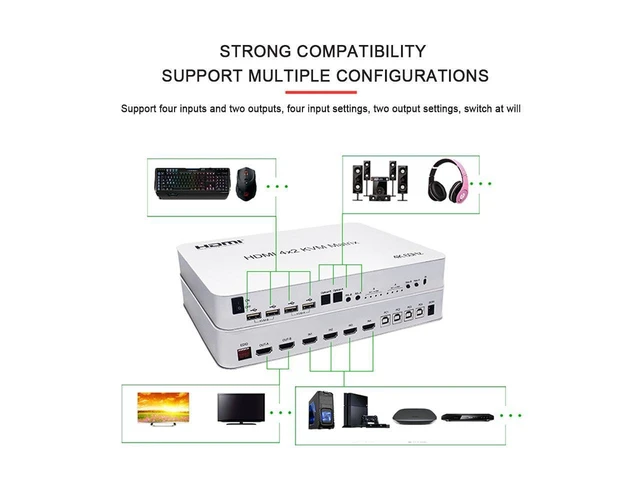

4x2 HDMI KVM switch matrix for connecting up to four HDMI source devices to two display terminals. It supports dual-monitor extended display, switching or splitting four HDMI inputs between two HDMI displays, and controlling connected computers with two sets of keyboards and mice.

Core Selling Points:

Supports up to 4K 60Hz video, 3D video format, and 8/10/12-bit deep color. Choose among IR remote control, front-button control, or keyboard hotkeys for switching. Supports downscaling from 4K input resolution to 2K output resolution. Provides independent audio output through two HDMI audio extraction outputs, 3.5 mm headphone jacks, and optical fiber interfaces.

Technical Specifications:

HDMI inputs: 4. HDMI outputs: 2. HDMI resolution: up to 3840 × 2160 at 60Hz. Maximum bandwidth: 600MHz. Maximum baud rate: 3 × 6Gbps. Audio formats: LPCM, DTS, Dolby-AC3. USB cable: standard USB 2.0 Type-A male to Type-B male cable, 2m. Maximum working current: 800mA. Power adapter input: AC 100V-240V, 50/60Hz. Power adapter output: DC 5V/1.5A. Operating humidity: 5-90%RH, no condensation.

Before Purchase:

For 4K 30Hz, input and output cable distance is up to 15M with AWG26 HDMI standard cable. For 4K 60Hz, input and output cable distance is up to 5M with HDMI 2.0 standard cable. Verify display, source, USB control, audio-output, cable-length, and power requirements before purchase.
