$979.00
Meet Your Seller
15.6'' Rack KVM Console w/Monitor/Keyboard/Touchpad,8 Port KVM VGA 1080P@60Hz, Fits 18.9" to 31.5" Deep Racks (480-800mm), Included 8 Cables for Server Room, Data Center

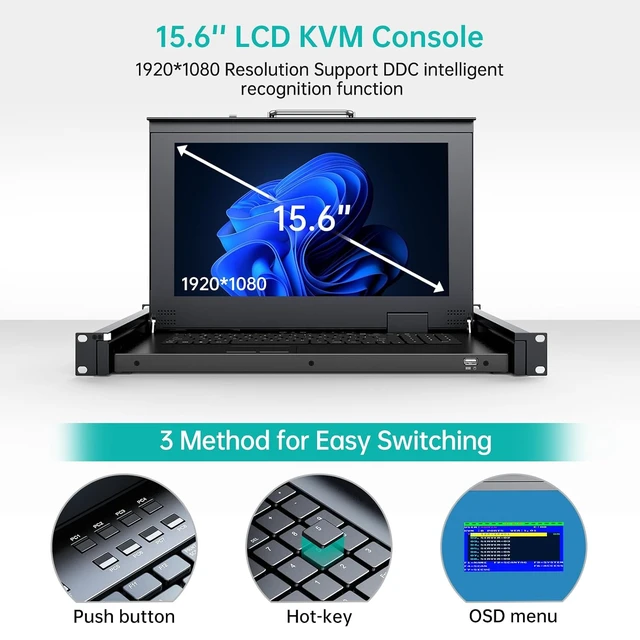

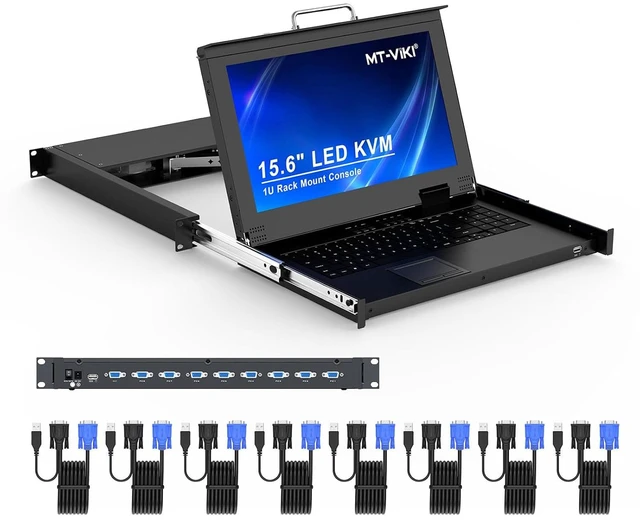

- MT-VIKI 1568UL is our latest all-in-one console to manage up to 8 computers. Features a 15.6" LCD monitor with 1920x1080@60Hz resolution. Combines monitor, keyboard, and touchpad into a single 1U rackmount drawer to save up to 85% of valuable cabinet space. Built-in USB 2.0 in front panel for external mice or keyboard.

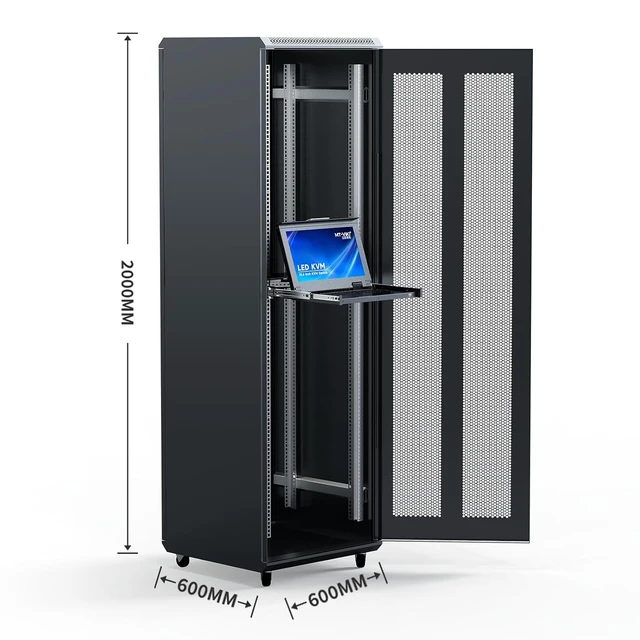

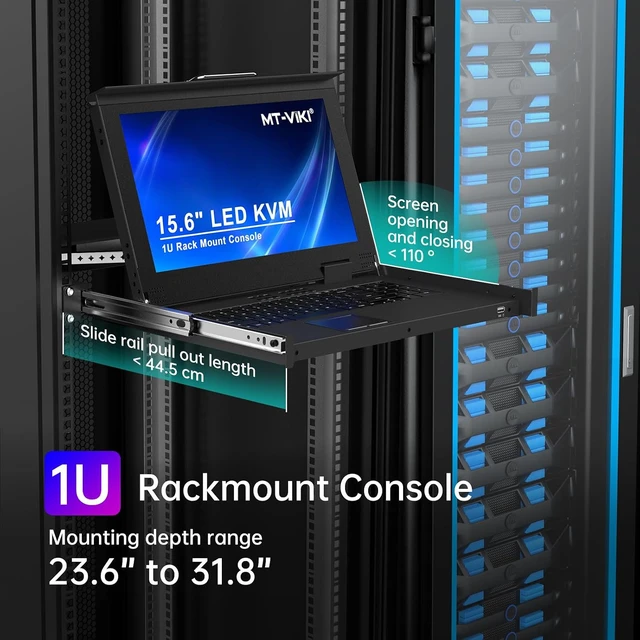

- Adjustable Depth & 2 Set Rack Rails: Includes two sets of Rack Rails. Short Rack Rails: Fit 18.9"23.6" (480-600mm) deep network racks (Note: check cable clearance for depths under 600mm). Long Rack Rails: Fit 23.6"31.5" (600-800mm) deep standard racks. Measure your rack depth before purchase to ensure a perfect fit.

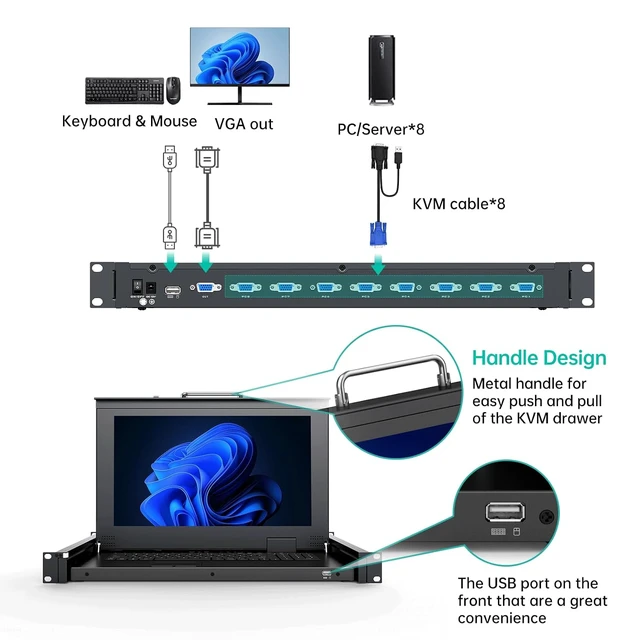

- External Monitor Support & Flexible Operation--Features an VGA console output for connecting an external monitor, allowing convenient server access without opening the rack. Supports front panel buttons, touchpad, hotkeys, and OSD menu control. Support password prodected: provides 2-level password security (administrator and user), up to 8 authorized users and an administrator view and control the computers.

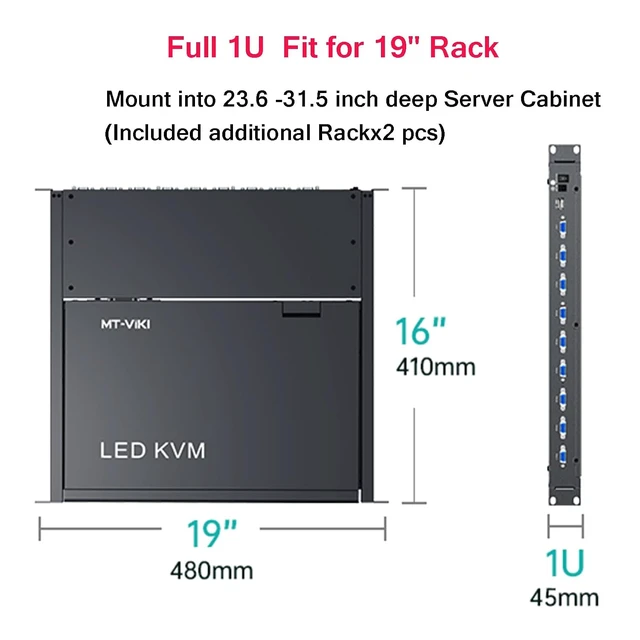

- ALL-IN-ONE Design, Lightweight Aluminum & Steel Build: Upgraded with an aluminum interior for less weight and a rugged steel drawer shell for industrial durability. Easy to install. Features a built-in handle and lock for secure operation. Physical Dimensions: 18.9" x 23.6" x 1.77" (480mm x 600mm x 45mm).
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
| LCD | 15.6 |
| Resolution | 1920*1080@60Hz |
| Housing | Aluminum + metal for less weight |
| Dimension | 480X410X45mm/18.8x16.1x1.78 inch |
| Cabinet installation depth | 600-810mm/23.6-31.8 inch |
| Color display | Color-262K |
| Brightness & Contrast | 300 cd/m2 & 800:1 |
| One-unit Construction | Installed and uninstalled easily, no need to insert components separately |
| Power consumption | Max. 24W |
| Power | DC12V |
| Touchpad | 1,000,000 times, Support Me/nt/2K/XP System |
| Keyboard | 98keys, internal PS/2 port, External USB port |
| Operation Temp | -0 °C~55 °C |
| Storage Temp | -20 °C~60 °C |
| Compliant Standards | DDC-2B, can detect the model of display without switching PC |
| Widely Compatible | ALL Windows/Dos, Linux, Mac OS8.6/9/10. |
| Password Protected | Two level password protection, up to 8 authorized users and an administrator view and control the computers |
| AUTO-LOCKED & Handle | Adjust LCD display function, guide with AUTO-LOCKED device. |

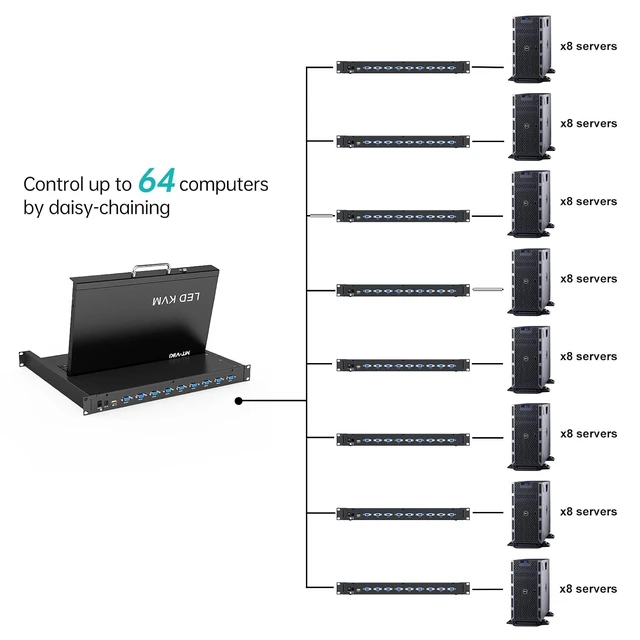

| Daisy Chain | Connect more than 8 devices by Cascade with ASIN:B0BJ6M71RP up to 64 devices |
| Upgrade | 1. Anti-oxidation and heat dissipation improvement; 2. Built-in EDID 3. Support DDC Function |
