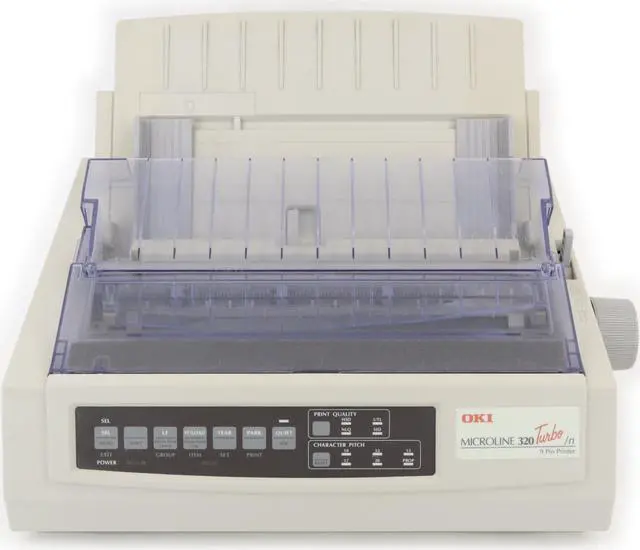

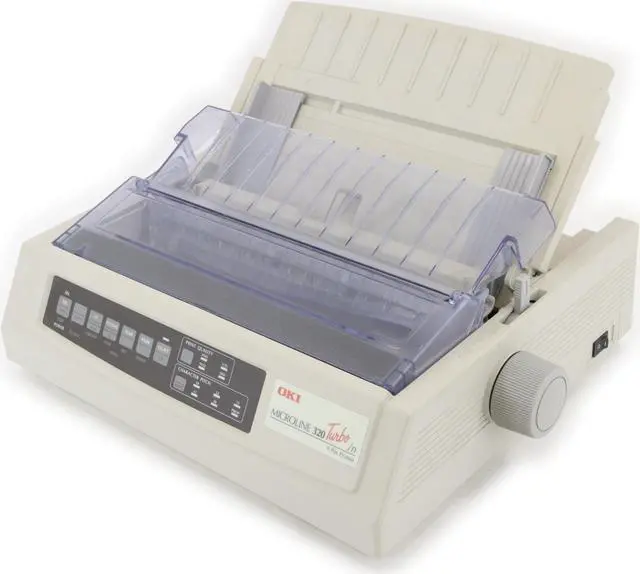

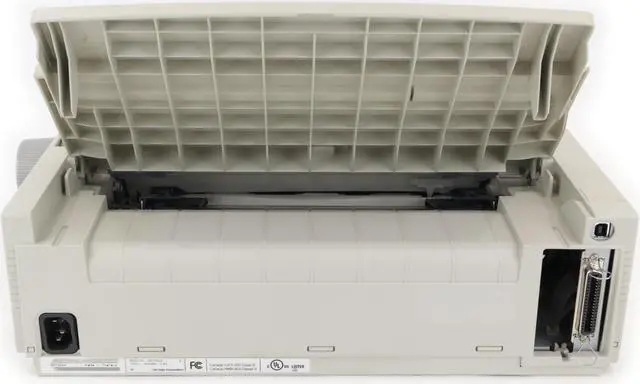

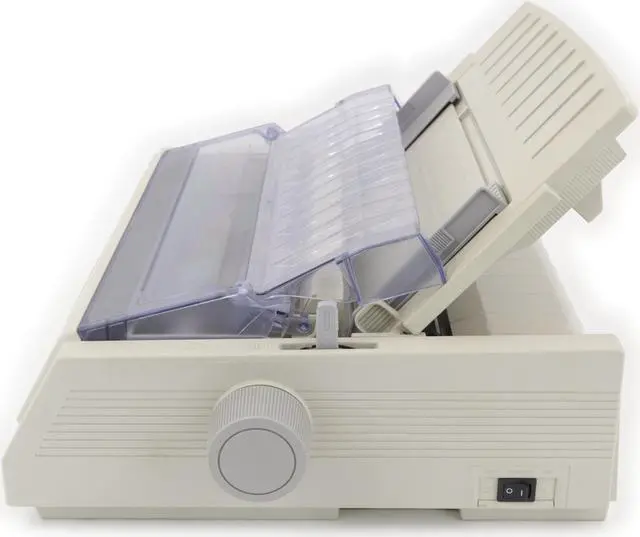

OKI Data Microline 320 Turbo/n 9-pin Dot Matrix Printer GE7000A

OKI Data Microline 320 Turbo/n 9-pin Dot Matrix Printer GE7000A

Condition: Refurbished

Compeve SKU: 336000101313

Specification:

Print Head - 9 Pin
Dot Wire Diameter - 0.34 mm
Print Direction - Bidirectional/Unidirectional printing, Short line-seeking printing
Graphic Resolution - Max. 240(H) x 216(V) dpi
Print Speed - Super Speed Draft : 435 cps, High Speed Draft : 387 cps, Utility : 290 cps, Near Letter Quality : 73 cps
Line Feed Pitch - 4.23mm (1/6 "), 3.18mm (1/8 "), n x 0.35mm(n/72 ") (n=1-85), n x 0.18mm(n/144 ") (n=0-255), n x 0.12mm(n/216 ") (n=0-255)
Feed Speed - 4.5 inches per second
Feed Rate - 4.23mm(1/6) line feed: Approx. 48 milliseconds
Paper Route - Manual (Top), Tractor feeder (Rear), Tractor feeder (Bottom), Cut sheet feeder (Rear), Roll paper stand
Character Pitch - Super Speed Draft : 12.0 cpi High Speed Draft : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi Utility : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional Near Letter Quality : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional
Printing Width - 80 characters/line at ANK 10 cpi
Interface - IEEE1284-1994 Bi-directional Parallel, USB 2.0 (Full Speed), (Optional) 100BASE-TX/10BASE-T, (Optional) RS-232C (25pin)
Emulation - OKI Microline, ESC/P emulation, IBM ProPrinter emulation
Supported OS - Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64
Receive Buffer - Max. 128KB
Resident Font - High Speed Draft, Utility, NLQ Courier, NLQ Gothic, Scalable Courier, Scalable Gothic
Font Style - Bold, Double Width, Double Height, Emphasized, Italics, Over score, Underline
1-D Barcode - UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2 of 5 (ITF), Code128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5
Paper Type - Continuous paper, Continuous copying paper, Cut sheet, Card, Envelope, Label
Paper Weight Adjustment - Manual
Paper Size - Continuous paper: Width 76.2-254.0mm x Length 76.2-355.6mm Single part paper: Width 99.1-216.0mm x Length 99.1-356.0mm Multi part paper: Width 76.2-254.0mm x Length 76.2-355.6mm
Paper Weight - Continuous paper : 45 - 90 gsm Single part paper : 45 - 90 gsm Multi part paper : 35 - 40 gsm
Copy Capability - Normal print mode: original + 4sheets(Total Thickness < 0.36mm)
Dimensions(WxDxH) - 398 x 345 x 147 mm
Operating Environment - Operating: 5 - 35 °C, 20 - 80 %RH Storage: -10 - 50 °C, 5 - 95 %RH No condensation
Power Source - Single phase 220 - 240 VAC ±10%, 50/60 Hz ±2%
Power Consumption - Operating: Max. -W (ISO10561 (Utility, Range1) Printing Approx. 36W) Power Save: < 1.7W
Noise Level - Operating :Approx. 57 dBA Quiet Mode: < 52 dBA
MTBF(Mean Time Before Failure) - 10,000 hours
Ribbon Life - Black : 3 million characters
Print Head Life - Approx. 450 million strokes/ pin
