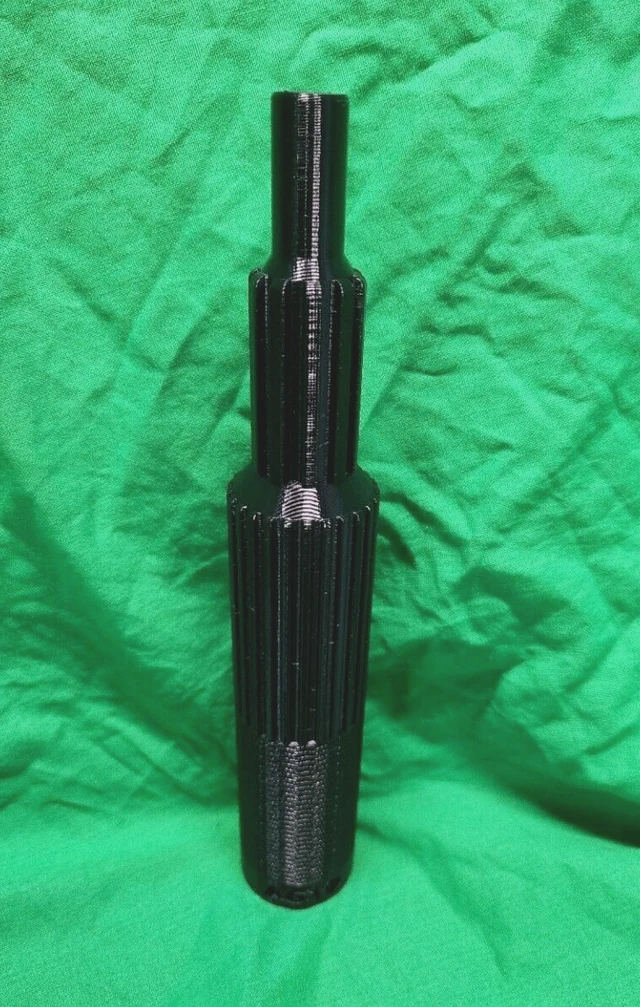

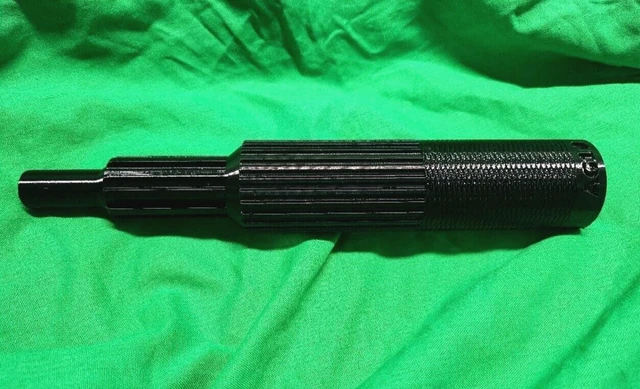

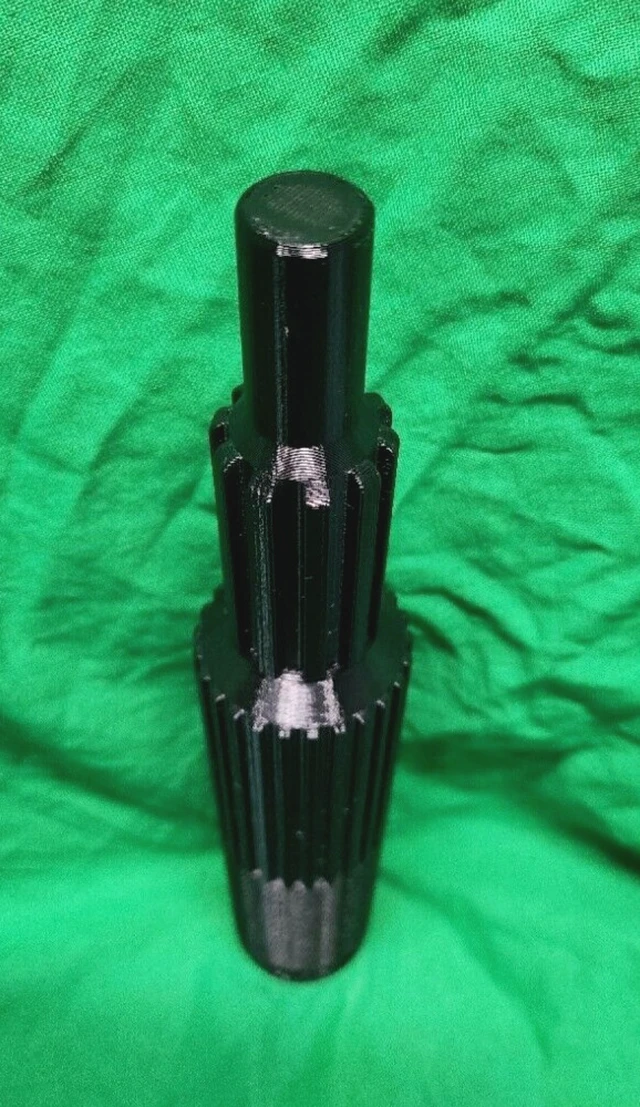

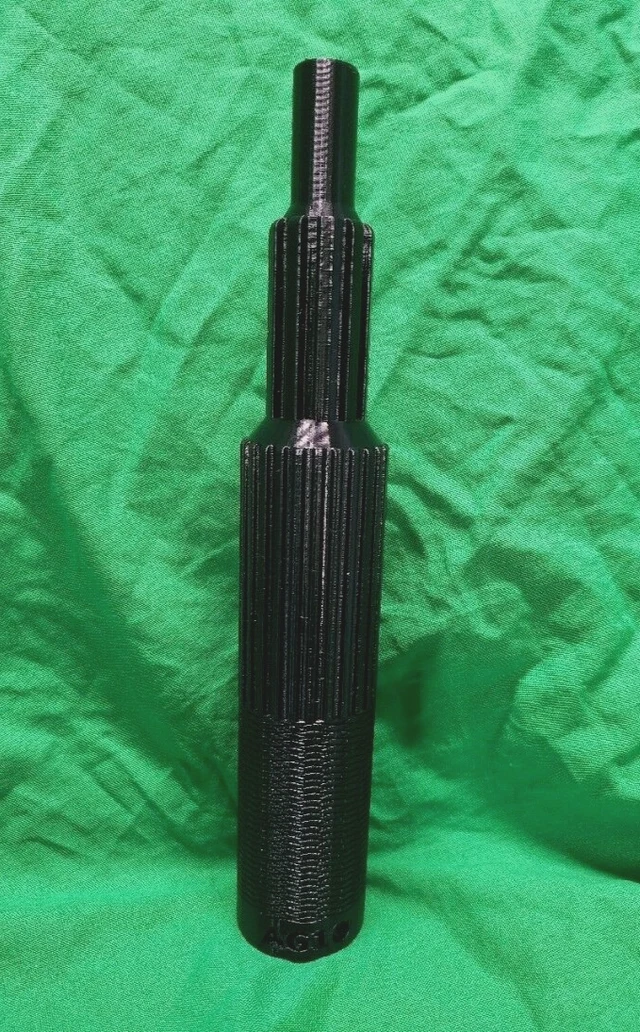

MASSEY FERGUSON MF 135 155 165 245 CLUTCH ALIGNMENT LINE UP TOOL 10x25 AG10

MASSEY FERGUSON Tractor Clutch Alignment Tool 10x25 Splines (AG10)
This is a quality 3D-printed alignment tool, designed for durability and accuracy.
-
Heavy-duty PETG construction
-
Color will vary (custom color requests available for extra)
-
Design may be updated for improved fit and performance

Specifications

:
-
Spline 1 Diameter: 1 1/8" ( 28.58 mm) 10 splines
-
Spline 2 Diameter: 1 5/8" ( 41.28 mm) 25 splines
-
Pilot Diameter: 0.670" ( 17.02 mm)
Popular Massey Ferguson Models This Fits:
MF 135, 150, 155, 165, 175, 230, 235, 240, 245, 250, 255, 265, 270, 275, 282, 285, 290, 298, 543, 563, 690, 698, 1080, 1085
Full Compatibility List:
Massey Ferguson Tractors:
251 XE (Brazil), 271 XE (Brazil), 281 XE (Brazil 10 & 12 discs), 283 Brazil, 4215, 4220, 4233, 4235, 4240 (12 Split Torque w/21 Spline Trans. ), 4243, 4245, 4253, 4255, 4260, 4263, 4270 (13 Split Torque w/21 Spline Trans. ), 4345, 4355, 4360, 4370 (13 Split Torque w/21 Spline Trans. ), 451 Brazil, 461 Brazil, 471 Brazil, 492 Brazil (10 & 12 discs Single & Dual Stage), 461 Turkey (12 Disc Split-Torque Single Stage), 5335, 5340, 5355, 5360, 5365 (13 Single Split-Torque), MF185S (Dual Stage/Split Torque w/21 Spline Trans. ), MF231 (Dual Stage Post S/N E12094), MF253 (Dual Stage/Split Torque Post S/N C17003), MF261, MF271 (Dual Stage Disc Post S/N D09002), MF263 (Dual Stage/Split Torque w/21 Spline Trans. ), MF265S (Dual Stage/Split Torque w/21 Spline Trans. ), MF281 (Dual Stage w/21 Spline Trans. Disc), MF285S (10 & 12 Dual Stage), MF290 Super (Mexico 13 Split Torque), MF290 U. K. (w/25 Spline Cover), MF320 Industrial (12 Disc Split-Torque w/25 Spline IPTO), MF350, MF355, MF360, MF362, MF365, MF375, MF383 (Dual Stage/Split Torque w/21 Spline Trans.

), MF390, MF390T, MF398, MF399, MF393 (13 Split Torque w/21 Spline Trans. ), MF396 (13 Split Torque w/21 Spline Trans. ), MF699, 1004 (13 Split-Torque Disc w/25 Spline), 20 D/H, 20, 20C (w/25 teeth on cover), 202 Industrial, Workbull 202, 203, 204 (Drive Disc only), 30/B/C/D/E/H, 40/B/D/E, MF1080, MF1085 (25 teeth on cover), MF130, MF133 Mk3 (25 teeth on cover), MF135 (25 teeth on cover includes UK), MF140, MF148 (25 teeth on cover), MF150, MF152, MF155, MF158 (25 teeth on cover), MF165, MF168 (25 teeth on cover), MF175, MF177, MF178 (25 teeth on cover), MF185 U. K. (25 teeth on cover), MF230, MF240 (25 teeth on cover), MF231 (Dual Stage Pre S/N E12094), MF231S (Dual Stage Disc w/10 Spline Trans. ), MF235, MF245 (25 teeth on cover, Orchard Model), MF250, MF253 (Dual Stage/Split Torque Pre S/N C17002), MF255, MF265 (25 teeth on cover), MF261, MF271 (Dual Stage Disc Pre S/N D09002), MF263 (Dual Stage/Split Torque w/10 Spline Trans.

), MF270, MF275, MF281 (Dual Stage w/10 Spline Trans. Disc), MF282, MF285, MF283 (Dual Stage w/10 Spline Trans. Disc), MF290 U. K. (10 Spline Cover), MF290, MF295, MF298, MF30, MF31 (25 Spline Cover), MF50C, MF50B, MF50D, MF50H (25 teeth on cover), MF590, MF595, MF65 (25 teeth on cover), MF670 (12 Split Torque w/10 Spline Trans. ), MF690, MF698, MF698T, TAFE 25DI, 35DI, 45DI (10 & 12 Dual Stage Discs w/25 Spline PTO)
Industrial Tractors:
MF20, MF20C, MF30, MF30B, MF30D, MF40B, MF50C, MF50D, MF50H

INMN aftermarket specialty service tool. Please compare the listed dimensions, spline count, pilot size, and fitment with your application before ordering.
