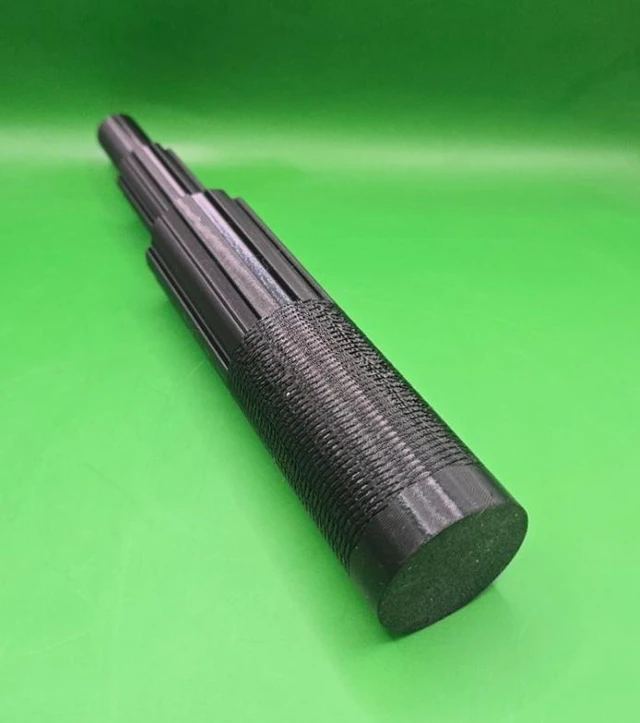

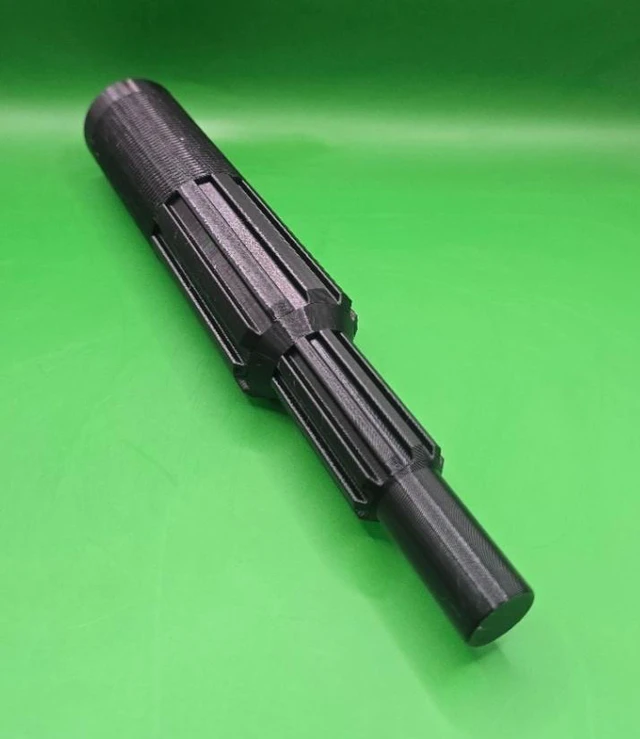

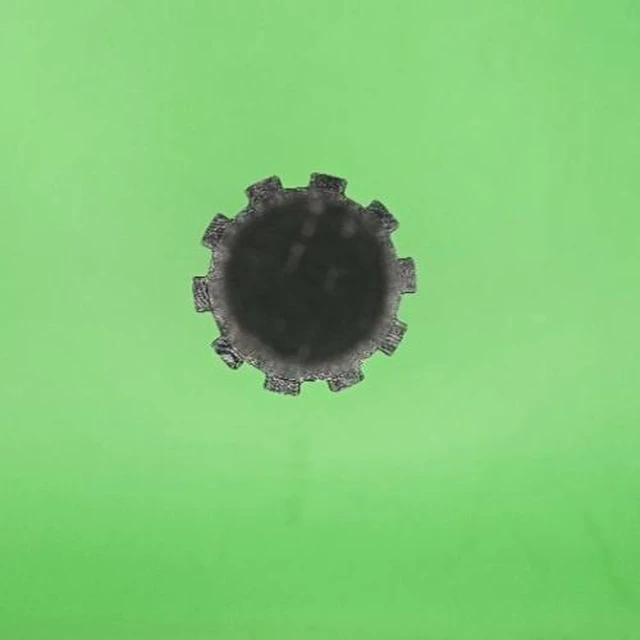

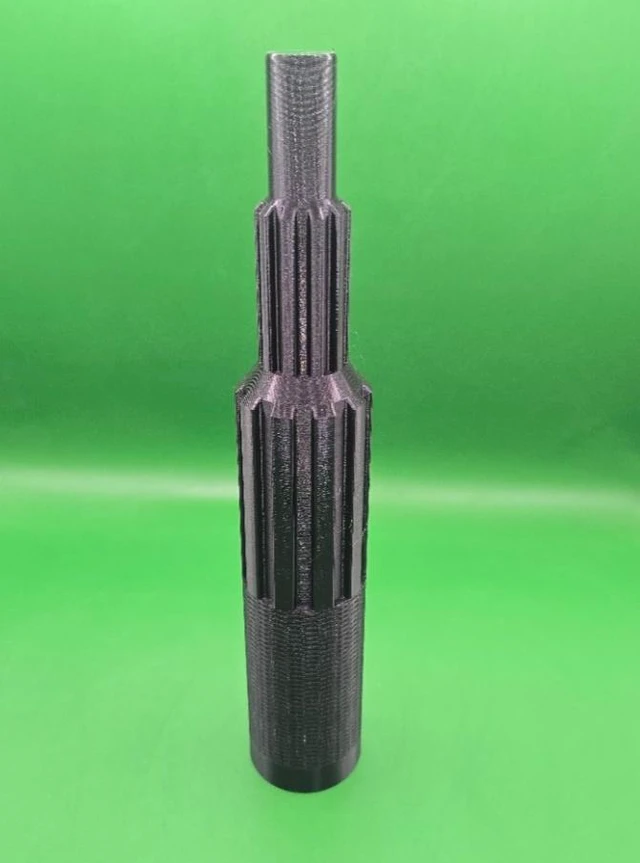

Clutch Alignment Tool 10 & 10 Spline International Mahindra Replaces 8301147-HYC
- INMN aftermarket specialty clutch service tool
- Clutch Alignment Tool 10 & 10 Spline International Mahindra Replaces 8301147-HYC
- Helps center and align clutch components for easier transmission or clutch installation
- Additive-manufactured PETG construction; reusable shop tool
- Verify spline count, pilot diameter, and application before ordering
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Clutch Alignment / Line Up Tool
Replaces 8301147-HYC
Replaces 122047
This tool helps center the clutch disc (s) during installation so the transmission input shaft can slide in smoothly during reassembly.
Especially helpful on dual-stage clutch setups where alignment matters.
Compatibility (verify before purchase)
Compatible with International Tractor (s): B275, B414, 276, 354, 364, 384, 424, 434, 444, 2300A, 2424, 2444, 3444
Compatible with Mahindra Tractor (s): 475, 485, 575, 4005, 4505, 5005
Key Specs (Verify Before Ordering! )
Pilot Diameter: 0.787"
Large Spline: 1-3/4" 10 Spline
Small Spline: 1-1/8" 10 Spline
Material / Build Quality
This is a quality 3D printed item made from heavy-duty PETG.
Color will vary.
Color choices are available for extra message me if you want a specific color.
Design Updates
This item may be updated in design from the original as improvements are made (fit/strength/printability).
What Youll Receive
(1) 122047-3D Clutch alignment tool
Custom Work Available
We can make you custom 3D printed parts from blueprints, pictures, online links, existing parts, your ideas and morecontact us directly for pricing. We provide high-quality finished parts for the automotive and related industries.
Branding / Personalization
We can customize this with your company name, logo, and morecontact us directly for pricing.
INMN aftermarket specialty service tool. Please compare the listed dimensions, spline count, pilot size, and fitment with your application before ordering.
Replaces 8301147-HYC
Replaces 122047
This tool helps center the clutch disc (s) during installation so the transmission input shaft can slide in smoothly during reassembly.
Especially helpful on dual-stage clutch setups where alignment matters.
Compatibility (verify before purchase)
Compatible with International Tractor (s): B275, B414, 276, 354, 364, 384, 424, 434, 444, 2300A, 2424, 2444, 3444
Compatible with Mahindra Tractor (s): 475, 485, 575, 4005, 4505, 5005
Key Specs (Verify Before Ordering! )
Pilot Diameter: 0.787"
Large Spline: 1-3/4" 10 Spline
Small Spline: 1-1/8" 10 Spline
Material / Build Quality
This is a quality 3D printed item made from heavy-duty PETG.
Color will vary.
Color choices are available for extra message me if you want a specific color.
Design Updates
This item may be updated in design from the original as improvements are made (fit/strength/printability).
What Youll Receive
(1) 122047-3D Clutch alignment tool
Custom Work Available
We can make you custom 3D printed parts from blueprints, pictures, online links, existing parts, your ideas and morecontact us directly for pricing. We provide high-quality finished parts for the automotive and related industries.
Branding / Personalization
We can customize this with your company name, logo, and morecontact us directly for pricing.
INMN aftermarket specialty service tool. Please compare the listed dimensions, spline count, pilot size, and fitment with your application before ordering.
