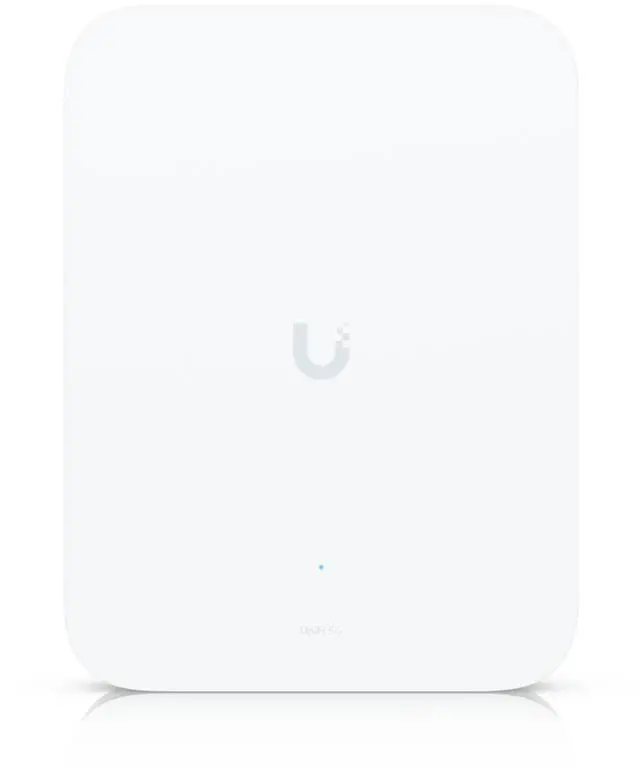

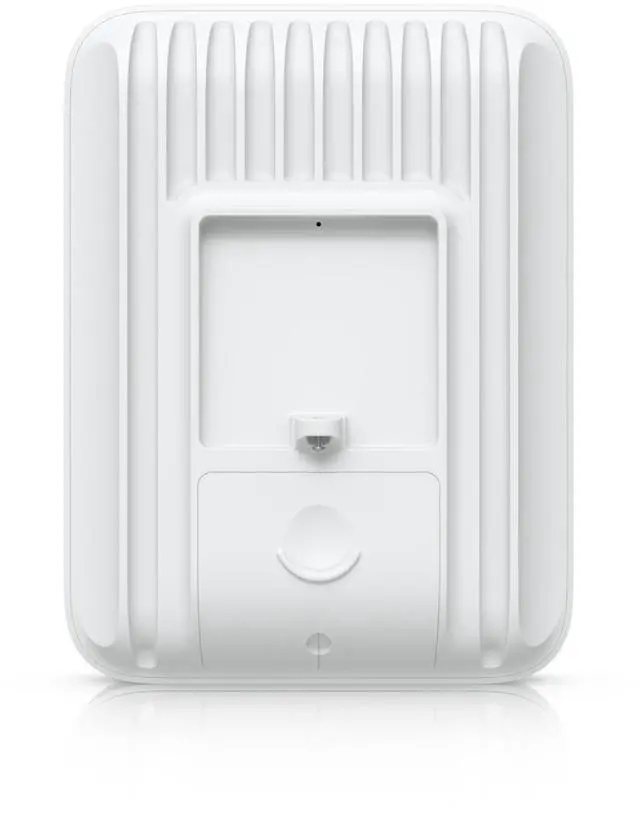

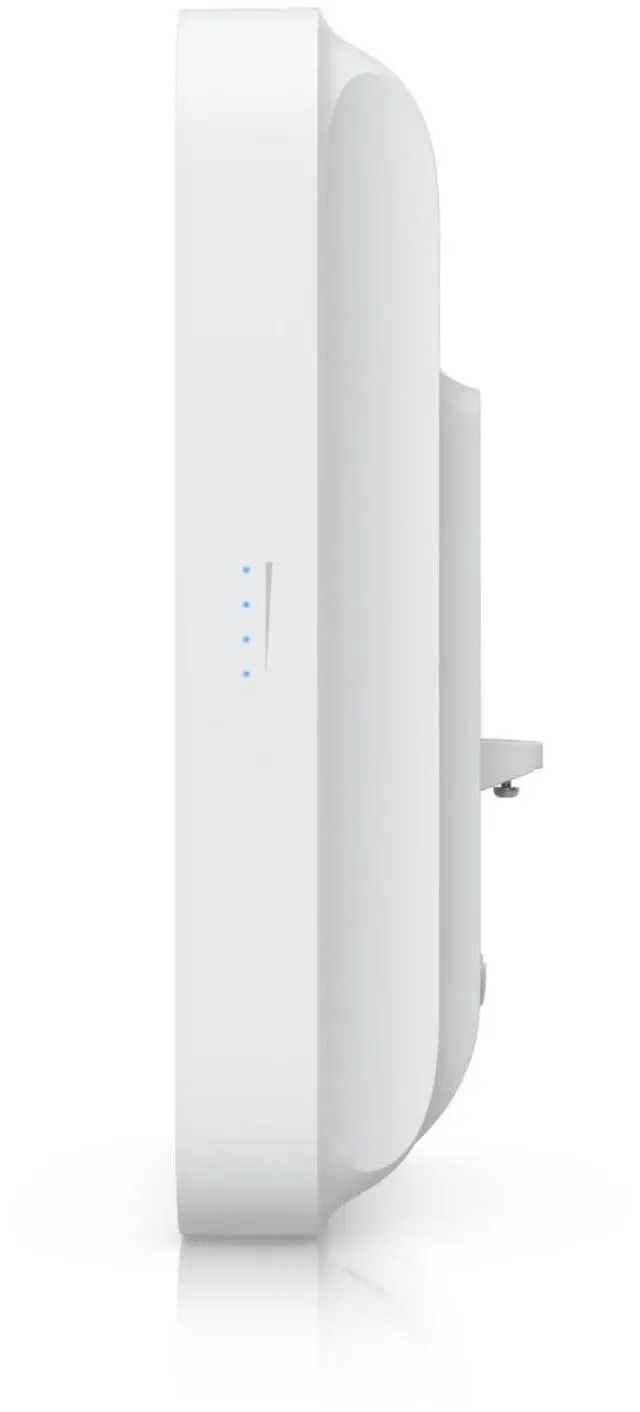

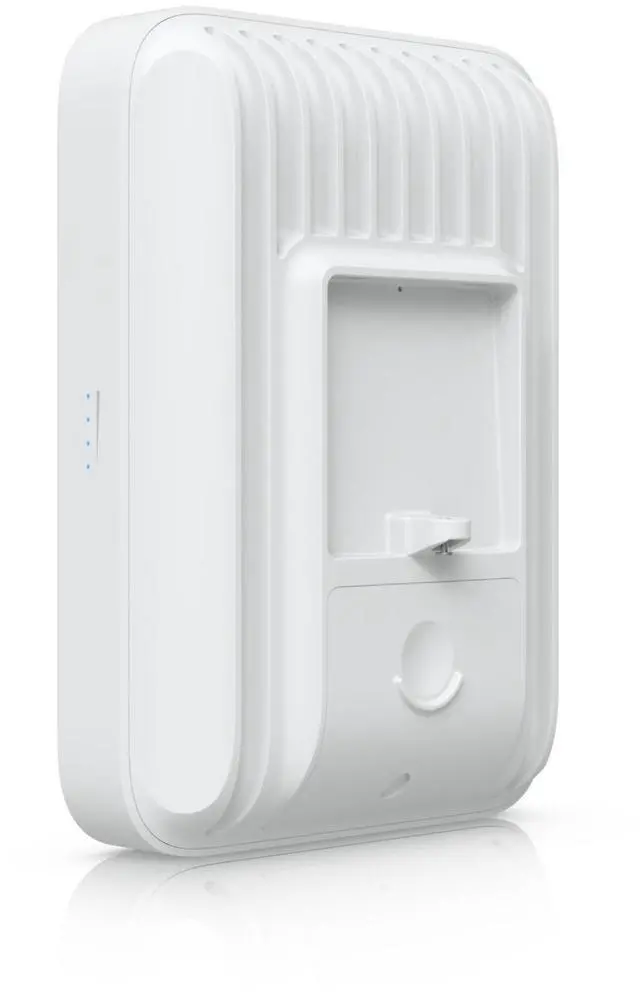

Ubiquiti UniFi 5G Max Outdoor Modem for UniFi Consoles (U5G-Max-Outdoor)

Be the first to review this product...
  • A full-performance 5G (3.4 Gbps) modem for UniFi consoles and Cloud Gateways, certified with AT&T, T-Mobile, and Verizon, designed for outdoor use with directional antennas, remote SIM, and dual SIM for seamless failover.
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
  1. Dimensions (Device): 220 x 165 x 66.9 mm (8.7 x 6.5 x 2.6")
  2. Dimensions (With Mount): 220 x 165 x 122 mm (8.7 x 6.5 x 4.8")
  3. Networking Interface: (1) 2.5 GbE RJ45 port; 5G NR and LTE radio
  4. SIM Support: (1) Nano SIM; (1) Nano-SIM or eSIM
  5. PoE Interface: (1) PoE input

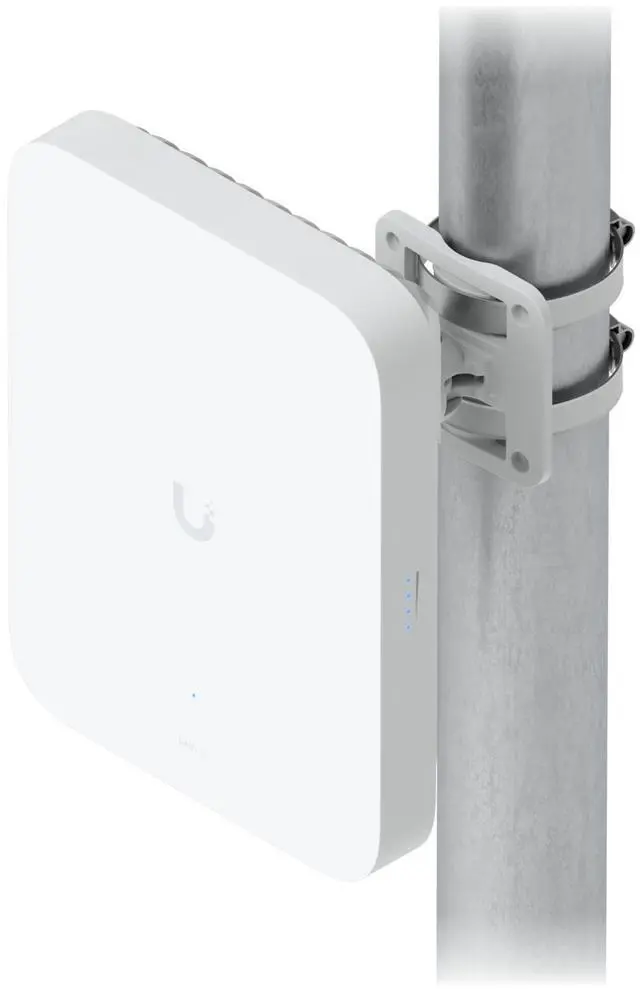

  6. Mounting: Pole mount; wall mount (included)
  7. Weatherproofing: IPX6; IP67 (with cable-gland door kit)
  8. Weight: Device 1.2 kg (2.6 lb); Mount 130 g (4.6 oz)
  9. Enclosure Material: Aluminum-alloy; UV-stabilized polycarbonate
  10. Mount Material: UV-stabilized polycarbonate
  11. Pole Mount Diameter: 12.5" (2563.5 mm) pipe outer diameter
  12. Wind Loading: 91 N at 200 km/h (20.45 lbf at 125 mph)
  13. Management: Ethernet
  14. 5G NR Category: 5G NR
  15. 5G NR Frequency Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
  16. 5G NR Max TX Power: HPUE power class 2, 26 dBm
  17. 4G LTE Frequency Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
  18. 4G LTE Max TX Power: HPUE power class 2, 25 dBm
  19. 3G UMTS Frequency Bands: B1, B2, B4, B5, B8, B19
  20. Peak Data Speed (5G NSA): Downlink 3.4 Gbps; Uplink 560 Mbps
  21. Peak Data Speed (5G SA): Downlink 1.8 Gbps; Uplink 650 Mbps
  22. Peak Data Speed (4G LTE): Downlink 1.6 Gbps; Uplink 210 Mbps
  23. Antennas: (6) embedded cellular antennas including (2) high-gain downlink antennas, peak 9 dBi, 85° x 85°
  24. Max Power Consumption: 14.5W
  25. Power Method: PoE
  26. Buttons: (1) Factory reset
  27. LEDs: Yes
