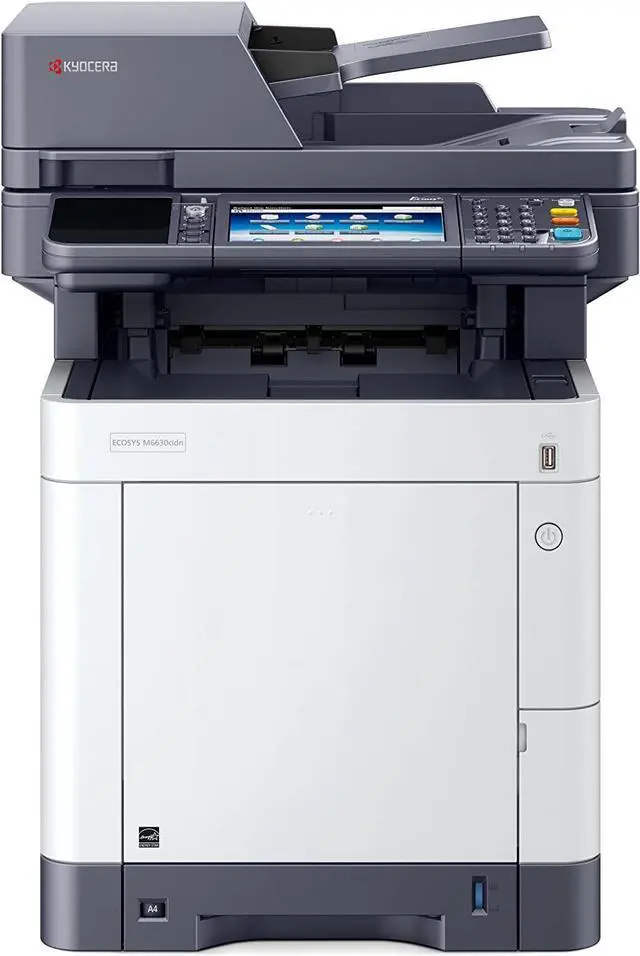

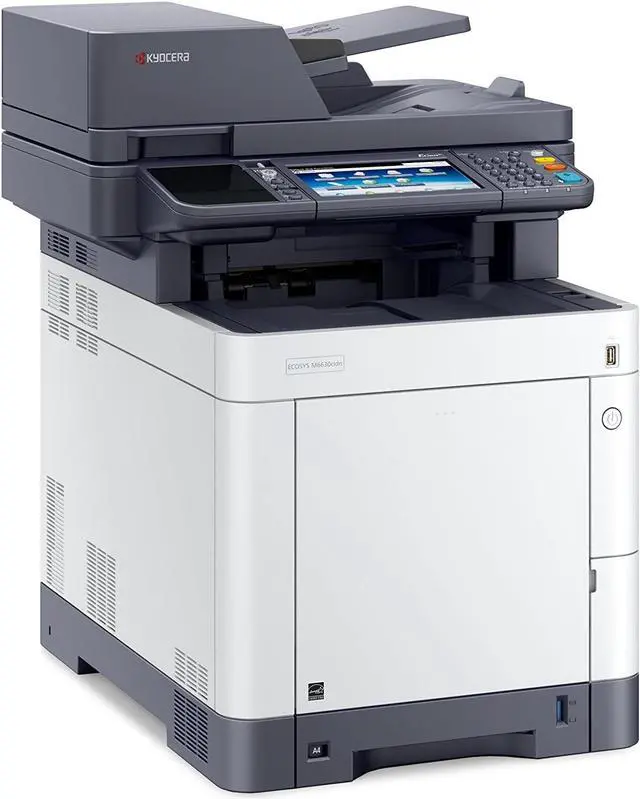

Kyocera ECOSYS M6630cidn Multifunctional Printer, Up to 32 PPM, 1200 DPI, Up to 100000 Pages a Month, Mobile Printing Support

The ECOSYS M6630cidn, Color A4 (up to 8.5 x 14) MFP, combines impressive performance, at speeds up to 32 ppm, with advanced features, all in a compact footprint. This Print, Copy, Scan and Fax solution is designed for ease-of-use with a 7 color touch screen interface (TSI) and includes business driving features, such as a 100 Sheet Dual Scan Document Processor, the capability of running HyPAS Business Applications, On-The-Go secure mobile Print/Scan and much, much more! The ECOSYS M6630cidn, with exceptional business quality color output and low TCO, allows workgroups of all sizes to affordably drive productivity and take your business to the next level.

Specifications

:

Configuration Color Multifunctional Printer - Print / Copy / Scan / Fax
Pages per Minute Black/Color - Letter: 32 ppm;
Legal: 26 ppm; A 4: 30 ppm
Duplex Print Speed: Letter 15 ppm; Legal 13 ppm; A4 15 ppm
Display 7" Color Touch Screen Control Panel (TSI)
Warm Up Time 26 Seconds or Less (Power On)
First Page Out Time Copy: 7.5 Seconds or Less Black, 9 Seconds or Less Color
Print: 6.5 Seconds or Less Black, 7.5 Seconds or Less Color
Resolution 1200 x 1200 dpi1, 9600 dpi x 600 dpi, 600 x 600 dpi
Memory: Std/Max 1 GB / 3 GB
Duplex Standard Stackless, Supports Statement to Legal ( 5.5" x 8.5" 8.5" x 14"), 16 lb Bond - 90 lb Index (60 163gsm)
Dimensions 18.7"W x 22"D x 24.3"H
Weight 78 lb
Maximum Monthly Duty Cycle 100, 000 Pages per Month
POWER CONSUMPTION
Electrical Requirements 120V, 60Hz, 9A; 220-240V, 50Hz, 5A
Typical Electricity Consumption (TEC) 120V: 1, 480 Wh/week; 220-240V 1, 450 Wh/week
Maximum (Including Options) 120V: 1, 116
W; 220-240V: 1, 179 W
Copy / Printing 120V: 516/500 W; 220-240V: 521/496 W
Ready Mode 120V: 68 W; 220-240V: 70 W
Sleep Mode 120V: 0.6 W; 220-240V: 0.6 W
Power Off 120V: 0.1 W; 220-240V: 0.2 W
PRINTER SPECIFICATIONS
Standard Controller ARM Cortex-A9 Dual Core 1.2GH z
PDLs / Emulations PRESCRIBE, PCL6 (PCL-XL/PCL-5c), KPDL3 (AES, PDF Direct Print Support), XPS, OpenXPS (TIFF/JPEG Direct Print Support)
Fonts Outline: 93 Fonts (PCL 6/KPDL3), 8 Fonts (Windows/Vista);
Bitmap: 1 Font, 79 Outline Fonts
Barcodes: 1
Dimensional: 45 Type; 2 Dimensional: PDF417 1 Type
Windows Windows 7/8/ 8.1 /10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016
Mac OS Requires Mac OS X v 10.5 or Later
Interfaces 10/100/1000BaseTX, 1 High-Speed USB 2.0 Port, 2 USB Host Interface, 1 Expansion Slot;
Optional: Wireless IB-36 LAN (Approx. 98 ft Range, AirPrint & Wi-Fi Direct), IB-51 (Approx. 328 ft Range); IB-50 Dual LAN NIC
Mobile Printing KYOCERA Mobile Print, KYOCERA Mobile Print for Students, KYOCERA MyPanel, KYOCERA Print Service Plugin, Apple AirPrint®2 & Wi-Fi Direct2, Google Cloud Print, Mopria®
Network Print and Supported Protocols TCP/IP, IPv4, IPv6, NetBEUI, FTP, LPR, Port9100, Apple Bonjour, IPP, WSD Scan/Print, DHCP, DNS, PNP-X, USB, LDAP, SNMP, SMTP, PDF Direct Print, PnP-X (WS-Discovery for WSD Print Service)
Drivers KX Driver, KX (XPS) Driver, PCL Mini Driver, KPDL Mini Driver, Network FAX Driver, MAC Driver, Linux Driver
Utilities KYOCERA Net Direct Print, File Management Utility, KYOCERA Print Center, KYOCERA Net Admin, KYOCERA Net Viewer, ID Register, Quick Setup, Maintenance Menu, Command Center RX; KYOCERA Fleet Services (KFS) & KYOCERA Net Manager (KNM) Ready
Additional Print Features HyPAS Capable3, EcoPrint, Private Print, Proof and Hold, Quick Copy and Job Storage3, N-Up Printing, Print Priority Setting, Job End Notification, Job Name Setting
SECURITY SPECIFICATIONS
Standard Local & Network Authentication, IPsec, HTTPS, SNM
Pv3, IPPS, POP over SSL, FTP over SSL, SMTP over SSL, LDAP over SSL;
Optional: HDD Overwrite & Data Encryption with Data Security Kit (E)
SCAN SPECIFICATIONS
Scan Type Color and Black & White Scanner
Scan Resolution 600 dpi x 600 dpi, 400 dpi x 400 dpi, 300 dpi x 300 dpi, 200 dpi x 400 dpi, 200 dpi x 200 dpi, 200 dpi x 100 dpi
Scanning Functions PC (SMB), E-mail (SMTP), USB, FTP, WSD, TWAIN/WIA; Continuous Scan, Mixed Originals, Skip Blank Page
File Formats TIFF (Compressed MMR/JPEG), PDF (Compressed MMR/JPEG), XPS, JPEG, PDF/A-1, PDF/A-2, PDF (High Compression), Encrypted PDF, Open XPS;
Optional: Searchable PDF and OOXML / OOXML (OCR) with Scan Extension Kit (A)
Scan Speeds Simplex BW/Color: @300 dpi - 60ipm/40ipm; @600 dpi - 40ipm/20ipm
Duplex (RADF) BW/Color: @300 dpi: 26ipm/17ipm: @600 dpi 17ipm/9ipm
Original Size Min/Max:
Glass/DP: Statement to Legal ( 5.5" x 8.5" 8.5" x 14");
Banner: DP Up to 36"
COPY SPECIFICATIONS
Image Mode Text, Photo, Text & Photo, Map, Light Text/Fine line Mode
Copy Quantity 1-999 / Auto Reset to 1
Job Management 200 Address Book Records, 100 Department Codes, 100 One-Touch Keys, 20 Program Keys, 2 Shortcut Keys
Magnification / Zoom Auto Zoom, Full Size, 7 Reduction, 5 Enlargement Preset Ratios, 25 - 400% in 1% Step Increments
Additional Features Auto Color Select (ACS), Auto Zoom, Auto Duplex, Continuous Scan, Skip Blank Page, ID Card Copy, Quiet Mode
DOCUMENT PROCESSOR
Type / Capacity Reversing Automatic Document Processor (RADF) / 75 Sheets
Acceptable Originals Statement to Legal ( 5.5" x 8.5" 8.5" x 14")
Acceptable Weights Simplex / Duplex: 13 - 32 lb Bond (50 120gsm)
FAX SPECIFICATIONS
Compatibility / Data Compression ITU-T G3 Fax / MMR, MR, MH, JBIG
Transmission Speed / Modem Speed 33.6 kbps
Fax Memory 3.5 MB
Fax Functions Duplex Transmission/ Reception, Density Adjustment, Original Image Quality, Original Type 1-Sided/2-Sided, Send Size, Continuous Scan, Direct Transmission, PollingReception, Quiet Mode, Mixed Originals (Same Width), Banner
PAPER SUPPLY
Standard Paper Sources Single 250 Sheet Drawer, 100 Sheet Multipurpose Tray
Standard / Maximum Paper Sources 2 / 5 Including Multipurpose Tray
Standard / Maximum Paper Capacity 350 Sheets / 1, 850 Sheets
Paper Size Standard and MPT: Statement to Legal ( 5.5" x 8.5" 8.5" x 14"), Custom
Paper Weight Standard / Optional Drawers: 16 lb Bond 90 lb Index (60 163gsm);
MTP: 16 lb Bond 120 lb Index (60 220gsm)
Standard Output Tray Capacity 250 Sheets
Input Materials Plain Paper, Letter Head, Bond Paper, Recycled Paper;
MPT: Cardstock, Labels, Transparency, OHP, Vellum, Envelope
