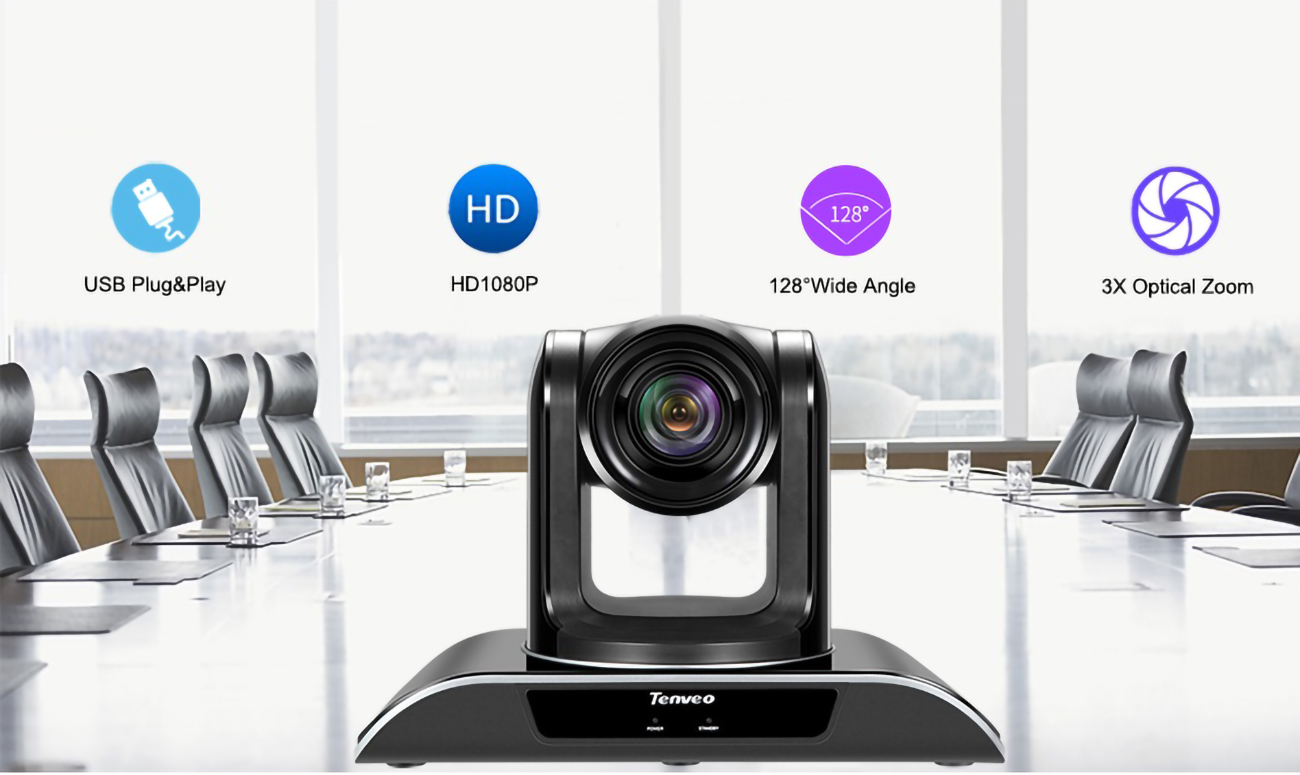

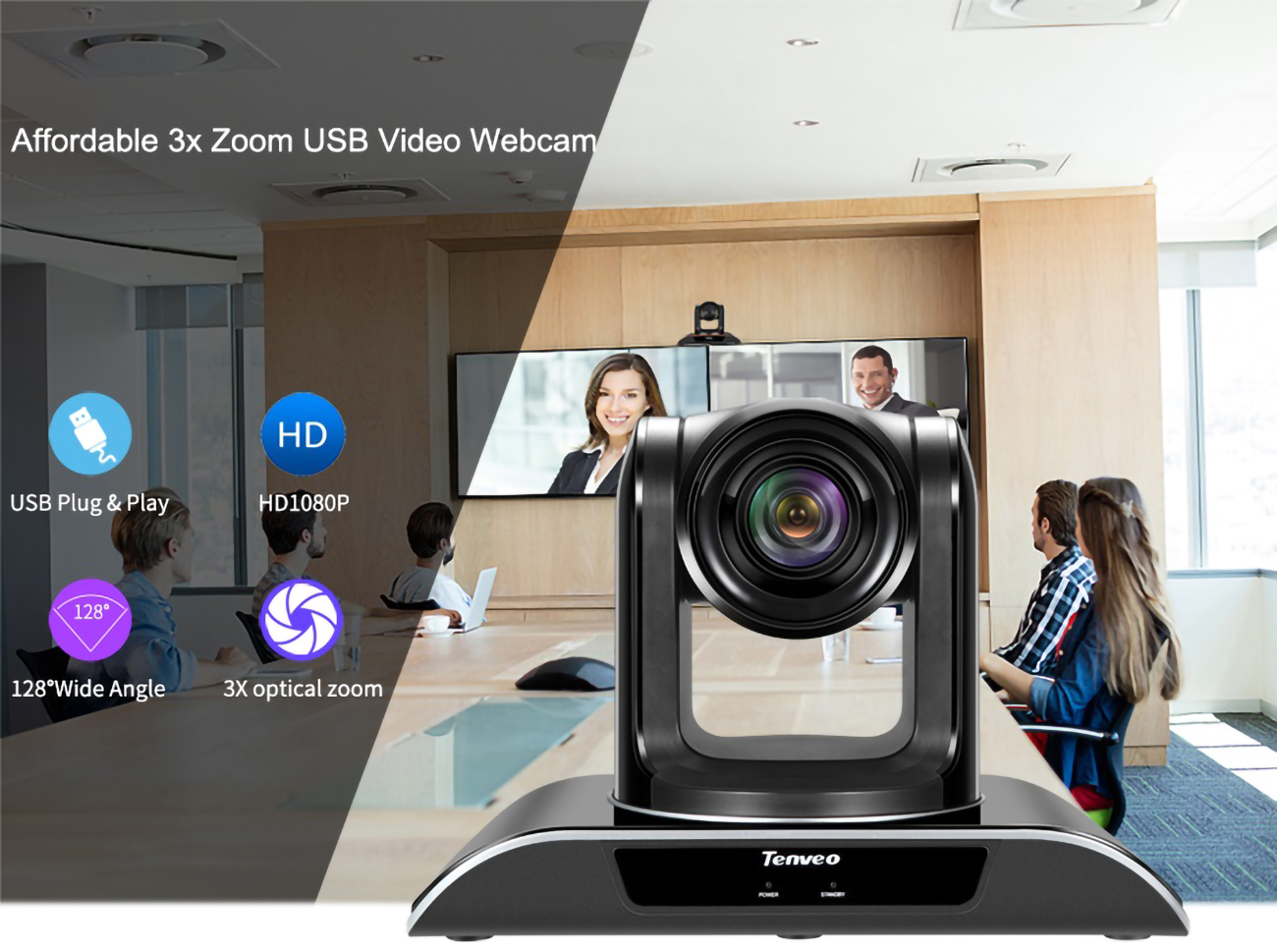

Affordable 3x Zoom USB Video Webcam
Full HD Image
1/2.7" HD Color CMOS sensor, 2.1 mega pixel, 1920 * 1080(1080P)
Superior Quality Full Glass Lens

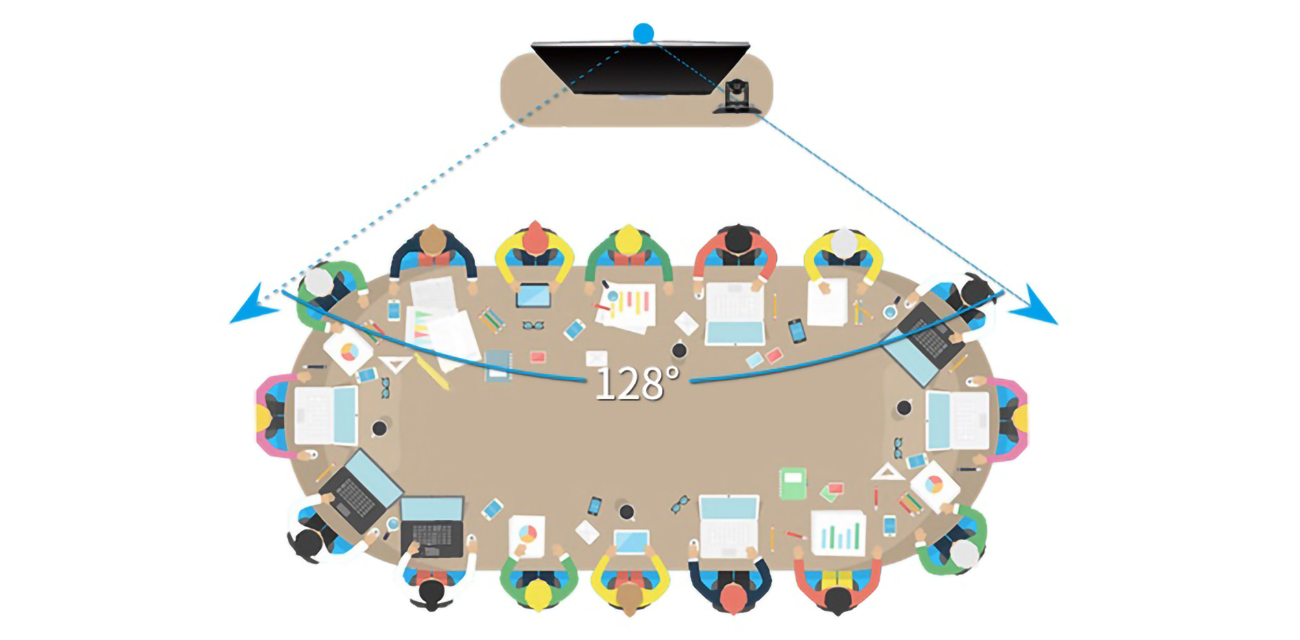

128° Super Wide Angle View
Plug & Play USB Connectivity
Installation
Wall mount

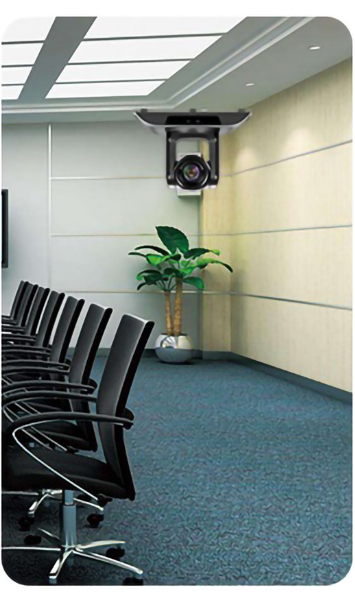

Ceiling

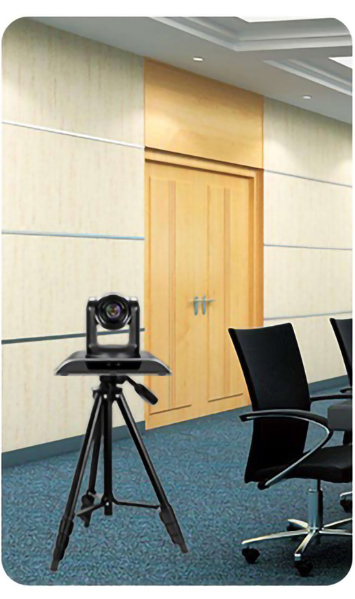

Tripod mount
Compatible with
Win7 / 8 / 10, XP, Mac OS X10.7 or Above and Android etc
Our Certification
Tenveo VHD3U 3X Zoom USB PTZ Camera 1080P HD Conference Camera 2MP With H. 264 Broadcast Live Streaming Cameras Healthcare
Features:
USB 2.0
HD1080P 2.1 mega pixel
3x optical zoom
Wide angle 90,
Pan: 0-340
RS-232, RS-422, RS-485,
IR remote control
?
Tips: Press the Number(1-9) directly to call the reserved preset. Fast and Smooth
PRESET+Number: To set preset position of this number.
RESET+Number: To clear preset position of this number.
Highlisht
3x optical zoom
Sleek and intelligent design
Plug Play USB Connectivity
Crystal clear HD1080P image quality
Accurate, smooth and silent PTZ Movement
Preset: 9 via IR remote setting (256 via RS232)

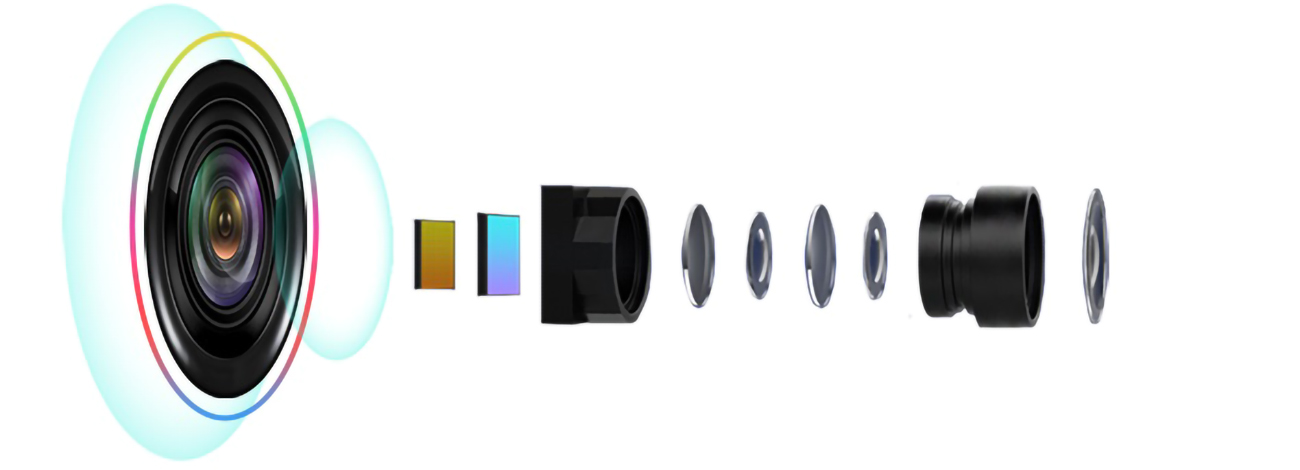

Superior quality with Full Glass Lens Material
128 wide field of view with no video distortion
1/ 2.7 inch high quality, 2.1MEGA PIXEL ( 16:9 ) CMOS sensor
Support ceiling mount, wall mount and tripod mount (Reverse mountable)
2D and 3D NR for best video quality in different lighting conditions
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
Compatible with most leading video conferencing software and platform

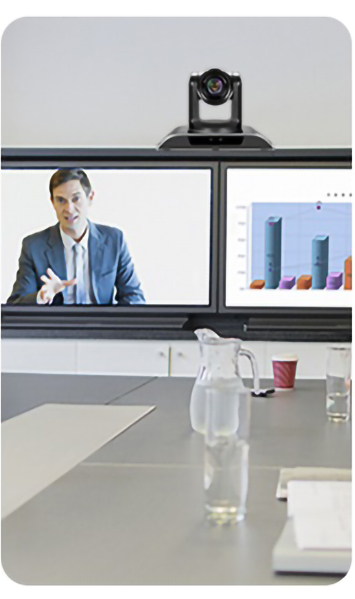

Some real photos
Specification
Product No.
TEVO-VHD3U
Image Sensor
1/ 2.7 inch HD Color CMOS
Effective pixel
2.1 mega pixel( 16:9 )
Horizontal Resolution
1080P30/25, 720P30/25
Signal standard
NTSC/PAL
Zoom
3x optical zoom
Focal length
F= 3.0 mm (wide) - 10.0 (tele)
Horizontal Angle
Near-end 128 ~Far-end 37
Gain control
Auto/manual
Focus
Auto/manual
SNR ratio
ge; 50dB
Shutter speed
8 to 1/10000s (auto)
Preset position
IR remote control supports 9 presets
PELCO Protocol supports 256 presets
Pan/Tilt movement range
Pan: 340 (max speed 80 /S), Tilt: 120 (max speed 60 /S)
Control terminal
RS-232, RS485
Control Protocol
VISCA, PELCO-D, PELCO-P (RS-232, RS485)
Video output
USB
Video Compression Format
YUV, MJPEG, H. 264
Noise Reduction
2D/3D
Work temperature
-10 C-~50 C
Storage temperature
-20 C~60 C
Baud rate
2400/4800/9600bps
Decoder
Built-in
Address set
1~256
Installation
Support desktop, Tripod, Wall mount and Ceiling mount
Power supply
DC12V/ 2A
Power consumption
12 W
Net weight/Gross weight
1.5 kg/ 2.85 g
Dimension (LXWXH)
260*175*180 mm /296*225*218mm (before / after packing)
Accessories
DC 12V Power adaptor, IR remote control, Manual, RS232 cable, USB 2.0 cable, Ceiling brackets screws.
What's in the box
?
1 X Camera
1 X DC 12V power adaptor
1 X IR remote control
1 X Manual
1 X RS232 cable
1 X USB. 0 cable
1 X Brackets screws
