HD CCTV Camera 1080P WebcamSony IMX322 Low Light 0.01Lux Web Camera 2MP USB 2.0 Video Camera For Machine Vision

HD CCTV Camera 1080P WebcamSony IMX322 Low Light 0.01Lux Web Camera 2MP USB 2.0 Video Camera For Machine Vision

Key Features:

1. Ultra Low light Camera, Minimum illumination 0.01lux

2Support otg protocal

4. Max resolution :1920*1080P ,2.0 Megapixel

5.  Use Highly advanced  IMX322 Sensor

6. Compression format : H264 /MJPEG / YUV2(YUYV)

7. White balance Function: Resolve color reduction and tone processing issues

8.Equiped with  2.8-12mm/5-50mm  varifocal lens , 4/6/8mm CS lens optional

Specifications:

Model

-USBFHD06H-SFV (2.8-12mm varifocal lens)

Sensor

 IMX322

Lens Size

1/2.9 inch

Pixel Size

12.8X11.6 mm

image area

2000(H)X1121(V)  approx. 2.24 M pixels

Max. Resolution

1080P

Compression format

H264 /MJPEG / YUV2YUYV

Resolution & frame

H264: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps

MJPEG:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps

YUV:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps

S/N Ratio

42dB

Dynamic Range

86dB

Sensitivity

5.0V/lux-sec@550nm

Mini illumination

0. 01 lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

Drive Protocol

USB Video ClassUVC

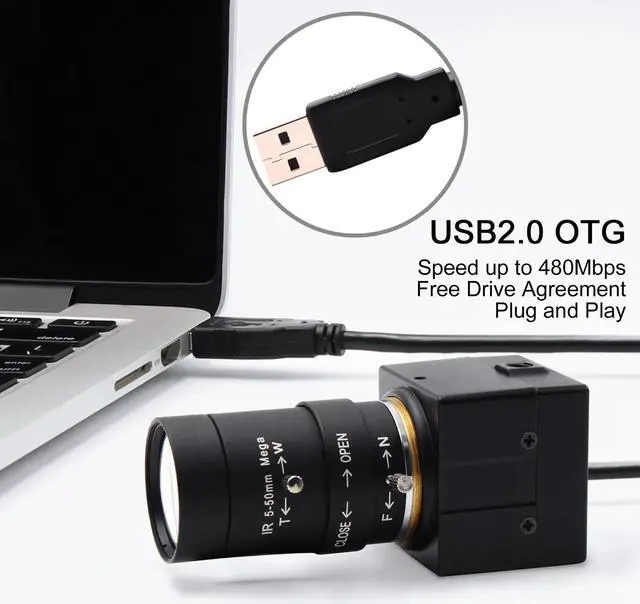

Support OTG Protocol

USB2.0 OTG

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,

Gain, White balance, Backlight Contrast, Exposure

Lens Parameter

2.8-12mm Varifocal lens

Digital audio

Need customize

LED board power connector

Support  2P-2.0mm socket

Power supply

USB BUS POWER  4P-2.0mm socket

Power supply

DC5V

Operating Voltage

140mA~190mA

Working current

1070

Working temperature

2085

Board size /Weight

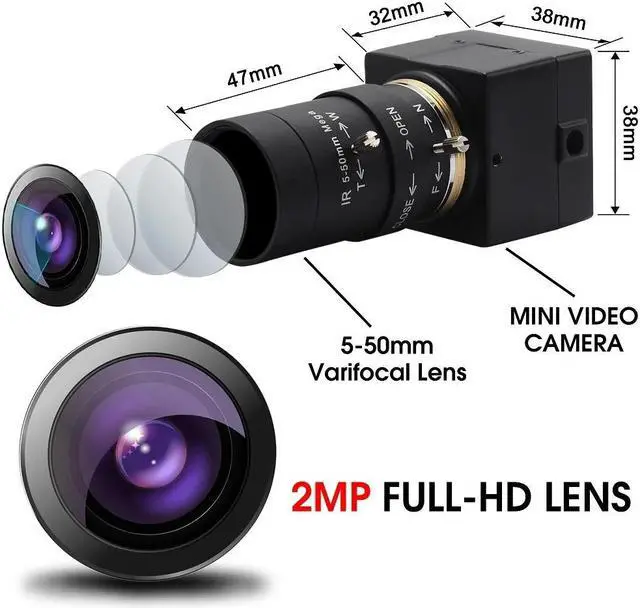

38X38mmCompatible 32X32mm/ about 30g

Cable

Standard  1M / optional 2M,,5M

Operating system request

Win7 Win8

Linux 2.6 or above

Android 4.0 or above

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic

vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law

enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,

automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video

shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD

surveillance, endoscope, Medical auxiliary equipment, etc.
