Install Innex Studio to unlock the full capabilities of C831, enabling AI-based auto framing and various layout modes.
You can intuitively change the field of view and move it left or right using the buttons on the main unit.

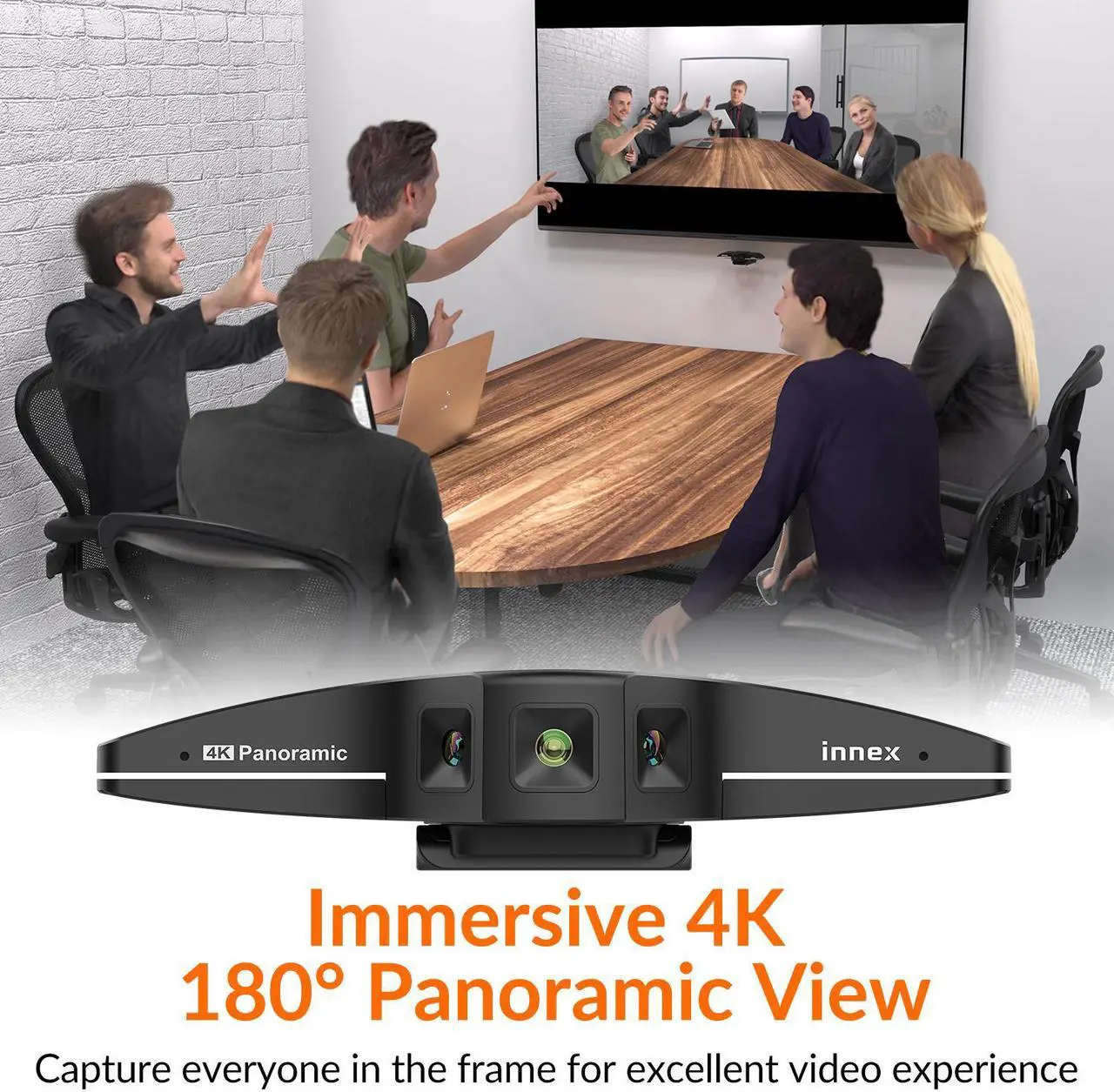

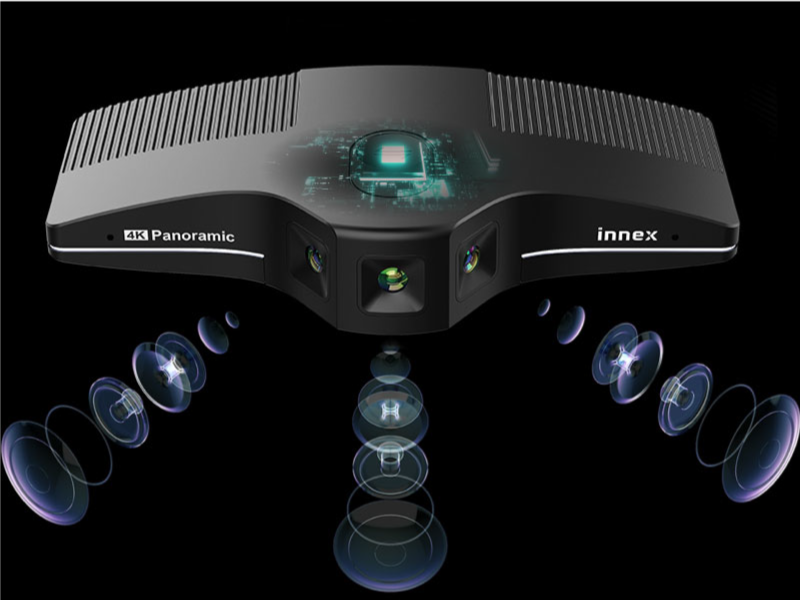

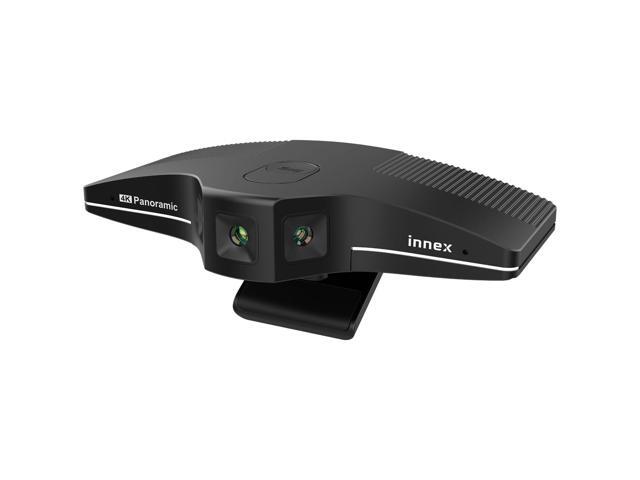

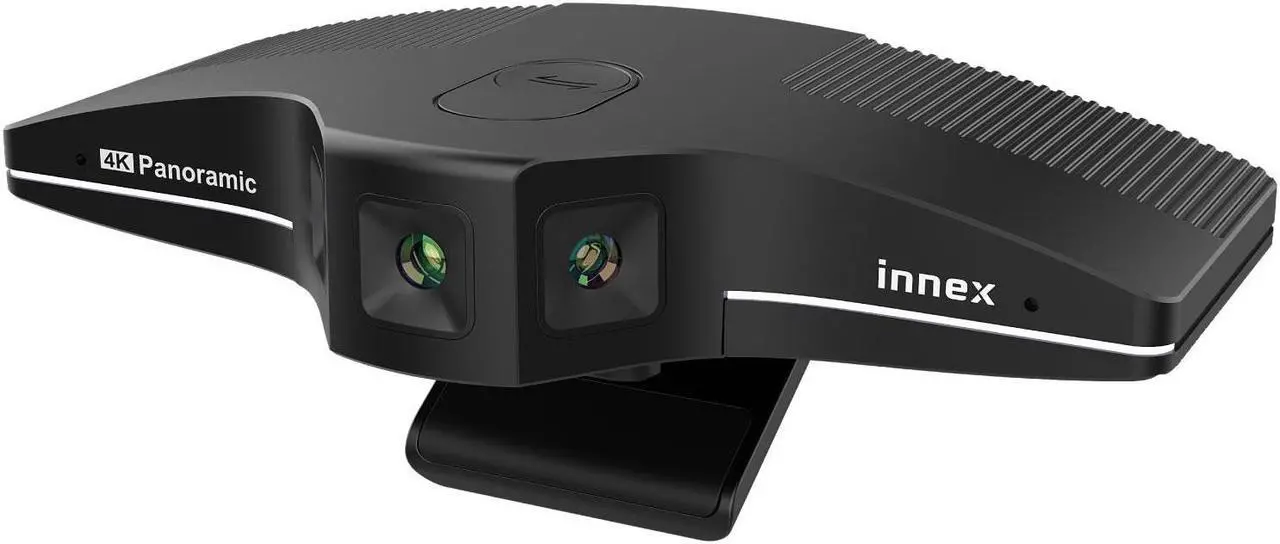

The Innex C831 captures 180° 4K panoramas with three 12MP cameras and real-time stitching technology.

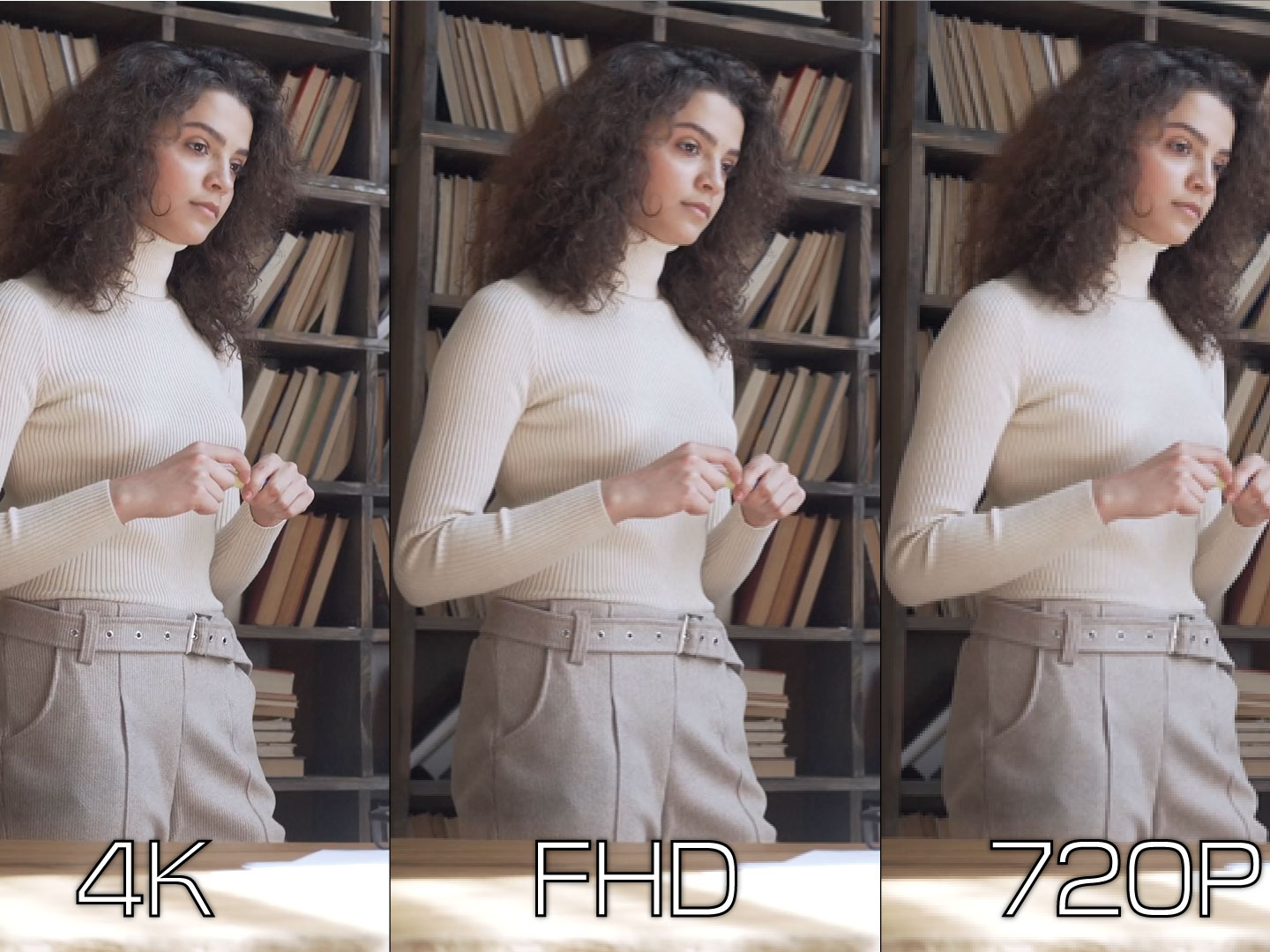

The difference shines after digital zoom - 4K resolution is essential to preserve image quality.
Wide Field of View: Covers the entire room.
ePTZ: Adjusts view based on participants.
AI-Powered: Automates ePTZ adjustments.
High Resolution: Ensures clarity, even with digital zoom.

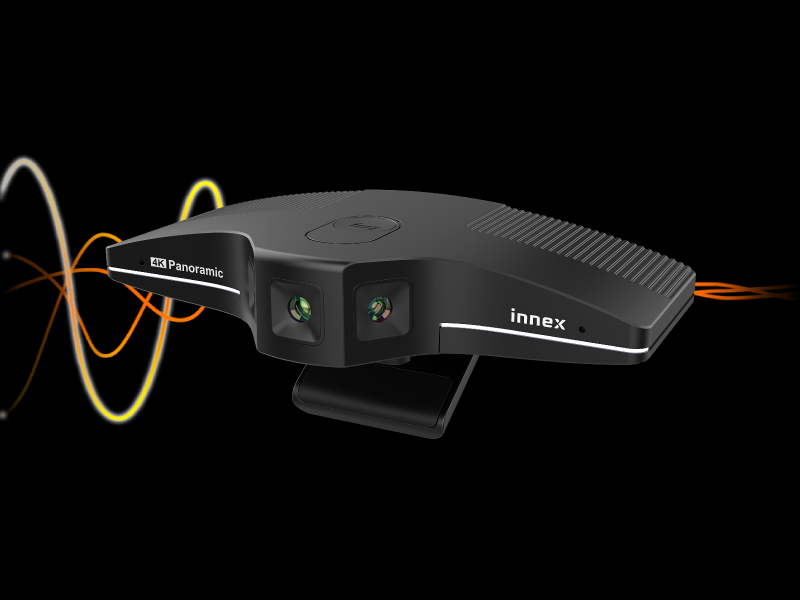

The Innex C831 features dual noise-canceling microphones, ensuring clear and stable audio transmission.

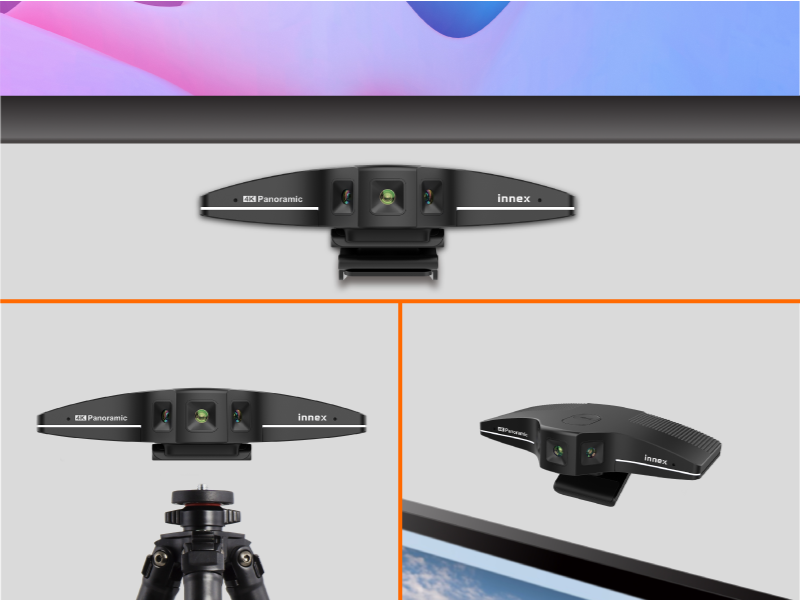

Clip (Built-in), tripod (Not included), or wall-mount (included) for perfect positioning.

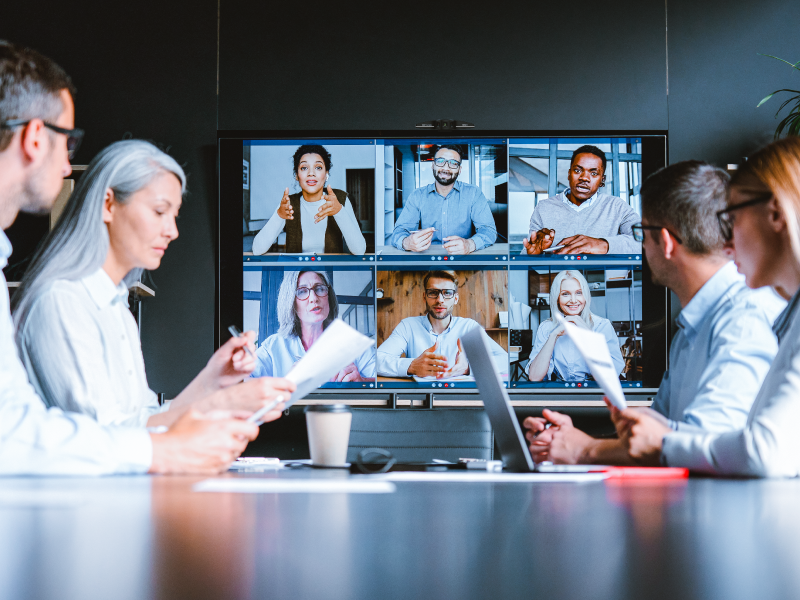

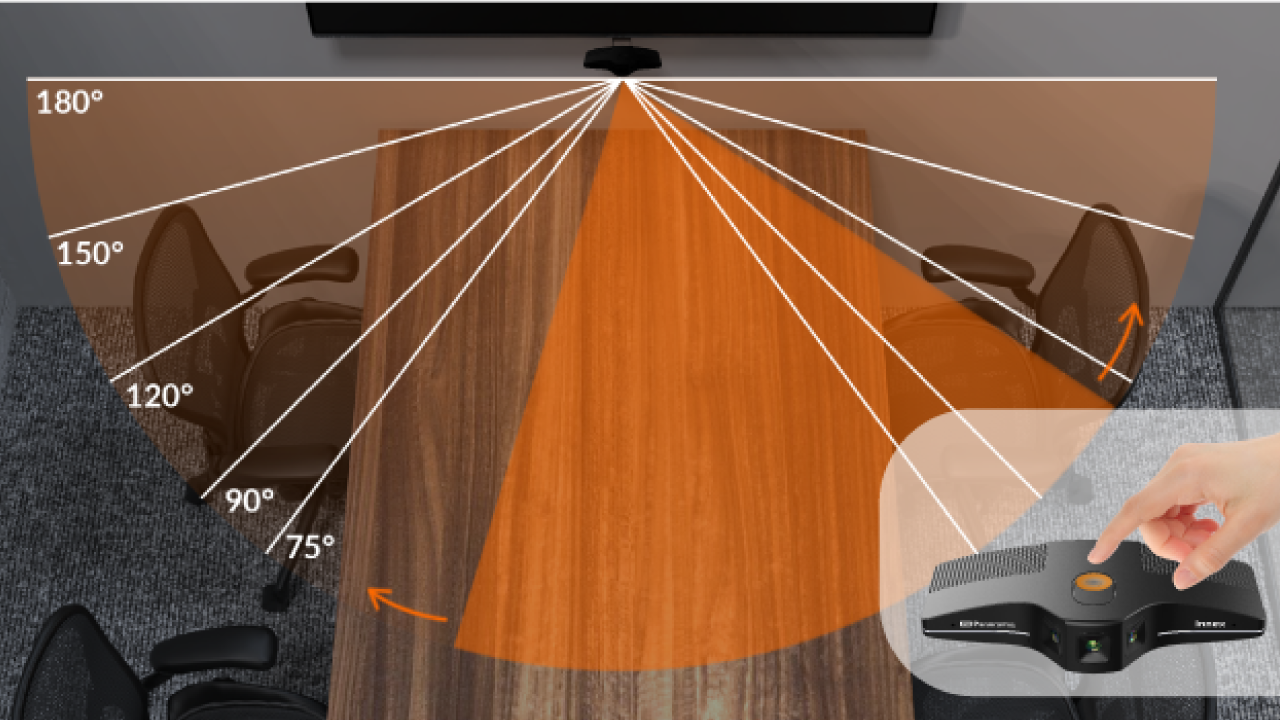

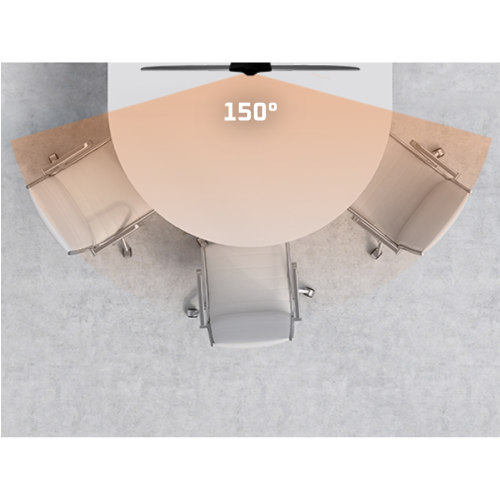

The Innex C831, perfect for Huddle Spaces, offers a 180° FoV with easy switching between 180°, 150°, 120°, 90°, and 75°.

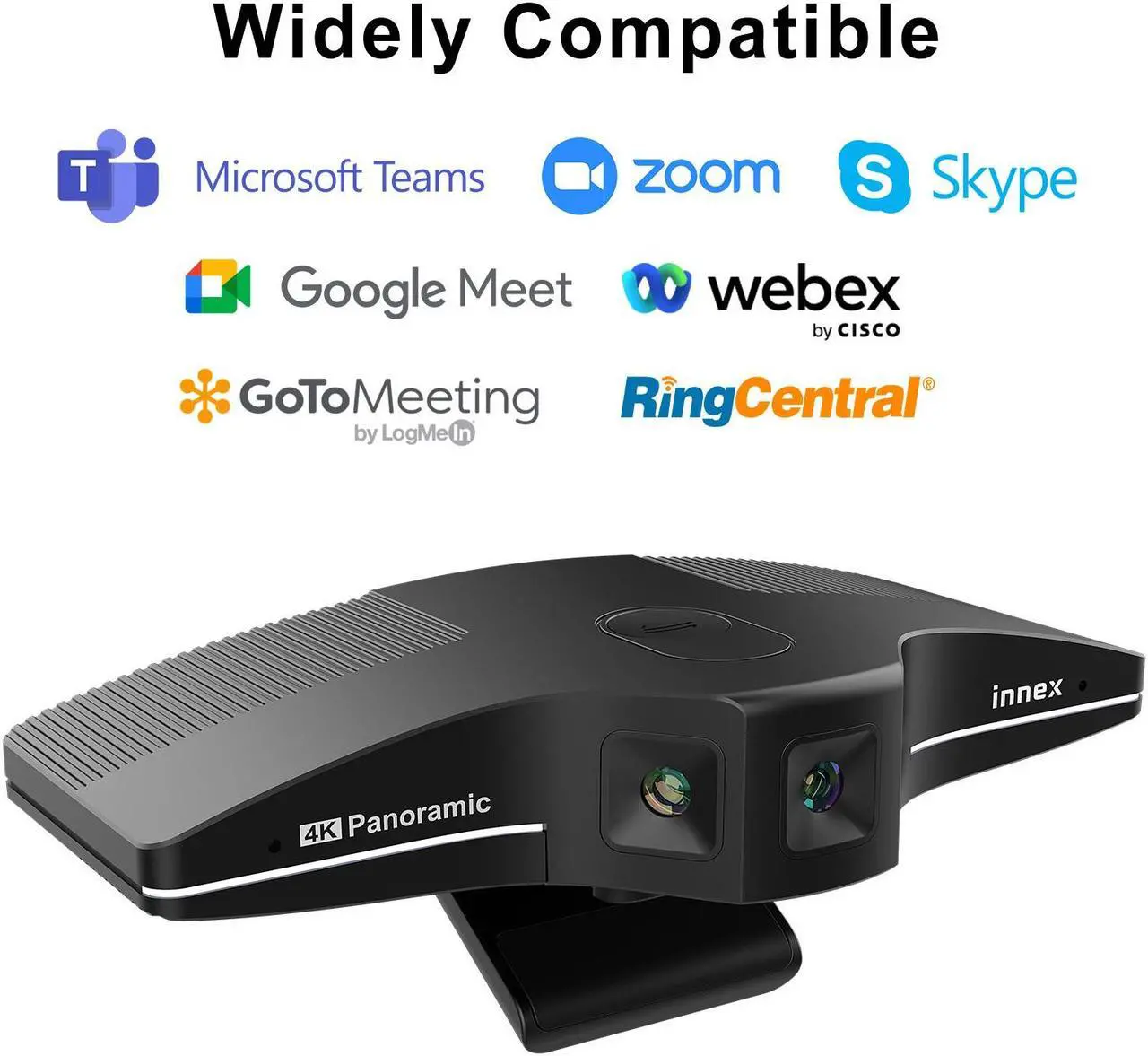

The Innex C831 features plug-and-play setup, simply connect to your computer, no software installation needed.
The C831's memory mode preserves your FoV and angle, keeping settings intact after unplugging or switching computers.

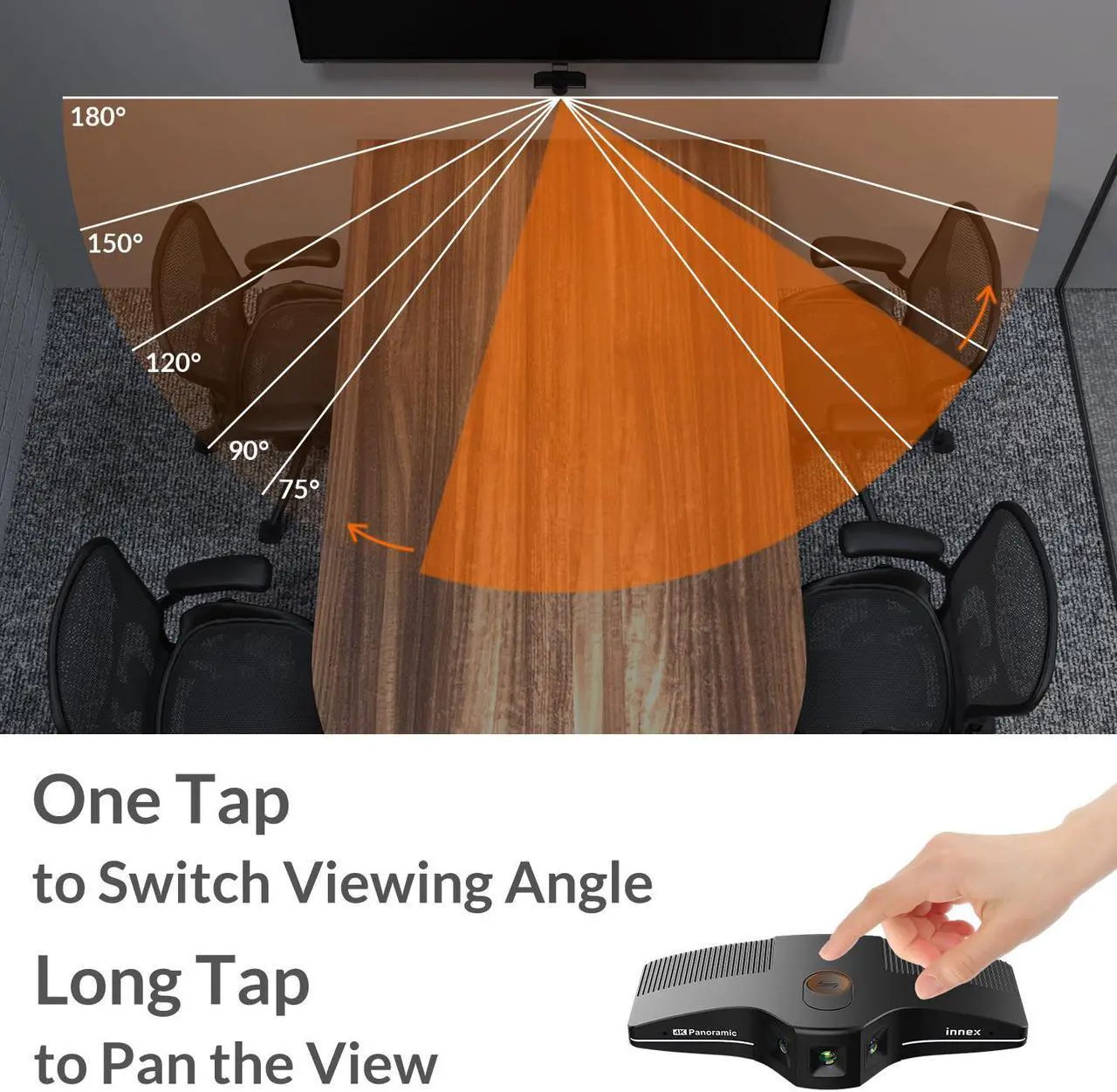

Long-press the button to easily adjust the camera or projection left and right, no software needed.

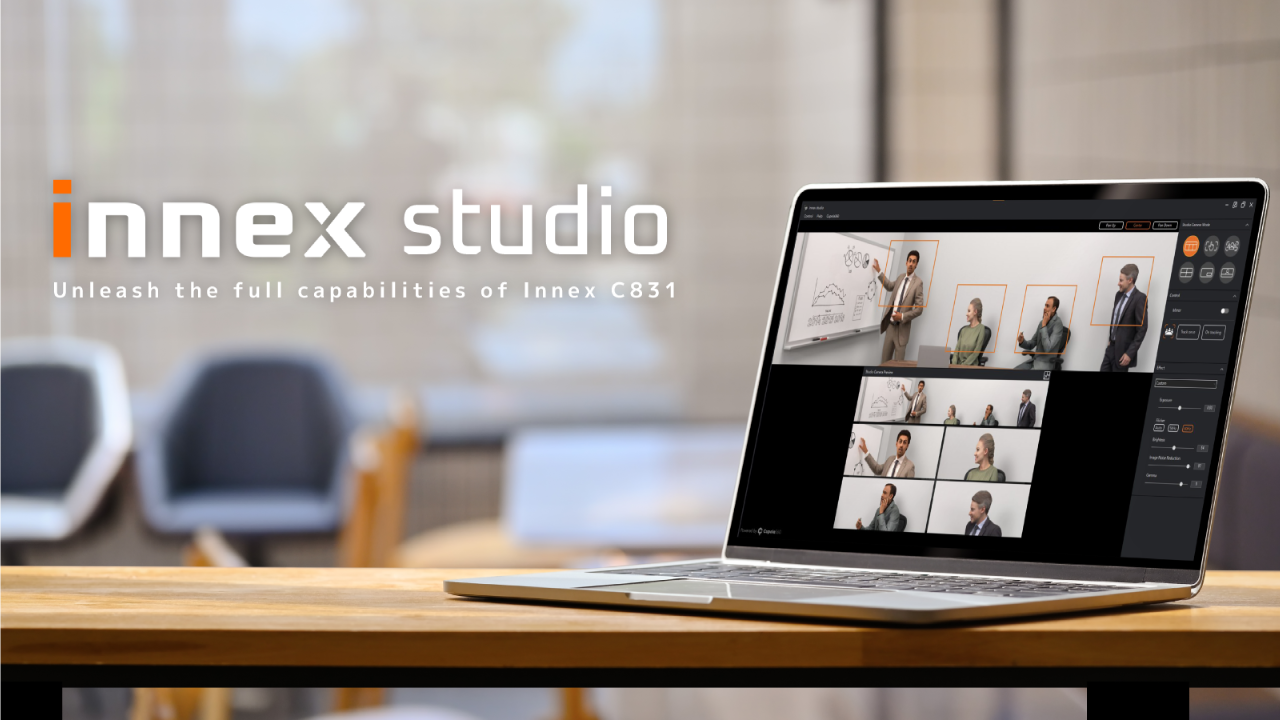

With the Innex Studio software, access AI-powered modes for an immersive
meeting experience, plus adjust image quality and perform firmware updates.

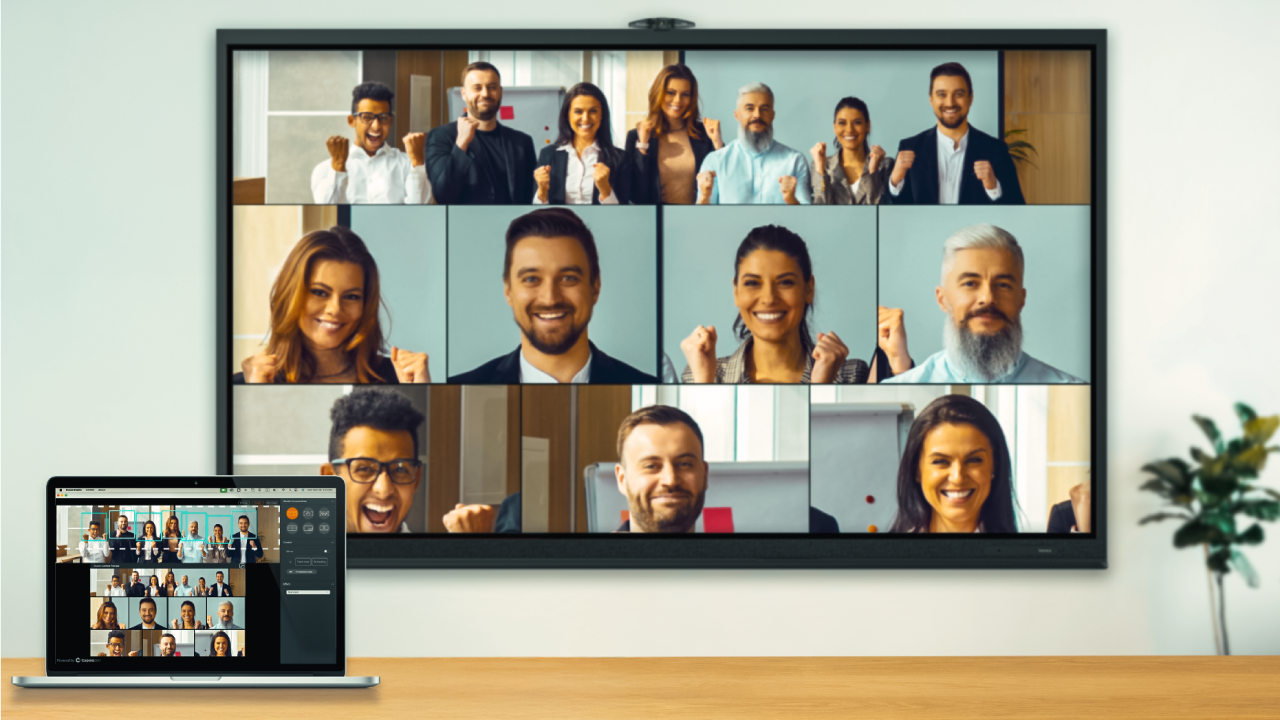

AI generates up to 8 close-up views using facial tracking, or manually by dragging boxes.
A panoramic view on top, with up to 8 close-ups below, created manually or using facial tracking.

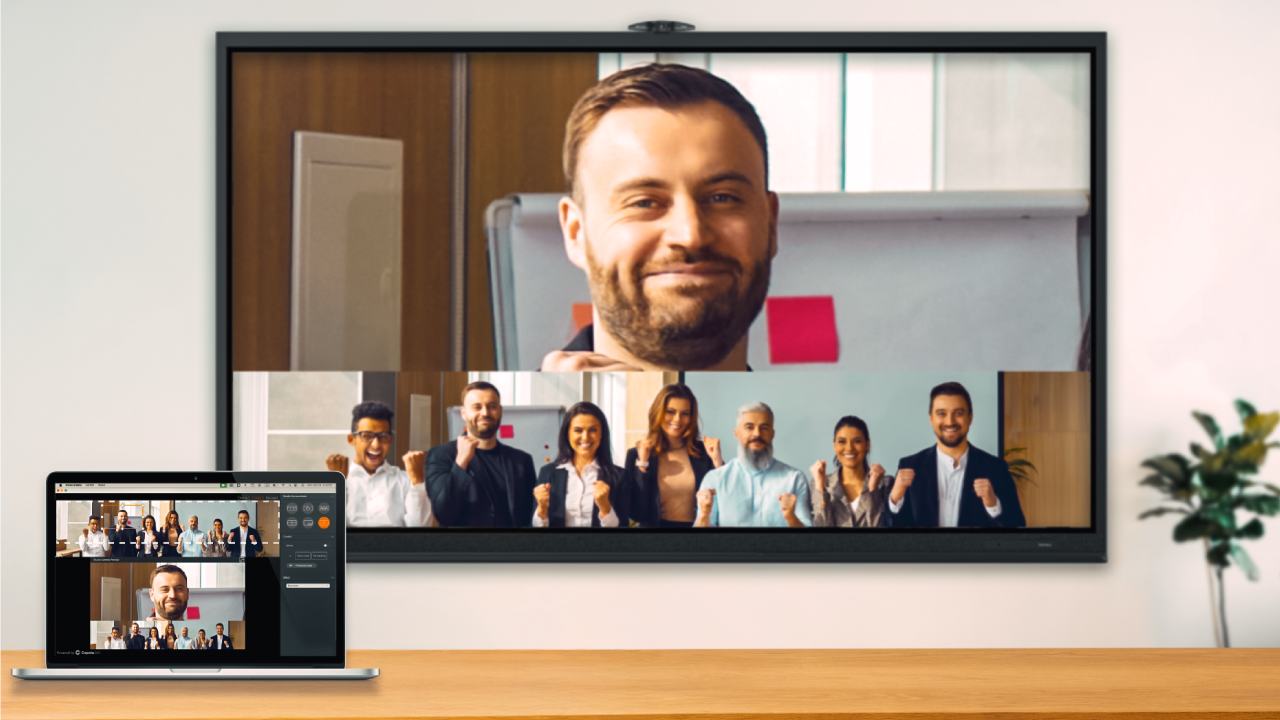

Pin the speaker at the top while displaying the panoramic view.
Adjust the yellow box to cover a whiteboard or area, then pin and track the speaker.
Auto-zoom keeps everyone centered, adjusting the frame as participants join or leave.

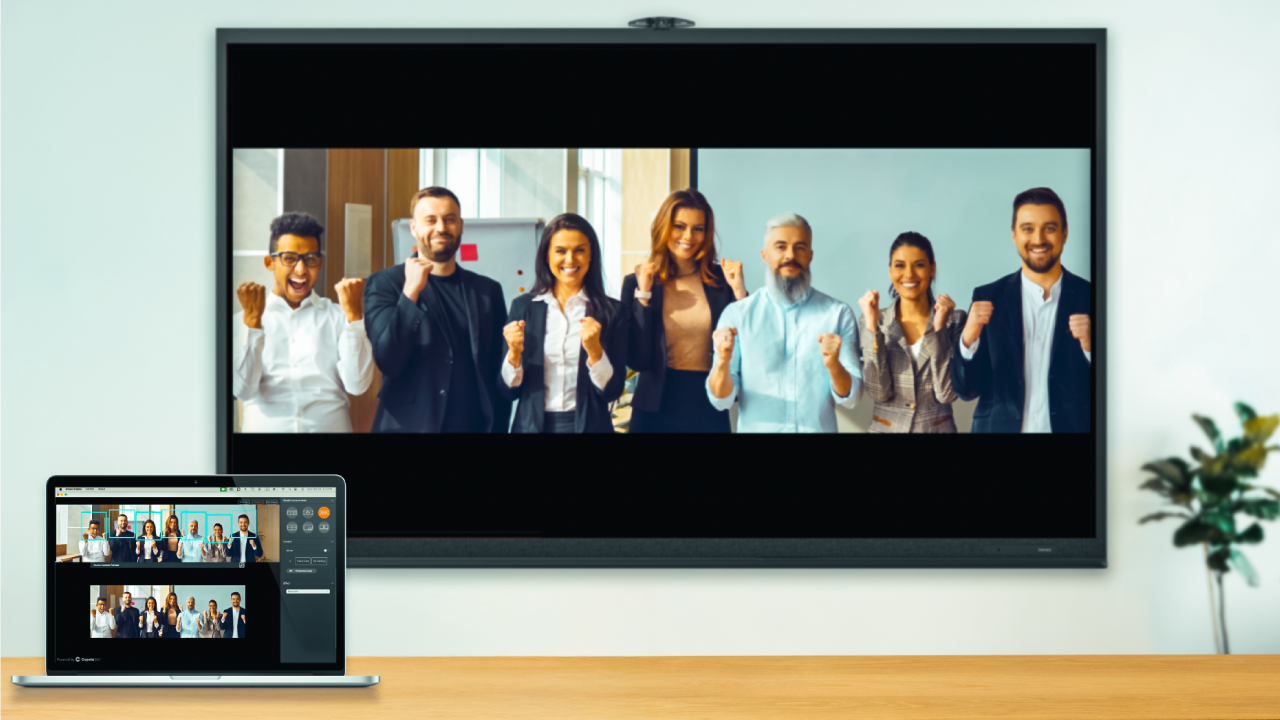

AI automatically places each participant in their own frame.

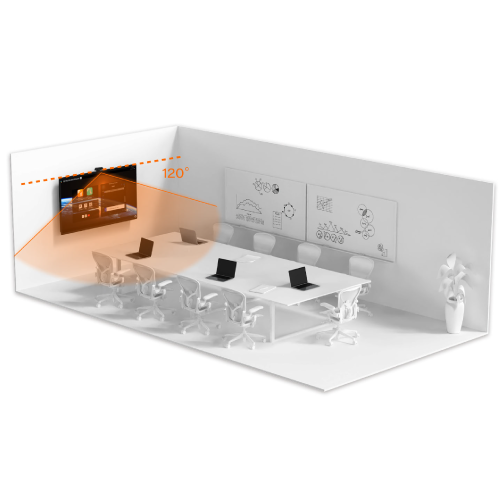

The Innex C831 covers the entire area, even in tight spaces.

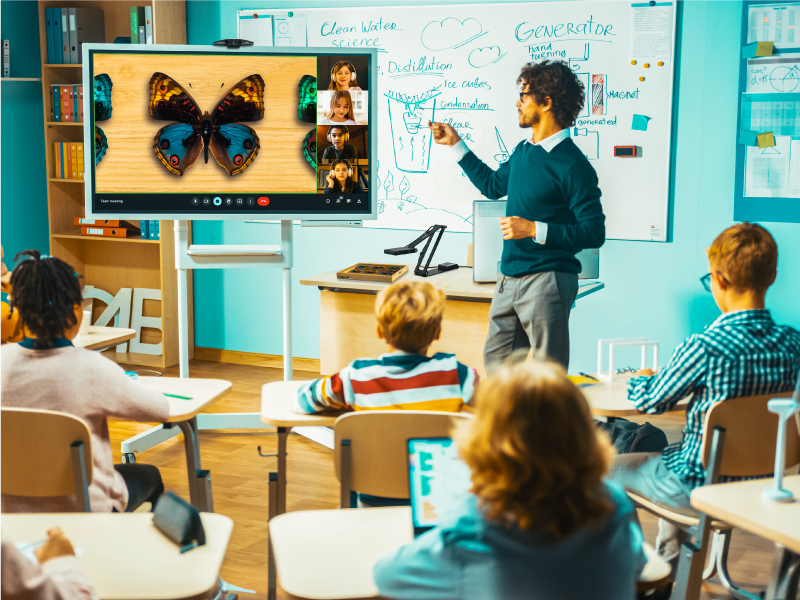

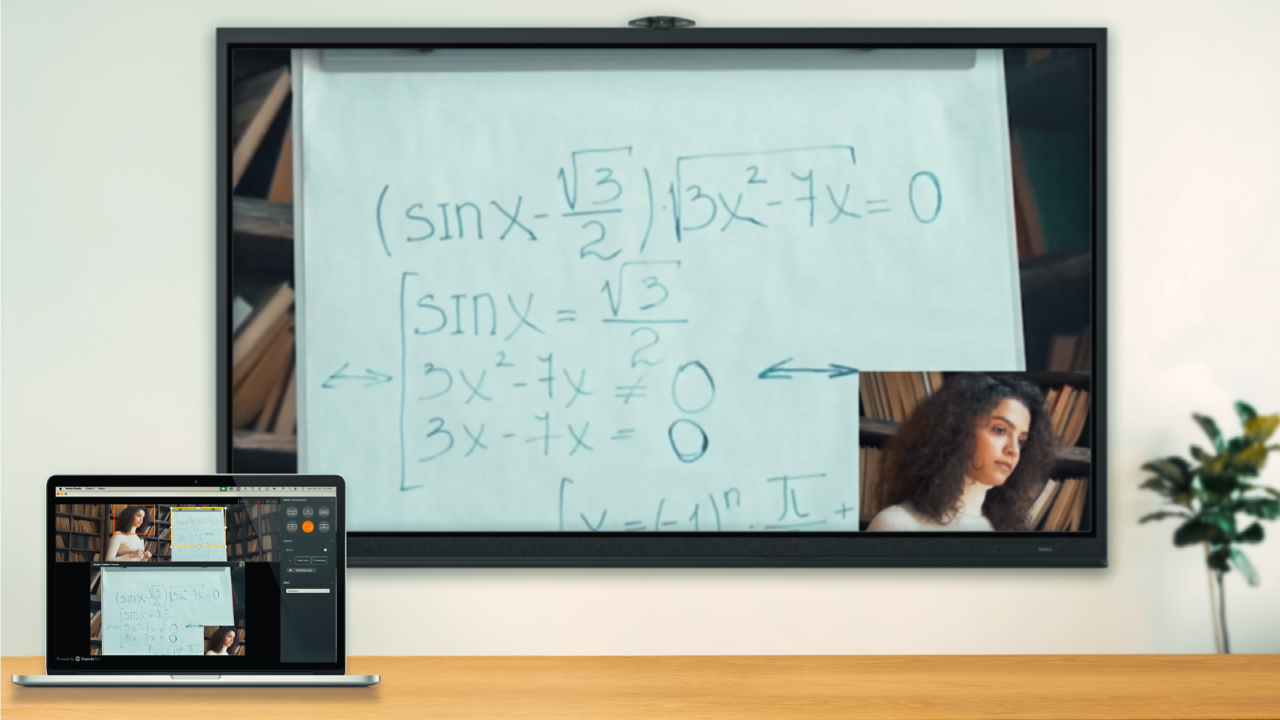

Whiteboard Mode keeps the whiteboard visible while tracking the teacher.
Tracks the entire team's movements, enduring no detail is missed.
| Products | ||||||
|---|---|---|---|---|---|---|
| Resolution | UHD 4K | UHD 4K | UHD 4K | UHD 4K | UHD 4K/3840×2880 | UHD 4K/3840×2880 |

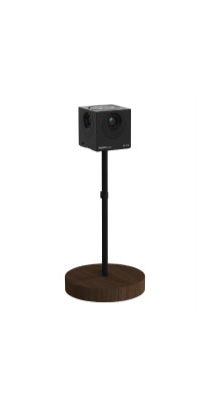

| Field of view/Shooting area | 180° | 360° | 120° | 120° | 82°/ min distance 10cm/3.94" | 82°/ min distance 10cm/3.94" |
| Microphone | ||||||
| AI auto-framing | ||||||
| AI gallery mode | ||||||
| G-sensor | ||||||
| Remote control | ||||||
| Dimension | 5.75 x 1.3 x 2.91 inches | 2.6 x 2.6 x 2.6 inches | 6.4 x 4.8 x 3.6 inches | 4.6 x 2.2 x 2 inches | 7.7 x 2 x 0.8 inches | 7.7 x 2.6 x 0.5 inches |
| Weight | 8.47 oz | 9.2 oz | 6.7 oz | 7.2 oz | 15.8 oz | 13.4 oz |
| Video Resolution & FPS | 4K@30fps |
|---|---|
| Focus | Fixed Focus |
| Video Features | 3D DNR |
| Video Format | MJPG/H.264/YUY2 |
|---|---|
| Field of View | Diagonal: 180°, Horizontal: 170°, Vertical:90° |
| Built-in Microphone | Dual Stereo Omnidirectional Microphone Array |
|---|---|
| Microphone Frequency Response | 100Hz-13KHz |
| Pickup Range | Effective: 3ft, Maximum: Up to 26ft |
| Sensitivity | -26dBFS |
|---|---|
| Automatic Gain Control | Yes |
| Noise Reduction | Yes |
| Interface | USB Type C (For connecting to a PC), USB Type A (Pass though) |
|---|---|
| Powered By | USB3.0 or above |
| Mount Type | Clip, Tripod, Wall Mount |
| Net Weight | 8.47 oz |
| Protocol | UVC; UAC; Plug-and-Play |
|---|---|
| Operating System | Window 11, 10, MacOS 10.15 or above |
| Dimensions | 5.7×1.3×2.9 inches |
| Accessories | USB Cable (Type-C to Type-A 1.5 m / 4.9 ft), Wall Mount, Quick Guide, Safety Information |
