8MP 4K Autofocus USB Camera

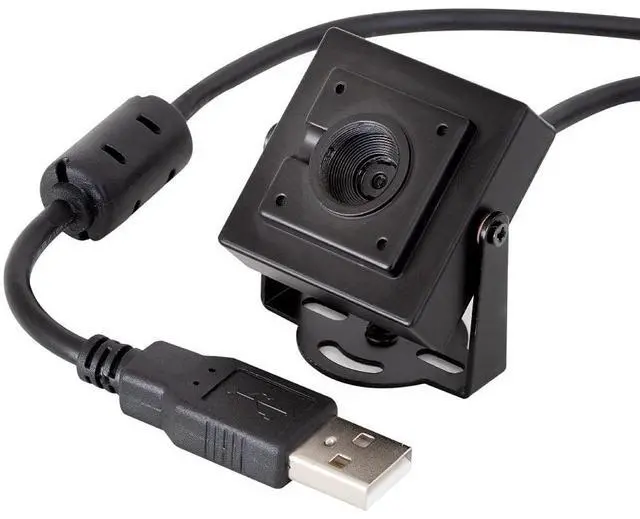

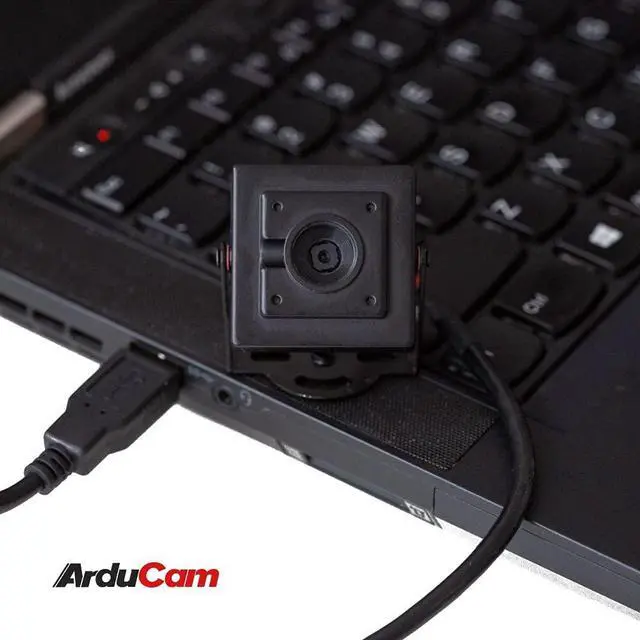

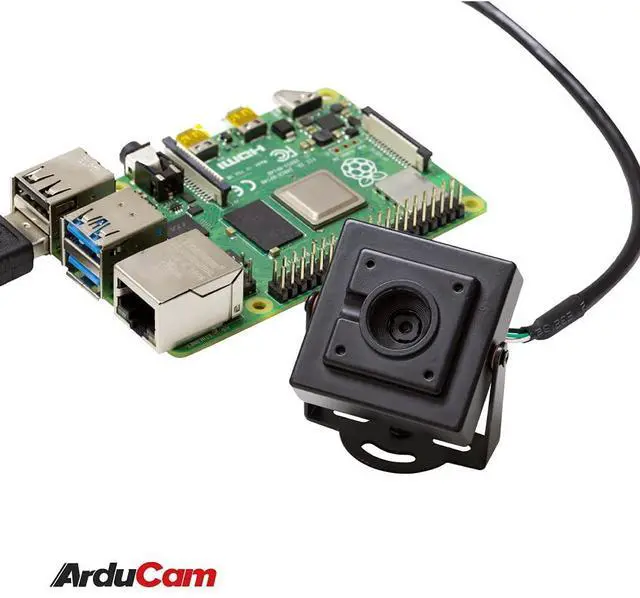

Based on 1/4” 8MP IMX219 image sensor, autofocus, UVC compliant USB 2.0 cameras. This is a portable USB camera that comes with a metal case and rotatable bracket, you can easily put it on a desk or install it on a trip or on the wall with screws and adjust to your preferred angles, great for home security monitoring, online teaching, live streaming, online meeting or embedded industrial project.

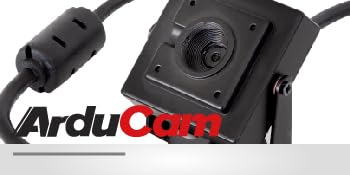

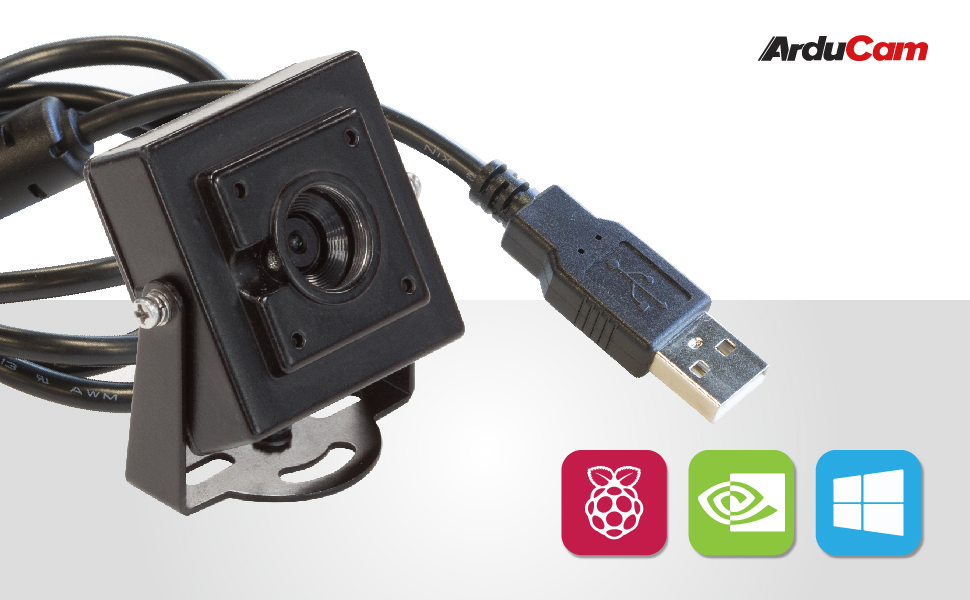

No extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera.

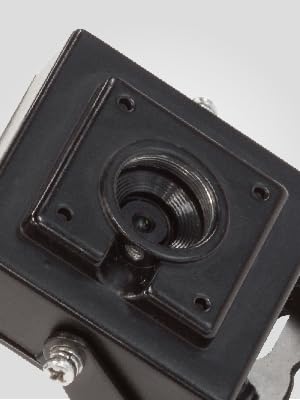

Auto control the focusing process to capture the moving object, works like the human eye, and shots the imaging you want.
Ultra HD resolution meets your request for higher quality video still pictures resolution.
Built with microphone, capture video with audio.
Physical:
- Operating Temp.: -4°F~158°F (-20°C~+70°C)

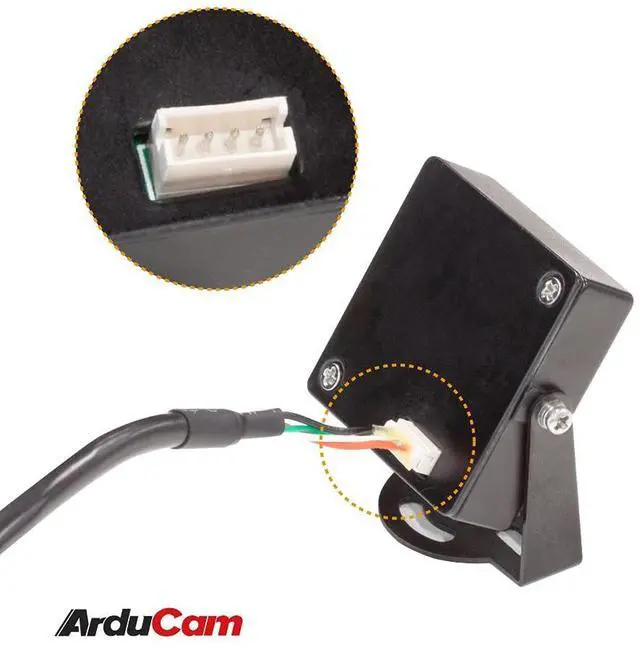

- Connector No.: ZHR-4
- Cable Length: 3.3ft (1M)

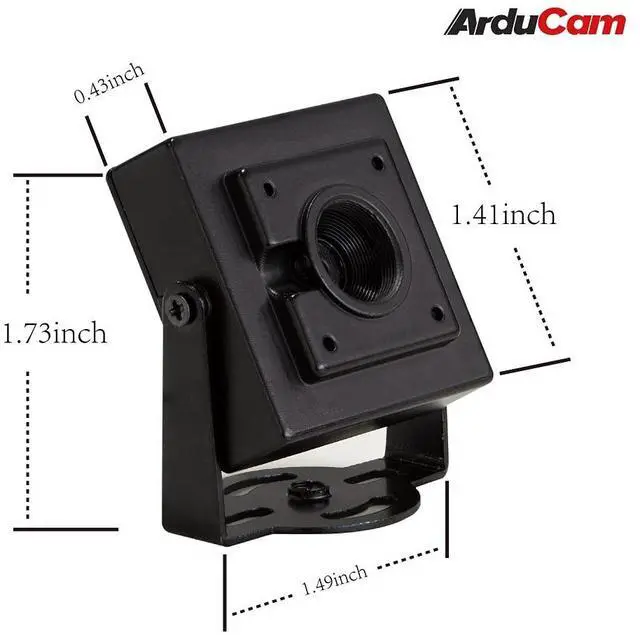

- Dimension: 44mmx25x44mm
SPEC
Camera
Sensor: 1/4” IMX219
Resolution: 8MP 3264H x 2448V
Data Format: MJPG/YUV
Frame Rate:
- MJPG: 15fps@3264x2448/2592x1944; 30fps @1920x1080/1600x1200/1280x720/800x600/640x480
- YUV: 10fps@1280x720/800x600/640x480/320x240L
Lens
- Field of View (FOV): 60°H X 72°D X 47°V
- Focusing Range: 10cm-8
- Focus Type: Motorized focus
- IR Sensitivity: Integral IR filter, visible light only
Functionality and Compatibility:
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure
- System Compatibility: Windows, Linux, and Mac with UVC
- Power Supply: DC 5V
- Working Current: MAX 200mA
Applications:
- Home surveillance system
- Dashcam
- Monitoring 3D Printer
- Object recognition and tracking
