Welcome To The Future Of Connectivity!
Experience the pinnacle of display technology. Crafted for excellence, the UPTab adapter seamlessly blends design with functionality.

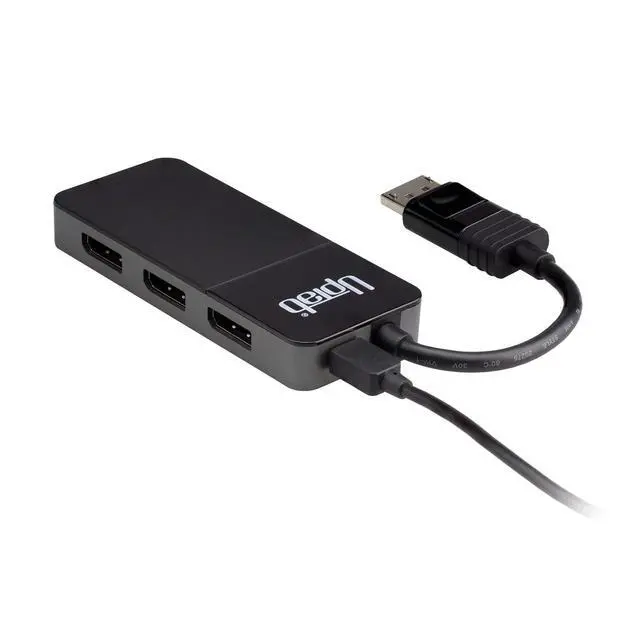

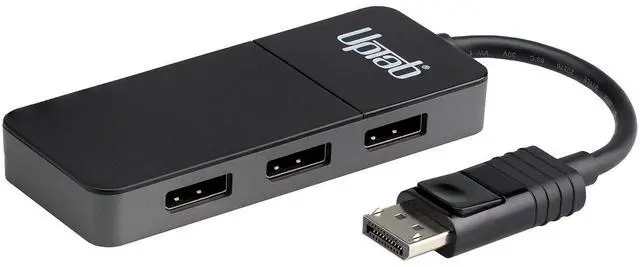

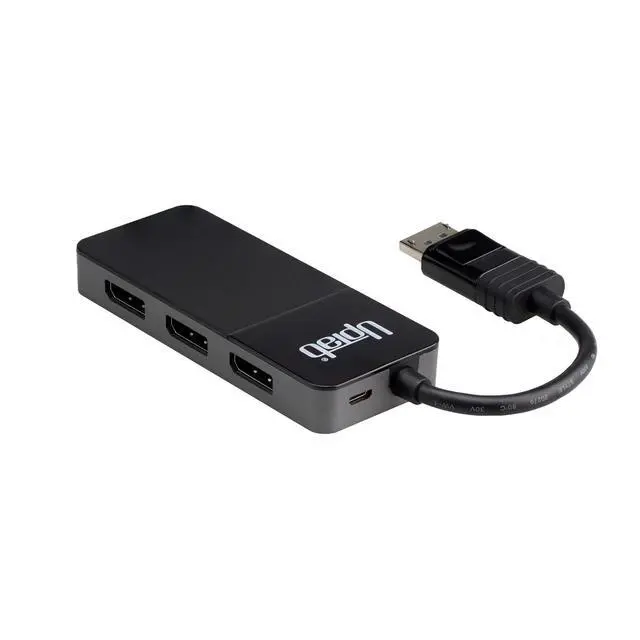

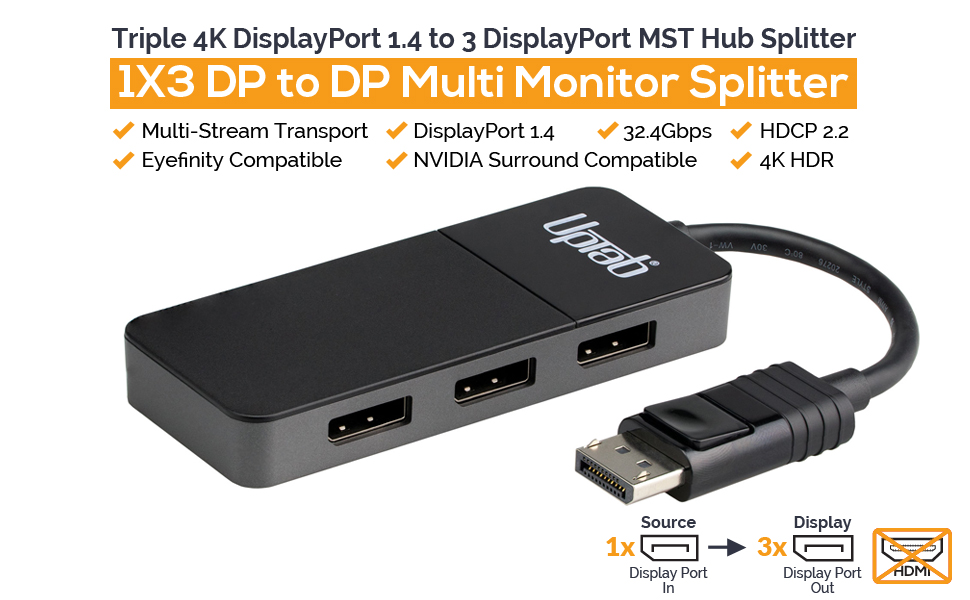

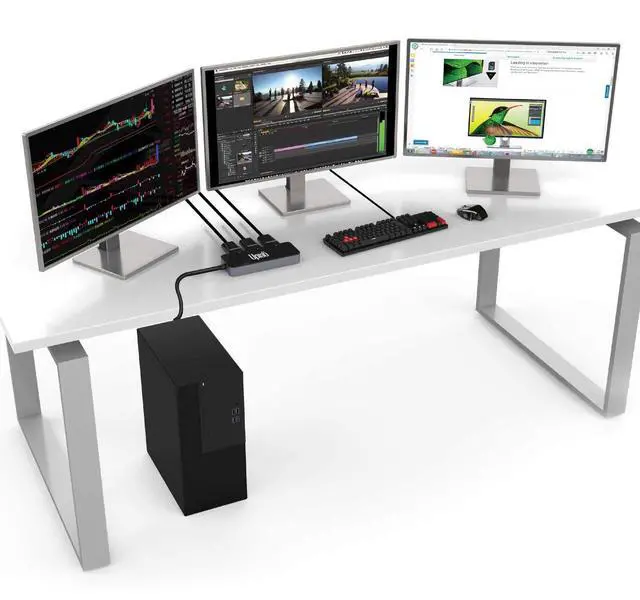

This UPTab Port DisplayPort to Triple DisplayPort Multi-Stream Transport (MST) Hub enables three different display modes on up to three monitors connected to a single DisplayPort output. You can connect a single display at resolutions up to 8K@60Hz to mirror your computer's desktop. Add a second monitor and the hub will automatically extend the image to span the two displays at resolutions up to 5K@60Hz for each display. Connect three monitors and the hub automatically adjusts to produce a 3x1 "video wall", with a single image spanning the three displays at resolutions up to 4K@60Hz for each monitor. This hub is ideal for Gamers, Video Editors, Architects, and anyone working with Ultra High-Resolution images or videos. Compatibility: Computers with Integrated GPU example: Intel HD 2500/4000 this adapter will work only in Mirror Mode SST. Multi-Stream Transport (MST) Hub: An MST Hub enables three different display modes on up to three monitors connected to a single DisplayPort output.

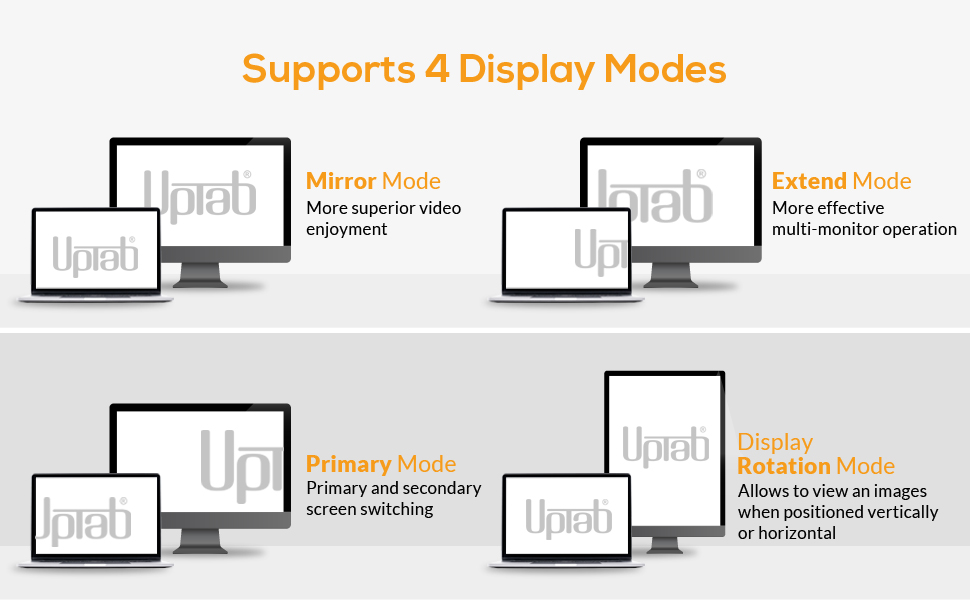

Duplicate Mode: You can connect a single display at resolutions up to 8K@60Hz to mirror your computer's desktop.
Extended Desktop Mode: Connect two monitors and the hub will automatically extend the image to span the two displays at resolutions up to 5K@60Hz for each display.
Specifications:
- Input: DisplayPort 1.4 MST
- Output:
- Single DisplayPort 1.4 Monitor Supports display resolution up to 8K at 60Hz frame rate YUV 4:2:0 with DSC (Display Stream Compression)
- Dual DisplayPort 1.4 Monitors Supports display resolution up to 5K at 60Hz frame rate with DSC (Display Stream Compression)
- Three DisplayPort 1.4 Monitors Supports display resolution up to 4K at 60Hz frame rate with DSC (Display Stream Compression)
- Supports HDR, HDR10, HDR10+ and Dolby Vision

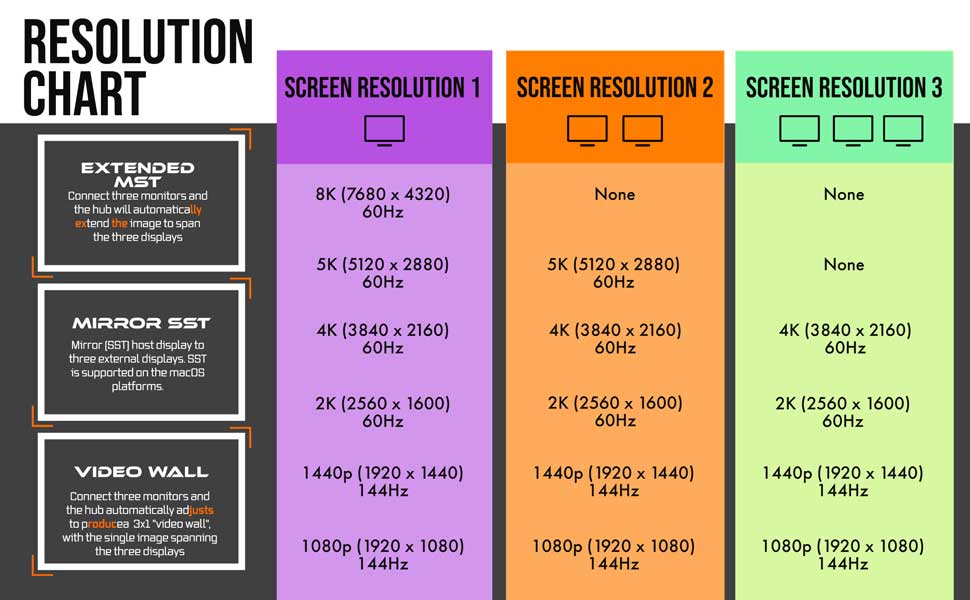

**Maximum resolution output is dependent upon the system's capability to support the same and on the peripherals, connecting cables and display settings for your system. Please refer to the display resolution combination chart to correctly match your requirements with the output.
Requirements
- Desktop computer or laptop with an available DisplayPort 1.4 Dual-mode output
- Compatible with NVIDIA Surround technology or AMD Eyefinity graphics adapter and they are required to support Panoramic Video Wall mode

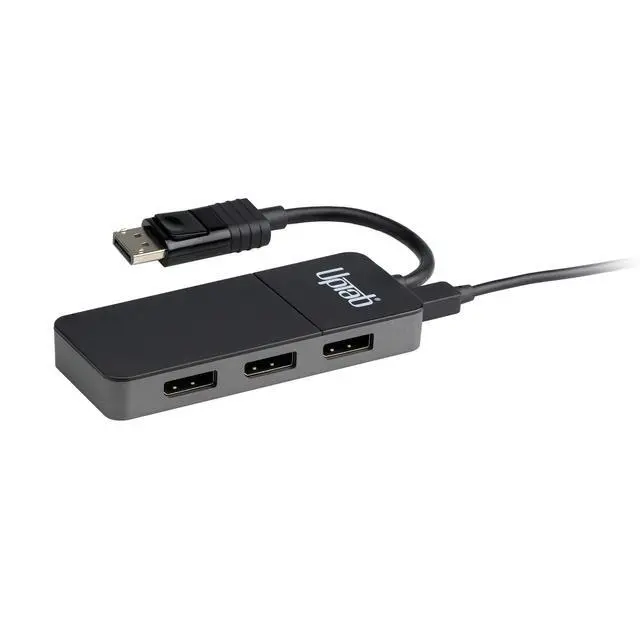

- The USB power source (5V/1000mA)

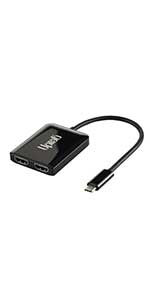

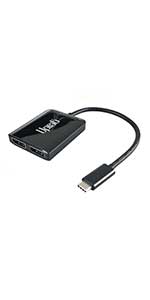

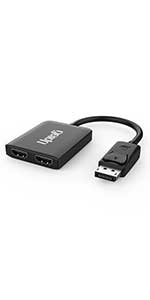

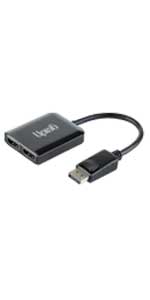

 DisplayPort to Dual DisplayPort 8K |  DisplayPort to Dual HDMI 4K 60Hz |  USB C to Dual DisplayPort Adapter 8K |  USB C to Dual HDMI 4K | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| Input Port | DisplayPort 1.4 | DisplayPort 1.4 | USB-C | USB-C |
| Output Port | 2x DisplayPort | 2x HDMI 2.0 | 2x DisplayPort | 2x HDMI 2.0 |
| Maximum Resolution | 8K | 4K | 8K | 4K |
| Audio Specifications | 5.1 Channel Audio | 5.1 Channel Audio | 7.1 Channel Audio | 5.1 Channel Audio |
| OS Compatibility | Windows 7,10,11 | Windows 7,10,11 | Windows 7,10,11 | Windows 7,10,11 |
Empower Your Devices - UPTab
Discover UPTab: High-speed adapters, hubs, and accessories for 4K displays, data transfer, and multi-monitor setups. Empower your tech!
This 8K USB C to HDMI Adapter allows you to connect your USB Type-C (Thunderbolt 3/4 compatible) laptops/smartphones/tablets.
Display Port Splitter
UPTab Adapters
Milti-Monitor and Data Hub
Power Adapters and HDMI 2.1

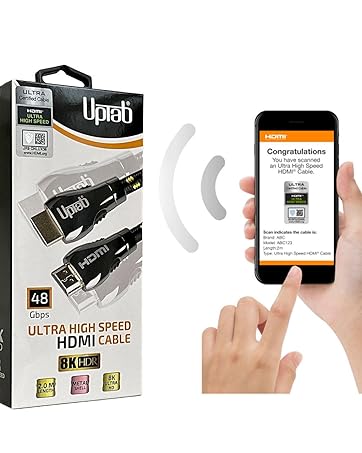

Certified HDMI 2.1 Cables
