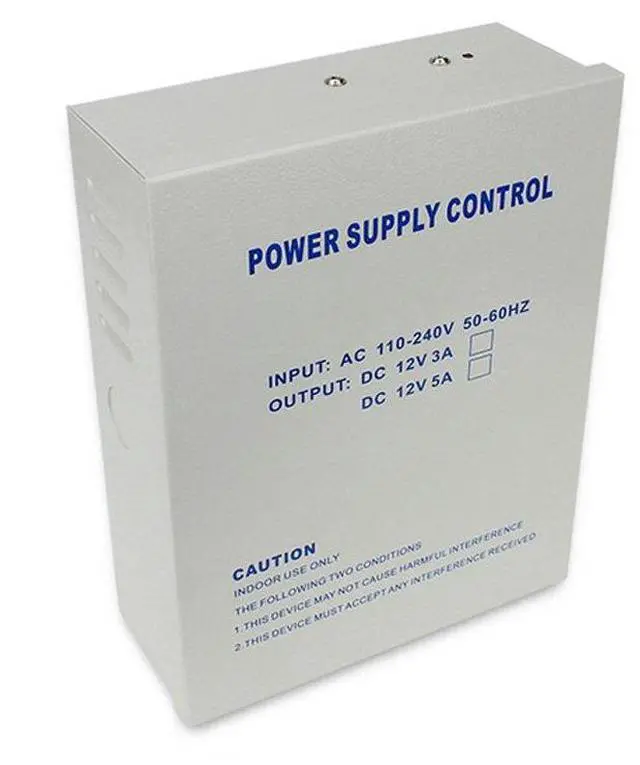

YuHan Power Supply Control for Door Access Entry System AC 110-240V to DC 12V 5A Worldwide Voltage

Features:

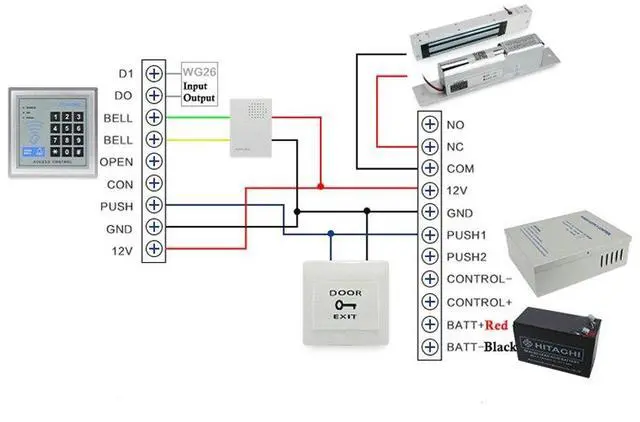

Compatible with E/M lock, access controller, exit push button and RFID reader.

Set NC/NO outputs, can control various types of electric locks.

Based relay control circuit, lock time can be adjusted with 0 -15 seconds; Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.

Automatic protection function for dangerous situation: overload / over voltage / short circuit.

Protection mechanism: power may be temporarily disconnected or the fuse auto insured.

Suitable for building intercom, various entrances access control, particularly suitable for all kinds of electric locks.

Built-in remote module interface, remote control module can be inserted directly, in order to remote keyless entry for access control system

Operative device: E/M Lock, access controller, exit push Button.

Support external backpack battery 12V 7AH (Not included)

Worldwide voltage input AC 110 - 240V.

Specification:

Input Voltage: AC 110-240V (Worldwide voltage)

Input Frequency: 50-60Hz

Output Voltage: DC 12V

Output Current: 5A

Power: 50W

Operating Temperature: -20C~65C

Adjustable Locking Delay: 0~15sec

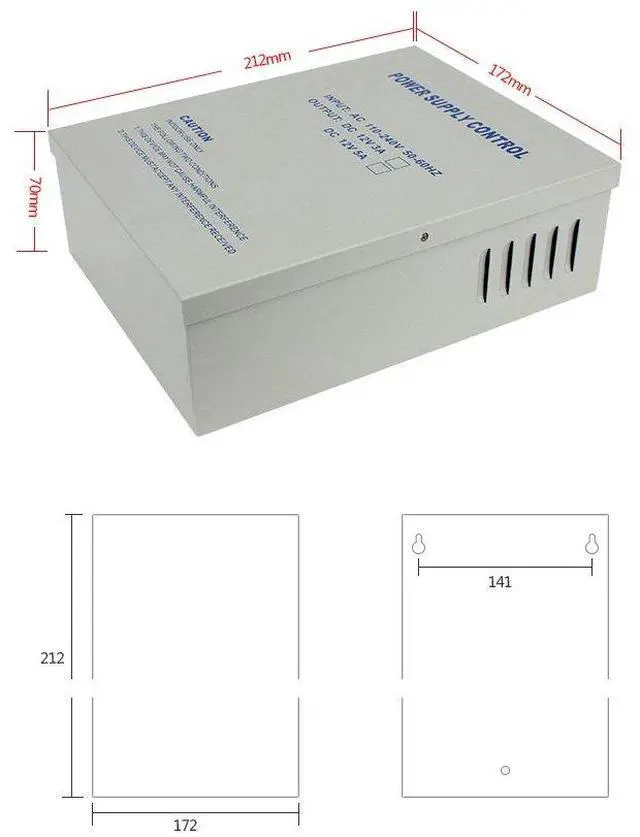

Dimensions: 210Lx166Wx70H(mm) / 8.27Lx6.54Wx2.76H(inch)

Weight: 1.0KG

Package:

1 x Power Supply

1 x User manual
