2inch Mini LCD Screen - Compatible with Raspberry Pi/Arduino/STM32, 240x320 Resolution IPS LCD Display, 262K RGB Color, Embedded ST7789VW Driver, SPI Interface

Overview

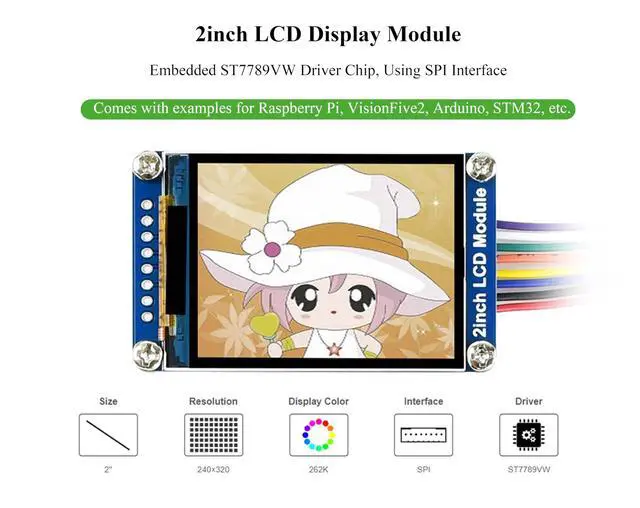

This is a general LCD display Module, IPS screen, 2inch diagonal, 240×320 resolution, with embedded controller, communicating via SPI interface. As a 2inch IPS display module with a resolution of 240 * 320, it uses an SPI interface for communication. The LCD has an internal controller with basic functions, which can be used to draw points, lines, circles, and rectangles, and display English, Chinese as well as pictures. We provide complete supporting Raspberry Pi demos (BCM2835 library, WiringPi library, and python demos), STM32 demos, and Arduino demos.

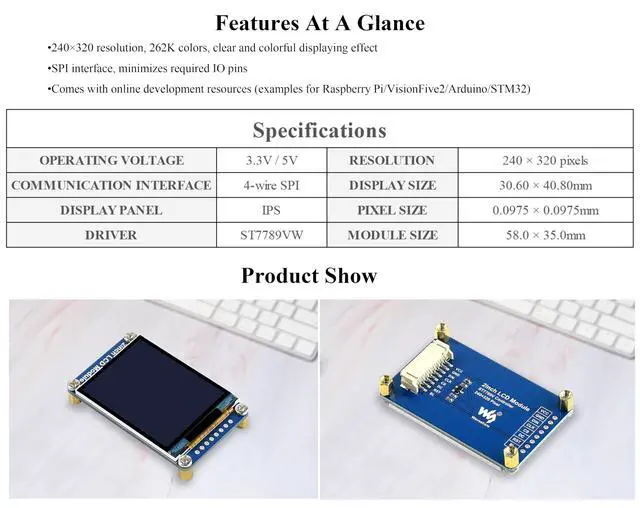

Specifications

Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)

Interface: SPI

LCD type: IPS

Driver: ST7789V

Resolution: 240(V) x 320 (H) RGB

Display size: 30.60Hx 40.80Vmm

Pixel size: 0.0975Hx 0.0975Vmm

Dimension: 58 x 35 (mm)

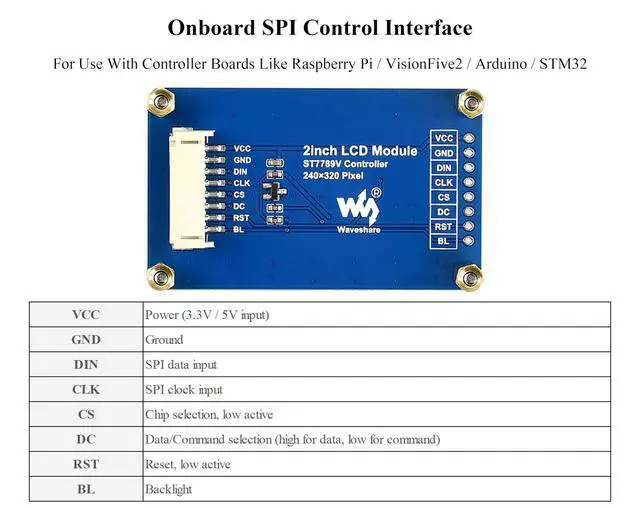

Interface

VCC---Power (3.3V/5V input)

GND---Ground

DIN---SPI data input

CLK---SPI clock input

CS---Chip selection, low active

DC---Data/Command selection (high for data, low for command)

RST---Reset, low active

BL---Backlight

LCD / Controller

The LCD supports 12-bit, 16-bit, and 18-bit input color formats per pixel, namely RGB444, RGB565, and RGB666 three color formats, this demo uses RGB565 color format, which is also a commonly used RGB format. For most LCD controllers, the communication mode of the controller can be configured, usually with an 8080 parallel interface, three-wire SPI, four-wire SPI, and other communication methods. This LCD uses a four-wire SPI communication interface, which can greatly save the GPIO port, and the communication speed will be faster.

Online Document/User Manual: //bit.ly/3TiYx7e

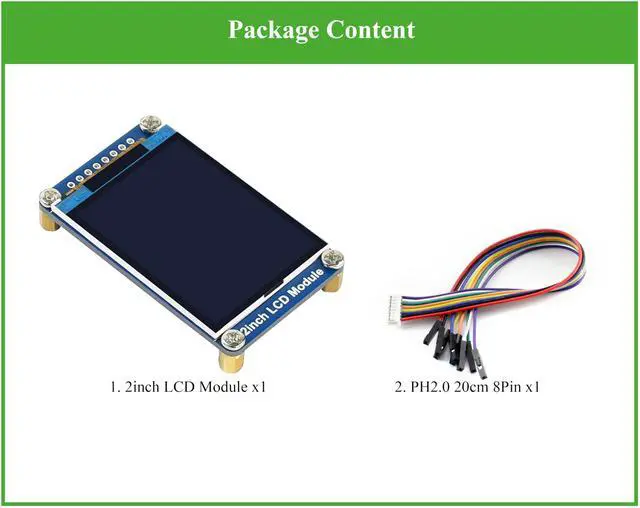

Package Content

2inch LCD Module x1

PH2.0 20cm x1
