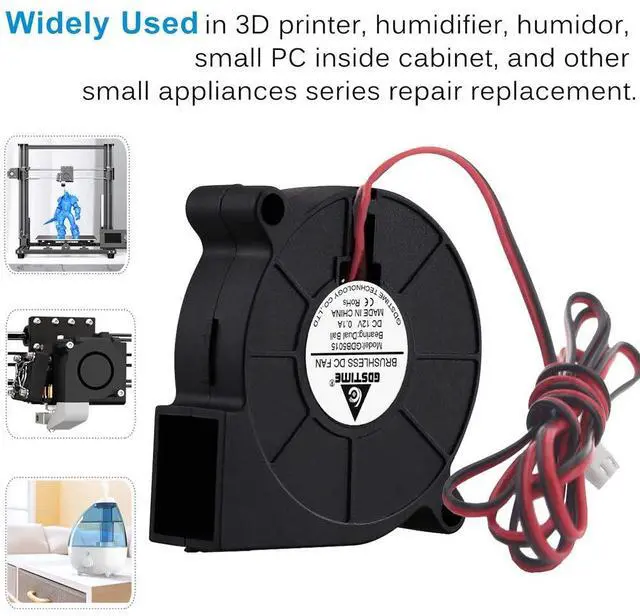

If you want a part cooling fan that won’t let you down in terms of cooling ability, the GDSTIME 50mm x 15mm blower is ideal for you!
5015 BLOWER FANS
4010 FANS
4020 FANS
4020 BLOWER FANS
3010 FANS
60MM FANS
About us
As a professional manufacturer of cooling fans, such as DC fan, AC fan, EC fan, and other cooling products. We're devoted to offer quality and reliable cooling fans at a affordable value to help you keep electronics cool.
We work hard to ensure our customers are satisfied with dependable service and excellent cooling performance!
Our Quality
GDSTIME is a professional manufacturer & supplier which have our own factory. This allow us to control product quality at every stage of manufacturing.
Our Mission
We strive to offer quality and reliable cooling fans at a affordable value to help you keep your electronic systems cool.
Our Promise
We are committed to enhancing your shopping journey through continuous improvements.
Recent Additions

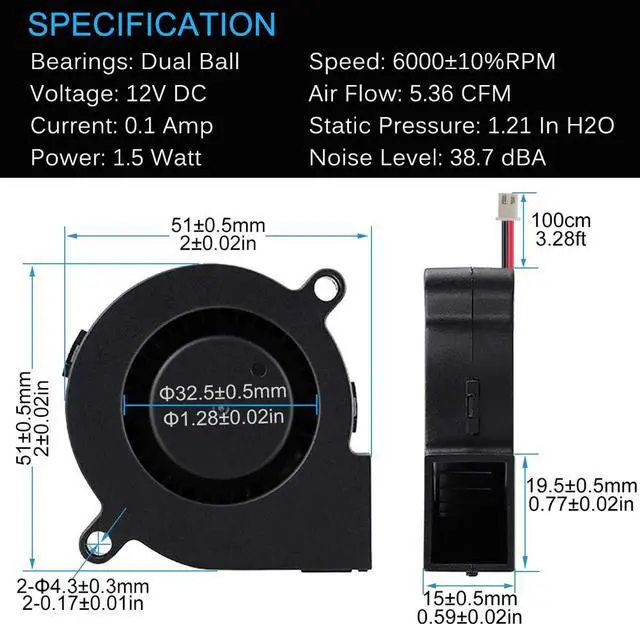

Specifications
Dimensions LxWxH: 1.97 x 1.97 x 0.59 in. (50 x 50 x 15 mm)
Hole to Hole Distance: 2.24 x 2.24 in. (57 x 57 mm)
Screw Hole Size: Ø 0.17 in. (Ø 4.3 mm)
Operating Voltage: 7 to 13.5V DC
Operating Temperature: 14 to 167°F
Airflow: 5.36 CFM | Noise: 38.7 dBA
Speed: 6000 RPM | Power: 1.5W
Current: 0.1A | Static Pressure: 1.21 In-H2O
Bearings: Dual Ball | Life Expectency: 50,000 Hours

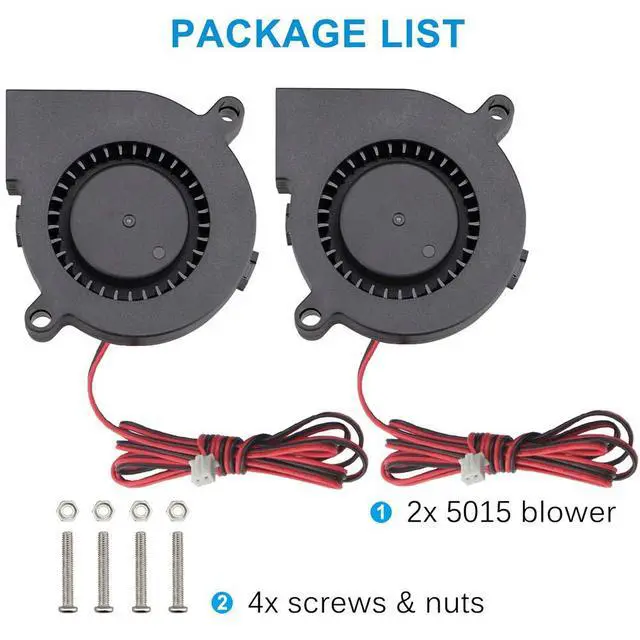

Package includes

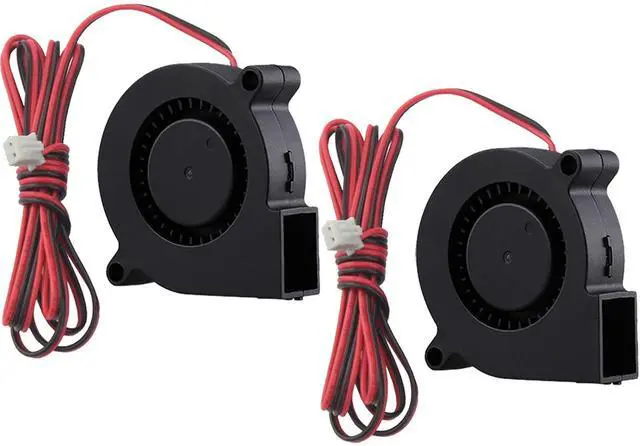

- 50mm Blower Fan *2
- Screws and nuts *4
Key Features

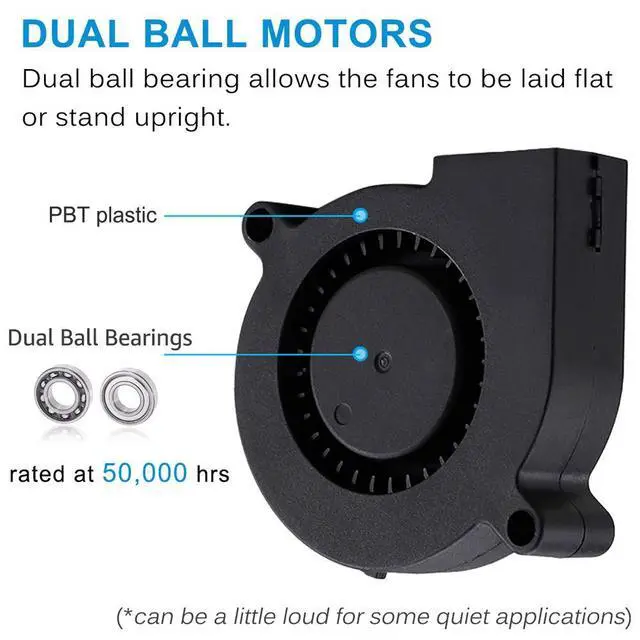

Dual Ball Bearings
Dual-ball bearings rated at up to 50,000 hours allows the fans to be mounted flat or upright.
Brushless Motor

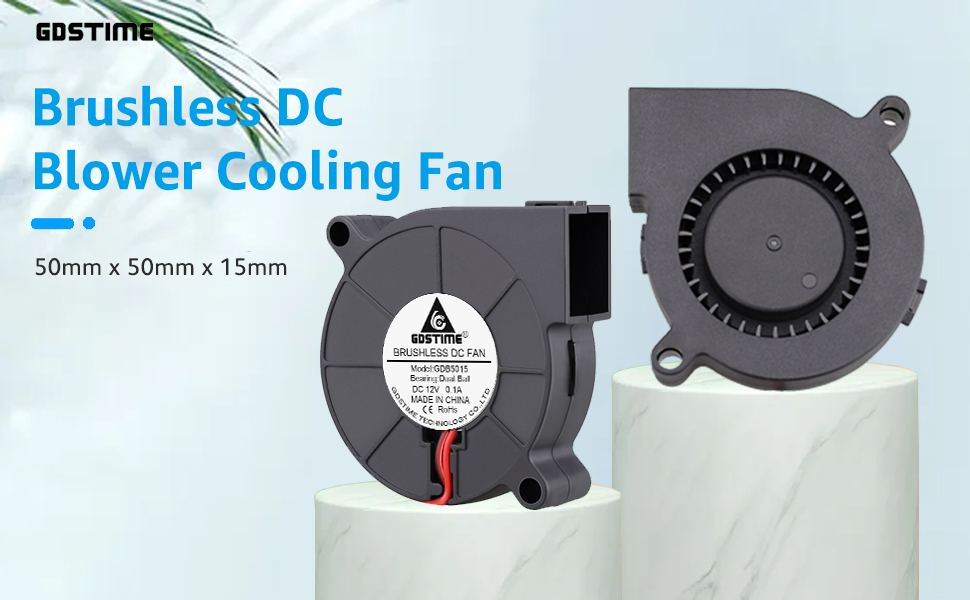

This compact size 50mm blower contains premium Brushless DC Motor, makes the fan runs more smoothly and high efficiency.
PBT Material
The fan is constructed of PBT Plastic UL94V-0 which have a high resistance to flammability.Fan Quality Approvals CE, RoHS.

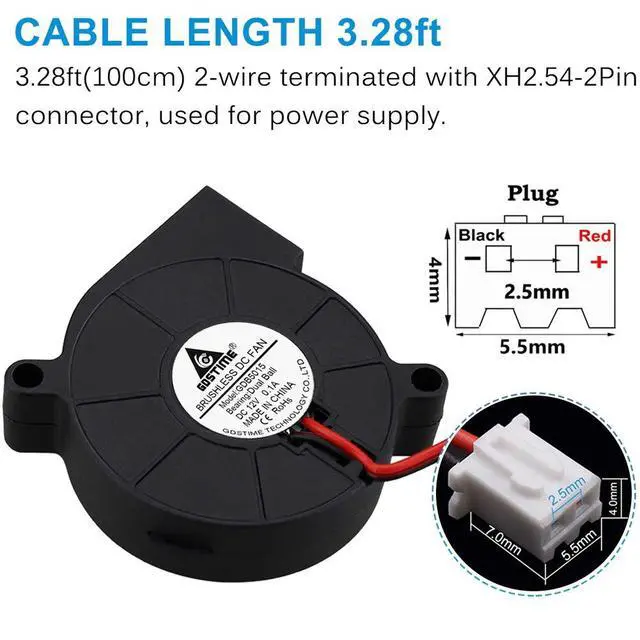

Long Power Cord
Power Connector: XH2.54-2Pin
Lead Wire: AWM 2468 26AWG
Cable Length: 39.37 in. / 3.28 ft
 GDSTIME 40x40x20mm 24V DC Axial Cooling Fan 2-Pin |  GDSTIME 40x40x20mm 12V DC Axial Cooling Fan 3-Pin |  GDSTIME 40x40x10mm 12V DC Blower Cooling Fan 2-Pin |  GDSTIME 40x40x20mm 24V DC Blower Cooling Fan 2-Pin |  GDSTIME 50x50x15mm 12V DC Blower Cooling Fan 2-Pin | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Dimension LxWxH | 1.57 x 1.57 x 0.79 in. | 1.57 x 1.57 x 0.79 in. | 1.57 x 1.57 x 0.39 in. | 1.57 x 1.57 x 0.79 in. | 1.97 x 1.97 x 0.59 in. |
| Rated Voltage | 24V DC | 12V DC | 12V DC | 24V DC | 12V DC |
| Airflow | 7.85 CFM | 7.85 CFM | 2.53 CFM | 3.67 CFM | 5.36 CFM |
| Speed | 6000 RPM | 6000 RPM | 7000 RPM | 6500 RPM | 6000 RPM |
| Static Pressure | 0.16 In H2O | 0.16 In H2O | 0.37 In H2O | 0.46 In H2O | 1.21 In H2O |
| Brushless Motor | ? | ? | ? | ? | ? |
| Bearings | Hydraulic | Hydraulic | Sleeve | Sleeve | Dual Ball |
| Power Connector | 2-Pin | 3-Pin | 2-Pin | 2-Pin | 2-Pin |
Specifications
Dimensions LxWxH: 1.97 x 1.97 x 0.59 in. (50 x 50 x 15 mm)
Hole to Hole Distance: 2.24 x 2.24 in. (57 x 57 mm)
Screw Hole Size: Ø 0.17 in. (Ø 4.3 mm)
Operating Voltage: 7 to 13.5V DC
Operating Temperature: 14 to 167°F
Airflow: 5.36 CFM | Noise: 38.7 dBA
Speed: 6000 RPM | Power: 1.5W
Current: 0.1A | Static Pressure: 1.21 In-H2O
Bearings: Dual Ball | Life Expectency: 50,000 Hours
Package includes
- 50mm Blower Fan *2
- Screws and nuts *4
Key Features
Dual Ball Bearings
Dual-ball bearings rated at up to 50,000 hours allows the fans to be mounted flat or upright.
Brushless Motor
This compact size 50mm blower contains premium Brushless DC Motor, makes the fan runs more smoothly and high efficiency.
PBT Material
The fan is constructed of PBT Plastic UL94V-0 which have a high resistance to flammability.Fan Quality Approvals CE, RoHS.
Long Power Cord
Power Connector: XH2.54-2Pin
Lead Wire: AWM 2468 26AWG
Cable Length: 39.37 in. / 3.28 ft
GDSTIME 40x40x20mm 24V DC Axial Cooling Fan 2-Pin | GDSTIME 40x40x20mm 12V DC Axial Cooling Fan 3-Pin | GDSTIME 40x40x10mm 12V DC Blower Cooling Fan 2-Pin | GDSTIME 40x40x20mm 24V DC Blower Cooling Fan 2-Pin | GDSTIME 50x50x15mm 12V DC Blower Cooling Fan 2-Pin | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Dimension LxWxH | 1.57 x 1.57 x 0.79 in. | 1.57 x 1.57 x 0.79 in. | 1.57 x 1.57 x 0.39 in. | 1.57 x 1.57 x 0.79 in. | 1.97 x 1.97 x 0.59 in. |
| Rated Voltage | 24V DC | 12V DC | 12V DC | 24V DC | 12V DC |
| Airflow | 7.85 CFM | 7.85 CFM | 2.53 CFM | 3.67 CFM | 5.36 CFM |
| Speed | 6000 RPM | 6000 RPM | 7000 RPM | 6500 RPM | 6000 RPM |
| Static Pressure | 0.16 In H2O | 0.16 In H2O | 0.37 In H2O | 0.46 In H2O | 1.21 In H2O |
| Brushless Motor | ? | ? | ? | ? | ? |
| Bearings | Hydraulic | Hydraulic | Sleeve | Sleeve | Dual Ball |
| Power Connector | 2-Pin | 3-Pin | 2-Pin | 2-Pin | 2-Pin |
