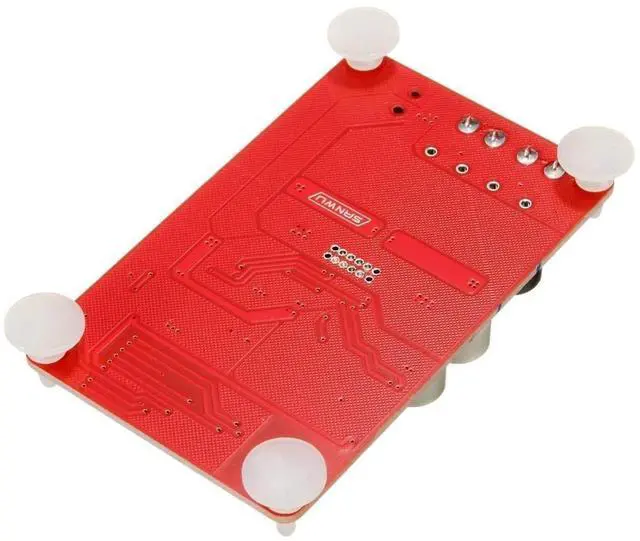

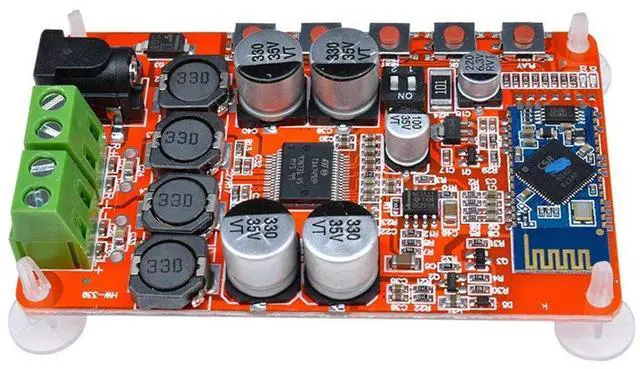

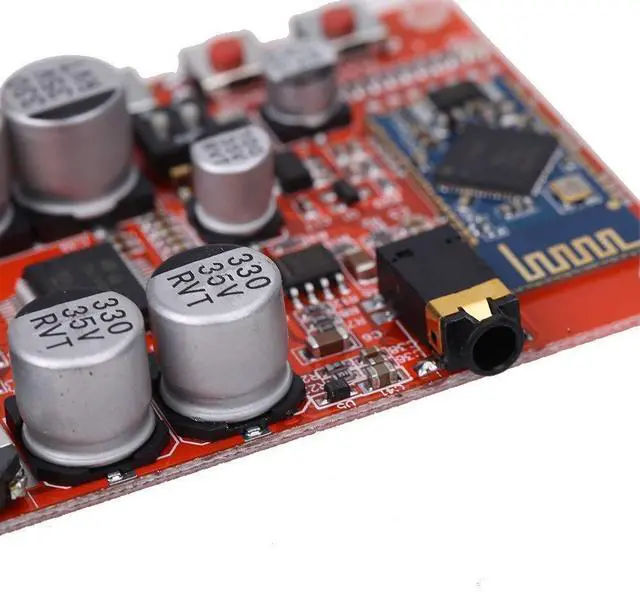

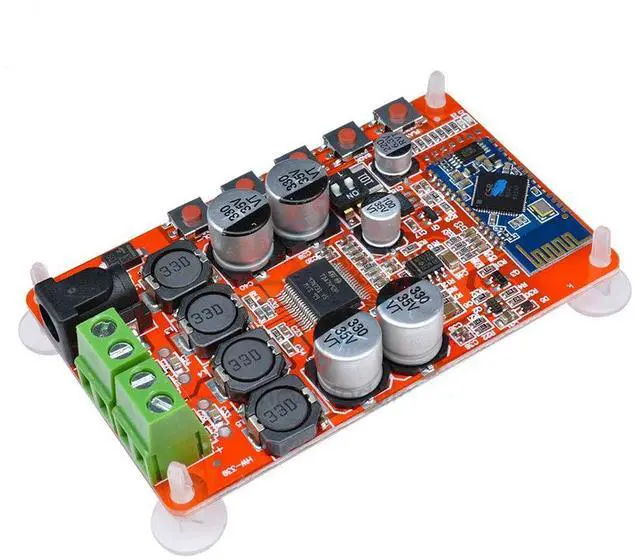

TDA7492P 50W+50W Wireless Bluetooth CSR4.0 Audio Receiver Digital Amplifier Board Power Supply 8~25V DC2.1
- TDA7492P 50W+50W Wireless Bluetooth
- TDA7492 digital amplifier chip, designed to optimize the circuit layout.
- Using CSR8635 Bluetooth chip, Bluetooth V4.0, high software compatibility.
- DIP switches can be adjusted directly after the amp gain more respect and better promote greater damping horn.
- Power supply: 2.1 interface DC 8~25V power supply
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Power: 2.1 interface 8 ~ 24V DC power supply
Input: stereo input various versions of the Bluetooth connection

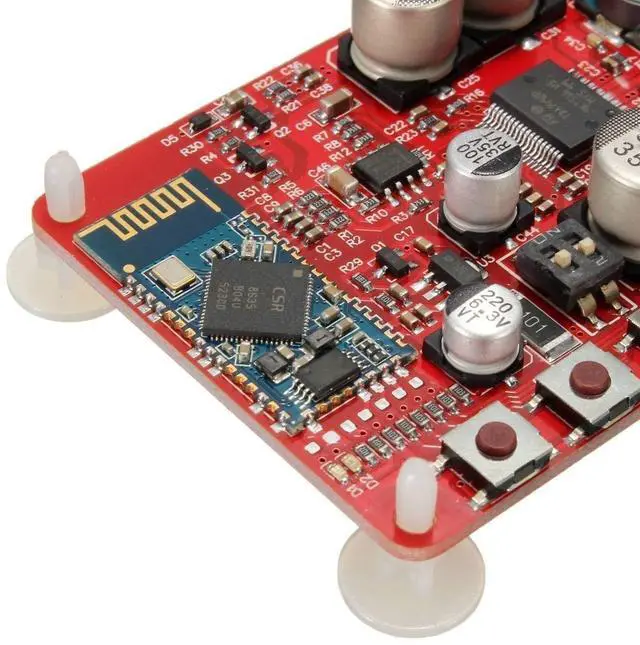

Using CSR8635 Bluetooth chip, Bluetooth V4.0, high software compatibility
Output Impedance: 8 ohms Best(4,6,8,16 ohm
impedance can drive speakers)
Output Power: Add pre-5532 output foot (powered 25V ,6-ohm
impedance output 2 X 50W, 8 ohm
impedance output 2X40W dual-channel)
TDA7492 digital amplifier chip, designed to optimize the circuit layout,
the sound quality is very good, big power

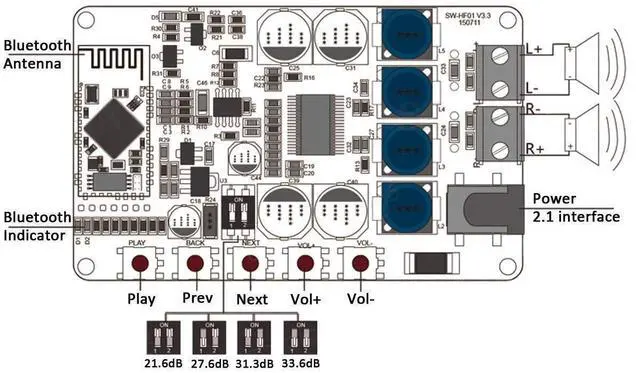

DIP switches can be adjusted directly after the amp gain more respect and better promote greater damping horn
