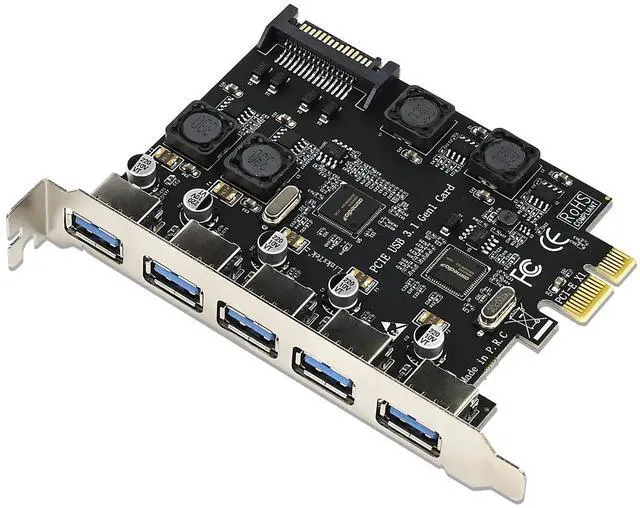

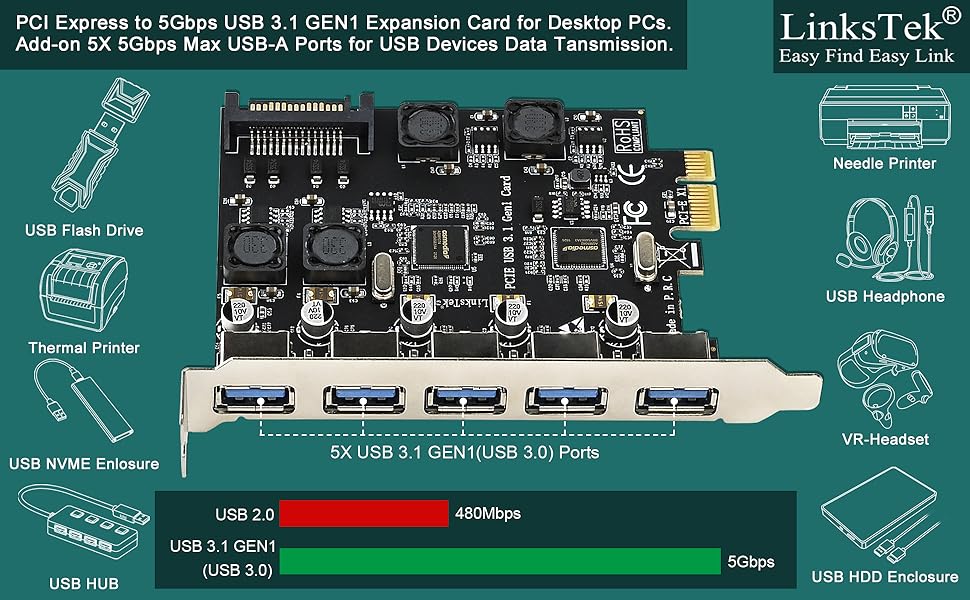

5-Ports 5Gbps Max PCIE USB 3.1 GEN1(USB 3.0) Expansion Card
This LinksTek PCIE-U305A 5-Ports PCI Express USB 3.0 (USB 3.1 GEN1) type A 5Gbps expansion card is based on ASMedia ASM1042 USB 3.0 (USB 3.1 GEN1) host controller and ASM1074 USB 3.0 (USB 3.1 GEN1) HUB. It is designed on PCIE version 2.0 with PCIE X1 interface, provide 5Gbps total bandwidth for 5X USB-A ports. It will allow desktop PCs or working stations add 5X USB-A 5Gbps max USB 3.0 (USB 3.1 GEN1) ports for USB 3.0 (USB 3.1 GEN1) devices data transmission which include USB HDD/SSD enclosure, USB universal docking station, USB HUB, USB KVM switch, VR-System, USB graphic adapters and more USB devices. Built in LinksTek Smart Power Distribution Technology allow USB card to get 5V/2A 10W power on each port. Make sure connected USB device works in 5Gbps max speed. PCIE-U305A also reserved SATA power supply option, will make sure works on old type motherboard that cannot provide enough power.

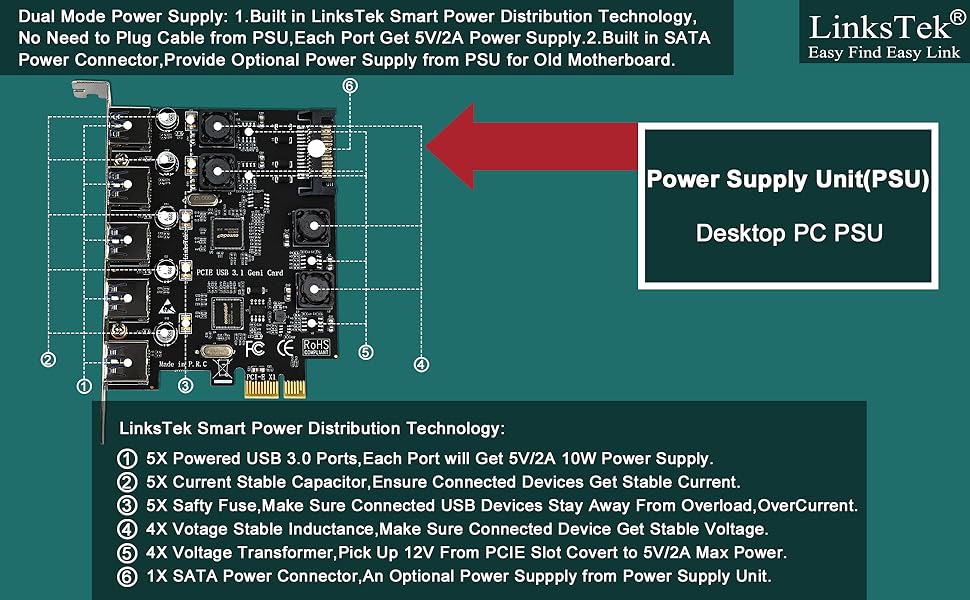

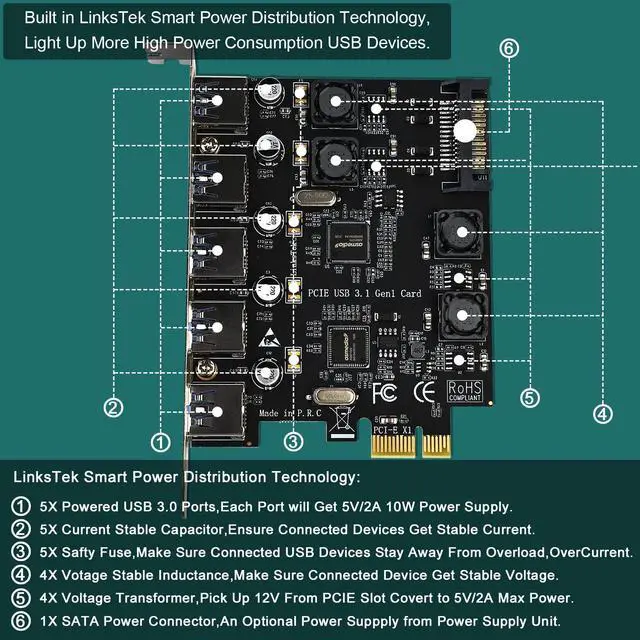

LinksTek Smart Power Distribution Technology:
LinksTek Smart Power Distribution Technology is a new solution to provide more power supply on PCIE USB Cards. The previous versions of PCIE USB Card need to plug an external power cable from PSU. PCIE device can get 75W(12V/6.25A) max power from motherboard. LinksTek added 4X voltage transformer on USB ports, pick up 12V/5A from motherboard and transfer to 5V/10A. Each USB port will get 5V/2A 10W max power for USB device. Apart from this, LinksTek Smart Power Distribution Technology built 5X Safety Fuse, 5X voltage stable capacitor and 5X current stable inductance USB Ports makes sure users never burn USB device.
Technical Specifications:

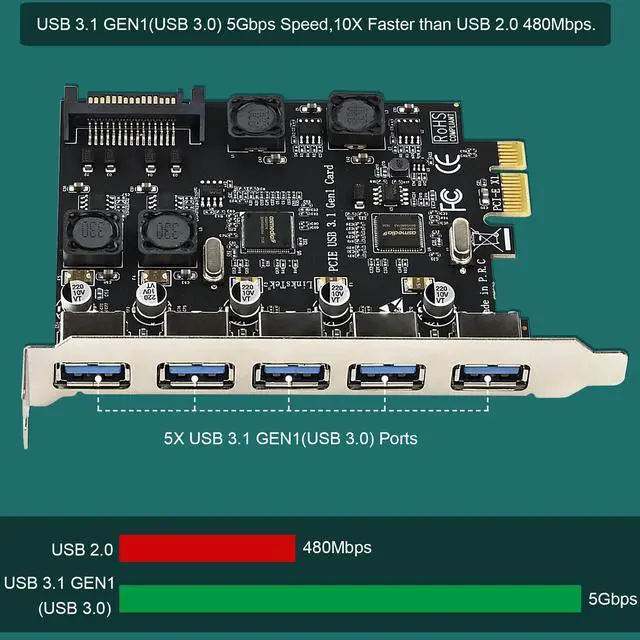

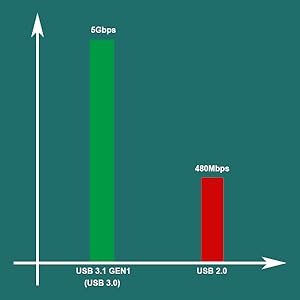

USB 3.1 GEN1 (USB 3.0) 5Gbps Max Speed
Based on USB 3.1 GEN1 (USB 3.0) stamdard, provide 5Gbps max connection speed. 10X faster than USB 2.0 480Mbps.

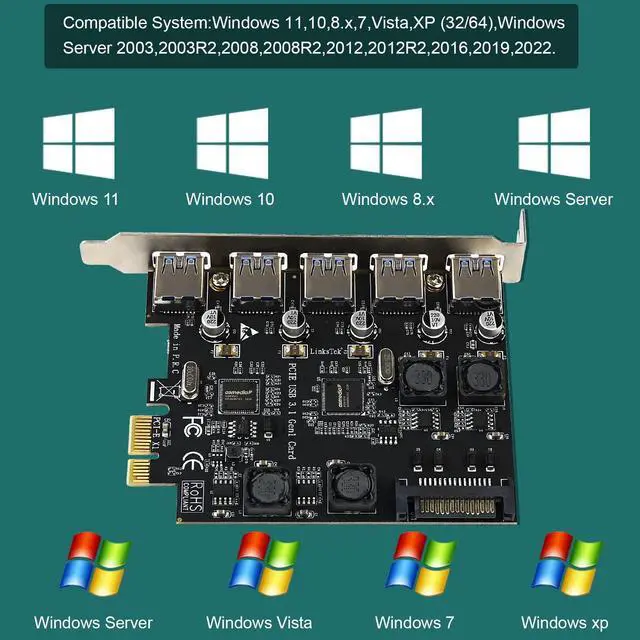

Compatible with Most Windows Systems
Supports Plug and Play on Windows 11, 10, 8.1, 8 (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022.
Need to install driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit).
Seamless Connect to Most USB-A Devices

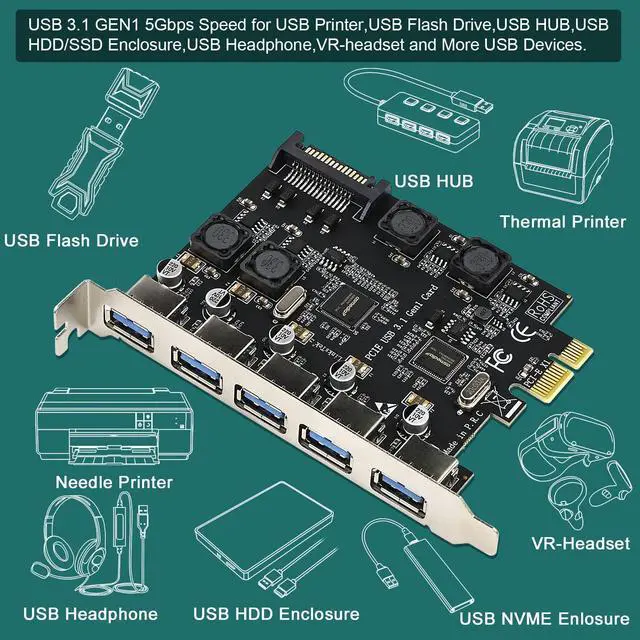

Will light up USB HDD/SSD enclosure, USB universal docking station, USB HUB, USB KVM switch, VR-System, USB graphic adapters and more USB-A devices on users desktop PCs.

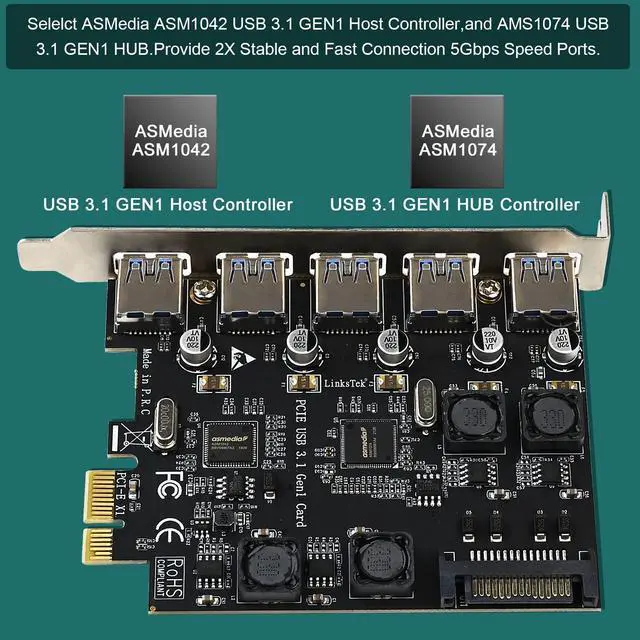

ASMedia ASM1042 and ASMedia ASM1074
Select the ASMedia ASM1042 USB 3.1 GEN1 (USB3.0) 5Gbps max host controller and ASMedia ASM1074 USB 3.1 GEN1 (USB 3.0) HUB controller.

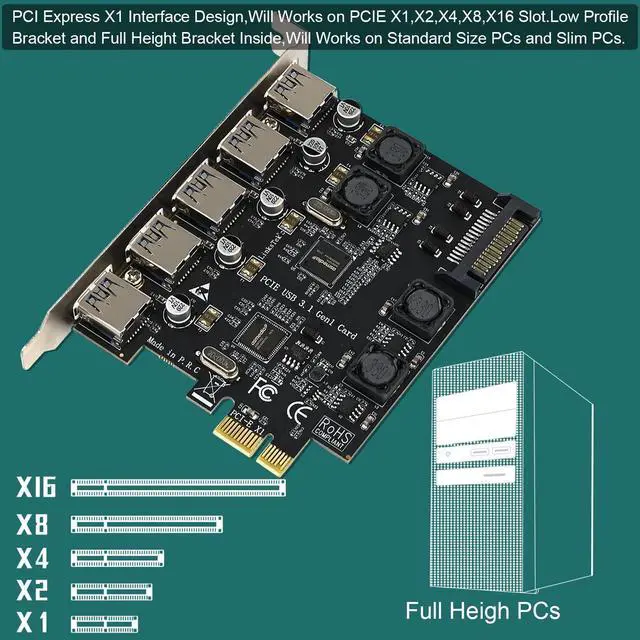

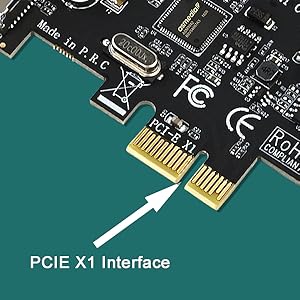

PCI Express 2.0 X1 Interface

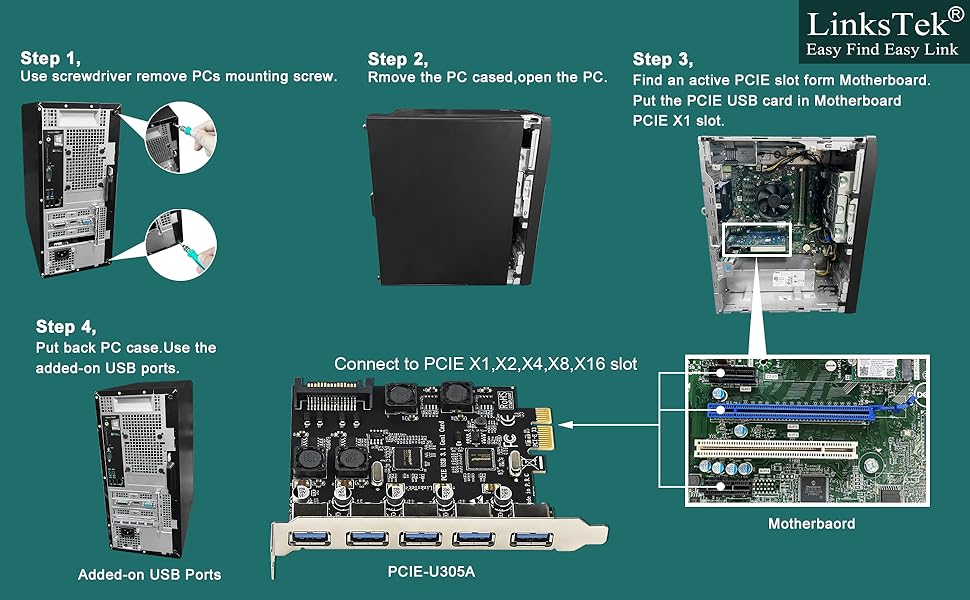

Designed on PCI Express version 2.0 on X1 Lan interface,provide 5Gbps bandwidth. Will works on PCIE X1, X2, X4, X8, X16 slot.

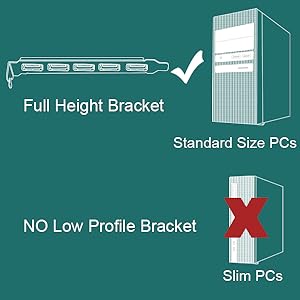

Supports Standard Size PCs ONLY
The PCIE-U305A was mounted with full height bracket, will works on standard size PCs ONLY. Do not support low profile bracket,do not support Slim PCs.
Product Descreption:
This LinksTek PCIE-U305A 5-Ports PCI Express USB 3.0 (USB 3.1 GEN1) type A 5Gbps expansion card is based on ASMedia ASM1042 USB 3.0 (USB 3.1 GEN1) host controller and ASM1074 USB 3.0 (USB 3.1 GEN1) HUB. It is designed on PCIE version 2.0 with PCIE X1 interface, provide 5Gbps total bandwidth for 5X USB-A ports. It will allow desktop PCs or working stations add 5X USB-A 5Gbps max USB 3.0 (USB 3.1 GEN1) ports for USB 3.0 (USB 3.1 GEN1) devices data transmission which include USB HDD/SSD enclosure, USB universal docking station, USB HUB, USB KVM switch, VR-System, USB graphic adapters and more USB devices. Built in LinksTek Smart Power Distribution Technology allow USB card to get 5V/2A 10W power on each port. Make sure connected USB device works in 5Gbps max speed. PCIE-U305A also reserved SATA power supply option, will make sure works on old type motherboard that cannot provide enough power.
LinksTek Smart Power Distribution Technology:
LinksTek Smart Power Distribution Technology is a new solution to provide more power supply on PCIE USB Cards. The previous versions of PCIE USB Card need to plug an external power cable from PSU. PCIE device can get 75W(12V/6.25A) max power from motherboard. LinksTek added 4X voltage transformer on USB ports, pick up 12V/5A from motherboard and transfer to 5V/10A. Each USB port will get 5V/2A 10W max power for USB device. Apart from this, LinksTek Smart Power Distribution Technology built 5X Safety Fuse, 5X voltage stable capacitor and 5X current stable inductance USB Ports makes sure users never burn USB devices.
Compatible System:
1. Plug and Play on Windows 11, 10, 8.1, 8 (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022.
2. Need to install driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit).
3. Works on most main stream Linux.
Package:
1X PCIE-U305A 1X User Manual 1X Locking Screw 1X Low Profile Bracket
