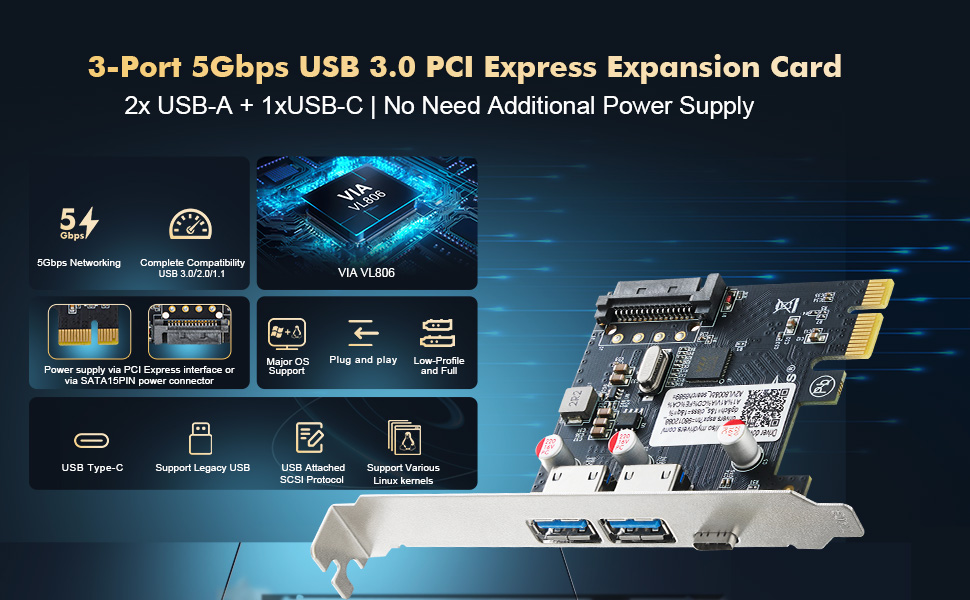

PCI Express VL806 USB adapter is complies with Super-Speed (5 Gbps), High-Speed (480 Mbps), Full-Speed (12 Mbps), and Low-Speed (1.5 Mbps) devices. It enabling the simultaneous operation of 2xUSB-A + 1xUSB-C peripheral devices.
It is fully backward compatible with USB 2.0 and 1.1 specifications, ensuring seamless connectivity of legacy USB devices.It has a PCI Express 2.0 x1 interface that is backwards compatible with PCI Express 1.0 and is perfectly suited for both PC Host and Add-In Card applications.
Key Features:
Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
Compliant to Universal Serial Bus 2.0 Specification
Compliant to eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
Support Legacy USB Function
Compliant with PCI Express Base Specification 2.0
In-house USB PHY employs advanced CMOS process to reduce power consumption
Support Battery Charging Specification
Firmware upgrade options include integrated firmware in system BIOS
Software: Initial Driver Support for Windows 8,7, Vista, and XP, USB Attached SCSI Protocol (UASP), Support various Linux kernels
Product Specification:

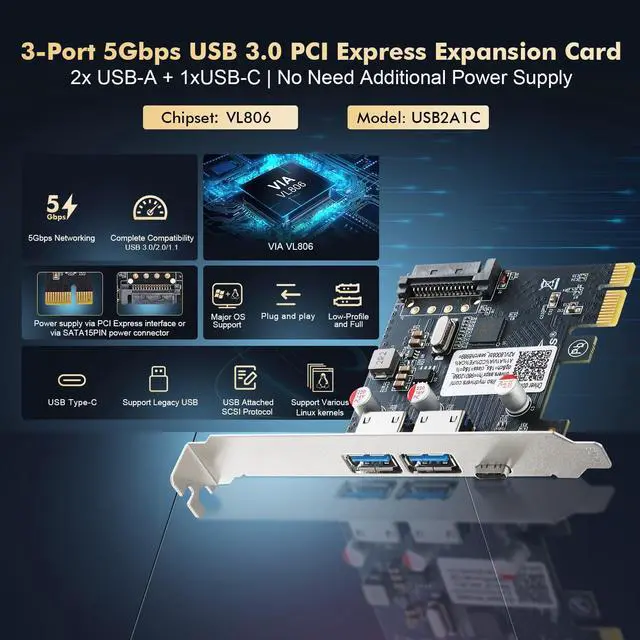

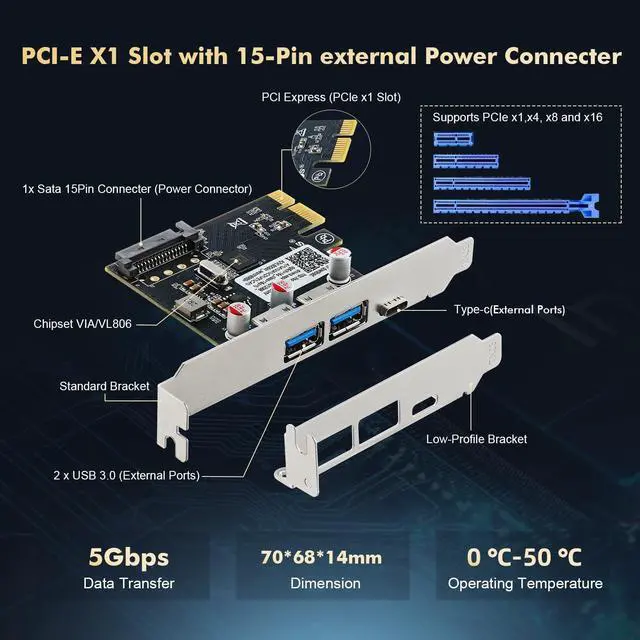

Chipset: VIA/VL806

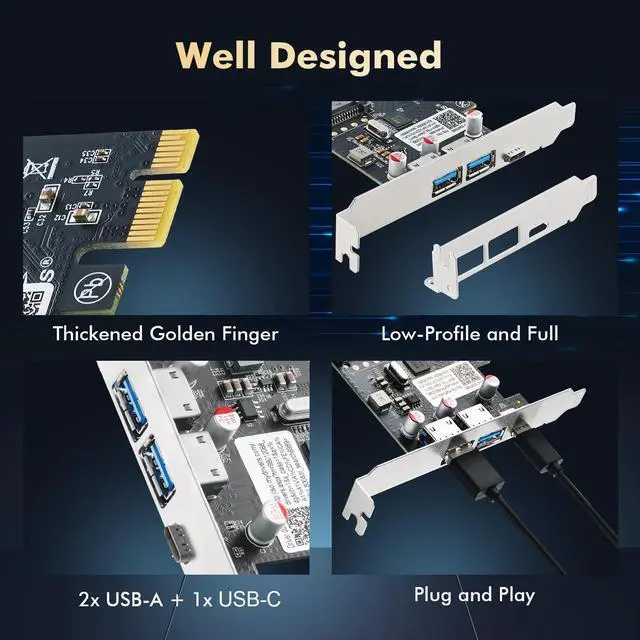

Port number: 1x USB-C + 2x USB-A
Interface: PCI Express 1x slot
Dimension: 70*68*14mm

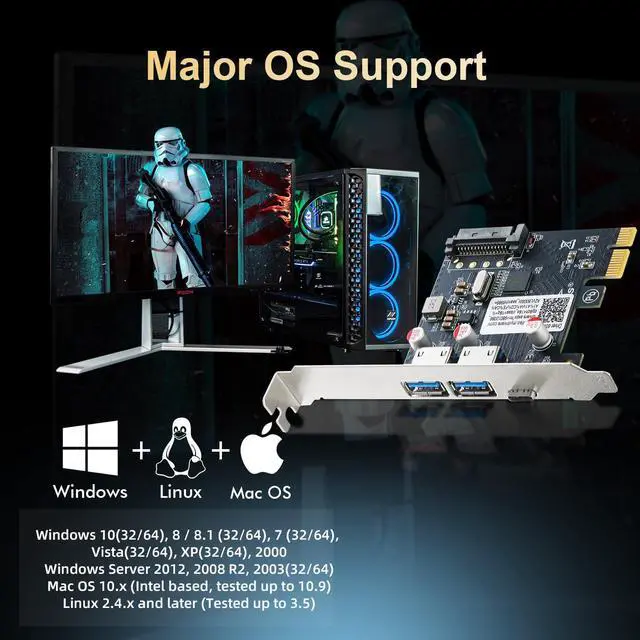

Support OS:
Windows 10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000
Windows Server 2012, 2008 R2, 2003(32/64)
Mac OS 10.x (Intel based, tested up to 10.9)
Linux 2.4.x and later (Tested up to 3.5)
Environment:
Operating Temperature: 0 ?-50 ?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -0?-80?
Relative Humidity: 5%-90%(non-condensing)
Features:
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps

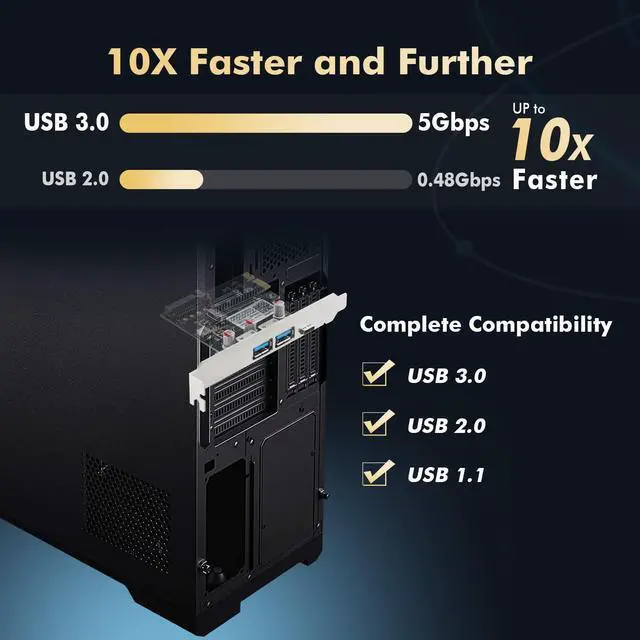

Downwards compatible to USB 3.0, USB 2.0, USB 1.1

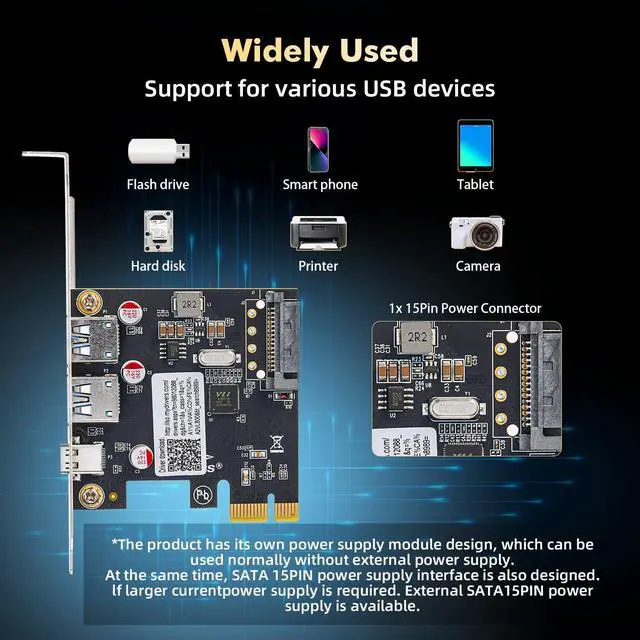

Power supply via PCI Express interface or via 4 pin power connector
Electrical power:
USB Type C: max. 15 watt (+5 V / 3 A)
USB Type A: max. 4.5 watt (+5 V / 900 mA)
Supports eXtensible Host Controller Interface (xHCI) specifications 1.1
External power supply
PCI Express VL806 USB adapter is complies with Super-Speed (5 Gbps), High-Speed (480 Mbps), Full-Speed (12 Mbps), and Low-Speed (1.5 Mbps) devices. It enabling the simultaneous operation of 2xUSB-A + 1xUSB-C peripheral devices.
It is fully backward compatible with USB 2.0 and 1.1 specifications, ensuring seamless connectivity of legacy USB devices.It has a PCI Express 2.0 x1 interface that is backwards compatible with PCI Express 1.0 and is perfectly suited for both PC Host and Add-In Card applications.
Key Features:
Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
Compliant to Universal Serial Bus 2.0 Specification
Compliant to eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
Support Legacy USB Function
Compliant with PCI Express Base Specification 2.0
In-house USB PHY employs advanced CMOS process to reduce power consumption
Support Battery Charging Specification
Firmware upgrade options include integrated firmware in system BIOS
Software: Initial Driver Support for Windows 8,7, Vista, and XP, USB Attached SCSI Protocol (UASP), Support various Linux kernels
Product Specification:
Chipset: VIA/VL806
Port number: 1x USB-C + 2x USB-A
Interface: PCI Express 1x slot
Dimension: 70*68*14mm
Support OS:
Windows 10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000
Windows Server 2012, 2008 R2, 2003(32/64)
Mac OS 10.x (Intel based, tested up to 10.9)
Linux 2.4.x and later (Tested up to 3.5)
Environment:
Operating Temperature: 0 ?-50 ?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -0?-80?
Relative Humidity: 5%-90%(non-condensing)
Features:
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
Downwards compatible to USB 3.0, USB 2.0, USB 1.1
Power supply via PCI Express interface or via 4 pin power connector
Electrical power:
USB Type C: max. 15 watt (+5 V / 3 A)
USB Type A: max. 4.5 watt (+5 V / 900 mA)
Supports eXtensible Host Controller Interface (xHCI) specifications 1.1
External power supply
