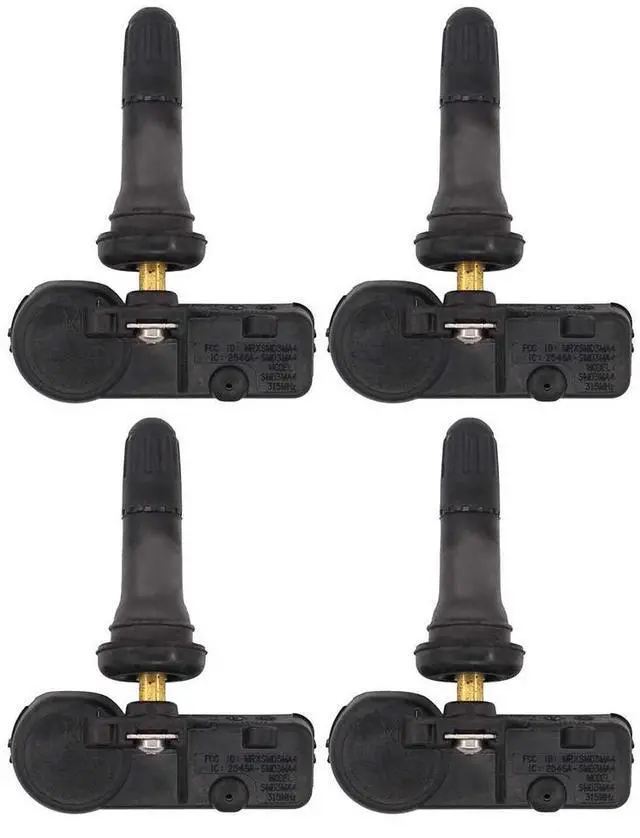

4PCS 315MHz TPMS Tire Pressure Monitoring System Sensors for 2008-2016 Subaru Forester Outback Legacy Impreza WRX STi Tribeca XV CROS 28103AJ00A 28103SG000 28103-AG01C

For Subaru

Forester 2009-2016

Legacy 2009-2016

Outback 2009-2016

Impreza 2008-2015

Impreza WRX, WRX STi 2008-2014

Tribeca 2009-2014

WRX, WRX STi 2015-2016

XV Cros 2013-2015

Instruction:

1. Install the tire pressure sensor correctly

2. Restart all tires to nominal values according to the tire label (usually located on the door frame)

3. Starting from the left front wheel, apply the TPMS tool and activate each sensor in sequence in the order of left front, right front, right rear, left rear and full-size spare tire (if any)

4. Turn the ignition switch to the ON position

5. Connect the TPMS tool to the OBD II interface, apply the OBD learning function to write to sensor D, keep the ignition switch in the ON position, and re-activate each sensor

6. Turn off and then on the ignition switch

7. Road test at a speed higher than 30 km/h for at least 10 minutes to ensure that the tire pressure system is working properly (the tire pressure light is off)
