PCIE to USB Card
Gigabit Network Card
KVM USB Switch
Product advantages:

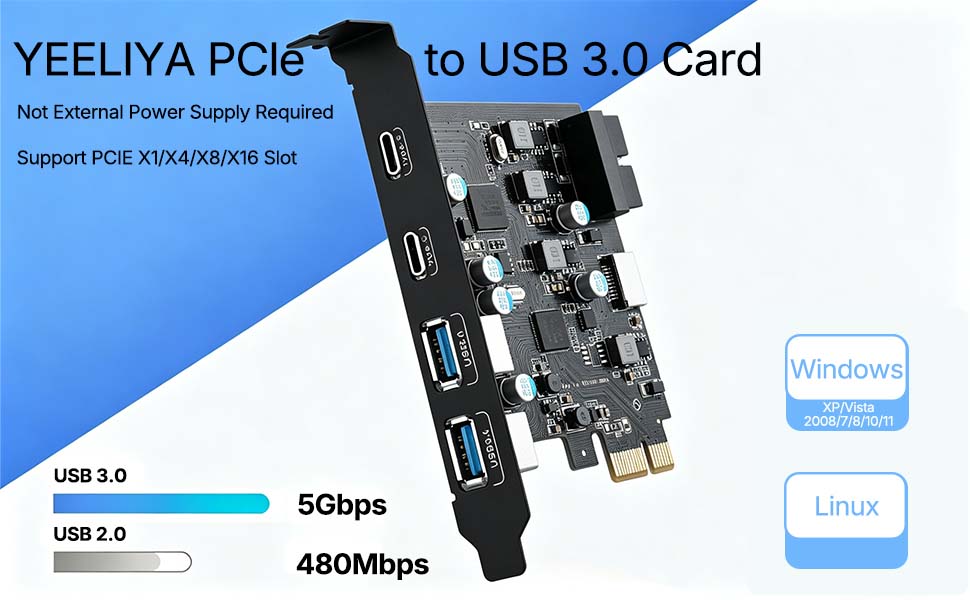

1. Add 4 ports on the desktop through the PCI Express slot, the port has a maximum data transmission speed of 5Gbps to achieve a fast connection.
2. The card features an external 19-pin connector and an internal USB 20-pin Type E port, which can be flexibly extended to the computer's front panel as needed, without requiring an additional power supply.
3. Compatible with PCIe 2.0/3.0 versions, compatible with PCIe x1, x4, x8, x16 slots.
4. To ensure easy installation on any computer, we additionally include a standard 12 cm bracket for desktop PC chassis (pre-installed).
Supported Operating Systems:
Supports Windows XP/Vista/2008 Server/7/8/10/Linux operating systems and is plug-and-play, requiring no driver installation for most systems. Note: Windows Vista/XP/7 require additional driver installation, while Windows 8/10/11 don't. (If you encounter compatibility issues/not working.)
Important Notes:
1. Never install this PCIe card while the computer is powered on.
2. If the card malfunctions, first inspect the motherboard's PCI-E slot for faults.
3. USB device/PCI-E slot versions may limit the card's data transfer throughput/performance.
4. This USB PCIe card supports data transfer only. It does not support PD fast charging or video signal transmission (HDMI/VGA/Thunderbolt display conversion). Please note this when purchasing.

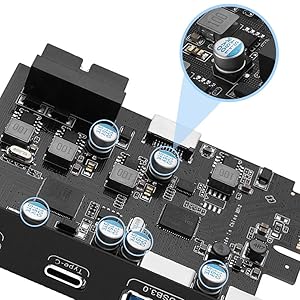

Safe and Stable
Explosion-proof capacitors are made of polymer dielectric materials,Each interface is equipped with a voltage-regulating capacitor.Can provide good temperature control during operation and ensure stable power supply for each interface.

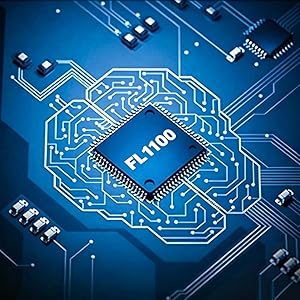

Advanced Dual Chip
Features the FL1100 main chip.It better provides stable 5Gbps high-speed transmission for the PCIE USB card USB 3.0 interface, it is 10 times as fast as traditional UASP USB 2.0.
Large Scale Expansion
Four external USB-C ports can be provided for computer systems that support PCI Express to connect other external U disks, printers, keyboards, mice, webcams, game controllers, USB fans, etc. to the computer case.
Easy Installation Tutorial
Step 1
Turn off the computer power, then unplug the power plug from the power outlet and remove the cover from the computer case.
Step 2
Find the corresponding PCIE card slot.
Step 3
Insert the card into a free PCI Express slot.
Step 4
First insert the U disk into the usb slot for positioning.Then, use a screwdriver to firmly tighten the screws on the side of the bracket, put the computer cover back on the computer, and insert the plug into the socket.
Note:
1. After reviewing the product details,Please check the port size of the computer chassis baffle to avoid poor installation and excessively small PCI-E expansion cards.
2. If the product itself is damaged, it is still within the 2-years-w-arranty period, you can directly contact our Online support for maintenance.
Package Contents:
1 * USB 3.0 Expansion Card
1 * Screw
1 * User Manual
 5-Port PCI-E to Type C (2),Type A (3) USB 3.0, 19-Pin and15-Pin SATA |  PCIe to USB 3.2 Gen 2 Adapter Card with 10 Gbps Bandwidth 5-Port |  PCI-E USB C Card 4-Ports(1x USB-C - 3X USB-A) |  10Gbps PCIE USB C Card with Internal Type E to Type C and 19 Pin Expansion Card | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| USB Ports | 6 Ports | 5 Ports | 4 Ports | 4 Ports |
| USB Max Speed | 5Gbps | 10Gbps | 5Gbps | 10Gbps |
| USB Standard | USB 3.0 | USB 3.2 | USB 3.0 | USB 3.2 |
| Compatible Device | USB Device | Industrial/USB Device | USB Device | USB Device |
| Low Profile Bracket | NO | NO | YES | YES |
| Power Supply Type | Self-Powered/15Pin SATA | Self-Powered | Self-Powered | Self-Powered |
| Compatible System | Window 7/8/10/XP/Vista | Windows 7,8,and 10 (32/64-bit) and Mac OS 10.8.2 or higher | Windows XP/Vista/2008 Server/7/8/10 and Mac Pro 4.1, 5.1, 7.1(models 2010 to 2020) / Linux Mint, Ubuntu 20.04 | Windows XP/Vista/2008 Server/7/8/10 and Linux |
Product advantages:
1. Add 4 ports on the desktop through the PCI Express slot, the port has a maximum data transmission speed of 5Gbps to achieve a fast connection.
2. The card features an external 19-pin connector and an internal USB 20-pin Type E port, which can be flexibly extended to the computer's front panel as needed, without requiring an additional power supply.
3. Compatible with PCIe 2.0/3.0 versions, compatible with PCIe x1, x4, x8, x16 slots.
4. To ensure easy installation on any computer, we additionally include a standard 12 cm bracket for desktop PC chassis (pre-installed).
Supported Operating Systems:
Supports Windows XP/Vista/2008 Server/7/8/10/Linux operating systems and is plug-and-play, requiring no driver installation for most systems. Note: Windows Vista/XP/7 require additional driver installation, while Windows 8/10/11 don't. (If you encounter compatibility issues/not working.)
Important Notes:
1. Never install this PCIe card while the computer is powered on.
2. If the card malfunctions, first inspect the motherboard's PCI-E slot for faults.
3. USB device/PCI-E slot versions may limit the card's data transfer throughput/performance.
4. This USB PCIe card supports data transfer only. It does not support PD fast charging or video signal transmission (HDMI/VGA/Thunderbolt display conversion). Please note this when purchasing.
Safe and Stable
Explosion-proof capacitors are made of polymer dielectric materials,Each interface is equipped with a voltage-regulating capacitor.Can provide good temperature control during operation and ensure stable power supply for each interface.
Advanced Dual Chip
Features the FL1100 main chip.It better provides stable 5Gbps high-speed transmission for the PCIE USB card USB 3.0 interface, it is 10 times as fast as traditional UASP USB 2.0.
Large Scale Expansion
Four external USB-C ports can be provided for computer systems that support PCI Express to connect other external U disks, printers, keyboards, mice, webcams, game controllers, USB fans, etc. to the computer case.
Easy Installation Tutorial
Step 1
Turn off the computer power, then unplug the power plug from the power outlet and remove the cover from the computer case.
Step 2
Find the corresponding PCIE card slot.
Step 3
Insert the card into a free PCI Express slot.
Step 4
First insert the U disk into the usb slot for positioning.Then, use a screwdriver to firmly tighten the screws on the side of the bracket, put the computer cover back on the computer, and insert the plug into the socket.
Note:
1. After reviewing the product details,Please check the port size of the computer chassis baffle to avoid poor installation and excessively small PCI-E expansion cards.
2. If the product itself is damaged, it is still within the 2-years-w-arranty period, you can directly contact our Online support for maintenance.
Package Contents:
1 * USB 3.0 Expansion Card
1 * Screw
1 * User Manual
5-Port PCI-E to Type C (2),Type A (3) USB 3.0, 19-Pin and15-Pin SATA | PCIe to USB 3.2 Gen 2 Adapter Card with 10 Gbps Bandwidth 5-Port | PCI-E USB C Card 4-Ports(1x USB-C - 3X USB-A) | 10Gbps PCIE USB C Card with Internal Type E to Type C and 19 Pin Expansion Card | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| USB Ports | 6 Ports | 5 Ports | 4 Ports | 4 Ports |
| USB Max Speed | 5Gbps | 10Gbps | 5Gbps | 10Gbps |
| USB Standard | USB 3.0 | USB 3.2 | USB 3.0 | USB 3.2 |
| Compatible Device | USB Device | Industrial/USB Device | USB Device | USB Device |
| Low Profile Bracket | NO | NO | YES | YES |
| Power Supply Type | Self-Powered/15Pin SATA | Self-Powered | Self-Powered | Self-Powered |
| Compatible System | Window 7/8/10/XP/Vista | Windows 7,8,and 10 (32/64-bit) and Mac OS 10.8.2 or higher | Windows XP/Vista/2008 Server/7/8/10 and Mac Pro 4.1, 5.1, 7.1(models 2010 to 2020) / Linux Mint, Ubuntu 20.04 | Windows XP/Vista/2008 Server/7/8/10 and Linux |
