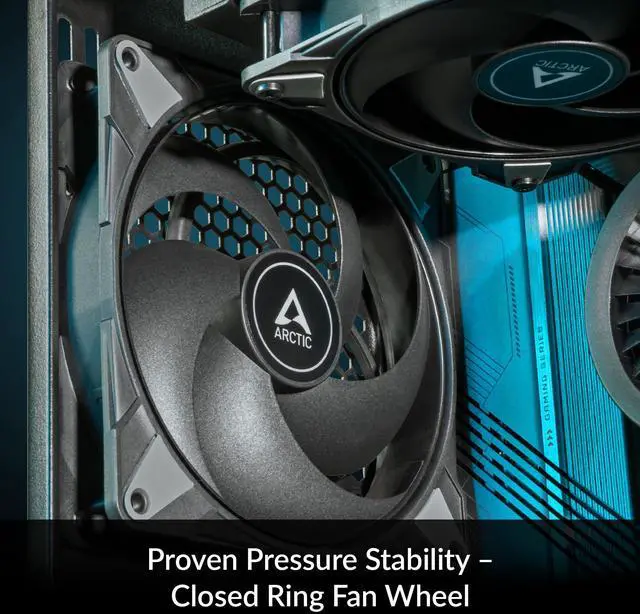

Improved Stability

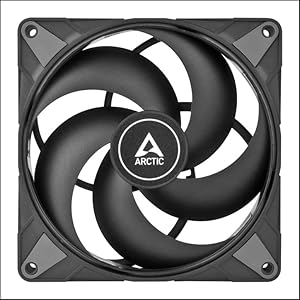

The P14 Max features a closed fan wheel design. The advantage of this fan wheel combination is a pressure stability without compromise. In scenarios with high pressure resistances and higher speeds, the force effect is distributed uniformly over the entire fan wheel and enables low-vibration rotation while maintaining high static pressure.

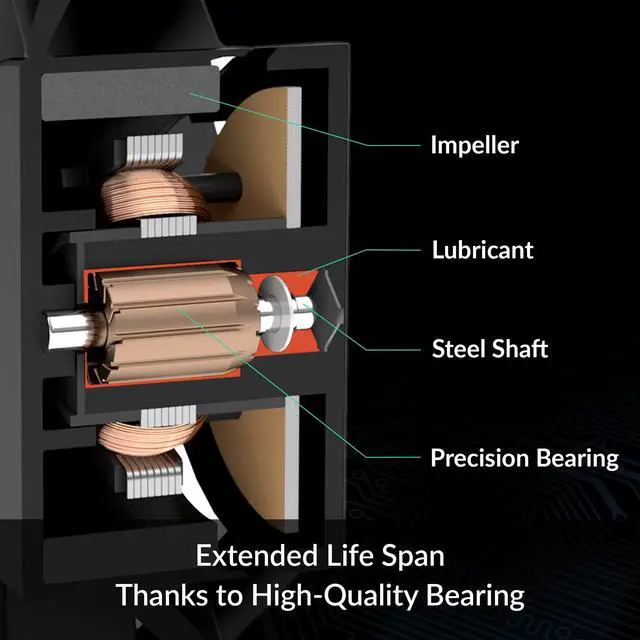

Virtually Silent due Fluid Dynamic Bearing
As a special feature, the P14 Max is equipped with ARCTIC's proven Hydrodynamic Bearing. This enables the virtually silent operation at low speeds that customers have been asking for. At maximum speed, brute performance is still guaranteed. Although these bearings tend to wear out, ARCTIC does not compromise on durability and still offers the 6-year promise.
Extremely Wide Speed Range
Building up on the success of the P14 PWM, the P14 Max extends the controllable speed to an impressively wide range from 400 RPM up to 2800 RPM. This enables a quiet operation when low airflow is needed and also an unprecedented level of performance on heatsinks and radiators. The P14 Max provides a significant performance boost to existing air and water cooling solutions.

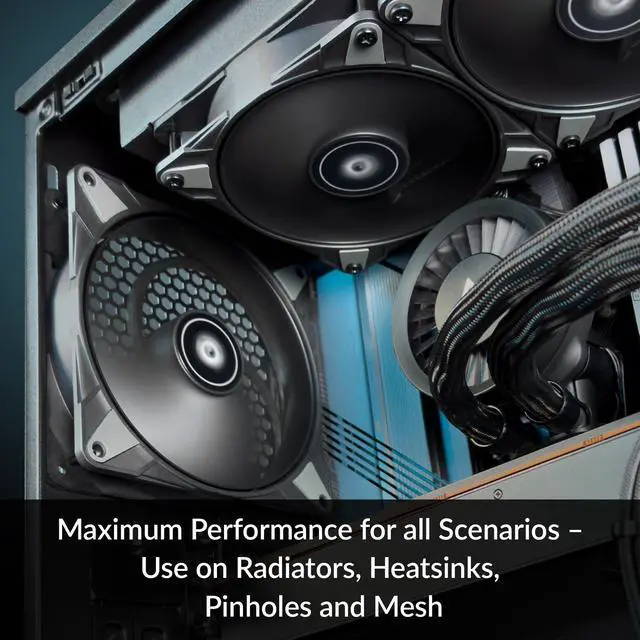

Maximum Performance - Without Compromises
The P14 Max delivers focused airflow and high static pressure, making it suitable for all scenarios. The fan is optimised for use on radiators, heat sinks, pinholes and mesh. Therefore, the P14 Max is the ideal fan for enthusiasts and professionals who are looking for maximum performance with a long service life.

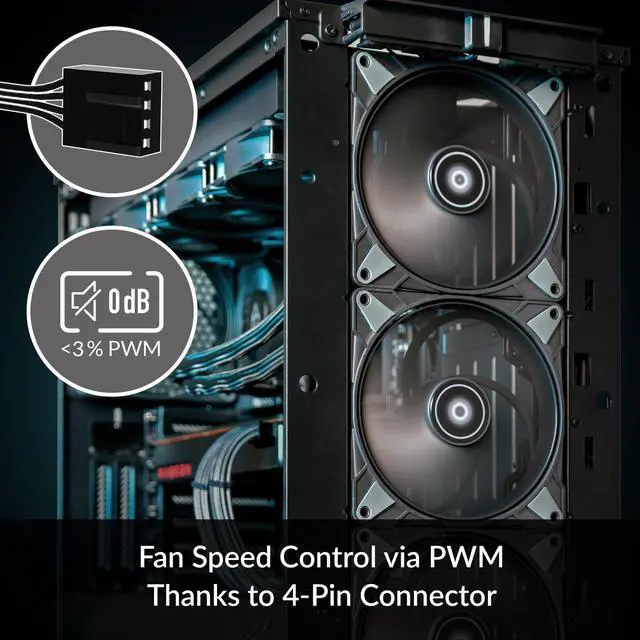

0dB Mode - Zero rpm
The fan speed can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time ensures maximum performance when required. Thus, the P14 Max allows an incomparably dynamic adjustment of the speed, so that the airflow can be perfectly regulated for every case.

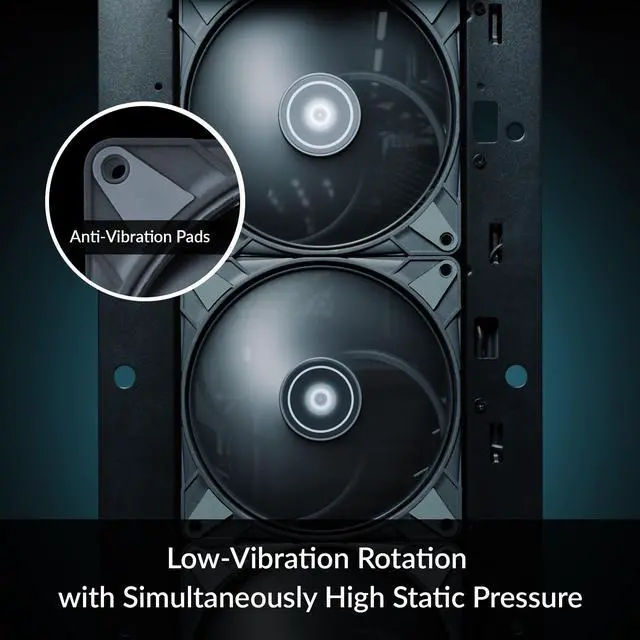

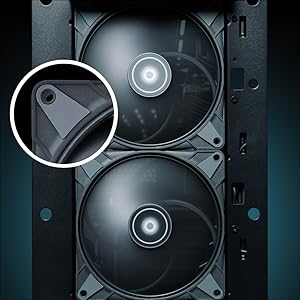

Maximum Smoothness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. The rubber pads mounted at the corners additionally dampen the residual vibrations caused by the higher revolutions.
General data
Performance
Fan Speed: 400–2800 rpm, (0 rpm under 3% PWM)
Airflow: 95 cfm | 161.4 m³/h
Static Pressure: 4.18 mmH2O
Operating Ambient Temperature: 0–40 °C
Fan
Fan Frame: Standard
Control Type: Pulse Width Modulation - PWM
Connector: 4-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 3.9 V DC
Current: 0.35 A
Cable Length: 400 mm
Size & Weight
- Length: 140 mm
- Width: 140 mm
- Height: 27 mm
- Weight: 245 g
 P14 Max |  P14 PWM PST A-RGB |  P14 PWM PST |  P14 | P14 PWM PST CO |  P14 Slim PWM PST | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — no data | — | — no data | — |
| Size | 140 x 140 x 27 mm | 140 x 140 x 27 mm | 140 x 140 x 27 mm | 140 x 140 x 27 mm | 140 x 140 x 27 mm | 140 x 140 x 16 mm |
| Fan Speed | 400–2800 rpm (0 rpm under 3% PWM) | 200–1900 rpm (0 rpm under 5% PWM) | 200–1700 rpm (0 rpm under 5% PWM) | 1700 rpm | 200–1700 rpm (0 rpm under 5% PWM) | 150–1800 rpm (0 rpm under 5% PWM) |
| Airflow | 95.00 cfm | 161.40 m³/h | 68.9 cfm | 117.06 m³/h | 72.8 cfm | 123.76 m³/h | 72.8 cfm | 123.76 m³/h | 72.8 cfm | 123.76 m³/h | 52 cfm | 88.35 m³/h |
| Control Type | PWM | PWM PST | PWM PST | Fixed Speed | PWM PST | PWM PST |
| Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Dual Ball Bearing | Fluid Dynamic Bearing |
| Weight | 245 g | 210 g | 194 g | 191 g | 194 g | 109 g |
| Static Pressure | 4.18 mmH2O | 2.0 mmH2O | 2.4 mmH2O | 2.4 mmH2O | 2.4 mmH2O | 1.55 mmH2O |
