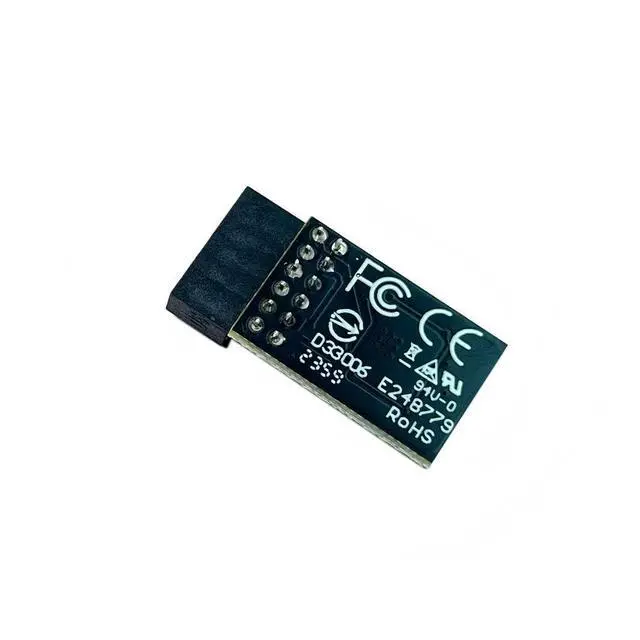

TPM 2.0 Module SPI 12Pin with SLB9670 for Gigabyte Motherboard Z590 D,Z590M,Z590M Gaming X,Z590 Ultra,Z590 Gaming X,Z590 PRO AX /Z890 Compute Securely Bus Header Key

Important Notes:

1. This product is only compatible with older motherboards such as Intel and AMD. It is not compatible with newer motherboard models featuring firmware TPM, all-in-one PCs, or laptops.

2. The minimum hardware requirements for upgrading to Windows 11 via TPM 2.0 are as follows: a 1 GHz or faster 64-bit processor (dual-core/multi-core), 4 GB of memory, 64 GB of storage space, firmware supporting UEFI Secure Boot and TPM 2.0, a DirectX 12-compatible graphics card, and a display with a resolution of 720p or higher.

3. This product has a 12-pin-1 connector. Please carefully check the pin positions in the image to ensure compatibility with your motherboard before purchasing.

Compatible models:

for Gigabyte Motherboard

Z590 D

Z590M

Z590M GAMING X

Z590 ULTRA

Z590 GAMING X

Z590 PRO AX

Z590 UD AC

Z590 UD

Z590 VISION G

Z590 MASTER

Z590 ELITE AX

Z590 ELITE

Z590 VISION D

Z890 AERO G

Z890 AI TOP

Z890 ELITE WIFI7

Z890 ELITE WIFI7 ICE

Z890 MASTER

Z890 MASTER AI TOP

Z890 PRO ICE

Z890 EAGLE WIFI7

Z890 GAMING X WIFI7

Z890 UD

Z890 UD WIFI6E

Z890I ULTRA

Z890M GAMING X

How to select and install a security module:

1. Confirm whether the host has TPM 2.0 or if TPM 2.0 is enabled.

2. Click Run, enter: tpm.msc (Win+R keys), and check if the TPM version is ready.

3. If version 2.0 is displayed but not ready, you need to configure settings in the BIOS; consult the motherboard manufacturer's customer service.

4. Open the host and inspect the TPM pins on the motherboard.

5. When installing the module, ensure the chip-side faces inward, align with the pins, and insert fully to prevent loosening. (See image for direction)

Product Performance

Compatible with: GC-TPM2.0 SPI 2.0

Chipset: SLB9670

Interface: SPI

PIN DEFINE: 12-pin TPM-SPI Trusted Platform Module

Core Applications:

1: Seamless upgrade to Windows 11: Resolve TPM 2.0 verification issues and easily upgrade to the latest operating system.

2: Enhanced hardware-level security: Provides an independent secure encryption chip specifically designed for securely storing sensitive data (such as encryption keys, digital certificates, and login credentials), thereby enhancing overall system security.

3: Hardware encryption acceleration: Reduces CPU load by accelerating encryption operations via dedicated hardware, indirectly improving system response speed and enhancing the smooth operation of certain encryption-dependent applications (such as games and security software).
