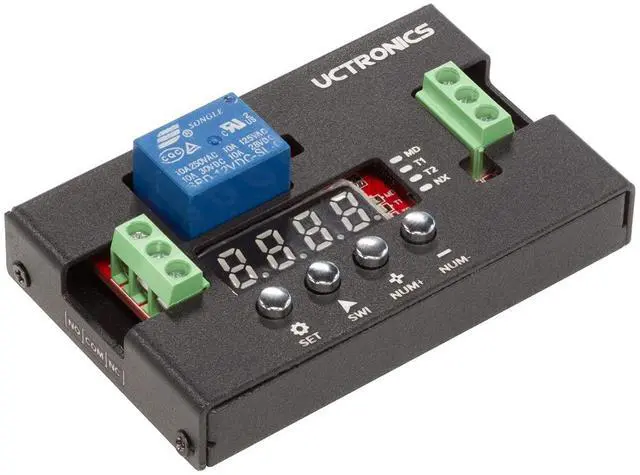

DC 12V Programmable Time Delay Relay Module with Metal Enclosure, On Delay and Off Delay Timer for Automobile, Raspberry Pi, Industrial Control, and Other Automatic Control Projects
- Operating Voltage: DC 12V; Quiescent Current: 5.5mA; Max. Load Voltage: DC 28V or AC 125V; Max. Load Current: 10A; Multifunction: 18 programmable working modes, on/off delay, infinite/finite loop, with/without high level voltage trigger, you can select the mode as needed; Delay time range from 0.1s to 270h.; No Hassle: All options settings could be saved automatically, the content will not be lost even power down; Reverse protection, avoid burning down the module as connecting the wrong terminals.; Designed Enclosure: The metal is customized for the timer module, cuts for every terminal block, display, press button and LED, provides enough protection, as well as convenient for you to use.; Applications: This module works as a switch with time delay on and off function, highly recommended for car circuit modification, LED lights, DC motors, pump and other electronic control systems.; Perfect for PLC digital outputs and sensor (NPN/PNP) signals that provide a positive voltage pulse.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Operating Voltage: DC 12V;
Quiescent Current: 5.5 mA; Max.
Load Voltage: DC 28V or AC 125V; Max.
Load Current: 10A;
Multifunction: 18 programmable working modes, on/off delay, infinite/finite loop, with/without high level voltage trigger, you can select the mode as needed; Delay time range from 0.1 s to 270h.;
No Hassle: All options settings could be saved automatically, the content will not be lost even power down; Reverse protection, avoid burning down the module as connecting the wrong terminals.;

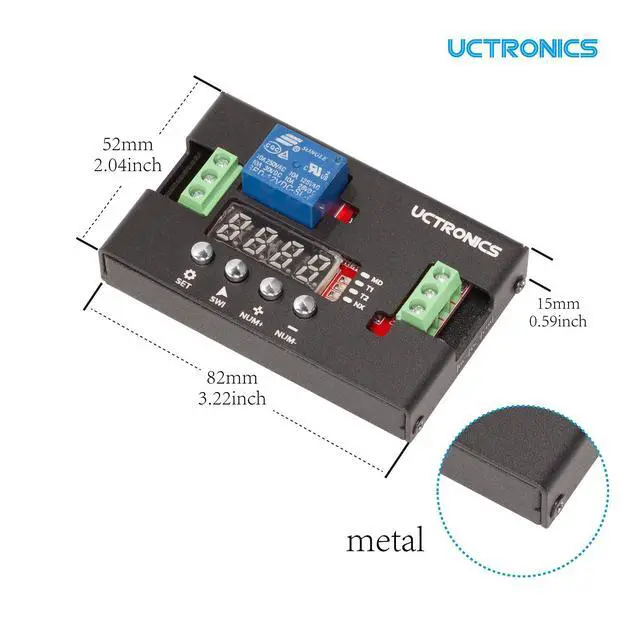

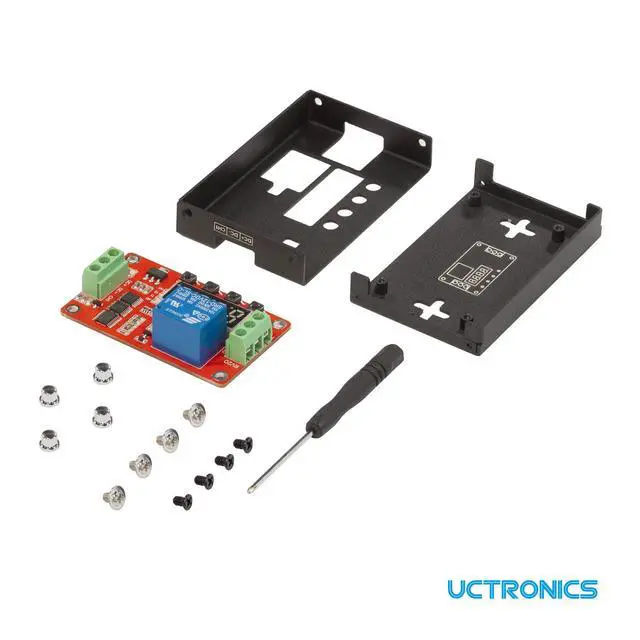

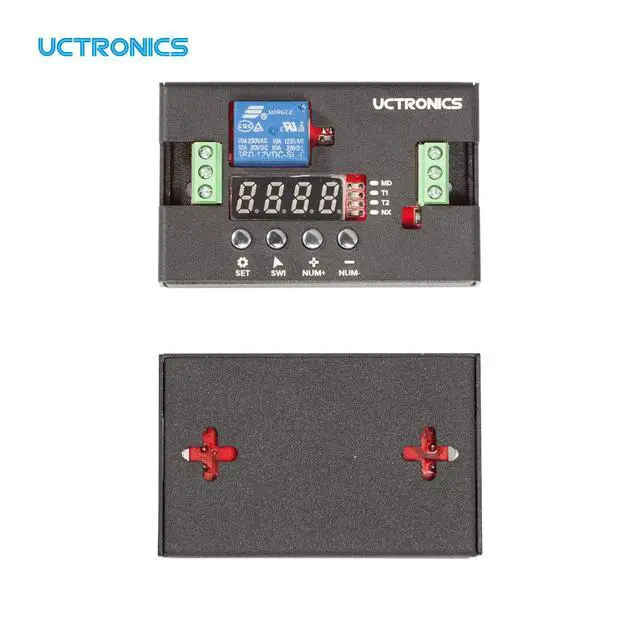

Designed Enclosure: The metal is customized for the timer module, cuts for every terminal block, display, press button and LED, provides enough protection, as well as convenient for you to use.;
Applications: This module works as a switch with time delay on and off function, highly recommended for car circuit modification, LED lights, DC motors, pump and other electronic control systems.; Perfect for PLC digital outputs and sensor (NPN/PNP) signals that provide a positive voltage pulse.
Quiescent Current: 5.5 mA; Max.
Load Voltage: DC 28V or AC 125V; Max.
Load Current: 10A;
Multifunction: 18 programmable working modes, on/off delay, infinite/finite loop, with/without high level voltage trigger, you can select the mode as needed; Delay time range from 0.1 s to 270h.;
No Hassle: All options settings could be saved automatically, the content will not be lost even power down; Reverse protection, avoid burning down the module as connecting the wrong terminals.;
Designed Enclosure: The metal is customized for the timer module, cuts for every terminal block, display, press button and LED, provides enough protection, as well as convenient for you to use.;
Applications: This module works as a switch with time delay on and off function, highly recommended for car circuit modification, LED lights, DC motors, pump and other electronic control systems.; Perfect for PLC digital outputs and sensor (NPN/PNP) signals that provide a positive voltage pulse.
