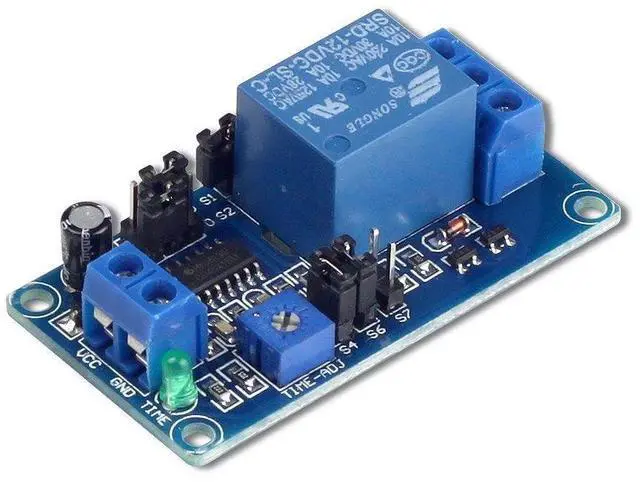

DC 12V Time Relay Module, On Delay and Off Delay for Automobile, Raspberry Pi, Industrial Control, and Electronic Projects
Limited time offer, ends 07/26 By TechDen
- Operating Voltage: DC 12V; Quiescent Current: 5.5mA; Max. Operating Current: 42mA; Max. Load Voltage: terminal NC is DC 30V or AC 250V, terminal NO is DC 28V or AC 125V; Max. Load Current: 10A; Functions: Supports on delay and off delay modes, the delay time can be adjusted from 0.1s to 1h, the delay mode and delay time can be set by shorting or opening the jumper pins and rotating the potentiometer.; Self Protection: Built with protection against reversal diode, supports anti-reverse protection. NOTE: Please remove the jumper cap of S5 when controlling AC current or DC current voltages other than 12V, otherwise the module will be burned or will not work properly.; Applications: This module works as a switch with time delay on and off function, highly recommended for automotive circuit modification, and LED lights, DC motors, pump and smart home control system.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Operating Voltage: DC 12V;
Quiescent Current: 5.5 mA; Max.
Operating Current: 42mA; Max.
Load Voltage: terminal NC is DC 30V or AC 250V, terminal NO is DC 28V or AC 125V; Max.
Load Current: 10A;

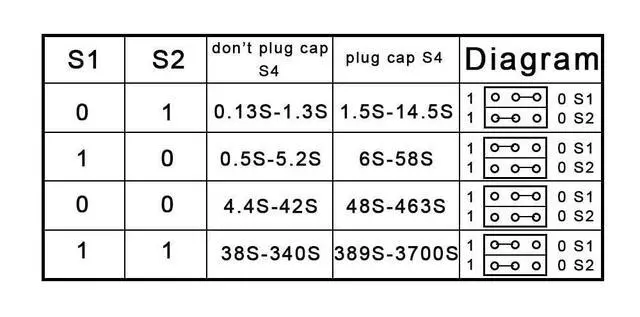

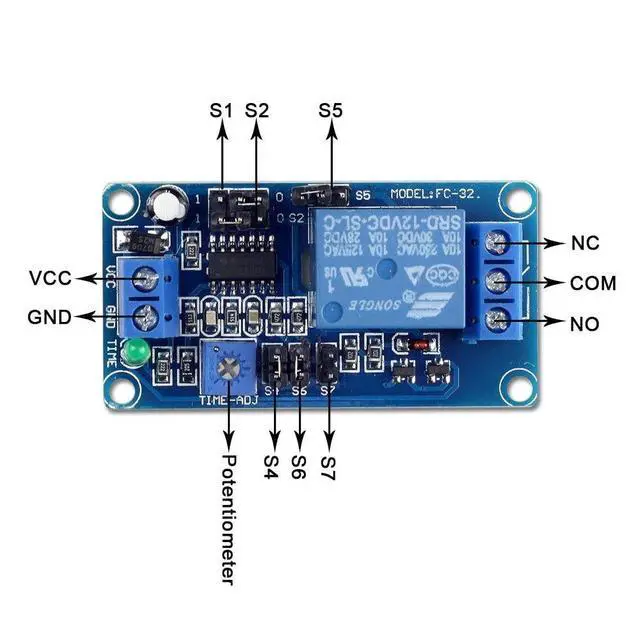

Functions: Supports on delay and off delay modes, the delay time can be adjusted from 0.1 s to 1h, the delay mode and delay time can be set by shorting or opening the jumper pins and rotating the potentiometer.;
Self Protection: Built with protection against reversal diode, supports anti-reverse protection.

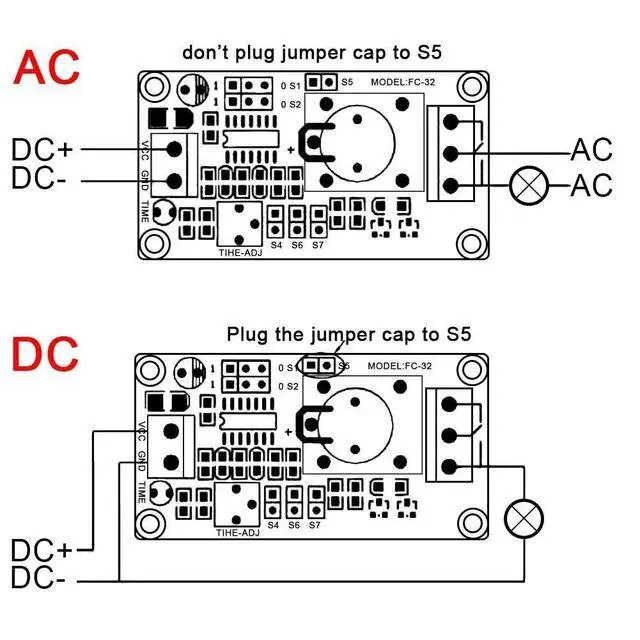

NOTE: Please remove the jumper cap of S5 when controlling AC current or DC current voltages other than 12V, otherwise the module will be burned or will not work properly.;

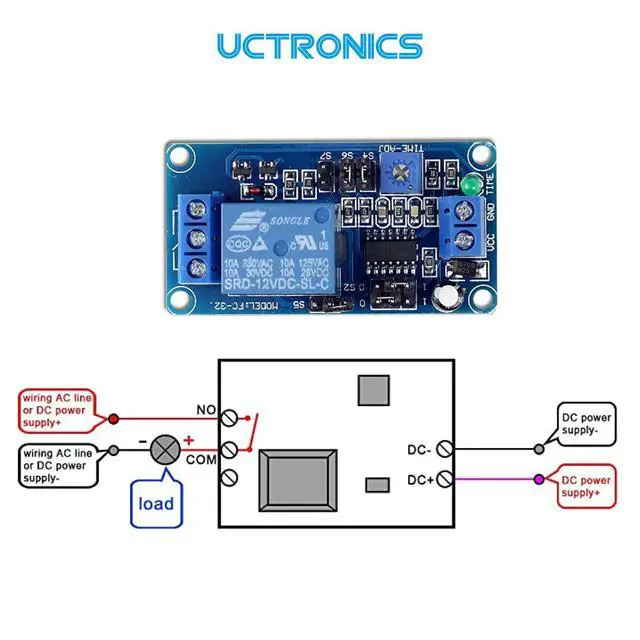

Applications: This module works as a switch with time delay on and off function, highly recommended for automotive circuit modification, and LED lights, DC motors, pump and smart home control system.
Quiescent Current: 5.5 mA; Max.
Operating Current: 42mA; Max.
Load Voltage: terminal NC is DC 30V or AC 250V, terminal NO is DC 28V or AC 125V; Max.
Load Current: 10A;
Functions: Supports on delay and off delay modes, the delay time can be adjusted from 0.1 s to 1h, the delay mode and delay time can be set by shorting or opening the jumper pins and rotating the potentiometer.;
Self Protection: Built with protection against reversal diode, supports anti-reverse protection.
NOTE: Please remove the jumper cap of S5 when controlling AC current or DC current voltages other than 12V, otherwise the module will be burned or will not work properly.;
Applications: This module works as a switch with time delay on and off function, highly recommended for automotive circuit modification, and LED lights, DC motors, pump and smart home control system.
