OV5640 5MP USB Camera Module Autofocus 60° HD, Adopts USB2.0 Interface,Built-in Flash and Microphone,Support Win XP / Win7 / Win8 / Win10 / MAC OS/Linux/Android Operating System
- 1.Support OTG protocol, standard UVC protocol, with microphone, USB drive-free;; 2.Highdefinition photosensitive chip OV5640, stable performance and clearer images;; 3.With 5MP highdefinition lens, image picture is clearer, 60°field of view, wider field of view;; 4.On-board CMOS image sensor OV5640, support LED fill light, ISP (image signal processing), AFC (autofocus control) functions;; 5.Support Win XP/Win7/Win8/Win10/MAC OS/Linux/Android operating systems.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

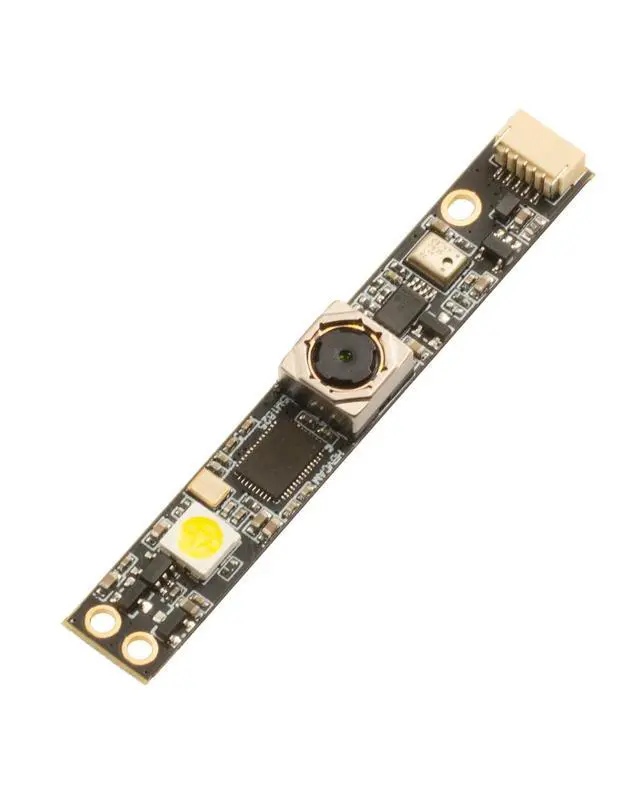

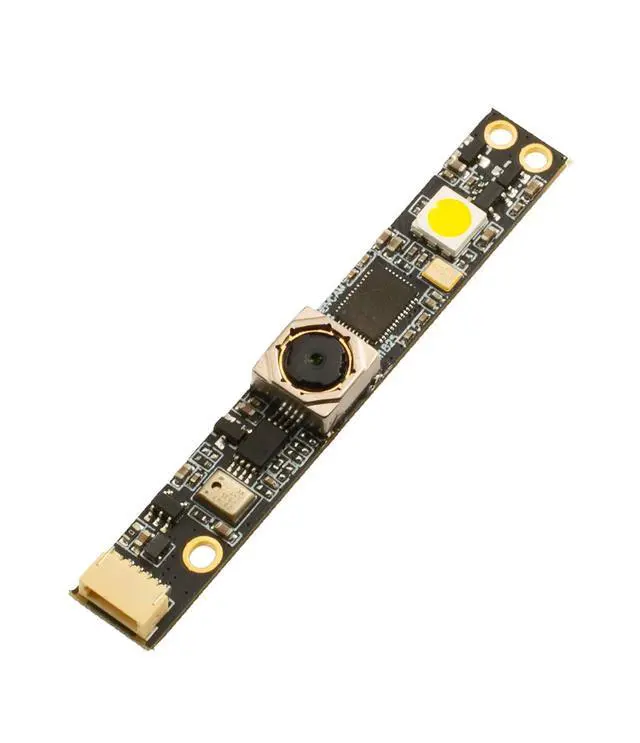

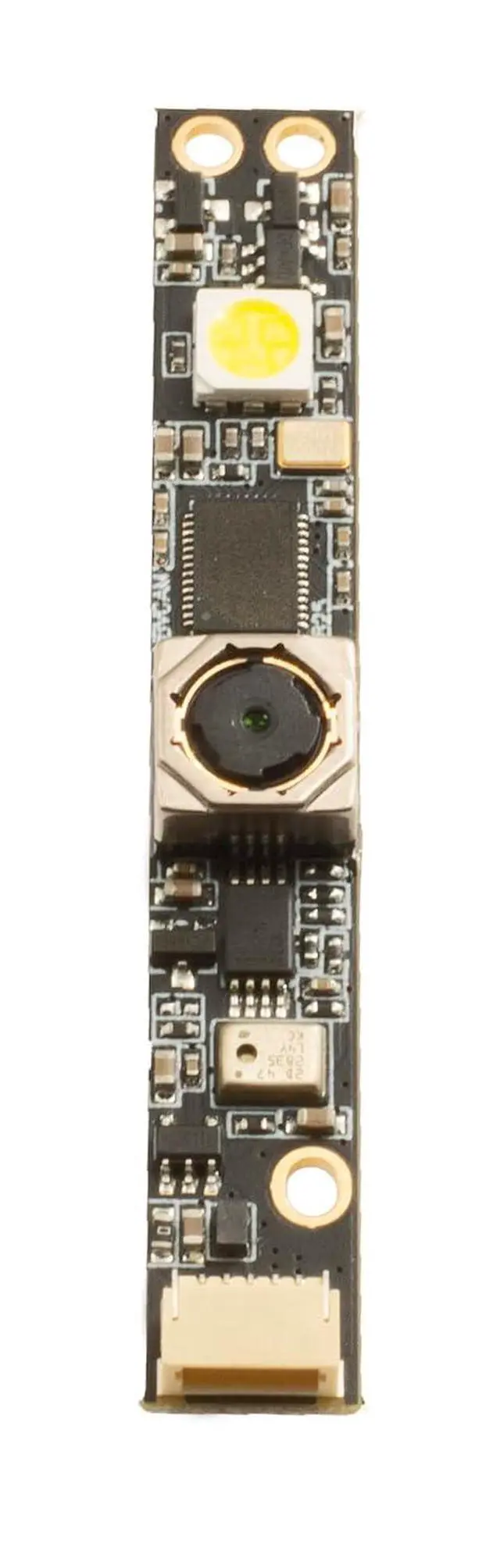

Overview: This product adopts the CMOS image sensor OV5640 produced by OmniVision Technologies, the high-definition camera has 5 megapixel, adopts USB 2.0 interface, it weighs only 8g, autofocus comes with flash and microphone, support Win XP / Win7 / Win8 / Win10 / MAC OS / Linux / Android operating system.
Item: OV5640-U5M-60
Size: 62mm (Length) *9mm (Width) * 5.68 mmHight± 0.2 mm
Temperature (Operation): -3070
Temperature (Stable Image): 050
Assembly Technique: SMT (ROSH)
Focus: Auto
Object Distance: 30cminfinity
Resolution: 800LW/PH (Center)
Interface: USB 2.0
Power Supply: USB bus power
Supply Voltage: DC 5V±5% Maximum
Power Consumption: 1200mW
Operating System Request: Win
XP/Win7/Win8/Win10/MAC OS/Linux/Android Sensor: OV5640 (1/4 )
Sensor Package: CSP, Bare
Die Maximum resolution: 2592*1944
Sensitivity: 600mv /lux-sec
Pixel Size: 1.4 µm * 1.4 µm Maximum
Image Transfer Rate: MJPEG 1280x720 30FPS /YUY2 1280*720 12FPS; MJPEG 1280*960 15FPS /YUY2 1280x*960 5FPS; MJPEG 1600*1200 15FPS / YUY2 1600x1200 5FPS; MJPEG 1920*1080 30FPS /YUY2 1920*1080 5FPS; MJPEG 2048*1536 15FPS /YUY2 2048*1536 5FPS; MJPEG 2592*1944 15FPS /YUY2 2592*1944 2FPS;
S/N Ratio: 36db Max
Dynamic Range: 68db
Shutter type: Electronic rolling shutter
AGC/AEC/Whiter Balance: Auto
Output Formats: YUY2/MJPEG
Microphone: Support
Lens Construction: 4P
F/No: 2.8
EFL: 2.7 mm
FOV: 60°
TV Distortion: < 0.24 % Relative
Illumination (Sensor): 70%
IR Filter: 650±10nm
Module Package: Anti-electrostatic tray

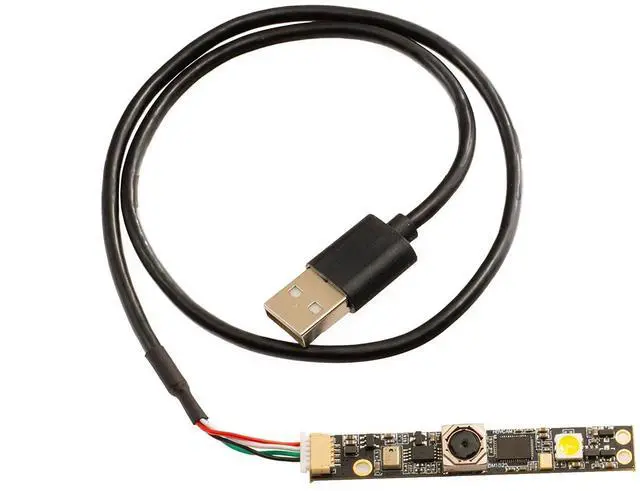

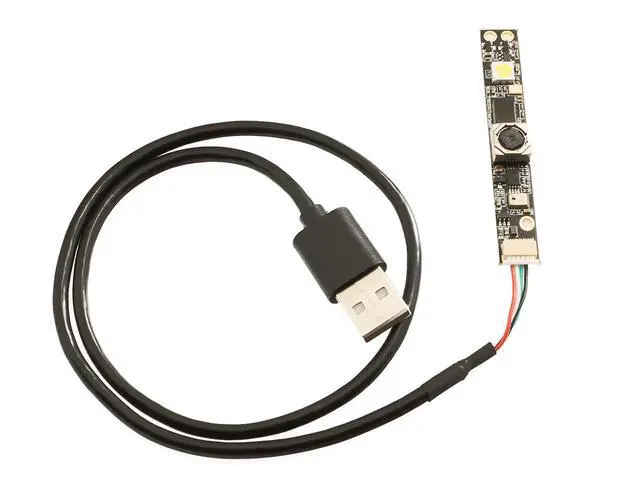

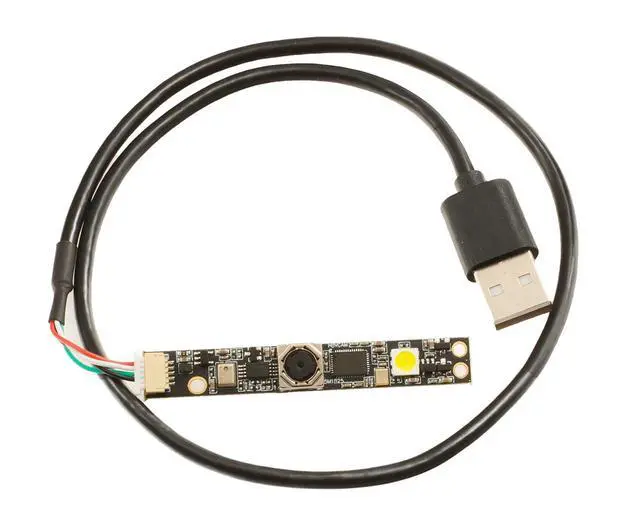

Package contents: 1. OV5640-U5M-60*1 2. USB to HX 1.25 -5P connecting cable * 1
Specifications
:Item: OV5640-U5M-60
Size: 62mm (Length) *9mm (Width) * 5.68 mmHight± 0.2 mm
Temperature (Operation): -3070
Temperature (Stable Image): 050
Assembly Technique: SMT (ROSH)
Focus: Auto
Object Distance: 30cminfinity
Resolution: 800LW/PH (Center)
Interface: USB 2.0
Power Supply: USB bus power
Supply Voltage: DC 5V±5% Maximum
Power Consumption: 1200mW
Operating System Request: Win
XP/Win7/Win8/Win10/MAC OS/Linux/Android Sensor: OV5640 (1/4 )
Sensor Package: CSP, Bare
Die Maximum resolution: 2592*1944
Sensitivity: 600mv /lux-sec
Pixel Size: 1.4 µm * 1.4 µm Maximum
Image Transfer Rate: MJPEG 1280x720 30FPS /YUY2 1280*720 12FPS; MJPEG 1280*960 15FPS /YUY2 1280x*960 5FPS; MJPEG 1600*1200 15FPS / YUY2 1600x1200 5FPS; MJPEG 1920*1080 30FPS /YUY2 1920*1080 5FPS; MJPEG 2048*1536 15FPS /YUY2 2048*1536 5FPS; MJPEG 2592*1944 15FPS /YUY2 2592*1944 2FPS;
S/N Ratio: 36db Max
Dynamic Range: 68db
Shutter type: Electronic rolling shutter
AGC/AEC/Whiter Balance: Auto
Output Formats: YUY2/MJPEG
Microphone: Support
Lens Construction: 4P
F/No: 2.8
EFL: 2.7 mm
FOV: 60°
TV Distortion: < 0.24 % Relative
Illumination (Sensor): 70%
IR Filter: 650±10nm
Module Package: Anti-electrostatic tray
Package contents: 1. OV5640-U5M-60*1 2. USB to HX 1.25 -5P connecting cable * 1
