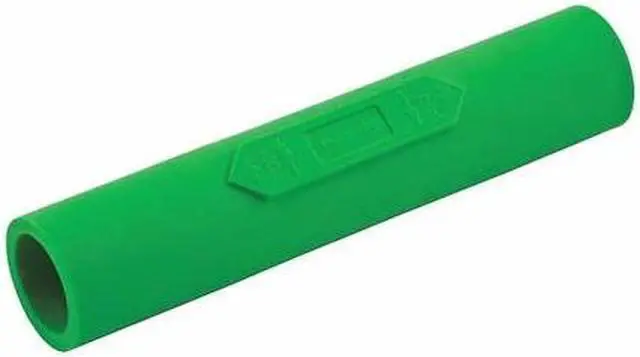

HUBBELL WIRING DEVICE-KELLEMS HBL15DMGN Double Conenctor,150AC/DC,Taper Nose,Grn

The HUBBELL Double Connector, Series 15, is a double male coupler intended for use in temporary electrical power distribution. This single pole device features a taper nose style and is rated for up to 150 A at 600V AC or 250V DC. It utilizes plug-in connectivity with brass contacts and conductor material, housed in a thermoplastic elastomer body that features an insulated body constructed from thermoplastic elastomer. The connector is suitable for use in dry indoor locations unless additional protection is provided.

Key Features of the HUBBELL Double Connector:

• Amperage/Voltage Rating: Rated for 150 A at 600V AC or 250V DC


• Connector Type: Double Male Coupler (Gender Reversing), Single Pole


• Material: Brass contact/conductor; Thermoplastic elastomer housing


• Mounting: Cord mounted design compatible with Series 15 devices


• NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements


• Temperature Range: Operates from -40°C to +75°C (continuous)


• Standards Compliance: UL/cUL Listed; conforms to NEC, ANSI/NFPA70; fits UL1691


• Insulation: Insulated body construction
