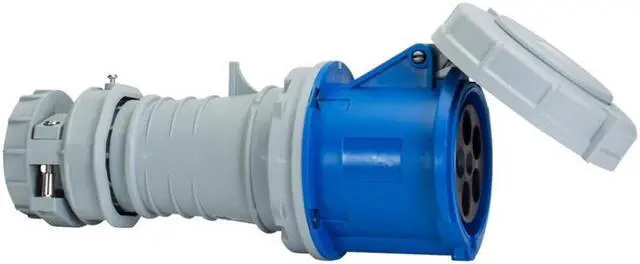

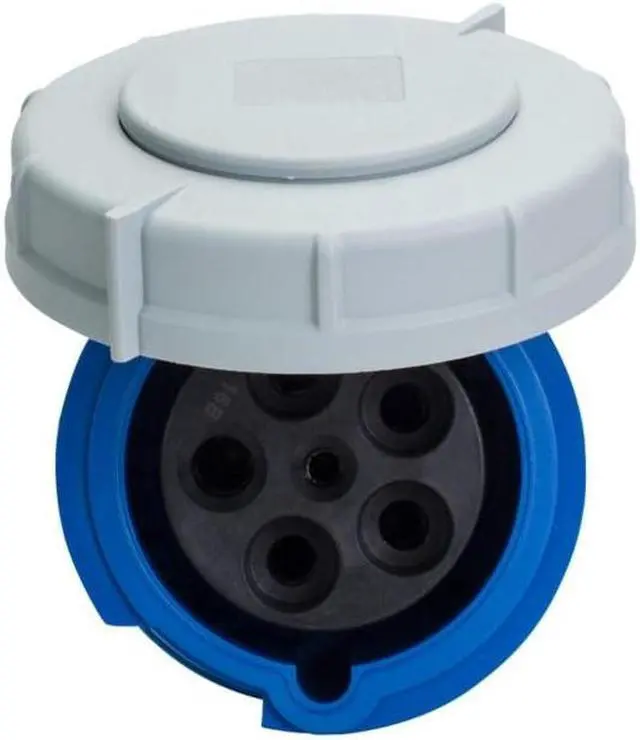

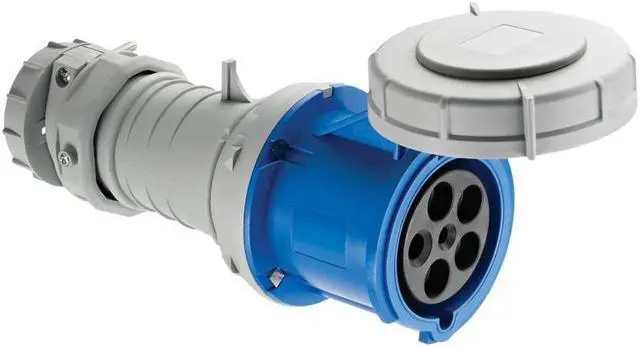

EATON Arrow Hart AH560C9W Water-Tight Pin and Sleeve Connector, IP69K rated, 60A 120/208V, 4 pole 5 wire, Female, Blue Nylon, Three Phase
- IP69K Rated--The IP69K rating is designed to tackle high pressure, high temperature washdown applications. The ?6? applies to external protection from dust. The ?9? signifies protection from close-rangehigh pressure spray downs, and the ?K? applies to the high temperature of the water used. Arrow Hart?s new pin & sleeve devices are designed to face some of the most severe operating conditions, often in the most challenging environments making them ideal for a wide range of markets, including food and beverage, mining, and industrial facilities
- #8 - #2 AWG; #10 - #2 AWG (Ground); #12 - #16 AWG (Pilot)
- 60A, 120/208V 3Y
- 4 pole
- 5 grounding wires
- Nickel Plated Brass contacts
- Three Phase
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Eaton Arrow Hart
AH560C9W
pin and sleeve connector
- IP69K Rated--The IP69K rating is designed to tackle high pressure, high temperature washdown applications. The ?6? applies to external protection from dust. The ?9? signifies protection from close-rangehigh pressure spray downs, and the ?K? applies to the high temperature of the water used. Arrow Hart?s new pin & sleeve devices are designed to face some of the most severe operating conditions, often in the most challenging environments making them ideal for a wide range of markets, including food and beverage, mining, and industrial facilities
- IP67 rated
- #8 - #2 AWG
- #10 - #2 AWG (Ground)
- #12 - #16 AWG (Pilot)
- 60A
- 120/208V 3Y
- Nickel plated brass contacts
- IP67
- Nylon, Blue
- 4-pole, 5-wire, grounding
- 0.66-1.5in (1.68-3.81cm) cord diameter
- Female
- 5 HP horsepower rating
- 11.5 inches long x 5.125 inches high x 5.125 inches wide
