Professional-Grade PowerCON Plug
- Stable, safe and durable power connection is the core demand for your professional equipment. This Powercon Connector and Socket is engineered to meet the rigorous standards of the entertainment, AV and industrial industries, solving the pain points of accidental disconnection, water/dust damage and misconnection that often occur in harsh working environments. Whether you’re setting up stage lighting, installing outdoor LED screens, or configuring industrial equipment, this powercon connector set will be your reliable long-term partner.
Compatible with all standard powercon devices, widely matching stage lighting, audio amplifiers, outdoor LED screens, broadcast racks, industrial lab equipment and other devices.
Why Choose Our Powercon Connector & Socket?
High-Quality Material & Long Service Life – Contacts are made of copper alloy with silver plating, ensuring contact resistance =5mO, efficient conductivity and no obvious temperature rise during high-current operation. The shell is made of high-strength nylon and PVC dual-component material, which is impact-resistant, wear-resistant and flame-retardant. Tested to withstand =2000 plug-in cycles for long-term use without frequent replacement.
- Rated Current: 20A
- Rated Voltage: 250V AC
- Contact Material: Silver-plated copper alloy
- Shell Material: Polyamide & PVC
- Wire Gauge: 12-16 AWG
- Plug-In Cycles: =2000 times
- Operating Temperature: -30? to +80?
Easy Installation
Equipped with screw-type terminals and a unique locking bushing and strain relief design, it is easy to install without professional tools. Suitable for cables with diameter 12-16AWG.
DIY Your New Powercon Cable with PowerCON Connectors
Tool Preparation: 3 core cable, wire stripper, screwdriver

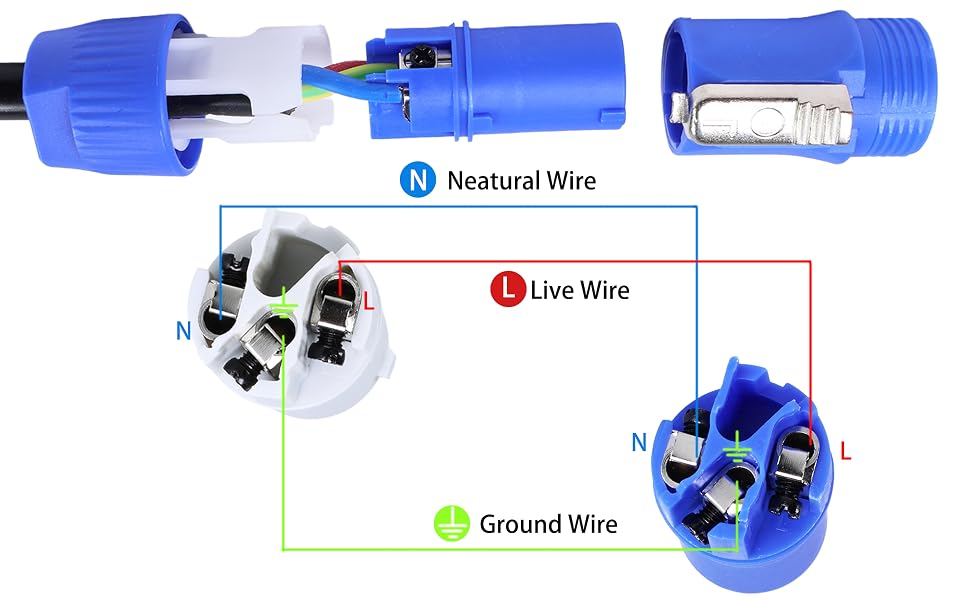

Wiring Tips:
- Use wire strippers to strip 2 cm of rubber insulation from the 3-core wire, exposing the bare wires

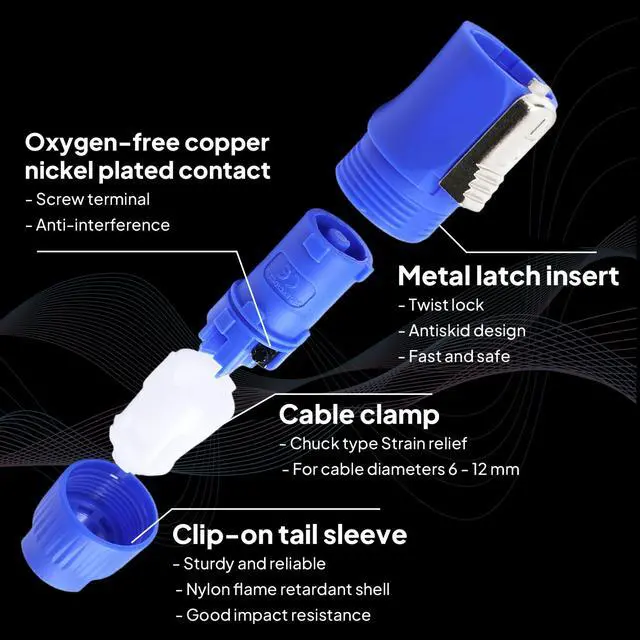

- Disassemble the connector into four parts
- Insert the wire into the corresponding terminal (Live, Neutral and Ground Contacts)
- Use a screwdriver to tighten the terminal screws and secure the cables
- Replace the remaining parts and screw them back into place

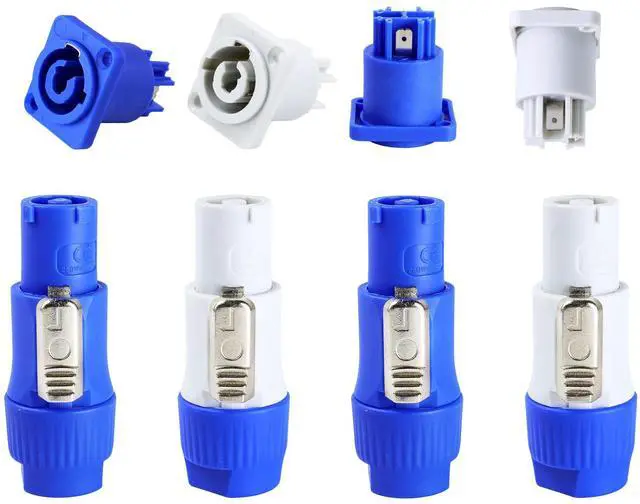

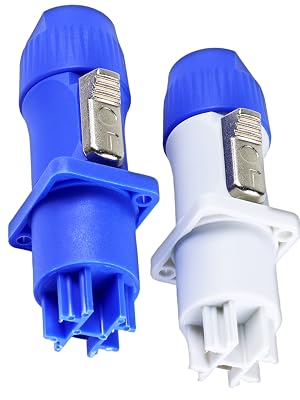

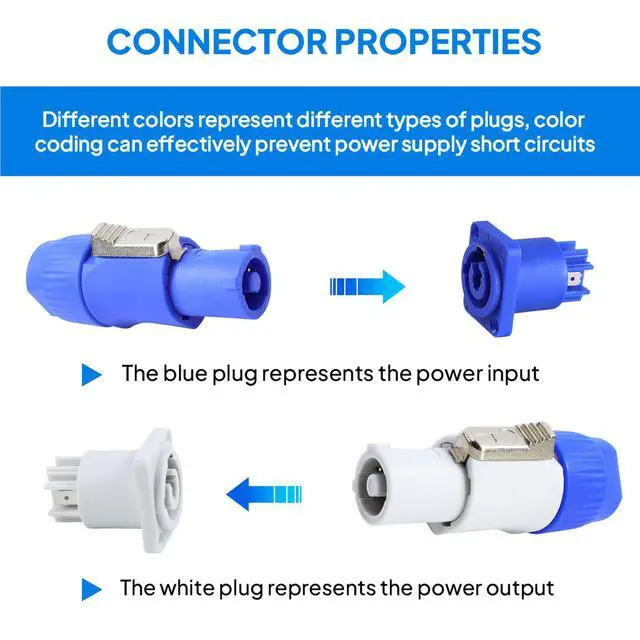

NAC3FCA Connector
NAC3MPA Socket
NAC3MPB Socket
NAC3FCA Connector
Wide Application Scenarios
- Professional AV & Stage: Live concerts, theater productions, stage lighting, audio systems, tour equipment
- Outdoor Equipment: Outdoor LED screens, billboards, garden lighting, construction site temporary power
- Industrial & Lab: Industrial control equipment, laboratory instruments, portable junction boxes
- Broadcast & Media: Broadcast racks, control rooms, mobile AV setups
