Protect your safety
bring new life back to power tools appliances & extension cords.
Reliable materials
Solid brass plug blades are firmly embedded in body.
constructed of impact resistant durable nylon.

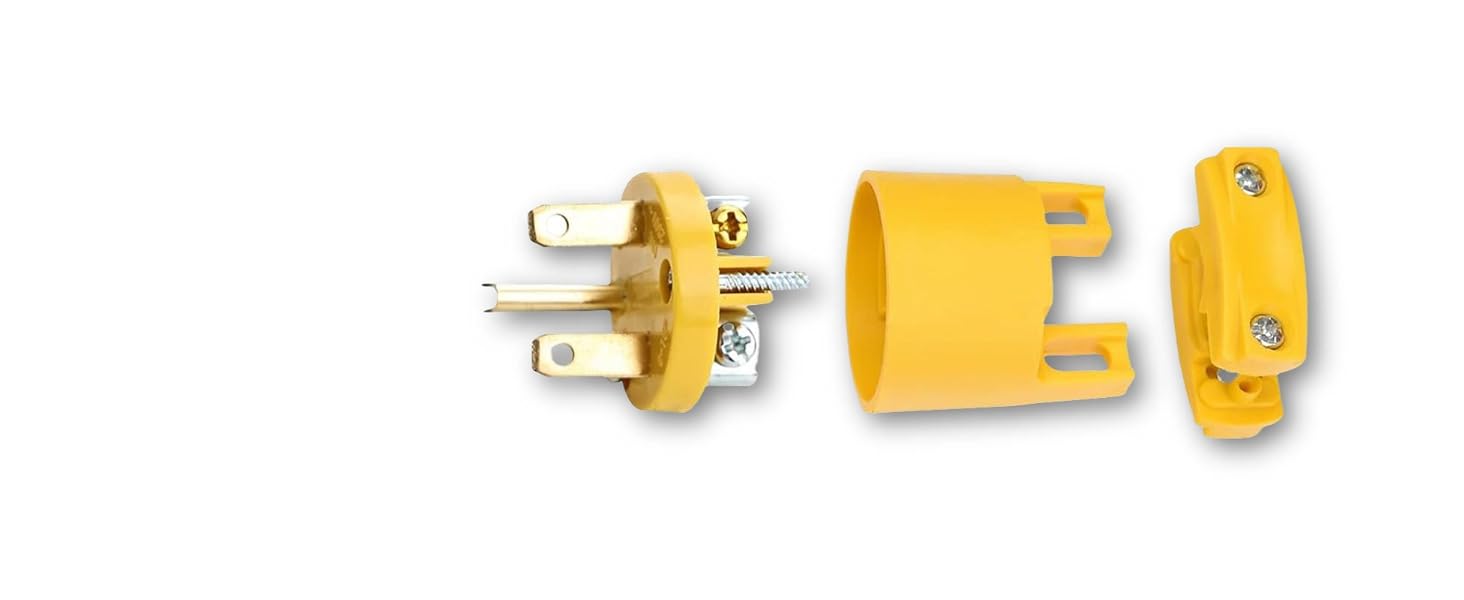

Easier installation
Two-part Cord grip tightens with screws - adding security for clamping force and cord retention.

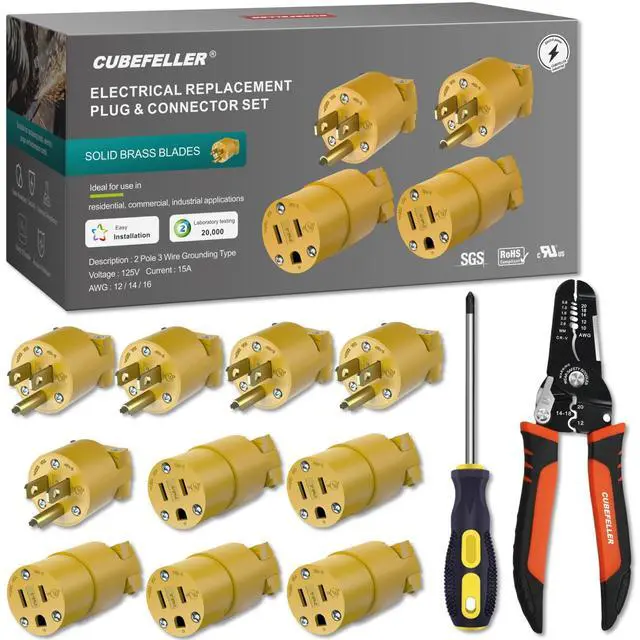

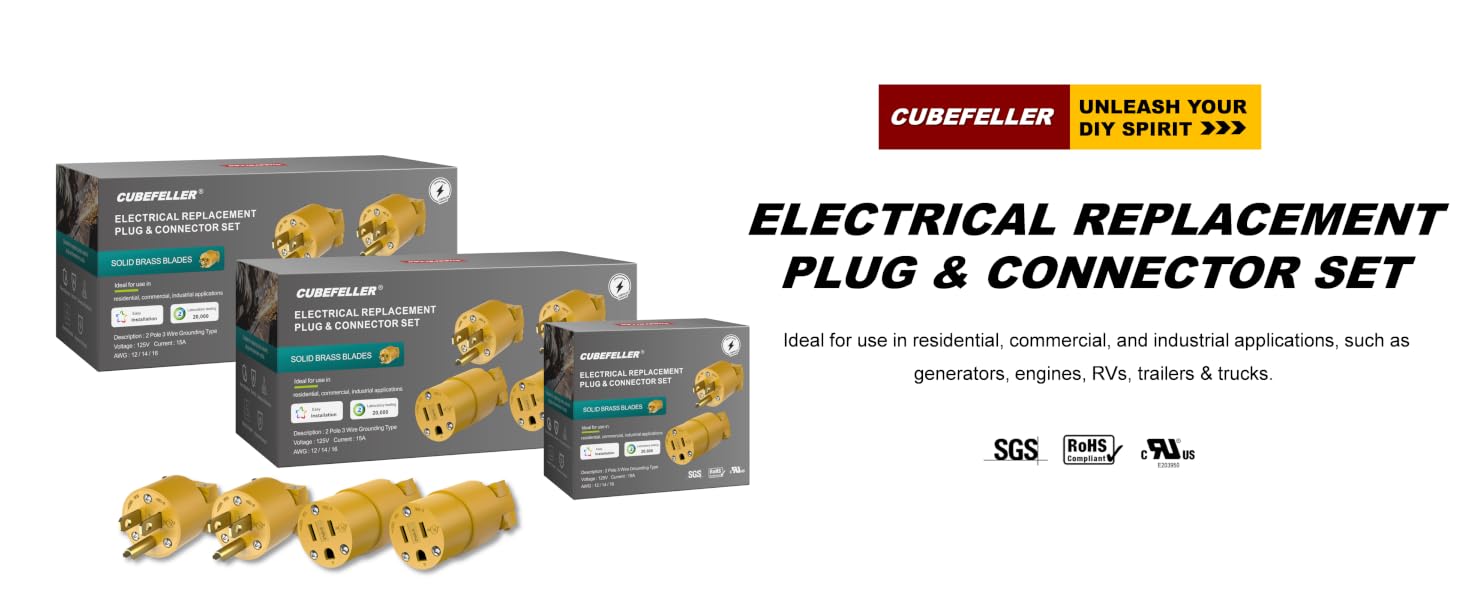

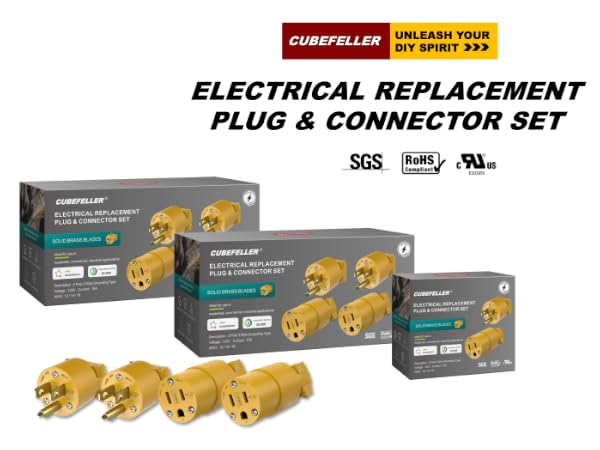

VERSATILE Plug & Connector Set
Electrical Replacement Plug & Connector
125V, 15A
2 Pole 3 Wire Grounding Type
Adjustable Wiring Gauge 16-12 AWG
UL Listed
Widely Applicable

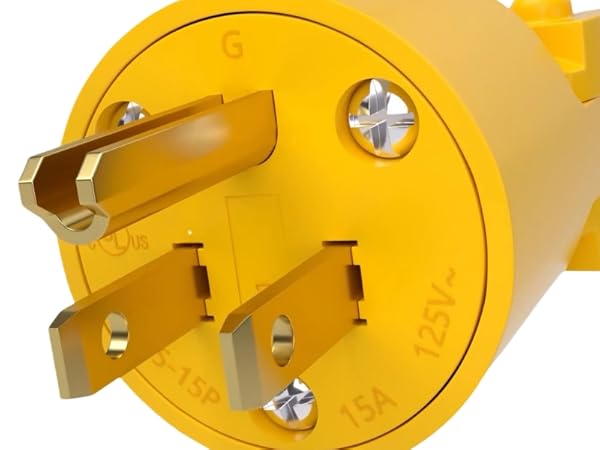

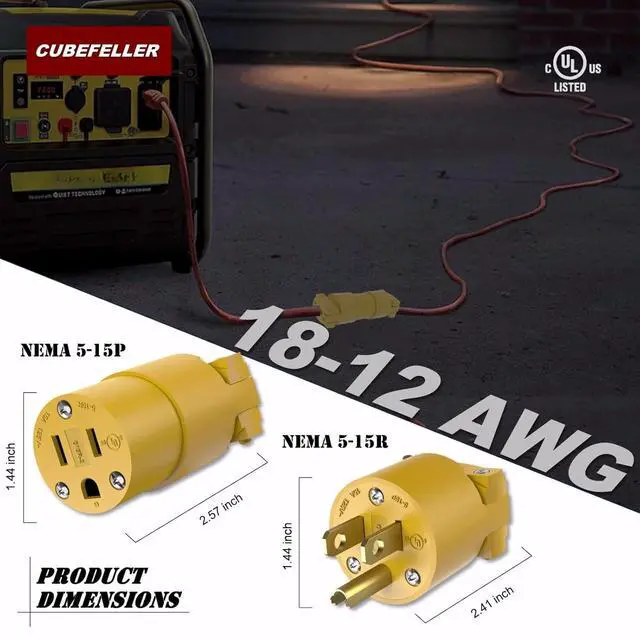

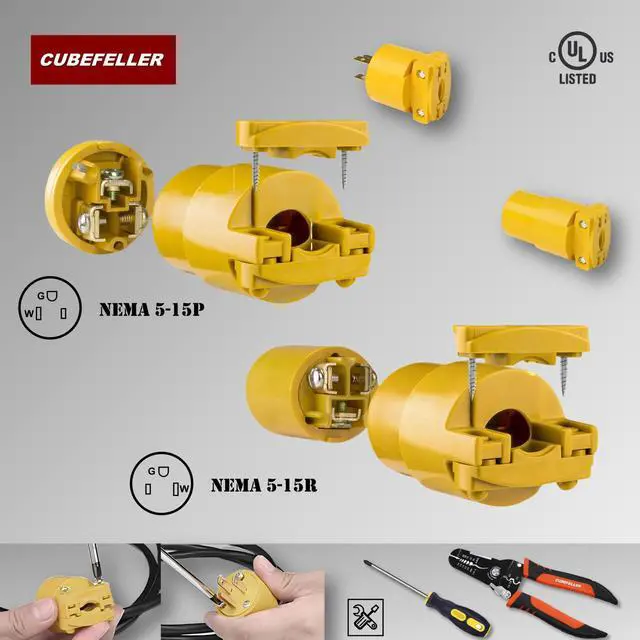

NEMA 5-15P Straight Blade Extension Cord Plug
Equipped with an adjustable rear clamp, suitable for power cords of different sizes (SJT 16/14/12).
Impact Resistant

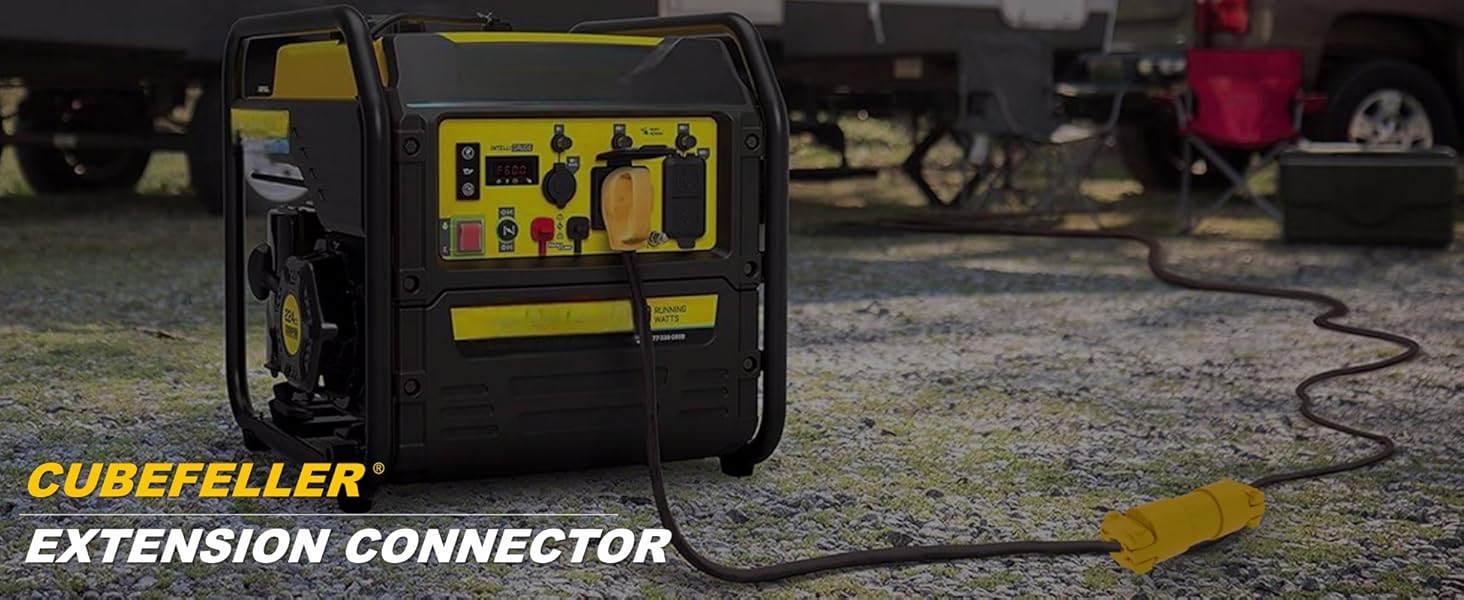

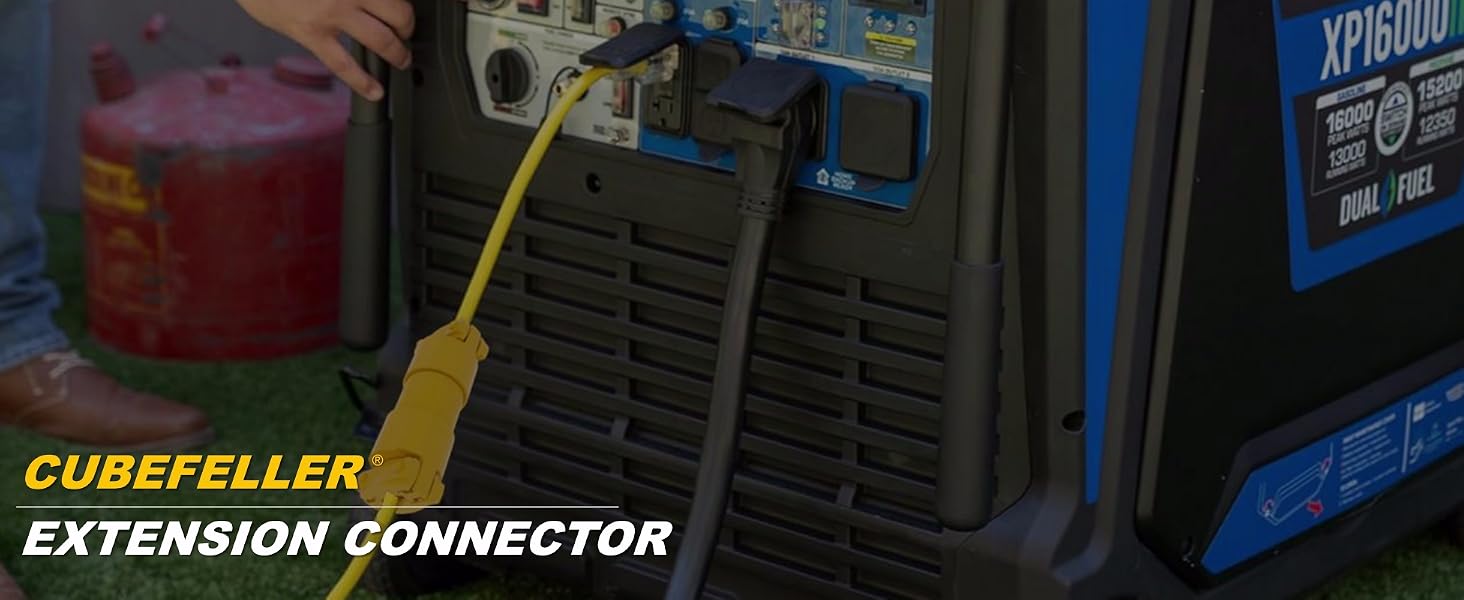

NEMA 5-15R Straight Blade Extension Cord Connector
The outlet can resist accidental drops, hammer hits, and the like.
Technical Specification
Design provides fast easy assembly

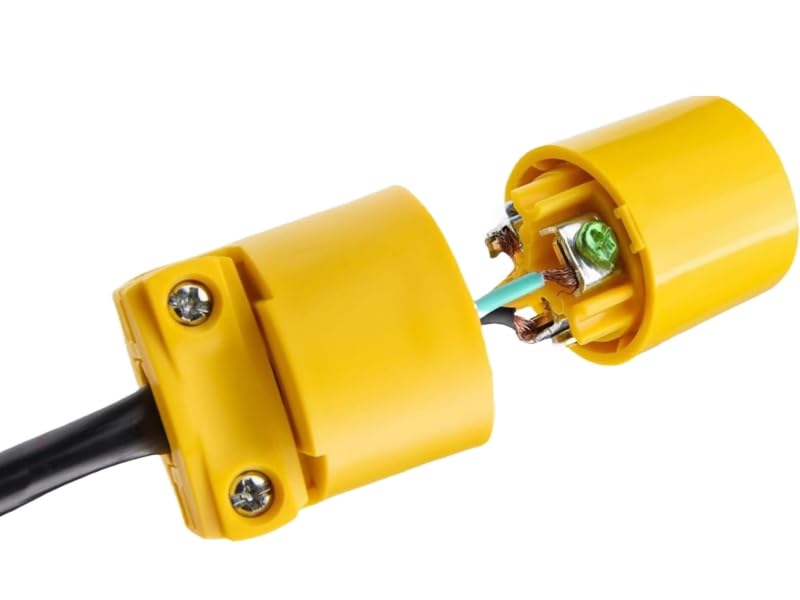

INSTALLATION
- Loosen the assembly screws on the surface and divide the equipment into the main body and the equipment cover. Then loosen the screws of the internal parts (equipment cover).
- Thread the wire through the clamp, remove the insulation layer, and expose the exposed copper wire.
- Insert the bare copper wire into the inner clamp and tighten each terminal screw.
- Assemble the device body and device cover together, tighten the assembly screws and wire clamp screws.
VERSATILE Plug & Connector Set
Protect your safety
bring new life back to power tools appliances & extension cords.
Reliable materials
Solid brass plug blades are firmly embedded in body.
constructed of impact resistant durable nylon.
Easier installation
Two-part Cord grip tightens with screws - adding security for clamping force and cord retention.
Electrical Replacement Plug & Connector
125V, 15A
2 Pole 3 Wire Grounding Type
Adjustable Wiring Gauge 16-12 AWG
UL Listed
Widely Applicable

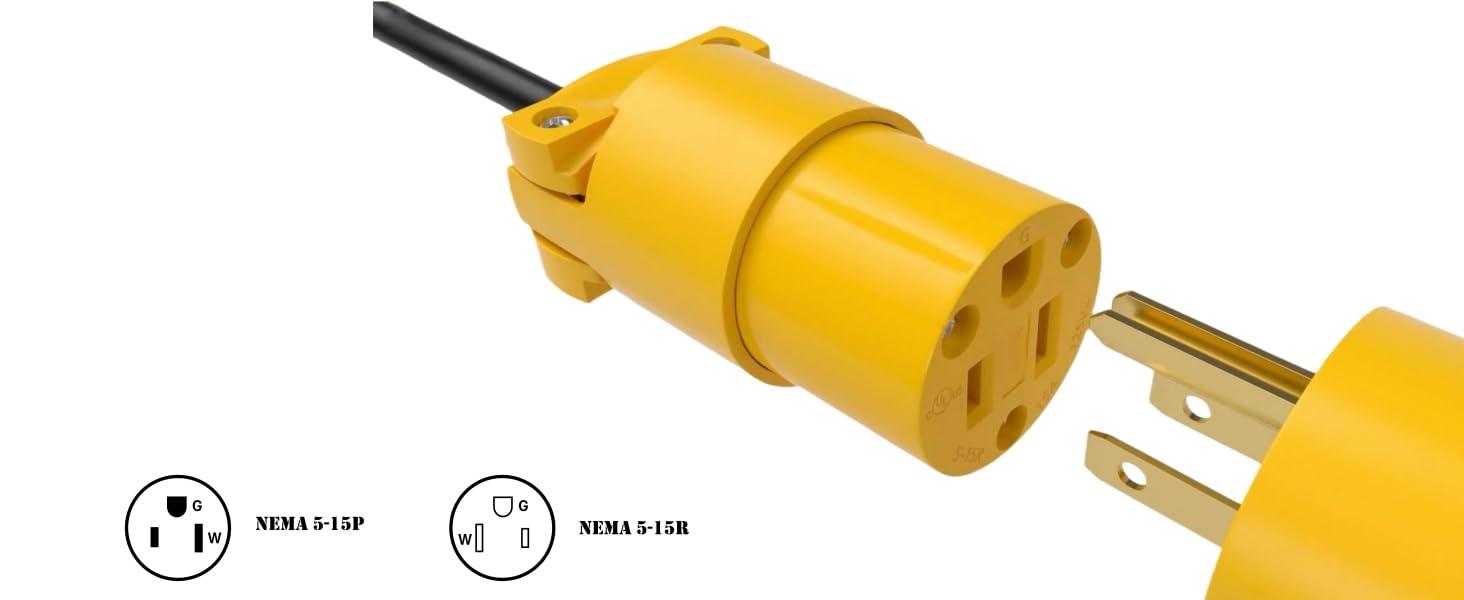

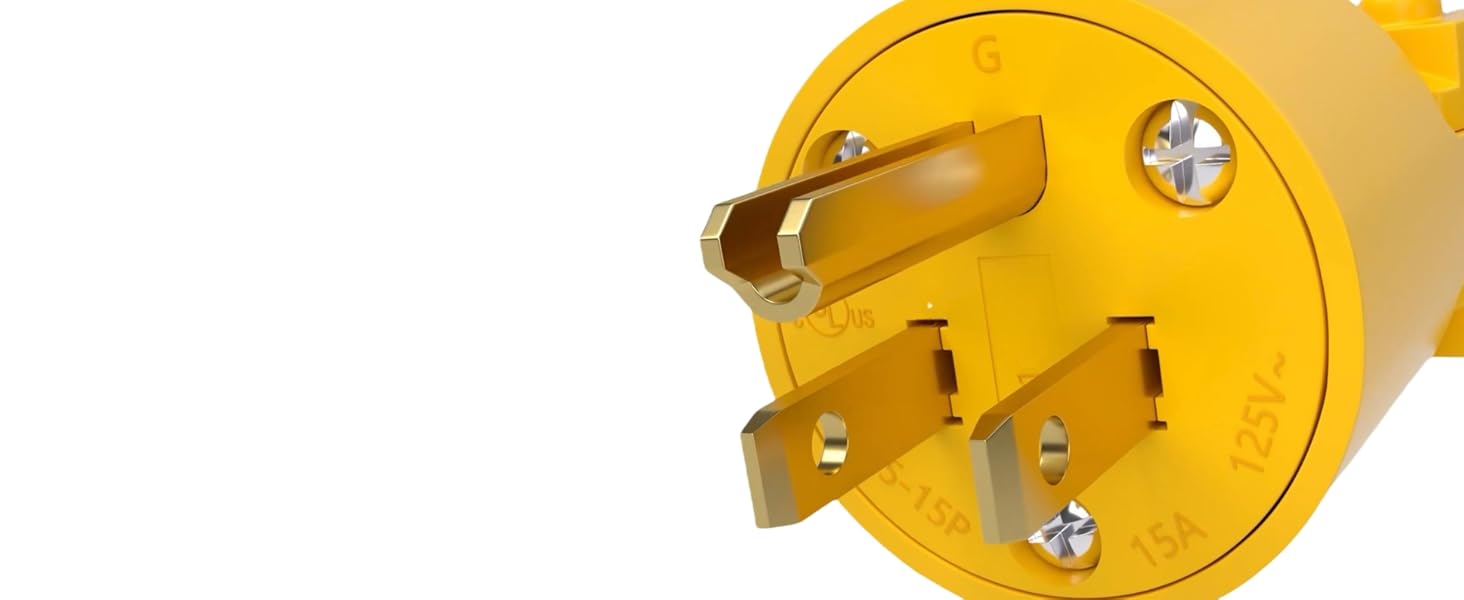

NEMA 5-15P Straight Blade Extension Cord Plug
Equipped with an adjustable rear clamp, suitable for power cords of different sizes (SJT 16/14/12).
Impact Resistant

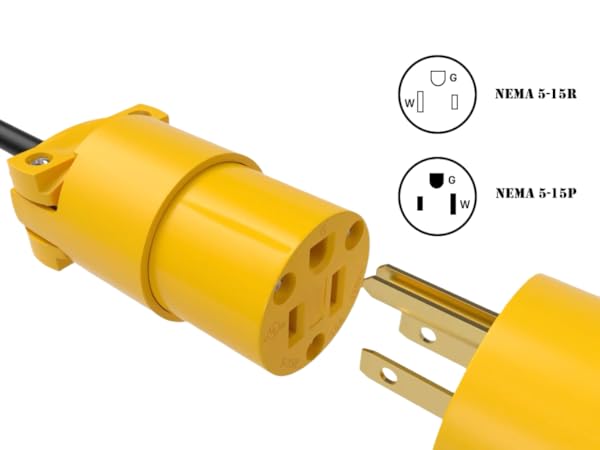

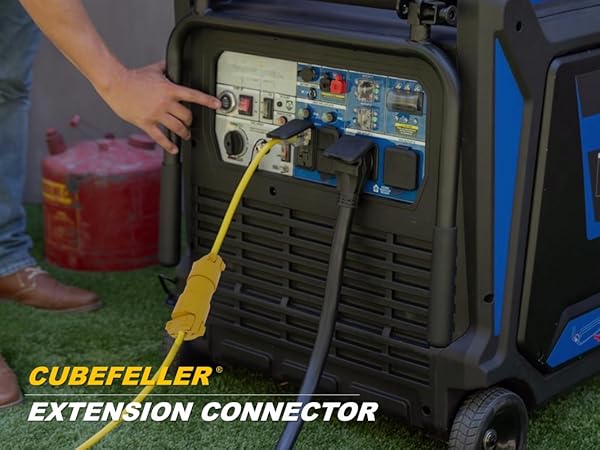

NEMA 5-15R Straight Blade Extension Cord Connector
The outlet can resist accidental drops, hammer hits, and the like.
Technical Specification
| Product Name | Electrical Replacement Plug & Connector Set |
|---|---|
| NEMA | 5-15P & 5-15R |
| Rated Voltage | 125V |
| Rated Current | 15A |
| Material | Einforced PP (Polypropylene) & PVC (Polyvinyl chloride) |
| Power Frequency | 50~60 Hz |
| Wire Gauge | 18-12 AWG |
| Description | 2 Pole 3 Wire Grounding Type |
| Color | yellow |
| UL Listed | v |
| Operating Temperature | -30? to 60 ? |

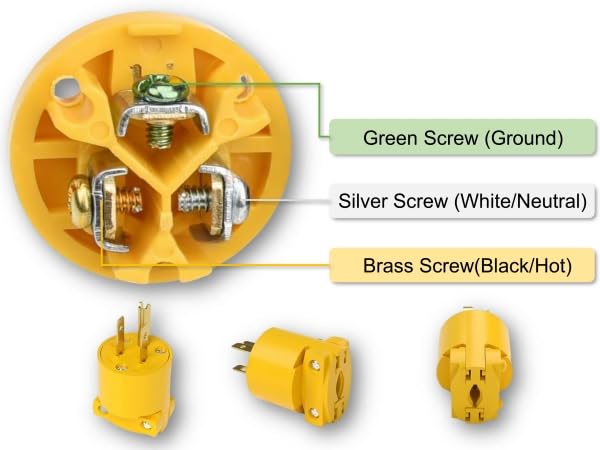

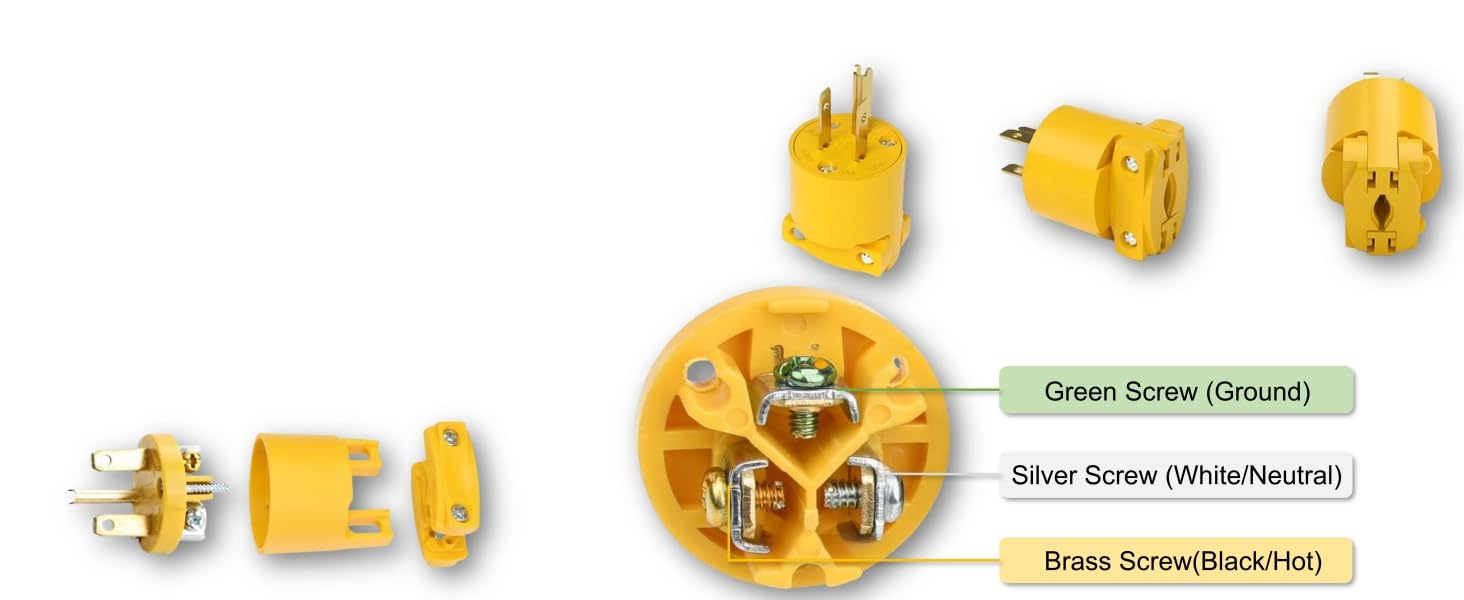

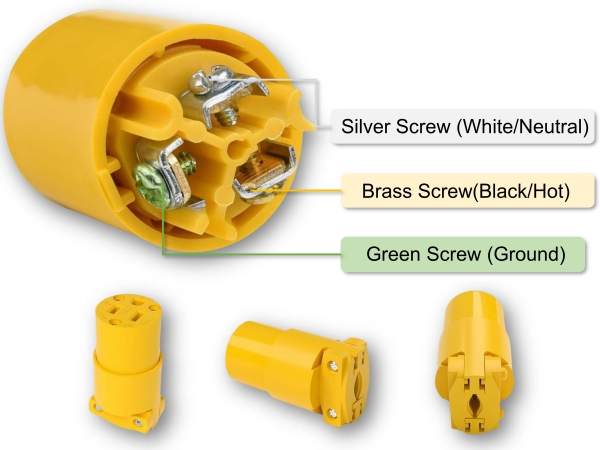

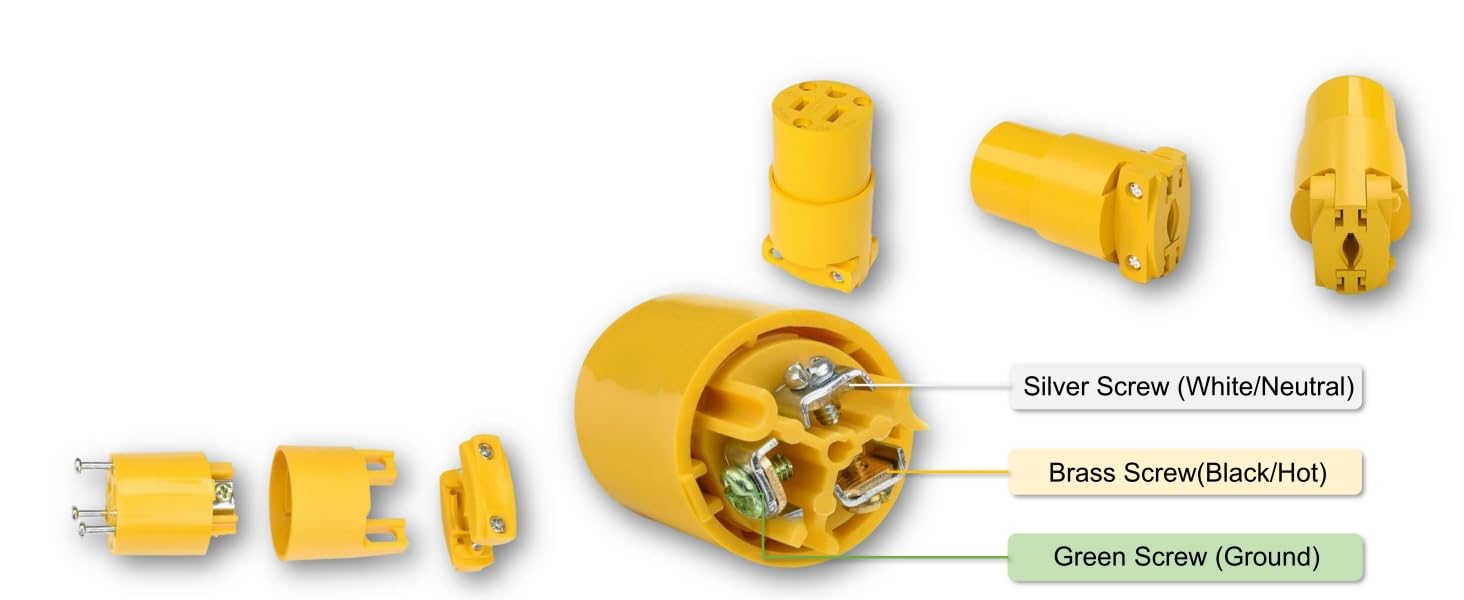

| Terminal ID | Brass-Hot, Green-Ground, Sliver-Neutral |
| Flammability | Rated V-2 per UL94 |
Design provides fast easy assembly
INSTALLATION
- Loosen the assembly screws on the surface and divide the equipment into the main body and the equipment cover. Then loosen the screws of the internal parts (equipment cover).
- Thread the wire through the clamp, remove the insulation layer, and expose the exposed copper wire.
- Insert the bare copper wire into the inner clamp and tighten each terminal screw.
- Assemble the device body and device cover together, tighten the assembly screws and wire clamp screws.
