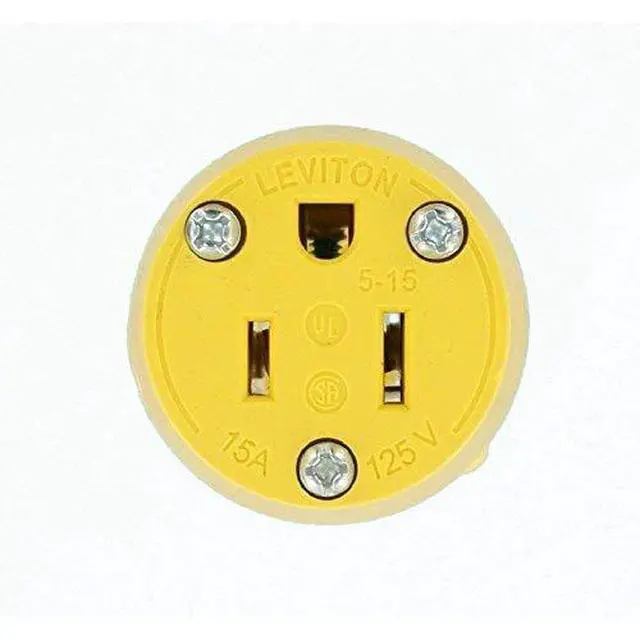

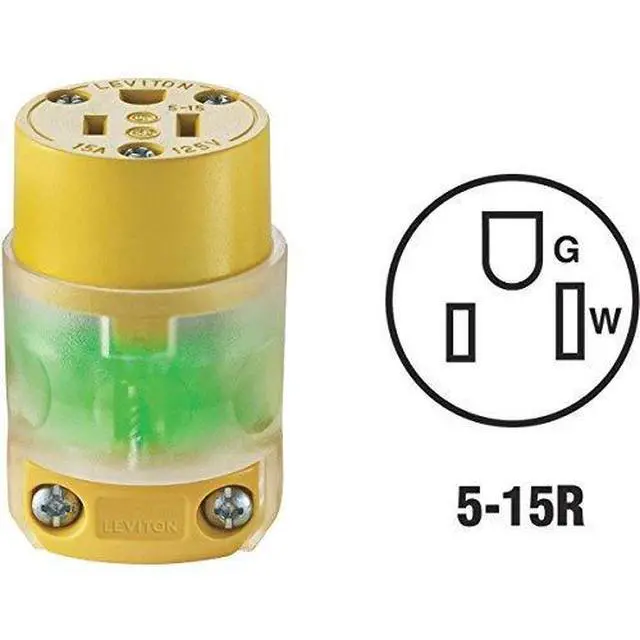

Leviton 515CV-LIT Grounding Lighted Cord End Replacement
Leviton offers a large selection of 15, 20, 30 and 50 Amp Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they’re ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
- Ideal for replacement of plugs on tools, appliances and extension cords

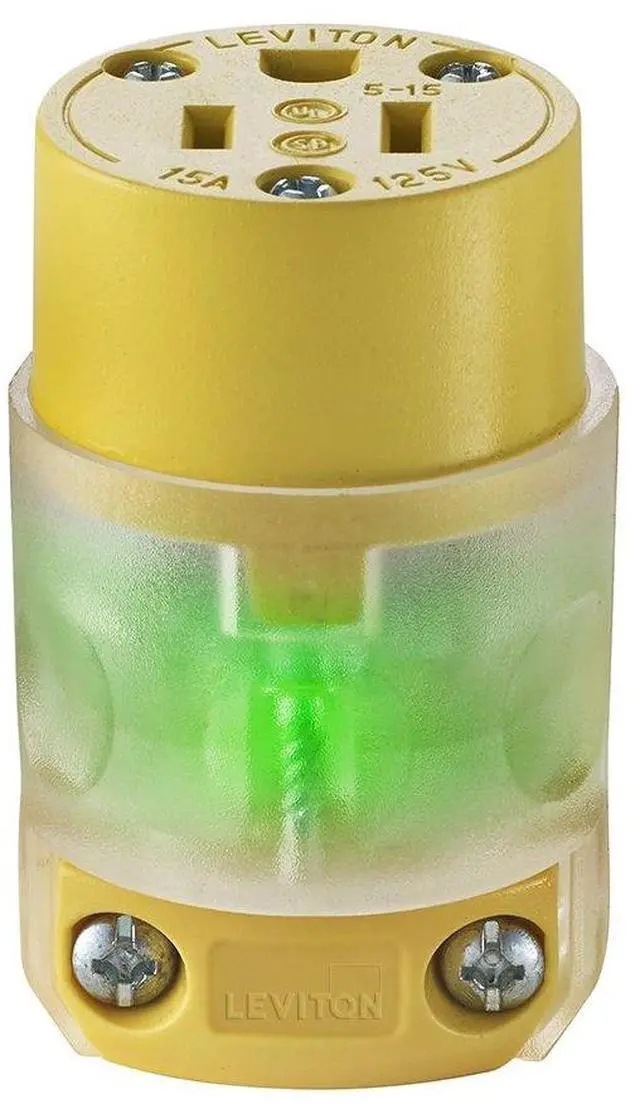

- Green light indicates power is flowing through to the cord
- Rugged PVC plug and connector (515PV/515CV) resists moisture and chemicals
- Unique dimpled body provides a secure hinge grip
- Built-in cord grip adjusts automatically for use with 18-12 AWG.
Amperage: 15 A, Current Interrupting: Certified for current interrupting at full rated current, Grounding: Grounding, Pole: 2, Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current, Voltage: 125 VAC, Wire: 3, Operating Temperature: -40°C to 60°C, Assembly Screws: Steel, Zinc Plated, Blades/Contacts: Brass, Body Material: PVC, Cord Range: .245 - .700, Terminal Accom.: 18-12 AWG, Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral, Color: Yellow/Transparent, Feature: Power Indication.
