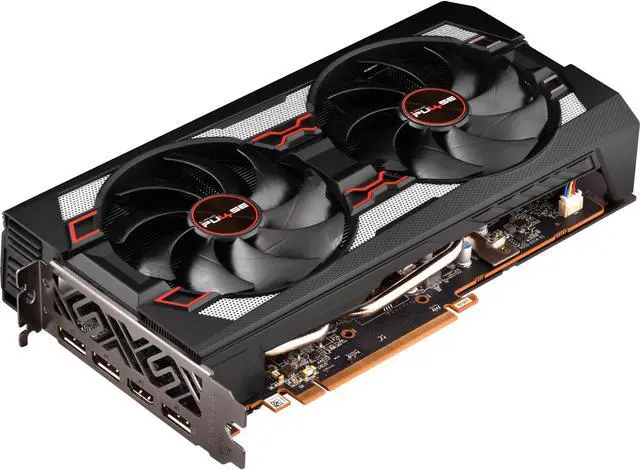

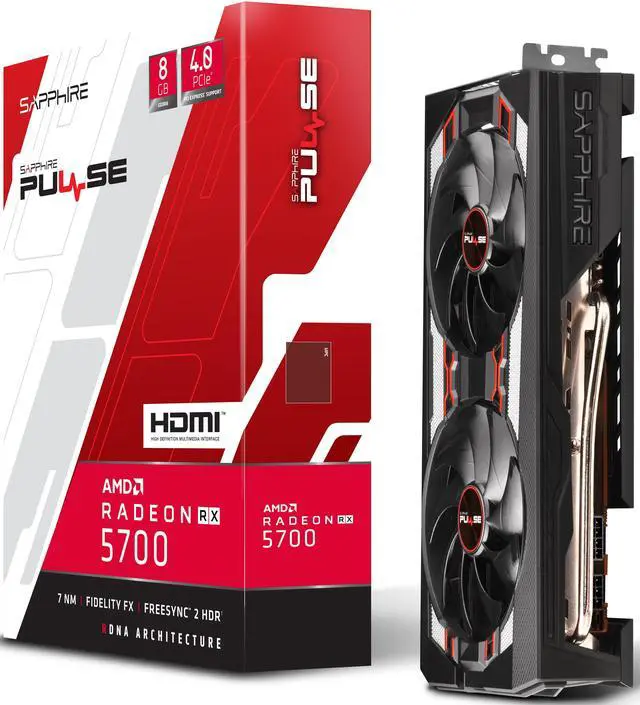

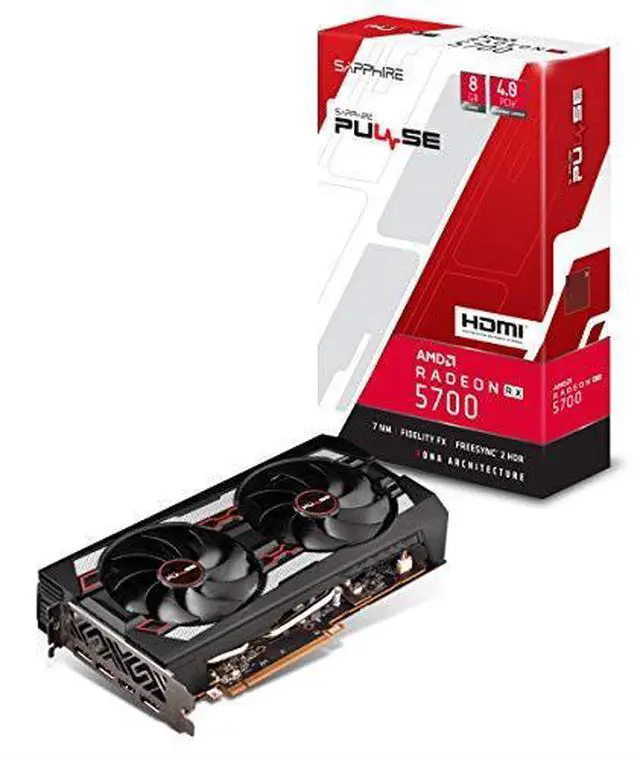

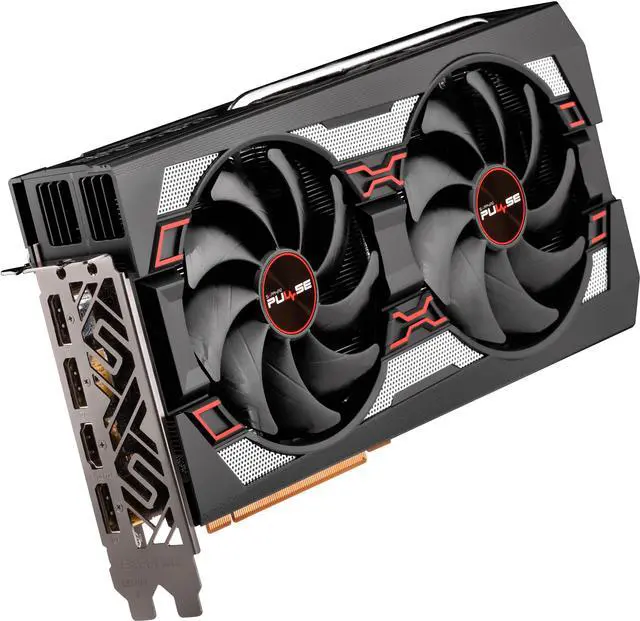

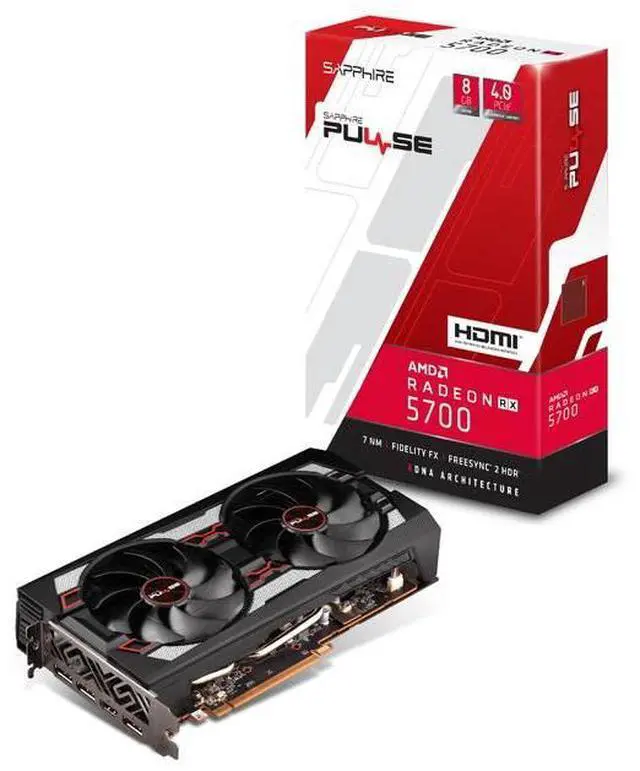

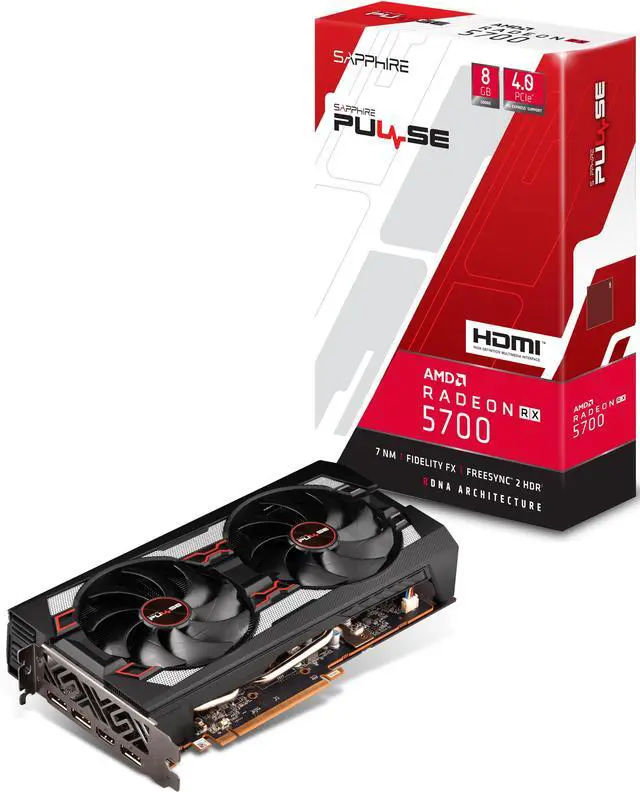

Sapphire 11294-01-20G PULSE AMD Radeon RX 5700 8GB GDDR6 HDMI/3DisplayPort PCI-Express 4.0 Video Card

Specifications

• Mfr Part Number: 11294-01-20G
• GPU: PULSE RX 5700 Graphics; 2nd Gen 7nm GPU; RDNA Architecture
• Engine Clock:
  • Boost Clock: Up to 1750 MHz
  • Game Clock: Up to 1700 MHz
  • Base Clock: 1540 MHz
  • Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
• Stream Processors: 2304
• Memory Size/Bus: 8GB/256 bit GDDR6
• Memory Clock: 14 Gbps Effective
• Displays: Maximum 4 Displays
• Resolution:
  • HDMI: 4096× 2160@60Hz
  • DisplayPort: 5120× 2880@60Hz
• Interface: PCI-Express 4.0 x16
• Output:
  • 1x HDMI
  • 3x DisplayPort 1.4
• BIOS
  Support: Dual UEFI
• API:
  • Vulkan
  • OpenGL 4.5
  • OpenCL 2.0
  • DirectX 12
  • Shader Model 5.0
• Game Index: Extreme 1440P
• Sapphire Features:
  • Power Design
  • Fan Check
  • Free Flow
  • VR-Friendly
  • TriXX Supported
  • TriXX Boost
  • Intelligent Fan Control IV
  • Precision Fan Control
  • Robust VRM Cooling
  • Robust Memory Cooling
  • Dual-X Cooling Technology

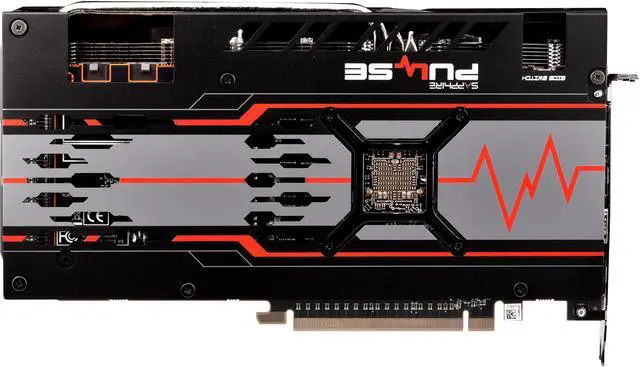

  • Tough Metal Backplate
  • PCB Layers
  • Two-Ball Bearing
  • Fan Quick Connect
  • Fuse Protection
  • Dual BIOS
• AMD
  Features:
  • RDNA Architecture
  • 2nd Gen 7nm GPU
  • GDDR6 Memory
  • Power Efficiency
  • PCI Express 4.0 Support
  • Video Streaming up to 8K
  • Display Port 1.4 (HBR3) / DSC
  • Radeon Software
  • Radeon Boost
  • Radeon Image Sharpening
  • Radeon Anti-Lag
  • AMD FidelityFx
  • Async Compute
  • Radeon Rays Audio + True Audio Next
  • Radeon FreeSync 2 HDR
  • Radeon VR Ready Premium
• Cooling:
  • Dual-X Cooling
  • Dual Fan
  • Two-Ball Bearing
• Form Factor:
  • 2.3 slot, ATX
  • Dimension: 254 x 135 x 46.5 (mm)
• Power Consumption: 187W
• OS: Windows 10, Windows 7, 64bit operating system required
• System Requirement:
  • Minimum 600 Watt Power Supply (Recommended).
  • 1 x 8-pin Power Connector.
  • 1 x 6-pin Power Connector.
  • PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
  • Minimum 8GB of system memory. 16GB recommended.
