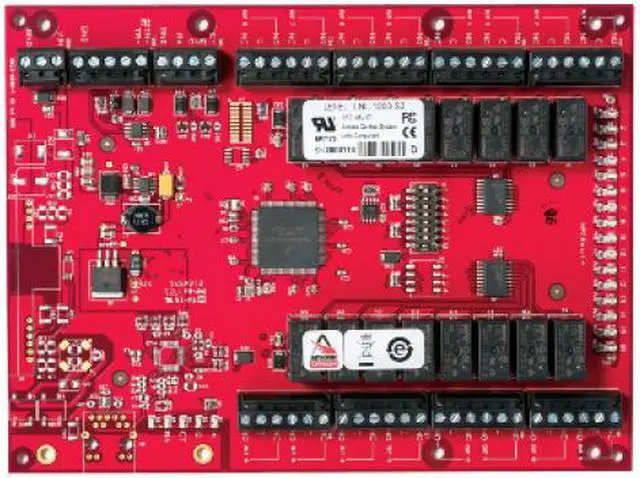

Lenel LNL-1200-S3 Series 3 16-Relay 12/24 VDC Output Control Module (NOB)

Lenel LNL-1200-S3 Series 3 16-Relay 12/24 VDC Output Control  Module

Brand:   Lenel

Model:   LNL-1200-S3

Type:   Output Control Module

Outputs:   16 Form-C, 5A @ 30Vdc, resistive

Controller type:   Input/Output Module

Host connection:   RS485

Elevator control max no. of floors:   128

Operating temperature:   0 to +70°C

Storage temperature:   -55 to +85°C

Operating voltage:   12 to 24Vdc ±10%, 1100mA maximum

Compliancy:   CE, RoHS, UL 1076, UL 294

Output Voltage:   208 - 230 V AC

Protocols:   Web, SNMP, Telnet

Widht:   6 In

Length:   8 In

Height: 0.69 In

Feautres

16 Form-C 5 A, 30 VDC contacts for load switching

12 or 24 VDC input power

2 dedicated digital inputs for tamper and power failure status

RS-485 communication, multidropped (2-wire or 4-wire RS-485)

Up to 16 OCMs per Intelligent System Controller

On-board termination jumpers

DIP switch-selectable addressing

Status LEDs for communication to the host, heartbeat and relay status

Elevator control, support for 128 floors

Advanced Encryption Standard (AES) 128-bit or 256-bit encryption supported, depending on ISC and OnGuard version

Suitable as replacement for Series 1 and Series 2 boards
