J&H LED Wall Pack Light, 22/28/36W & 2700/4000/5000K Selectable, 0-10V Dimming, IP65
- Select 22W, 28W or 36W and choose 2700K, 4000K or 5000K to tailor this LED wall pack to the space.
- 0-10V dimming enables brightness adjustment through compatible controls; 120-277V input suits common commercial service voltages.
- 120 degrees distribution provides broad light spread for building exteriors, entrances and perimeter areas.
- Aluminum housing, polycarbonate lens, IP65 rating and 4kV surge protection support exterior applications.
- ETL listed with a 5-year warranty; CRI 70+ supports general area lighting.
Any questions? Ask CelesteSM will help you find out quickly.
Flexible wall-mounted lighting

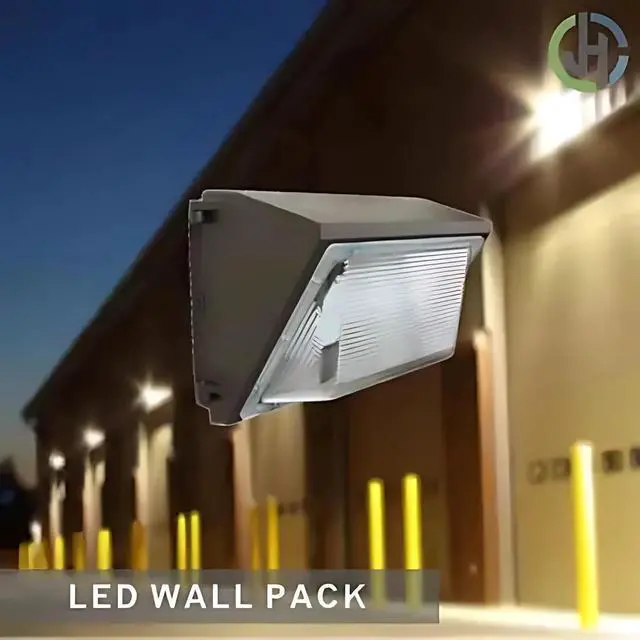

The J&H LED wall pack light gives contractors and property teams a configurable fixture for lighting building exteriors, entrances and perimeter areas. Its selectable wattage and color temperature let you tailor the light to the location without committing to one fixed output level or light appearance. A 120 degrees distribution helps spread illumination across the area in front of the fixture, making it a practical choice where broad coverage matters.
Set the light for the space
Choose among 22W, 28W and 36W settings to adjust power use and light level for the job. The three color temperature choices give you a different visual character for each setting: 2700K offers a warmer appearance, 4000K a more neutral look and 5000K a cooler look. That flexibility is helpful when a project includes different entrances or building elevations but calls for a consistent fixture style. The light also supports 0-10V dimming, giving a compatible control system a way to adjust brightness after installation. Its 120-277V input range accommodates common commercial electrical service voltages.
Built for exterior applications

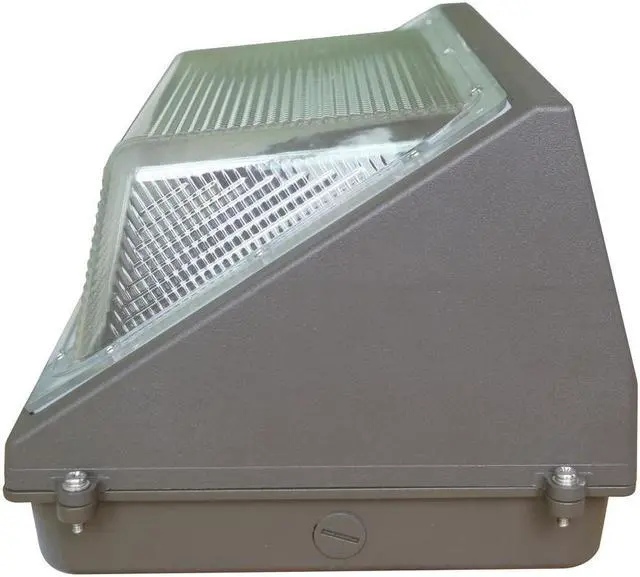

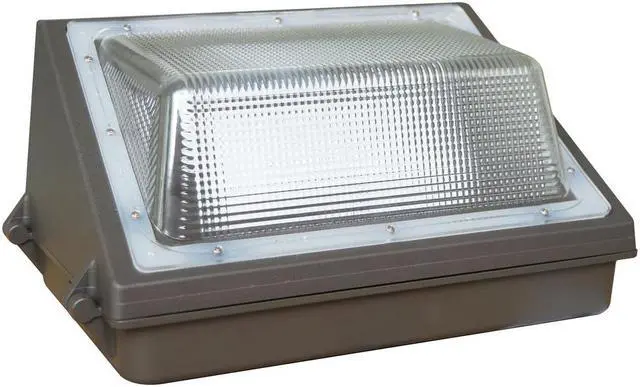

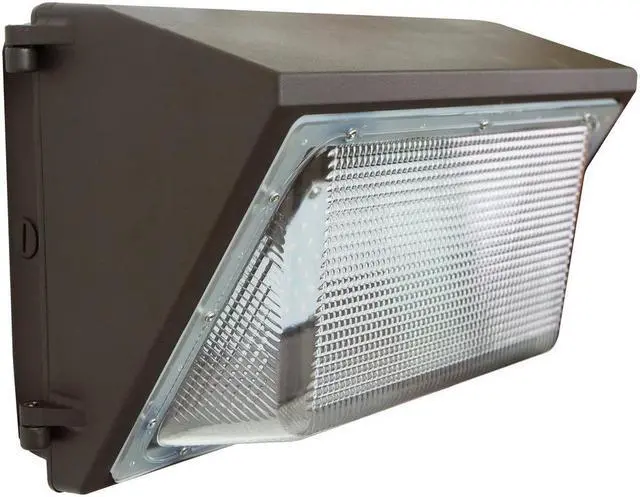

An aluminum housing and polycarbonate lens provide the fixture's exterior construction. The IP65 rating indicates protection against dust ingress and water jets, a relevant consideration for a wall pack exposed to outdoor conditions. Built-in 4kV surge protection adds a layer of protection against voltage spikes. With a CRI of 70+, the light provides a defined level of color rendering for general area lighting. The fixture is ETL listed and backed by a 5-year warranty.
Frequently asked questions
Can I choose both the wattage and light color? Yes. Wattage can be set to 22W, 28W or 36W, and color temperature can be selected as 2700K, 4000K or 5000K. These choices make it easier to plan a coordinated wall-lighting project while adjusting the configuration for individual locations.
How is brightness controlled? The fixture supports 0-10V dimming for brightness adjustment through a compatible control setup. The selectable wattage settings offer another way to configure the fixture for its application, while dimming provides ongoing control during use.
