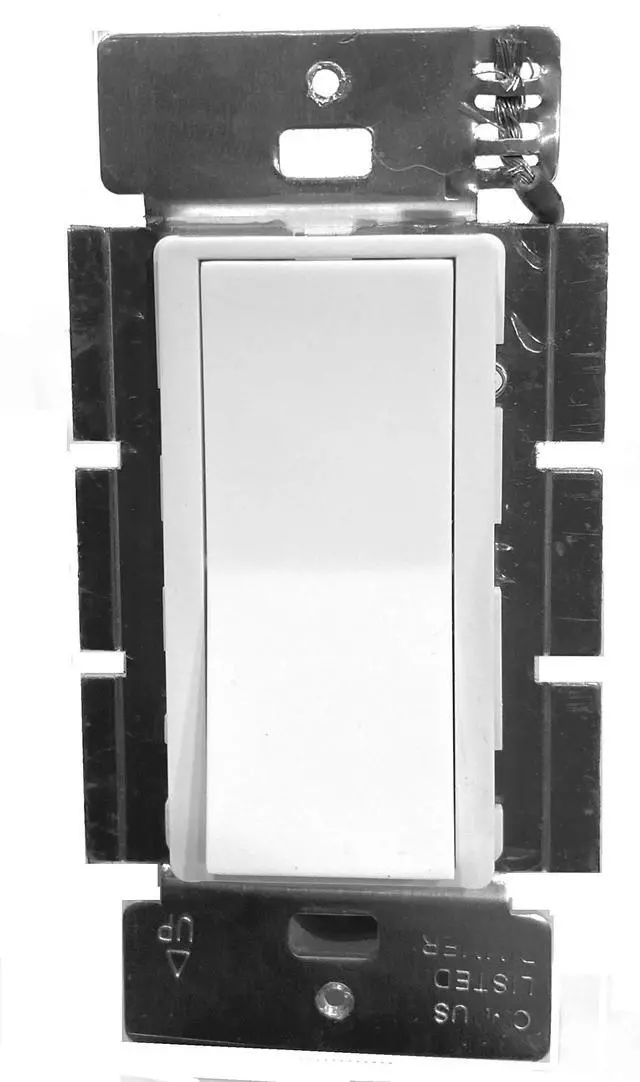

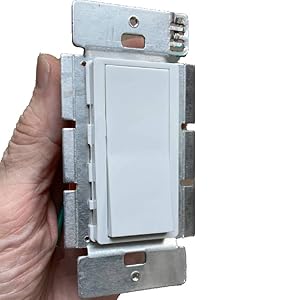

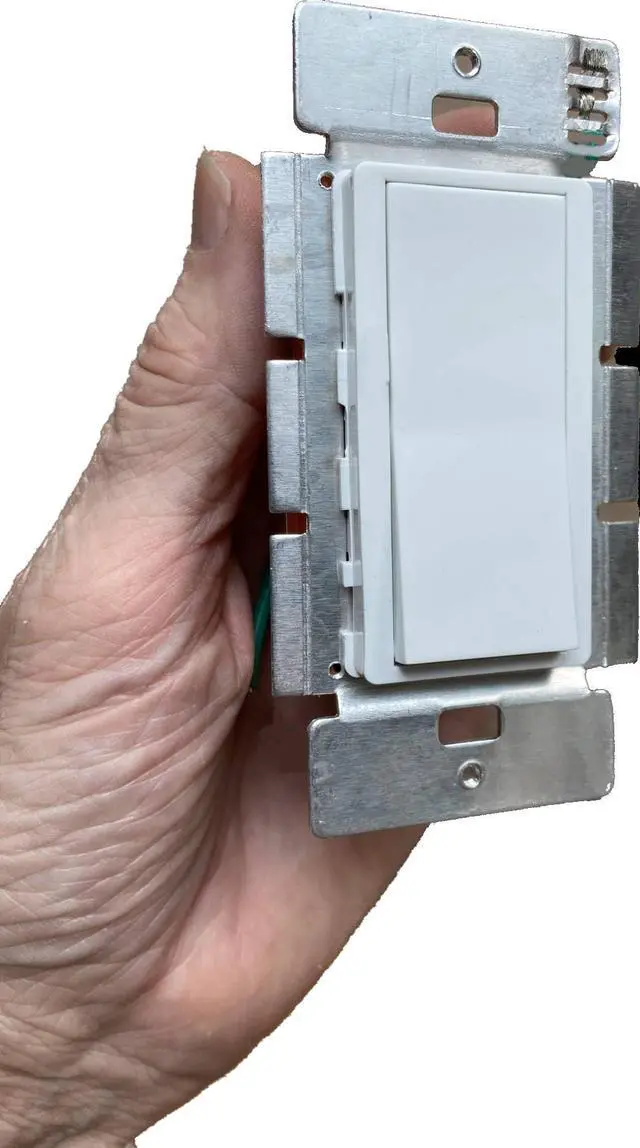

Fireplace control switch - Low Voltage (Millivolt ) wall switch designed for long operating life, with anti corrosion features
Conventional switches do not operate well at the low voltages and current of fireplace applications. The AL-WS-R3 switch was designed for low voltage and/or low currents - with a self cleaning feature that extends operating life. Use it to replace your existing switch that does not work anymore.
This switch can also be used for other low voltage projects, and supports also 3-Way switching.
Fireplace On/Off Switch, Millivolt low Voltage operation
Online Data sheet has more info
Follow the instructions in the user manual
Easy to wire low voltage connectors

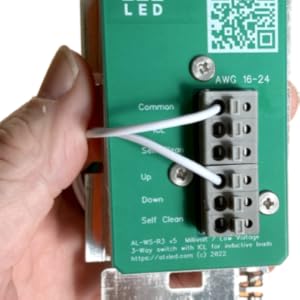

Insert the 2 wires into the "common" and "up" connectors. Add Self-Clean if required. See manual online or included with the product
Fireplace control switch - Low Voltage (Millivolt ) wall switch designed for long operating life, with anti corrosion features
Conventional switches do not operate well at the low voltages and current of fireplace applications. The AL-WS-R3 switch was designed for low voltage and/or low currents - with a self cleaning feature that extends operating life. Use it to replace your existing switch that does not work anymore.
This switch can also be used for other low voltage projects, and supports also 3-Way switching.
Fireplace On/Off Switch, Millivolt low Voltage operation
| Voltage Range | 0 to 48vdc, 0 to 2 Amps |
| Color | White standard - also available in Black |
| Inrush Current Limiting | For use with Motors or relays - the Inrush Current Limiter (ICL) can be used |
| Installation | Requires a screwdriver and possible wire strippers, use AWG14 to AWG24 wire |
| Size | Standard Single gang wall switch. |

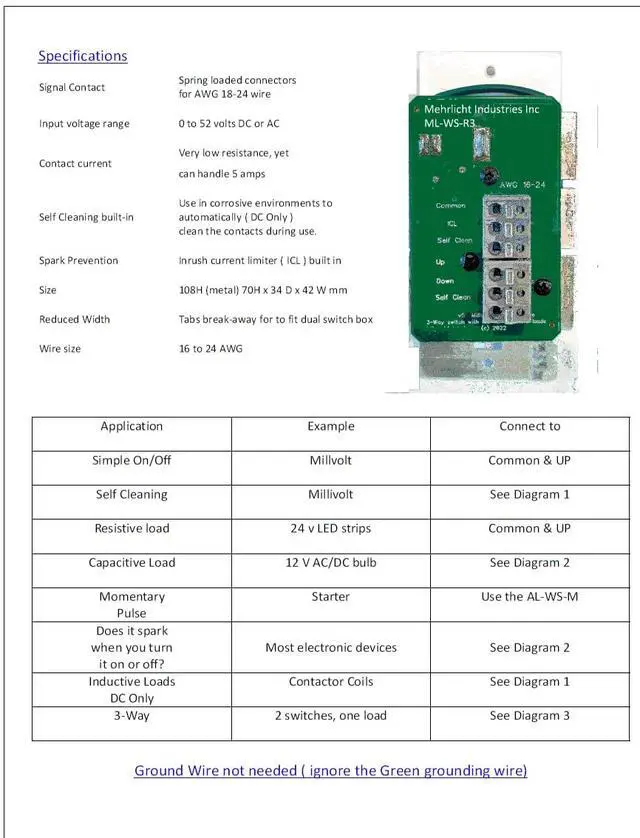

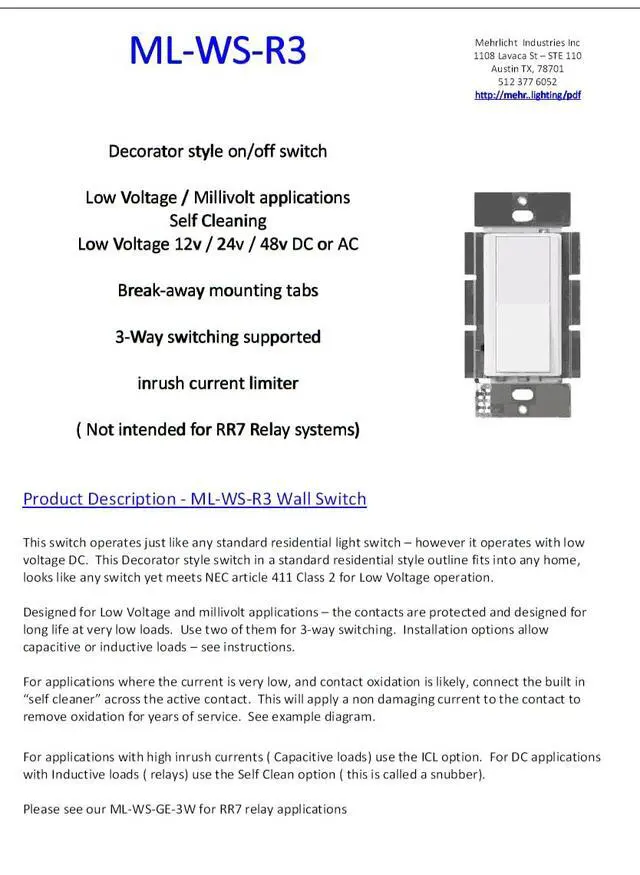

Online Data sheet has more info
Follow the instructions in the user manual

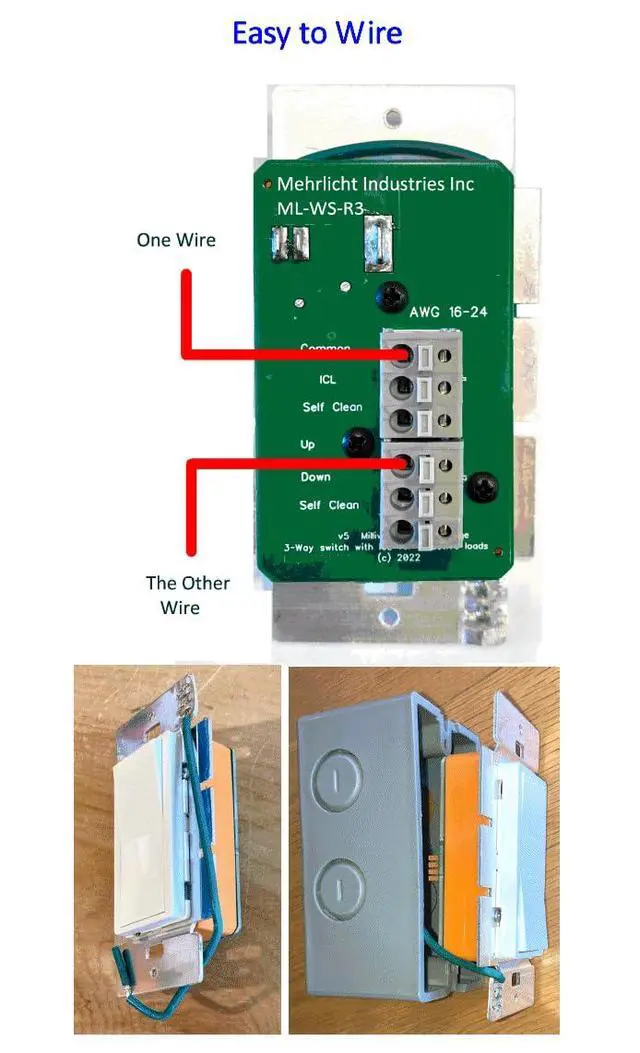

Easy to wire low voltage connectors
Insert the 2 wires into the "common" and "up" connectors. Add Self-Clean if required. See manual online or included with the product
