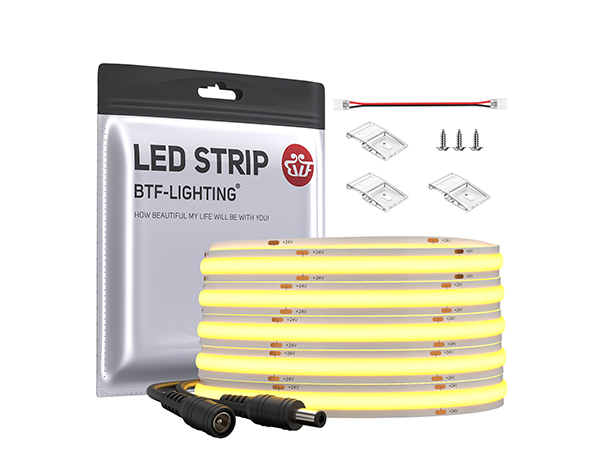

BTF-LIGHTING Flexible Chip On Board LED strip- Single Color,CCT,RGB ,RGBW,RGBCCT
1
2
3
4
5
6
Parameter Table
Provide Smooth, Uniform Light Without Spotting
Installation Details
Safe
- Low voltage
- Hand touchable

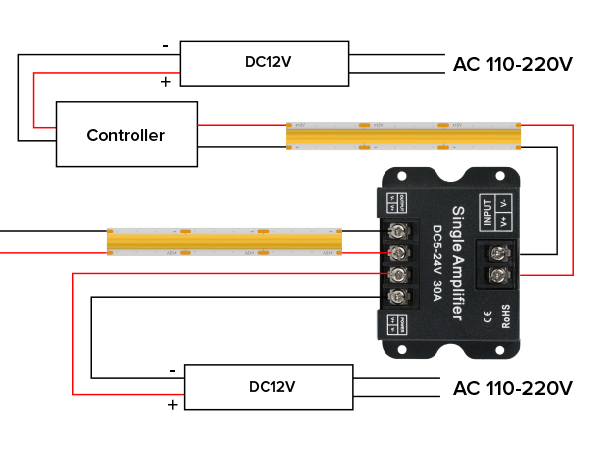

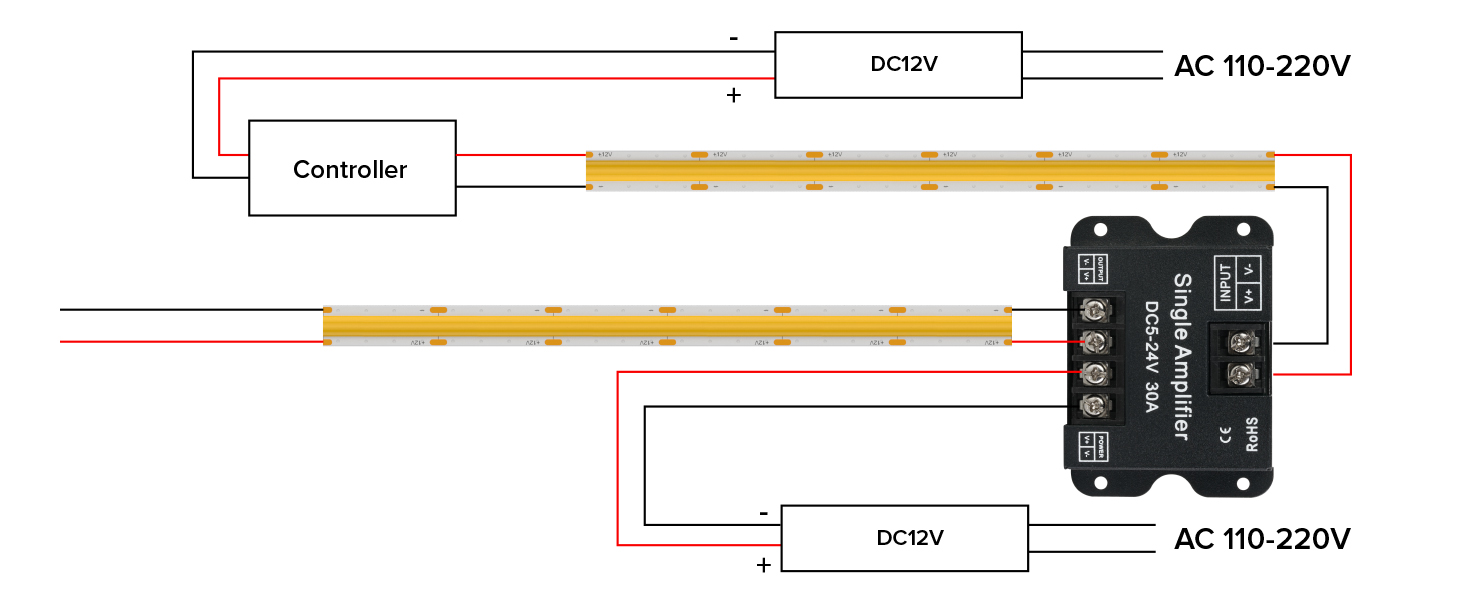

Series Connection
- Signal amplifier
- Extend LED project
- Every 32ft or 49ft with one signal amplifier

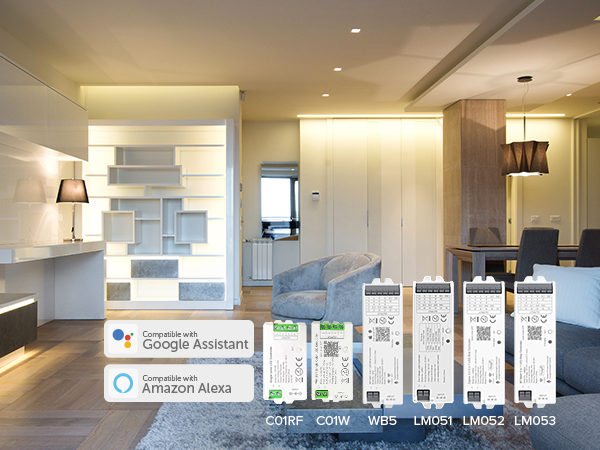

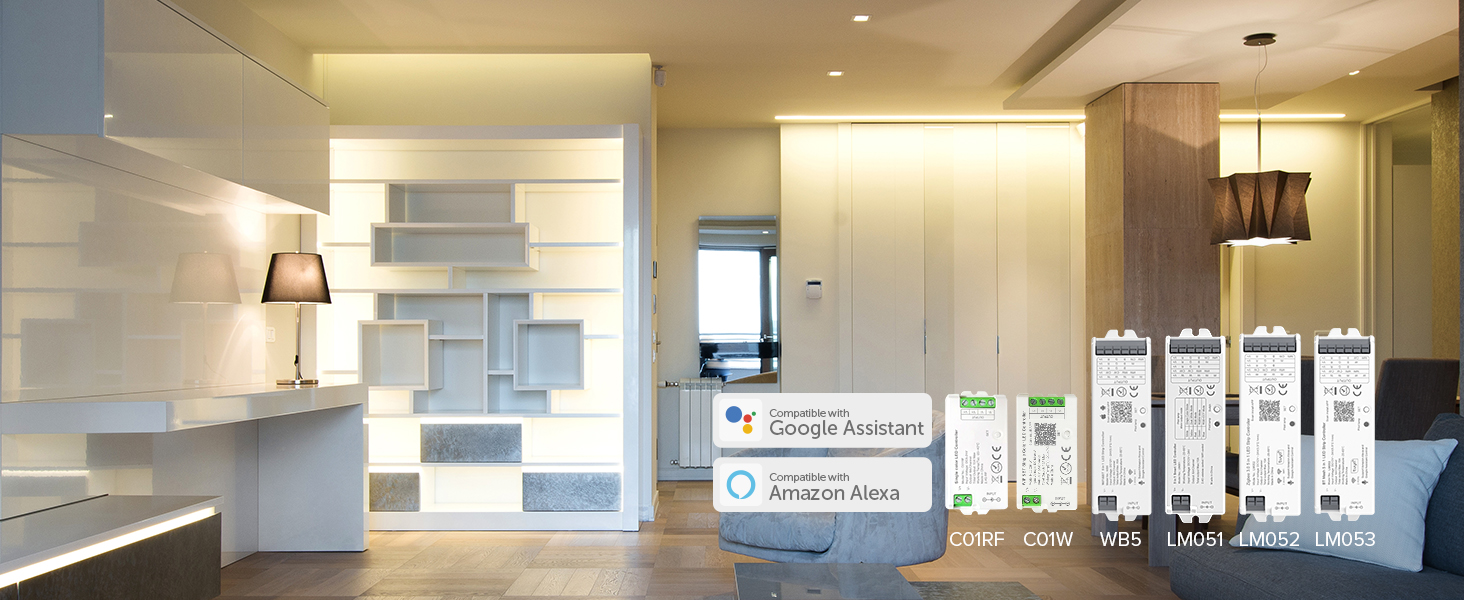

Works With Different Controllers
- 2.4GHz RF controller
- Bluetooth mesh controller
- Wi-Fi 2.4G Alexa Google Home controller
- Zigbee 3.0 Controller

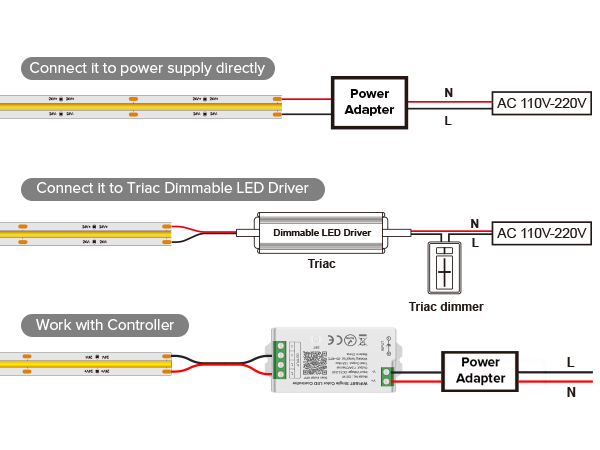

Power Connection
- Connect power supply directly
- Connect it to Triac Dimmable LED Driver
- Works with controller

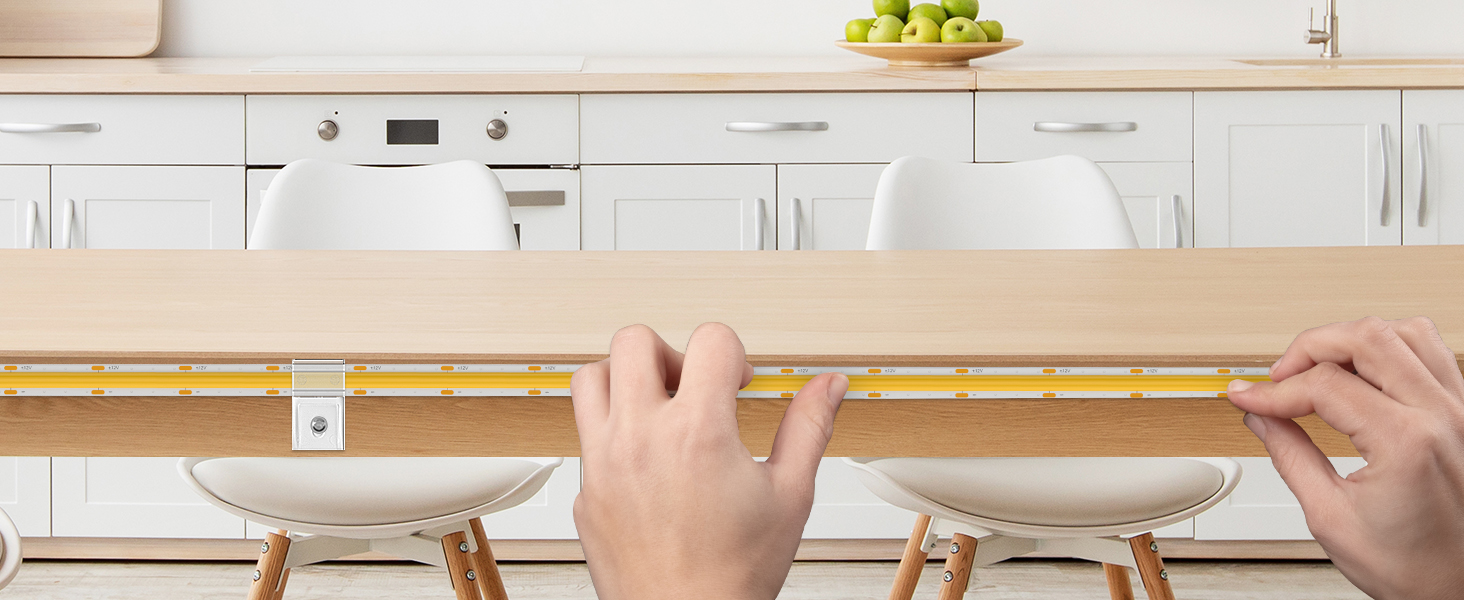

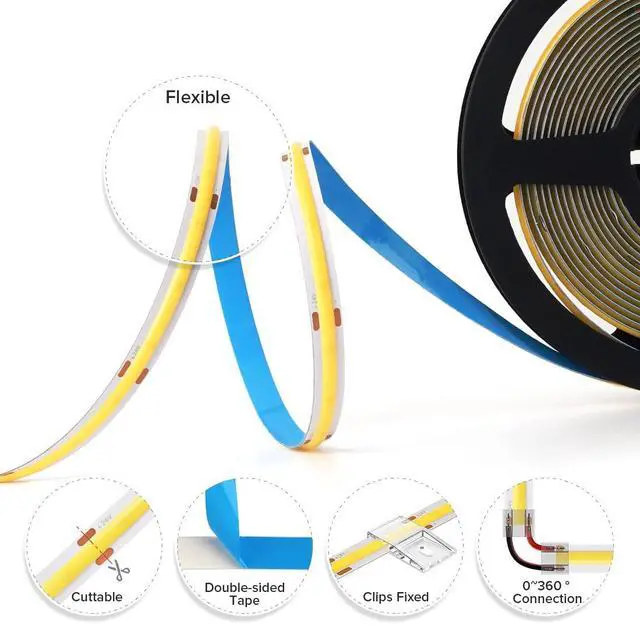

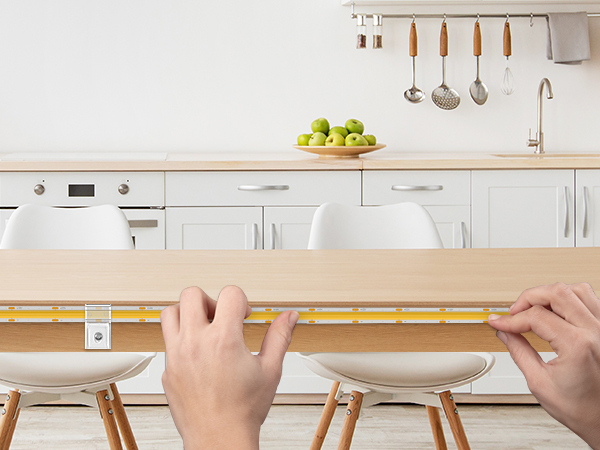

Fixing With Double-sided Adhesive Tape
- Double-sided adhesive tape
- Free fixed clips
- Cuttable

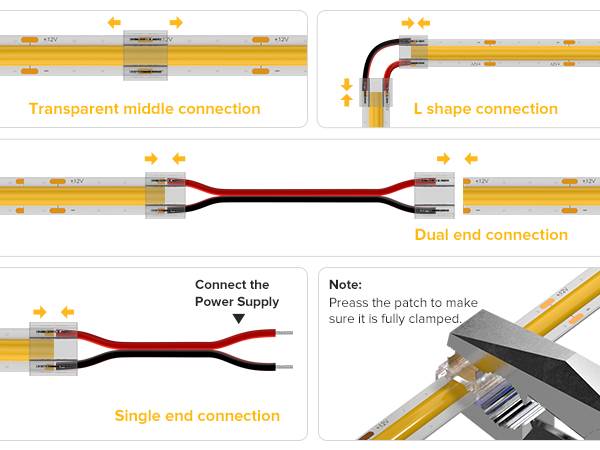

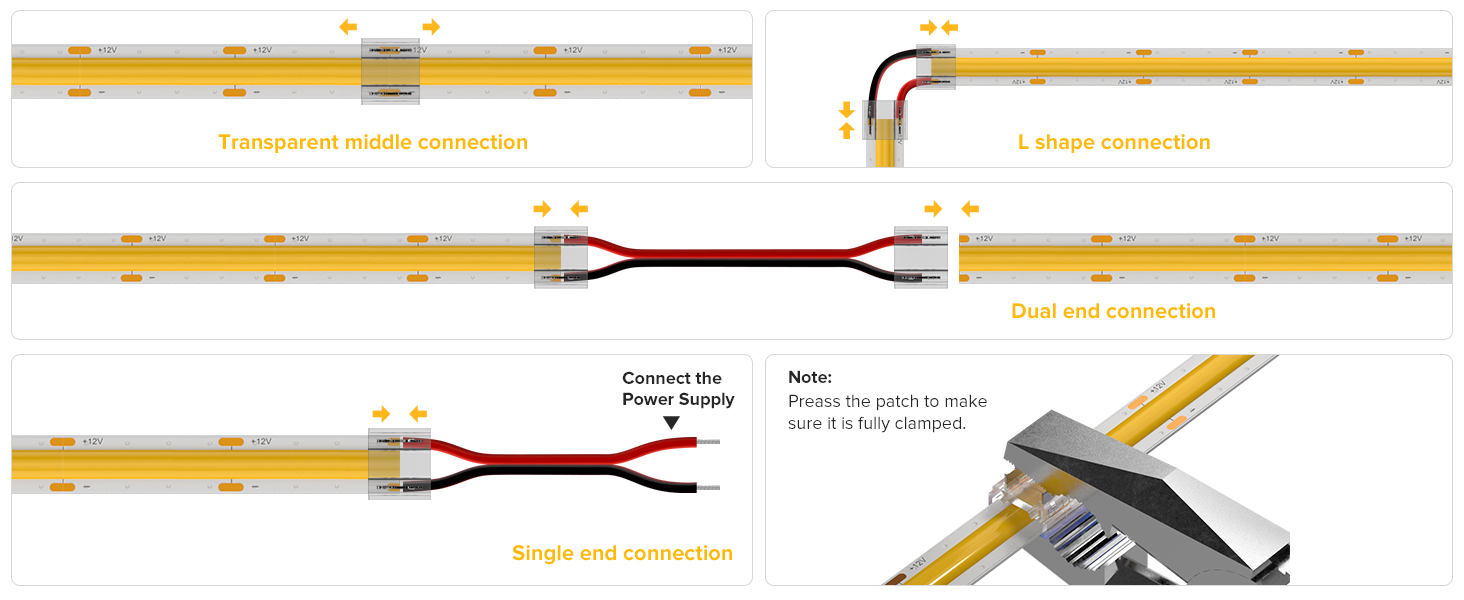

Transparent Solderless Connector
- Extend FCOB strip light
- Cuttable
- FCOB LED strip splicing
- Corner connection

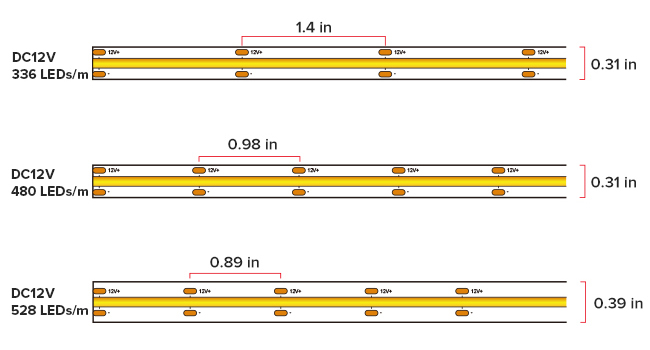

Distance Between Cutting Points, LED Strip Width
DC12V-336,480,528 Chips/m
- 336-12V 1.4in (35.71mm)-8W/m
- 480-12V 0.98in(25.0mm)-10W/m
- 528-12V 0.89in(22.73mm)-14W/m
DC24V-336,480,528 Chips/m
- 336-24V 2.8in (71.43mm)-8W/m
- 480-24V 1.96in (50.0mm)-10W/m
- 528-24V 1.78in (45.45mm)-14W/m

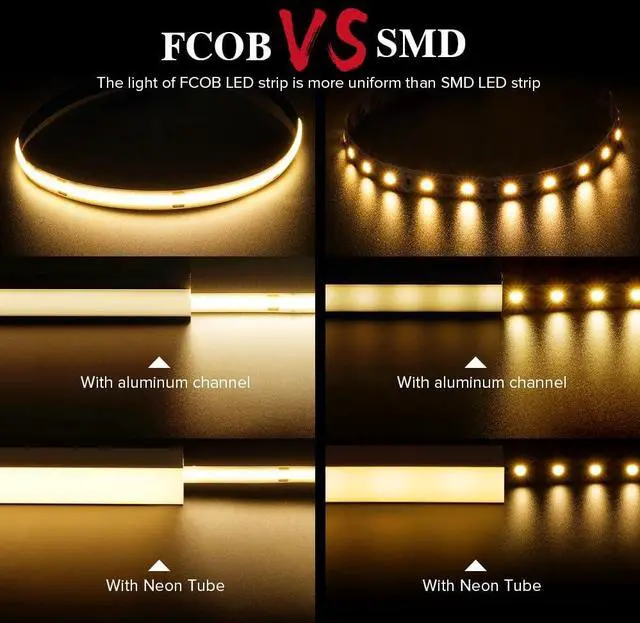

FCOB LED Strip
Flip Chip On Board Technology
Uniform Light and No Dark Area
BTF-LIGHTING US is the exclusive distributor of the BTF-LIGHTING brand on .The shop mainly deals inFCOB LED strips,dream color LED strips, LED matrix, power supplies, controllers and various accessories. Committed to building a smart home, through different combinations to make the light strip suitable for a variety of use scenarios, and provide customers with better choices.
FCOB USB LED Strip
Single Color LED Strip or Kit
FCOB CCT LED Strip Or Kit
FCOB RGB LED Strip Or Kit
FCOB RGBW LED Strip Or Kit
FCOB RGBCCT LED Strip Or Kit
FCOB SPI RGB-IC LED Strip
FCOB SPI 5V RGB-IC LED Strip
FCOB SPI RGBW IC LED Strip
FCOB SPI RGBCCT IC LED Strip
BTF-LIGHTING Flexible Chip On Board LED strip- Single Color,CCT,RGB ,RGBW,RGBCCT
FCOB Single Color LED strip

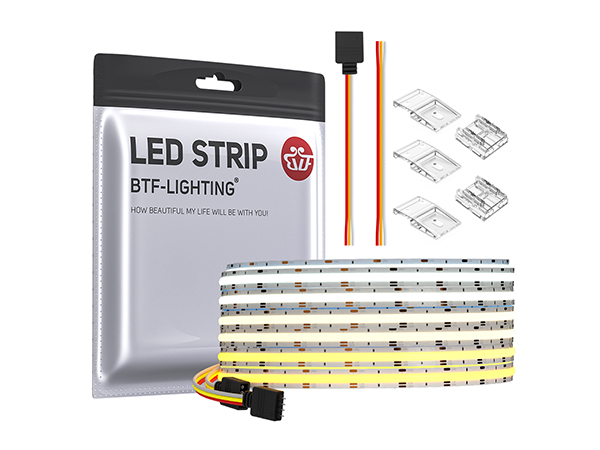

FCOB CCT LED Strip

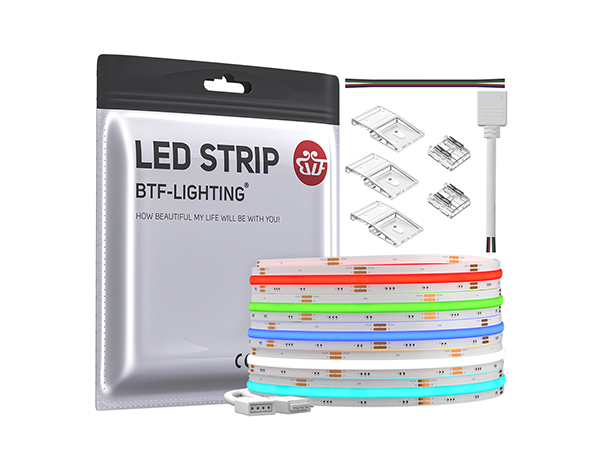

FCOB RGB LED Strip
FCOB RGBW LED Strip

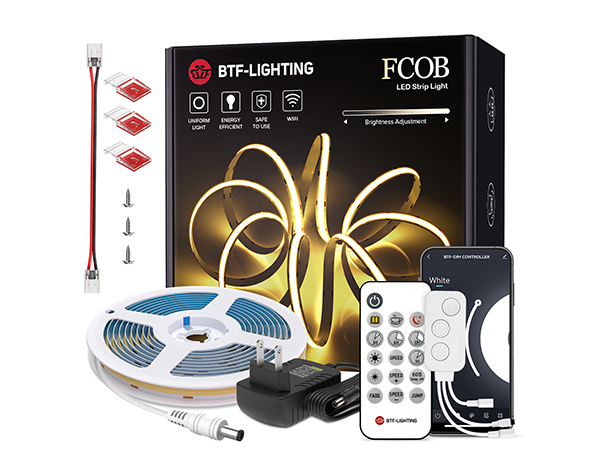

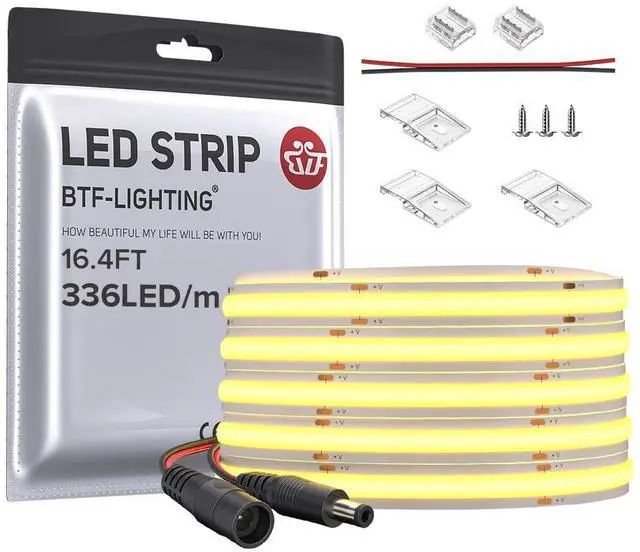

FCOB Single Color LED Strip Kit

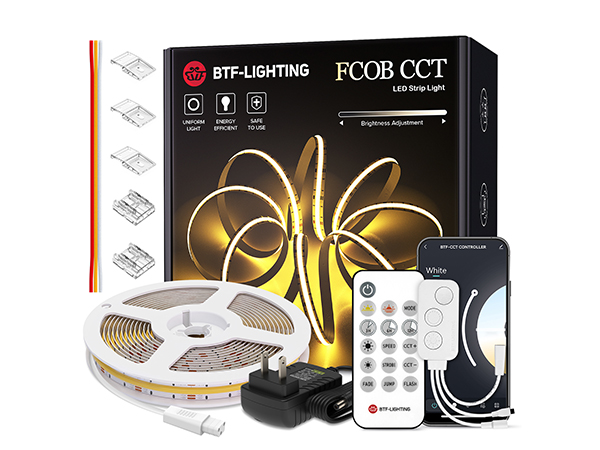

FCOB CCT LED Strip Kit
Parameter Table
| LED Type | FCOB Flexible Chip On Board LED Strip |
|---|---|
| Input Voltage | DC12V or DC24V 5.5mmx2.1mm Power Adapter Plug |
| LED Quantity | 336LEDs/m,480LEDs/m , 528LEDs/m |
| Wattage | 336LEDs/m-8W/m,480LEDs/m-9W/m , 528LEDs/m-14W/m |
| LED Strip Width | (336LEDs/m,480LEDs/m)-8mm |
| LED Strip Width | 528LEDs/m-10mm |
| Color Rendering Index | CRI>90 |
| Waterproof level | IP30 Non-waterproof |
| Color temperature | Warm white(2700K-3000K); Natural white (4000K-5000K); Cold white(6000K-6500K) |
| Operation temperature | -4?~113?(-20?~+45? ) |
| Storage temperature | -4?~140?(-20?~+60? ) |
| Three ways of working | 1. Connect the power directly 2. Connect it to Triac Dimmable LED Driver 3. Work with a dimmer controller- RF remote ,Bluetooth ,WiFi, Alexa ,Google Home ,Zigbee 3.0 |
| 336LEDs/m Luminous efficacy | 3000K:60-90LM/Watt 4000K :65-100LM/Watt 6000K :70-110LM/Watt |
| 480LEDs/m Luminous efficacy | 3000K:80-100LM/Watt 4000K :90-110LM/Watt 6000K :95-120LM/Watt |
| 528LEDs/m Luminous efficacy | 3000K:80-95LM/Watt 4000K :90-105LM/Watt 6000K :95-115LM/Wat |
| wavelength range | 336LEDs/m-(380nm-780nm),480LEDs/m-(380nm-780nm) , 528LEDs/m-(380nm-780nm) |
Provide Smooth, Uniform Light Without Spotting
FCOB Single Color LED Strip
- 2700K/3000K/4000K/6000K
- DC12V/24V
- 0.31in/0.39in Width
- 336-416-480-528 Chips/m
FCOB CCT Color LED Strip
- Tunable 3000K~6000K
- CRI 90+
- DC24V
FCOB RGB LED Strip
- RGB
- DC12V/DC24V
- Amazing Mixed color producing multi wonderful colors
FCOB RGBW LED Strip
- RGB+Pure White
- 3000K/6000K
- DC24V
- Amazing Mixed color producing multi wonderful colors
FCOB LED Controller
- Wi-Fi 2.4G
- Zigbee 3.0
- Bluetooth Mesh
- 2.4GHz RF Remote
FCOB LED Connector
- Extend FCOB strip light
- Cuttable
- FCOB LED strip splicing
- Corner connection

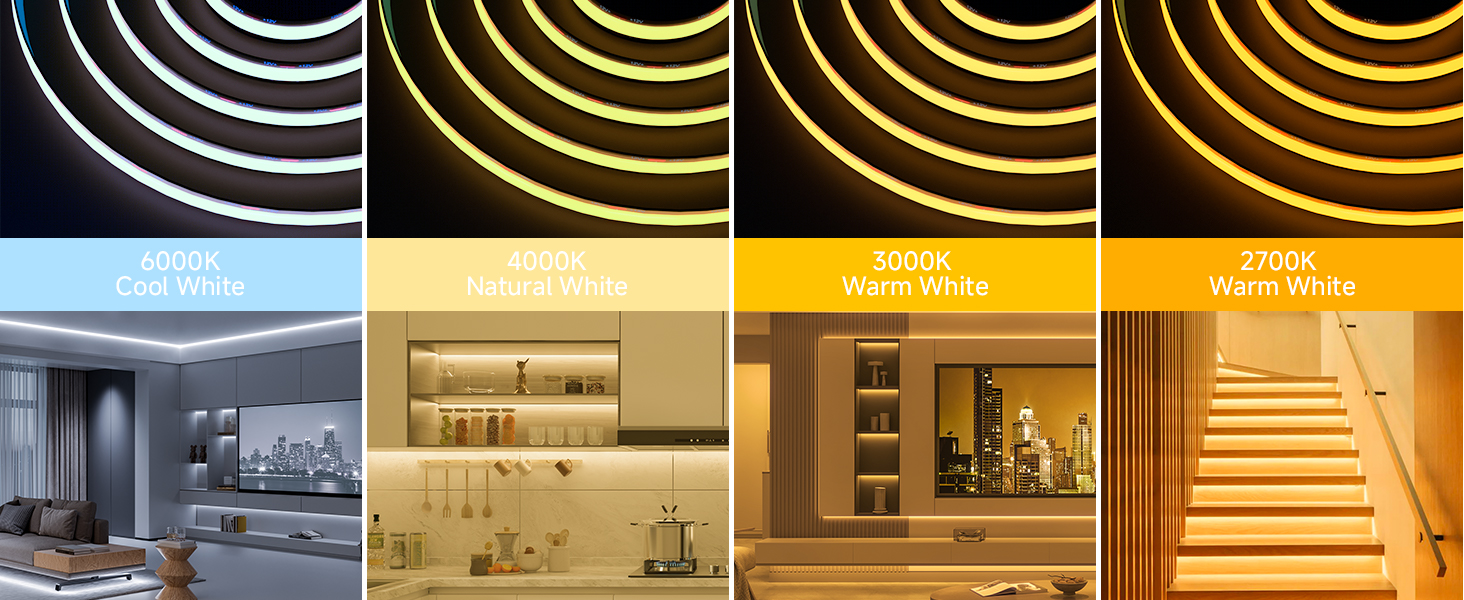

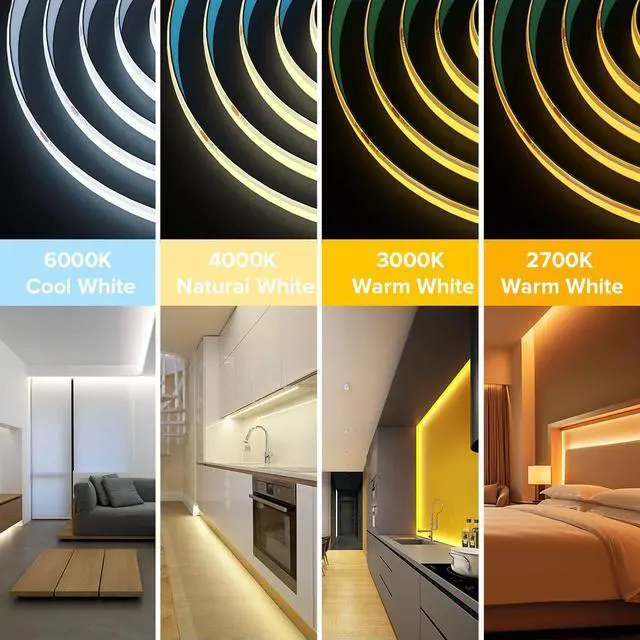

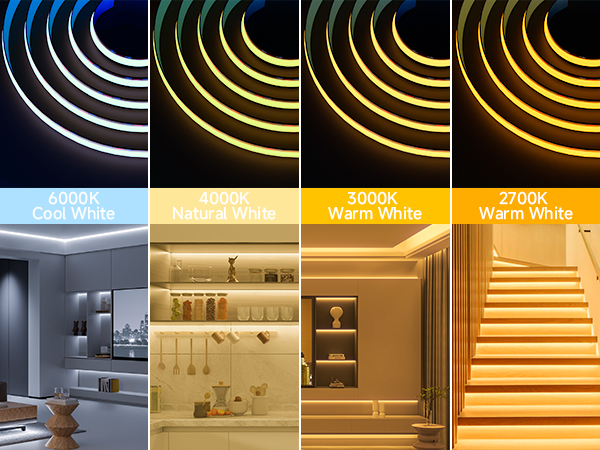

3000K 4000K 6000K
Different color temperature and atmosphere
Works with controllers ,Set the brightness
Provide smooth, uniform light without spotting
Strong ability of color reduction
Installation Details
Safe
Series Connection
Works With Different Controllers

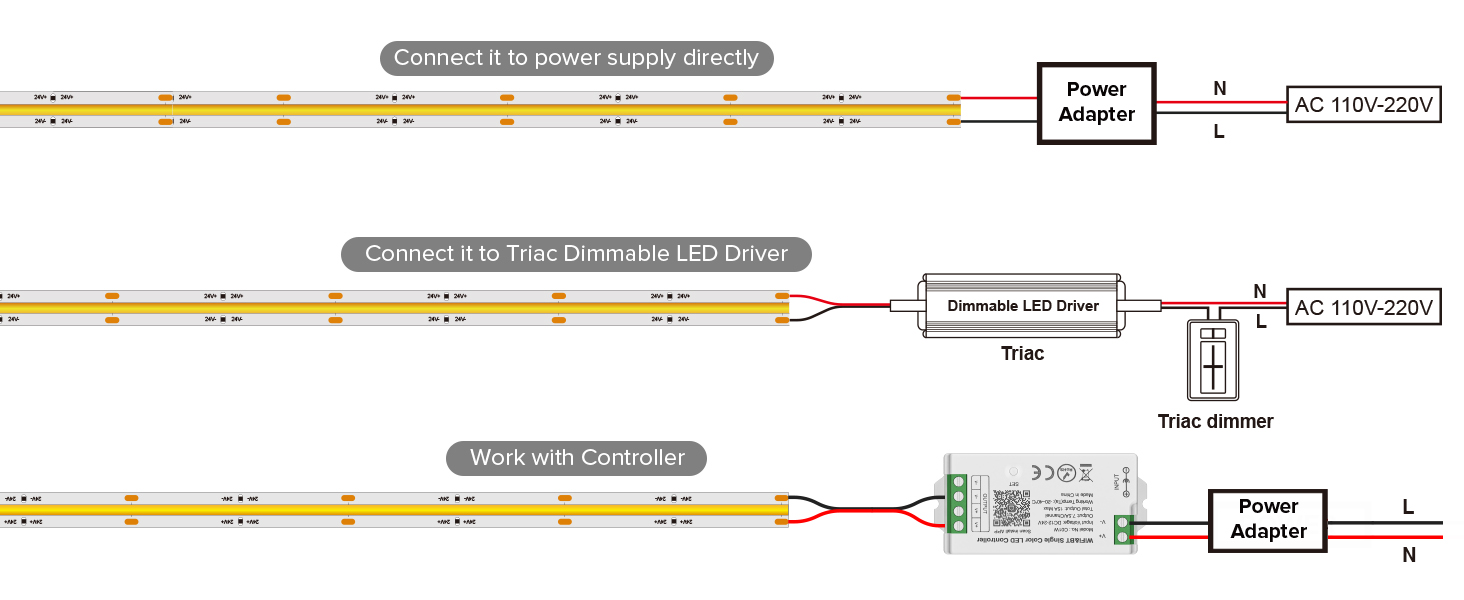

Power Connection
Fixing With Double-sided Adhesive Tape
Transparent Solderless Connector
- Low voltage
- Hand touchable
- Signal amplifier
- Extend LED project
- Every 32ft or 49ft with one signal amplifier
- 2.4GHz RF controller
- Bluetooth mesh controller
- Wi-Fi 2.4G Alexa Google Home controller
- Zigbee 3.0 Controller
- Connect power supply directly
- Connect it to Triac Dimmable LED Driver
- Works with controller
- Double-sided adhesive tape
- Free fixed clips
- Cuttable
- Extend FCOB strip light
- Cuttable
- FCOB LED strip splicing
- Corner connection

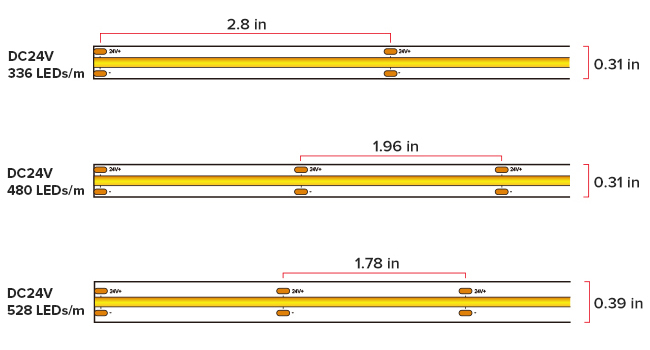

Distance Between Cutting Points, LED Strip Width
DC12V-336,480,528 Chips/m
- 336-12V 1.4in (35.71mm)-8W/m
- 480-12V 0.98in(25.0mm)-10W/m
- 528-12V 0.89in(22.73mm)-14W/m
DC24V-336,480,528 Chips/m
- 336-24V 2.8in (71.43mm)-8W/m
- 480-24V 1.96in (50.0mm)-10W/m
- 528-24V 1.78in (45.45mm)-14W/m
FCOB LED Strip
Flip Chip On Board Technology
Uniform Light and No Dark Area
BTF-LIGHTING US is the exclusive distributor of the BTF-LIGHTING brand on .The shop mainly deals inFCOB LED strips,dream color LED strips, LED matrix, power supplies, controllers and various accessories. Committed to building a smart home, through different combinations to make the light strip suitable for a variety of use scenarios, and provide customers with better choices.
FCOB USB LED Strip
Single Color LED Strip or Kit
FCOB CCT LED Strip Or Kit
FCOB RGB LED Strip Or Kit
FCOB RGBW LED Strip Or Kit
FCOB RGBCCT LED Strip Or Kit
FCOB SPI RGB-IC LED Strip
FCOB SPI 5V RGB-IC LED Strip
FCOB SPI RGBW IC LED Strip
FCOB SPI RGBCCT IC LED Strip
