Parameters
| LED Type | SMD 2835 |
|---|---|
| LED Quantity | 480 LEDs/M, 2400 LEDs/roll |
| Color | Whtie (6500K) |
| Strip Width | 15mm |

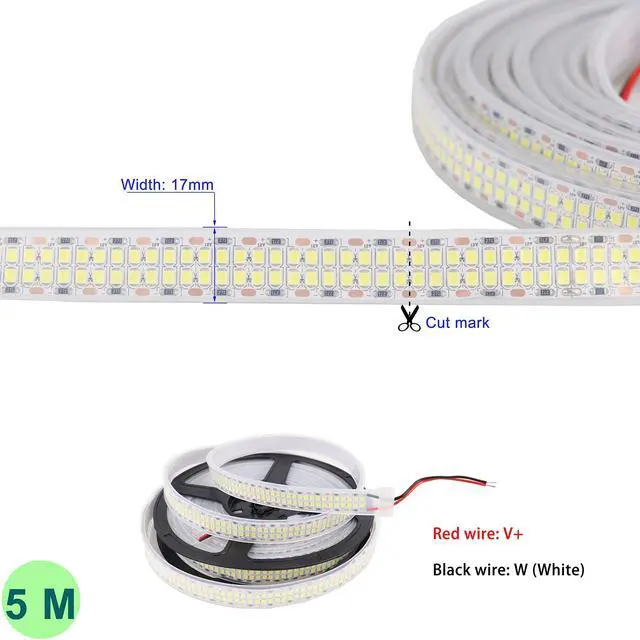

| Total Width | 17mm |
| Input Voltage | DC 12V |
| Power | 28.8W/M; 144W/roll |
| Brightness | 2489LM/M |
| Length | 16.4ft/5M |
| Dimmable | Yes(No dimmer) |
| Working temperature | -20~+50? |

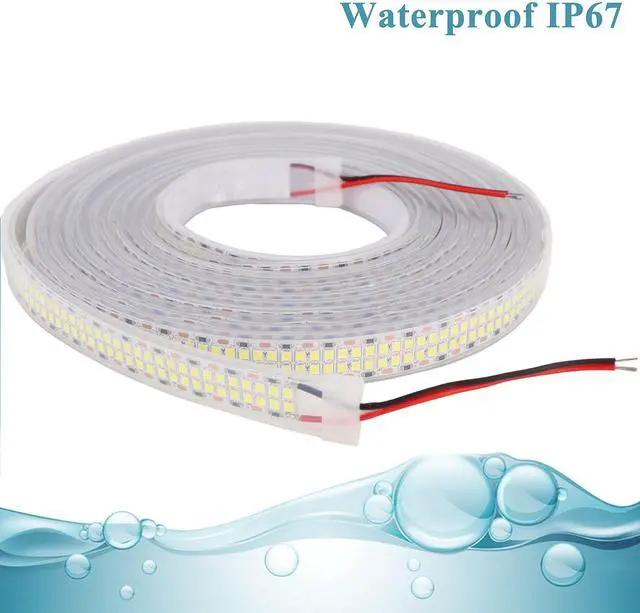

| IP Rating | Waterproof IP67, Suitable for outdoor and indoor. |

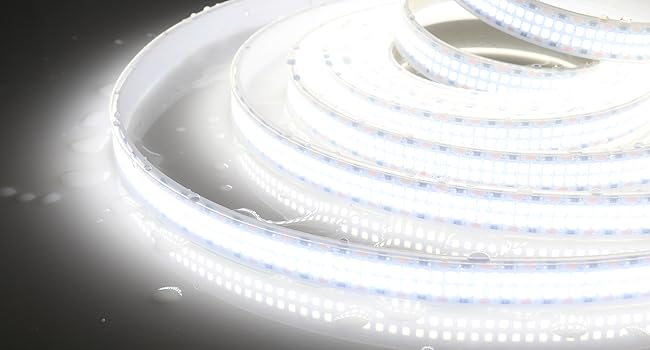

Super bright waterproof IP67 outdoor lighting
Wiring Diagram
Note:
1)Use only DC 12V power supply.The power of the power supply needs to matchthe power of the connected LED strip.
2)Please use dimmer controller if you need to adjust the brightness, speed, mode.etc. of the LED strip.
TAKE NOTE
- LED Strip's maximum run length is 32.8 feet (2 reels). After the maximum run length, the voltage drop becomes too great and you will lose light and efficiency from your system. If your application needs more than the maximum run length you will have to get another power supply or run wires from the extra strip directly back to the first power supply (wiring in parallel).
