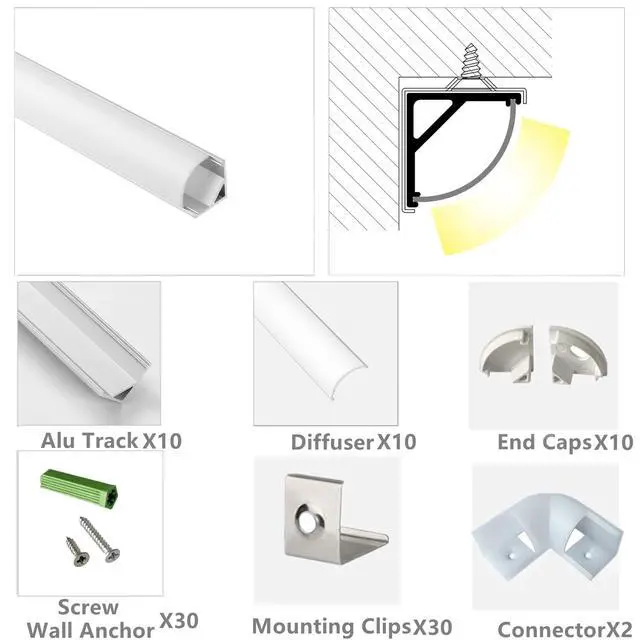

THMOOTHER Solid LED Strip Aluminum Channel Diffuser V Shape
For Diffusion Effect
THMOOTHER Is specializing in LED Strip Channel Diffuser which can make your tape light Smoother
Diffusion Effect depends on 2 things:
1. The number of LEDs per m
2. The depth of the profile
Hence when using LED tapes such as those which only have 30 LEDs per me, no amount of diffuser is going to make the like look seamless. If this effect is desired, we recommend high indensity LED (120 led per meter or more ) for a seamless constant glow, in combination of our profiles over 12mm deep

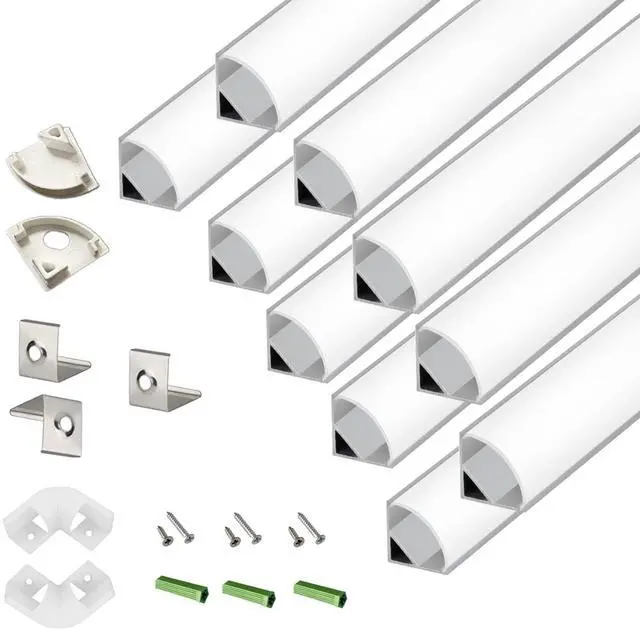

Easy Installtion (Strip is not included )

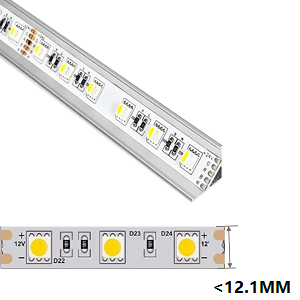

The Channel Fit For LED Tape Light Within 12.1MM(1/2 Inch) ,Diffuser and Track Can Protect the exposed strip from Dust,Moisture and inadvertent touch,extend the lifespan of the strip

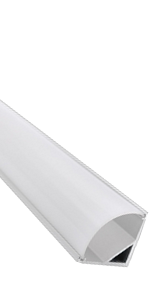

Milky White Cover

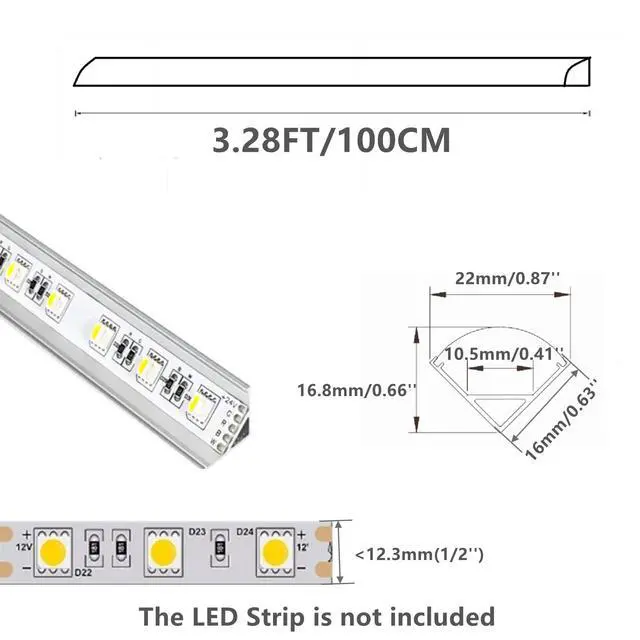

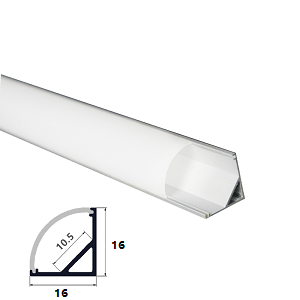

16X16MM(0.63'') Triangle Aluminum Rail ,45 Degree Curved Milky Lens ,Provide a New Professional Clean finish to the encapsulated fixtures, Breake up the harshness dots from the led strip without making light too dim, evening out the lights to a fairly smooth glow for background illuminating or on Counter
Corner Junction
Inner Right Angle Corner Connector Make a Good Solution For Cabinet Turning

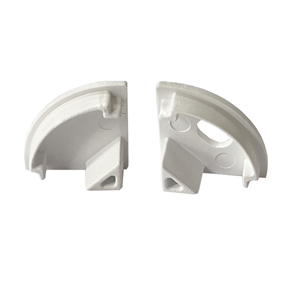

End caps
1 Pair per Channel
Open end cap denotes end caps pre-drilled hole for cable entry.
5.5*3.6mm Oval Hole
The Hole can be expanded
Closed end cap is complete with no hole.

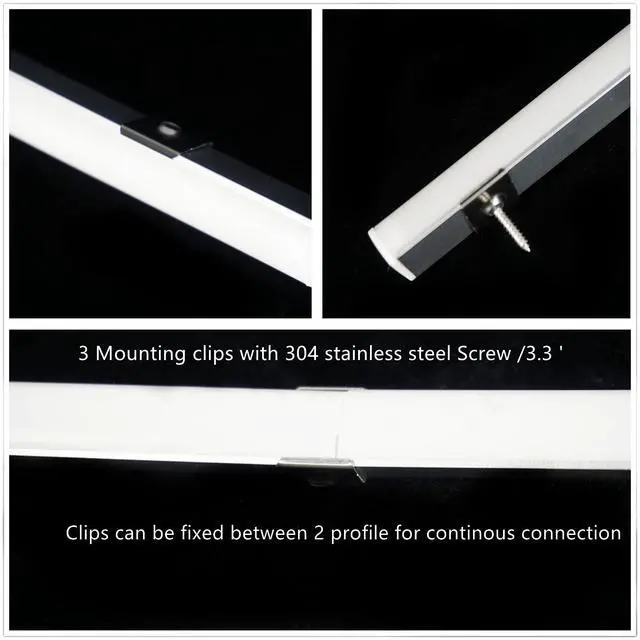

Mounting Clips
3 Pieces per Channel
Stainless steel Material ,L Shape
f3.75mm Counter Sunk Hole

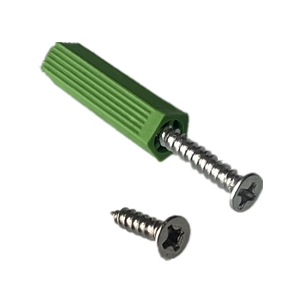

Screws and anchor
3 Sets Per Channel
M3X12MM Stainless Steel Screw ,Steady Installation For Cabinet and More Durable In Mositure Enviroment Like Kithcen
M3X20MM Carbon Steeel Magnetic Screw With Wall Anchor is Supplied For Wall Application

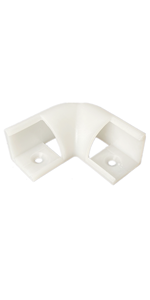

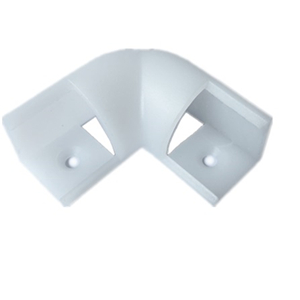

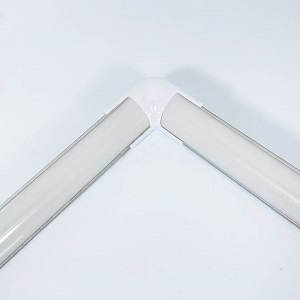

Corner Connector
1 Piece for Each 5 Channels
For Inner 90 Degree Vertical Angle
46MM Long ,20MM High
 6-Pack 1FT LED Strip Channel Diffuser V Shape | 6-Pack 1.33FT LED Strip Channel Diffuser V Shape |  5-Pack 3.28FT LED Strip Channel Diffuser V Shape | 10-Pack 6.56FT LED Strip Channel Diffuser |  8-Pack 90 Degree Inner Right Angle Corner Connector for 16X16MM V Channel |  10-Pack 3.3FT LED Strip Aluminum Channel Diffuser V Shape For Cabinet Corner | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — no data | — | — | — | — | — |
| Item Package Quantity | 6 | 6 | 5 | 10 | 8 | 10 |
| Length | 1FT | 1.33FT | 3.28FT | 6.56FT | no data | 3.28FT |

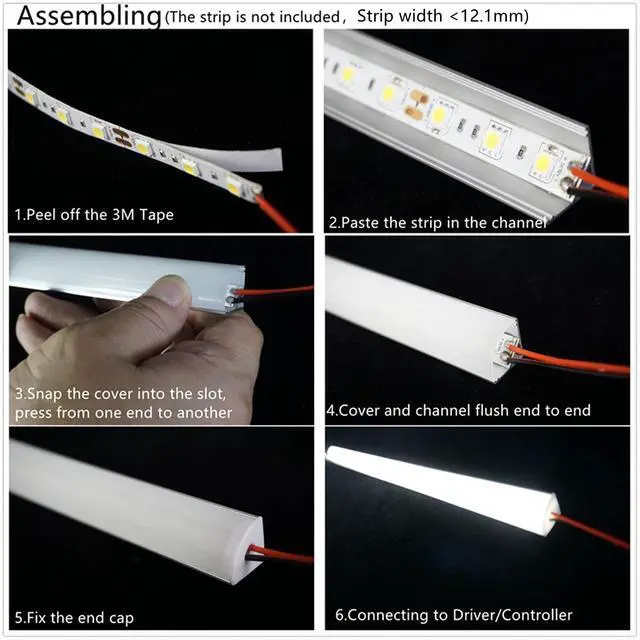

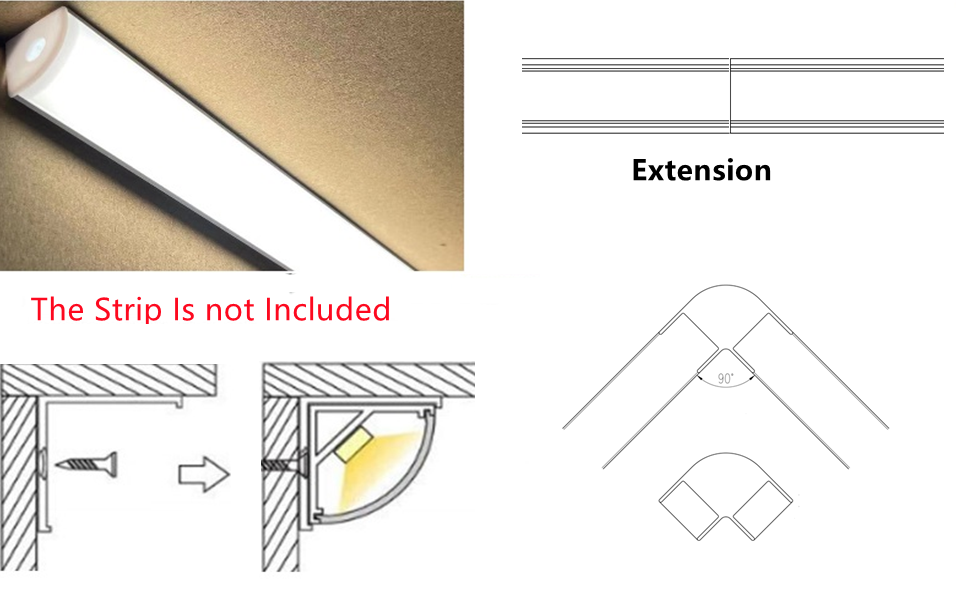

LED Strip Channel V Shape Installation and Connection
The Channel Fit For LED Strip Light Less Than 1/2 Inch Wide Which Include Single color, Tunable white, RGB and RGBW Programmable LED strip lights
It can be Installed By 3 Ways :
1. Mounting Clips -The Bracket is Fixed By Screw and Can Also Be Used as a Connector Between Two Aluminum Profiles For Extension
2. Double Sided Tape - The Double Sided Tape Is Used For Suface Mounted ( Not Included )
3. Drill Hole On Channel And Mounting By Screw - Need to Be Drilled By Customer
For Cornner Connection
The Channel Can be Connected By Corner Connector ,It Also Can Be 45 Degree Mitre
