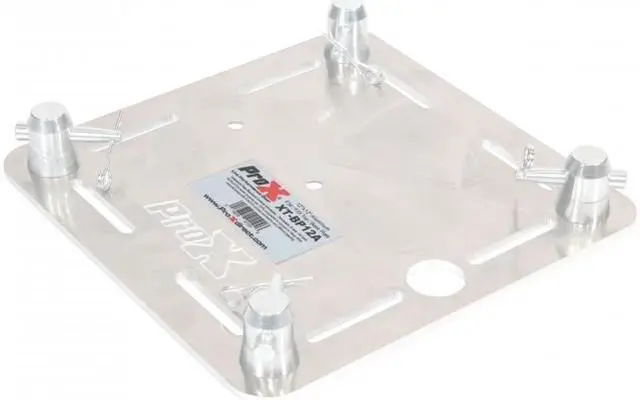

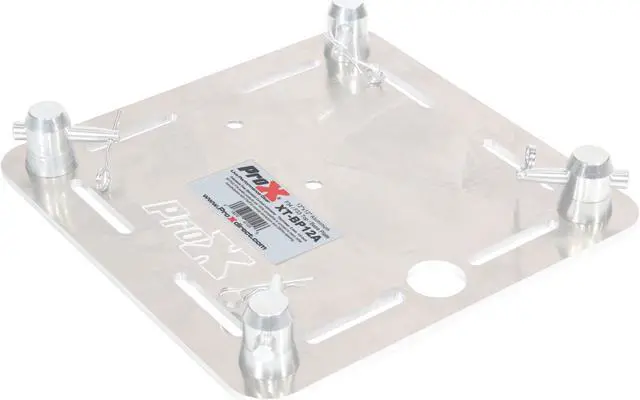

ProX XT-BP12A 12" X 12" F34 8mm Aluminum Top Plate W-Slots and Mounting Holes for Totems and Ends

Truss Top Plate The ProX XT-BP12A is a 12-inch aluminum top plate designed for use with F34, F32, and F31 conical square truss systems. Built from durable 6mm EN-AWT6 6082 aluminum, this plate offers a secure and professional-grade mounting surface, making it ideal for lighting, speakers, and structure termination. ProX XT-BP12A Competitive Differences

• Compatible with multiple truss systems: F34, F32, and F31
• Includes slotted holes and cable routing cutout

ProX XT-BP12A Description The ProX XT-BP12A is engineered for strength, versatility, and compatibility. Whether you're capping off a truss column, adding a lighting fixture, or building a custom structure, this 12" x 12" top plate provides a stable and secure connection. It is manufactured using precision CNC technology and forged from EN-AWT6 6082 aluminuma material known for its high strength and corrosion resistance.

Designed with slotted mounting holes and a central cable-routing hole, the plate supports flexible configurations and clean cabling. Rounded edges help prevent cable damage and make handling safer during setup and teardown.

The XT-BP12A is compatible with most major truss brands using conical connectors, and includes all necessary connector hardware. It can also be used with the optional XT-SPST speaker stud (sold separately) for speaker pole mounting applications.

Model Features

• Fits F34, F32, and F31 conical square truss
• 6mm thick EN-AWT6 6082 aluminum plate
• CNC-cut slotted holes for flexible mounting
• Large center cutout for cable routing
• Includes truss connection hardware
• Smooth, rounded edges for safety
• Compatible with optional speaker stud (XT-SPST)

Model Specifications

• Compatible Truss: F34, F32, F31 Conical Square Truss
• Dimensions: 12 x 12 in (305 x 305 mm)
• Plate Thickness: 6mm
• Material: EN-AWT6 6082 Aluminum
• Unit Weight: 4 lbs
• Shipping Dimensions: 13 x 13 x 2 in
• Shipping Weight: 5 lbs
• UPC: 019372411246
