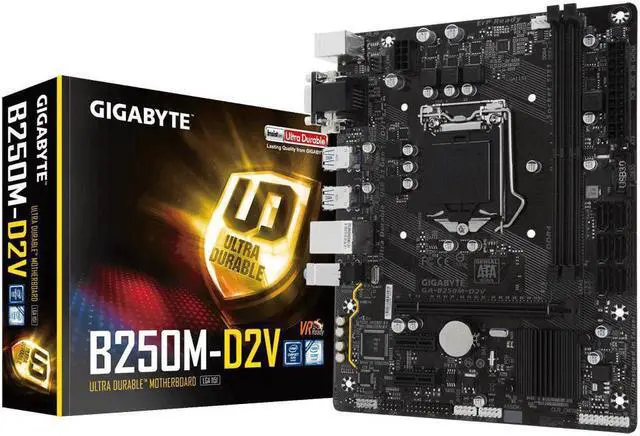

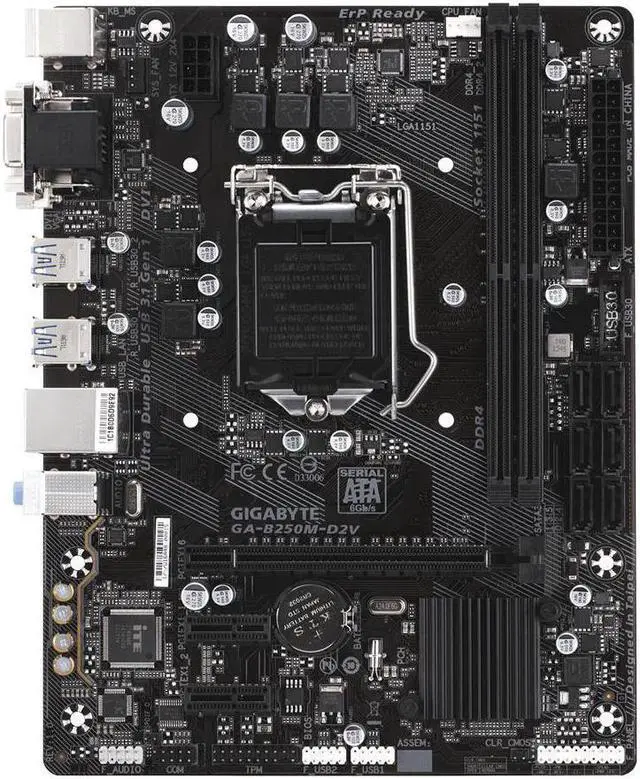

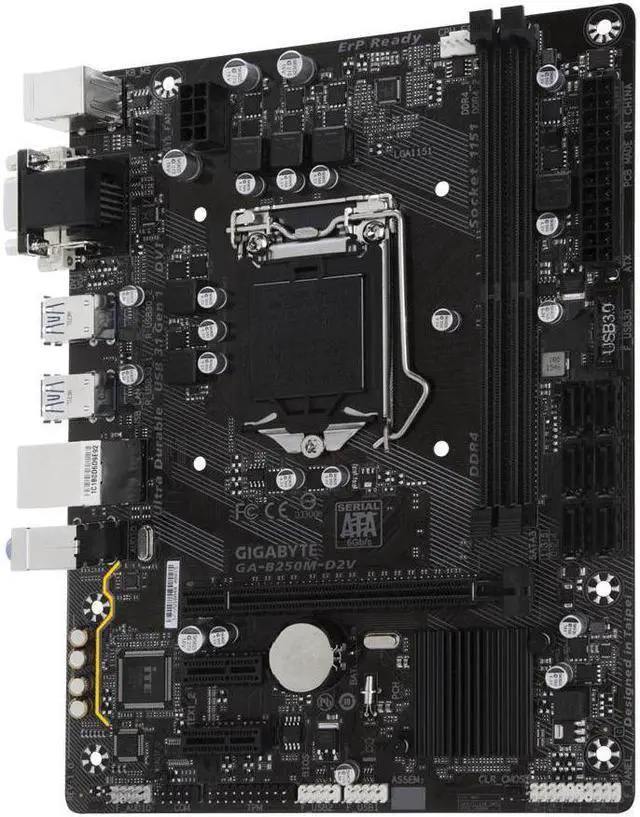

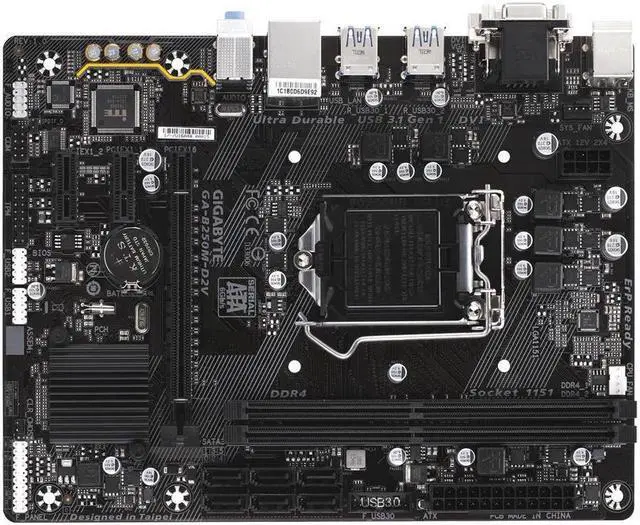

Gigabyte B250M-D2V LGA115 DDR4 ATX Motherboard

Memory Number of memory slots: 1
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Memory channels: Dual
Non-ECC: Yes
Supported memory clock speeds: 2133, 2400
MHz Supported memory module capacities: 16GB
Maximum internal memory: 32
GB Unbuffered memory: Yes Processor
Compatible processor series: Celeron, Core i3, Core i5, Core i7, Pentium
Processor socket: LGA1151
Processor family: Intel Internal I/O
Front panel connector: Yes
USB 2.0 connectors: 2 USB 3.0 ( 3.1
Gen 1) connectors: 2
TPM connector: Yes
S/PDIF out connector: Yes Number of
SATA III connectors: 6
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
CPU fan connector: Yes ATX

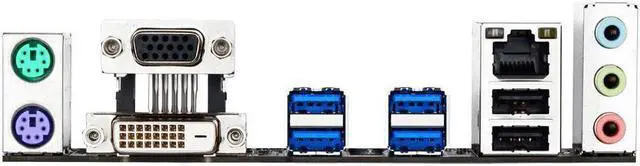

Power connector (24-pin): Yes Back panel I/O ports USB 3.0 ( 3.1 Gen 1)
Type-A ports quantity: 4
USB 2.0 ports quantity: 2
VGA (D-Sub) ports quantity: 1
PS/2 ports quantity: 1
Microphone in: Yes Ethernet
LAN (RJ-45) ports: 1
DVI-D ports quantity: 1 Technical details
Motherboard chipset family: Intel
Motherboard chipset: Intel B250
Motherboard form factor: ATX
Component for: PC Audio
Audio output channels: 7.1 Networking
Ethernet LAN: Yes Performance Supported storage drive types: HDD, SSD
Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported: Yes
Motherboard chipset family: Intel
Motherboard chipset: Intel B250
RAID levels: 0, 1, 5, 10
Audio output channels: 7.1
Motherboard form factor: ATX
Component for: PC
BIOS BIOS type: EFI
AMI Clear CMOS jumper: Yes
BIOS memory size: 64
MB ACPI version: 5.0 Storage controllers
RAID levels: 0, 1, 5, 10
Software Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64,
