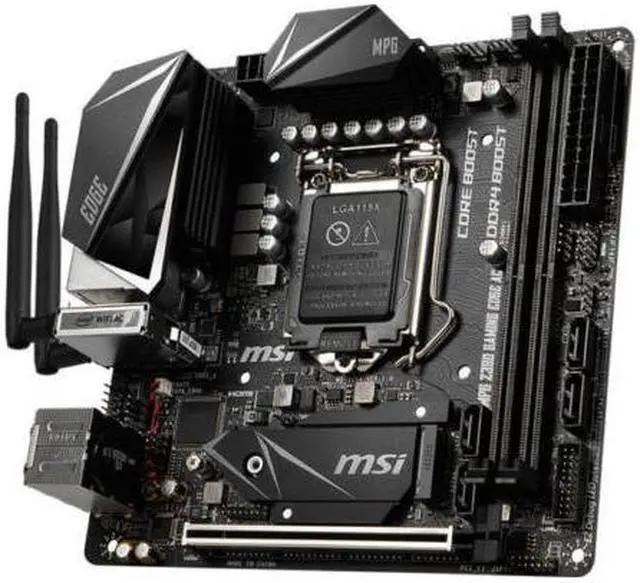

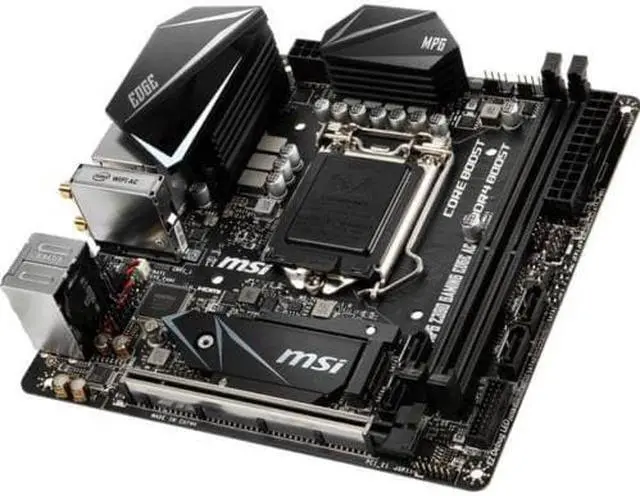

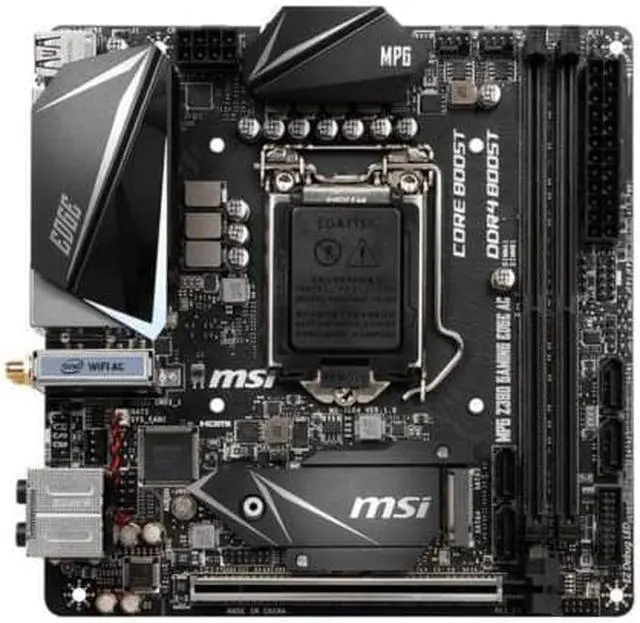

MSI MPG Z390I EDGE GAMING AC LGA1151/ Intel Z390/ DDR4/ SATA3&USB3.1/ M.2

Specifications

Mfr Part Number: MPG Z390I GAMING EDGE AC
CPU: LGA1151
Supports 9th/ 8th Generation Intel Core/ Pentium Gold/ Celeron Processors
Chipset: Intel Z390
Memory: 2x DDR4-4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz Slots, Dual Channel, Non-ECC, un-buffered, Max Capacity of 32GB
Slots: 1x PCI-Express 3.0 x16 Slot
Storage:
SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10
M.2: 2x M.2 Ports (Key M), one supports PCIe 3.0 x4 SATA3, 2260/ 2280 storage devices, one supports PCIe 3.0 x4 and 2260/ 2280 storage devices
Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC
LAN: Realtek 8111H Gigabit Ethernet Controller; 802.11 a/b/g/n/ac, MU-MIMO Rx (2.4GHz/ 5GHz up to 344 Mbps); Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 5

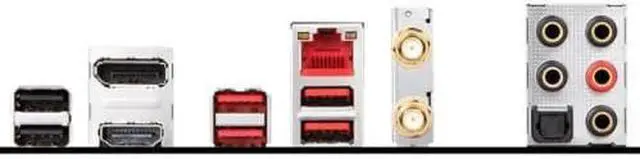

Ports: 2x USB 3.1 Gen 2 Ports (Type-A rear), 4x USB 3.1 Gen 1 Ports (2 Type-A rear, 2 via header), 4x USB 2.0 Ports (2 Type-A rear, 2 via header), 1x HDMI Port, 1x DisplayPort, 1x Optical S/PDIF out, 1x RJ45 LAN Port, Audio I/O Jacks
Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector
Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm
