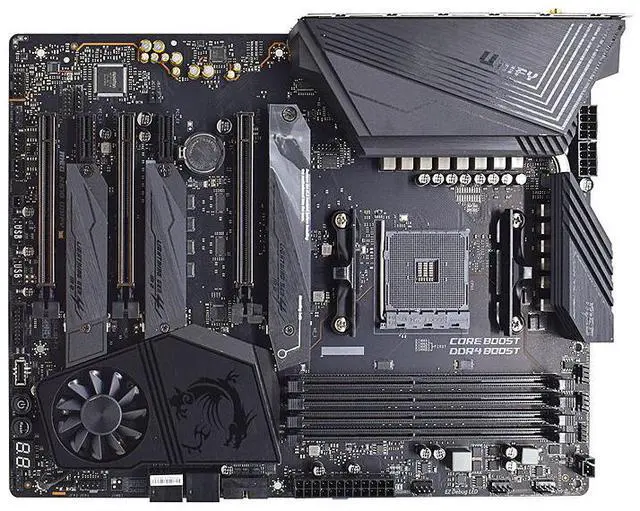

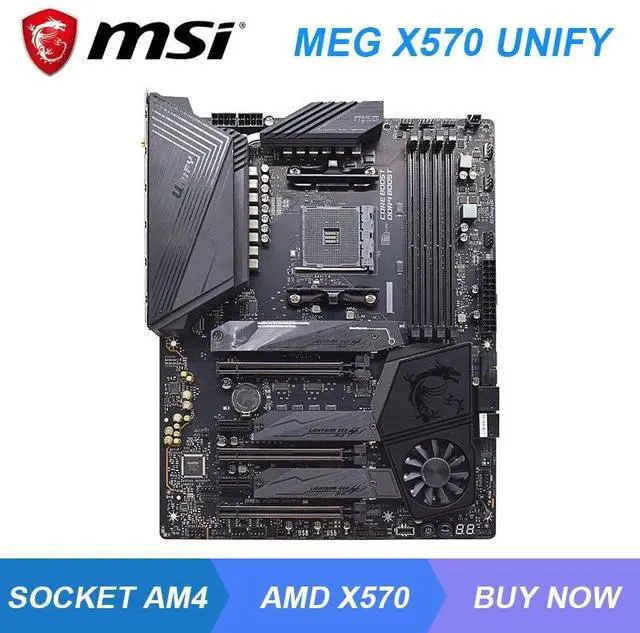

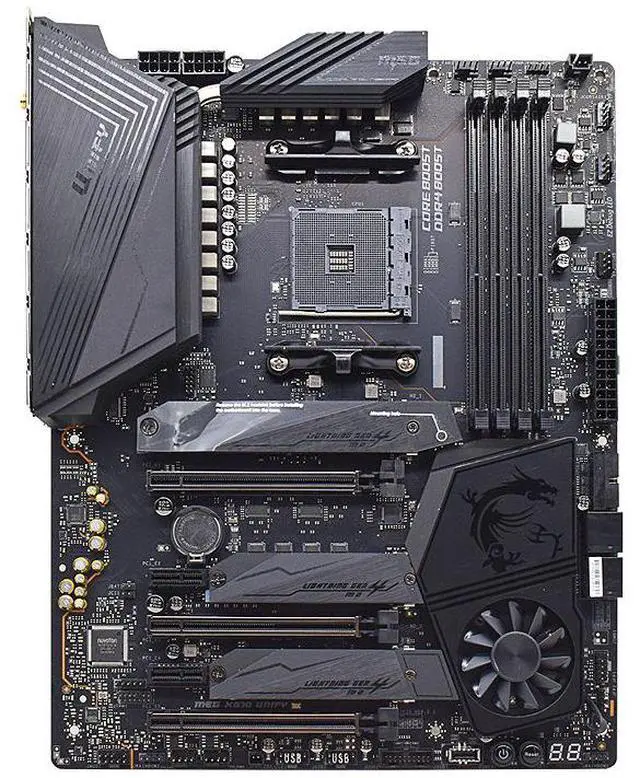

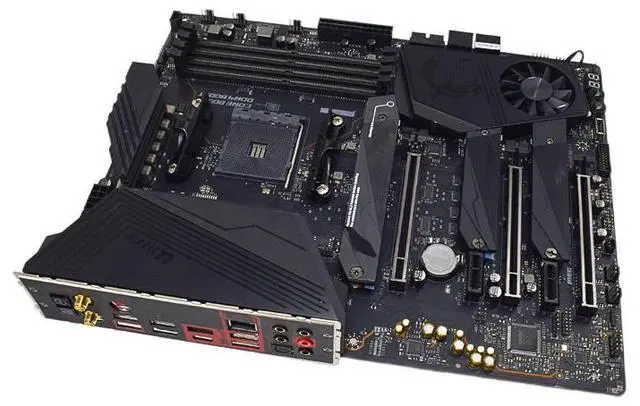

MSI MEG X570 UNIFY AMD X570 Am4 Motherboard DDR4 128G M.2 ryzen 7 5800x ryzen 5 3600 CPU Mining Motherboard PCI-E 4.0 USB3.2 ATX Original second-hand products
Limited time offer, ends 01/31 By PRIX Tech
- MSI MEG X570 UNIFY AMD X570 Am4 Motherboard DDR4 128G M.2 ryzen 7 5800x ryzen 5 3600 CPU Mining Motherboard PCI-E 4.0 USB3.2 ATX
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Motherboard chip
Main chipset AMD X570
Chipset description Using AMD X570 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC1220 8-channel audio chip
Network card chip Onboard Realtek RTL8125 2.5 Gbps network card
Processor specifications
CPU type up to the 9th generation AMD Ryzen
CPU socket Socket AM4
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 128GB
Memory description Support dual channel DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600MHz memory
Storage expansion
PCI-E standard PCI-E 4.0
PCI-E slot 3×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 4×SATA III interface, 3×M.2 PCIe (Gen4x4)

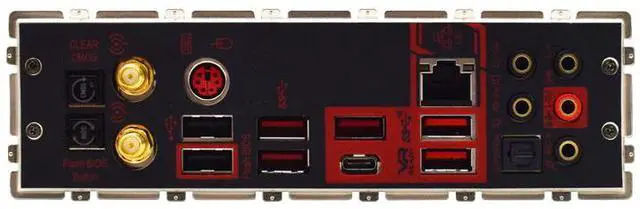

I/O interface
USB interface 5×USB3.2 Gen2 interface, 6×USB3.2 Gen1 interface, 6×USB2.0 interface
Power connector One 8-pin, one 8-pin, and one 24-pin power connector
Other interfaces
1×RJ45 network interface, 5×audio interface
Plate type
Motherboard board type ATX board type
Dimensions 30.4×24.4cm
Main chipset AMD X570
Chipset description Using AMD X570 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC1220 8-channel audio chip
Network card chip Onboard Realtek RTL8125 2.5 Gbps network card
Processor specifications
CPU type up to the 9th generation AMD Ryzen
CPU socket Socket AM4
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 128GB
Memory description Support dual channel DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600MHz memory
Storage expansion
PCI-E standard PCI-E 4.0
PCI-E slot 3×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 4×SATA III interface, 3×M.2 PCIe (Gen4x4)
I/O interface
USB interface 5×USB3.2 Gen2 interface, 6×USB3.2 Gen1 interface, 6×USB2.0 interface
Power connector One 8-pin, one 8-pin, and one 24-pin power connector
Other interfaces
1×RJ45 network interface, 5×audio interface
Plate type
Motherboard board type ATX board type
Dimensions 30.4×24.4cm
