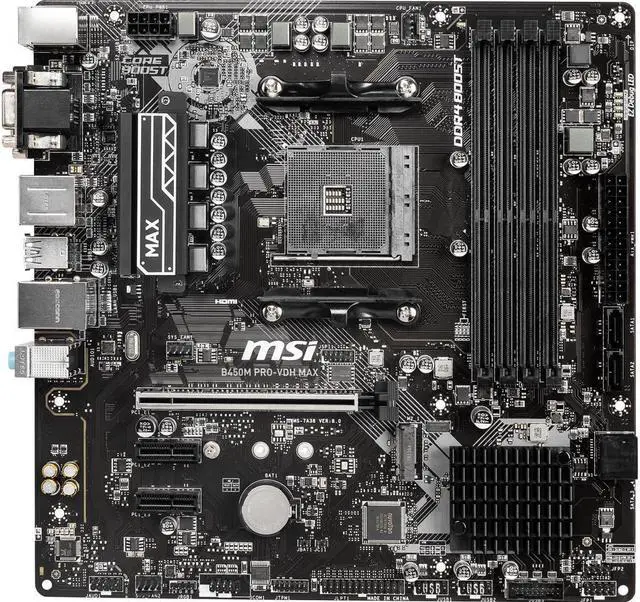

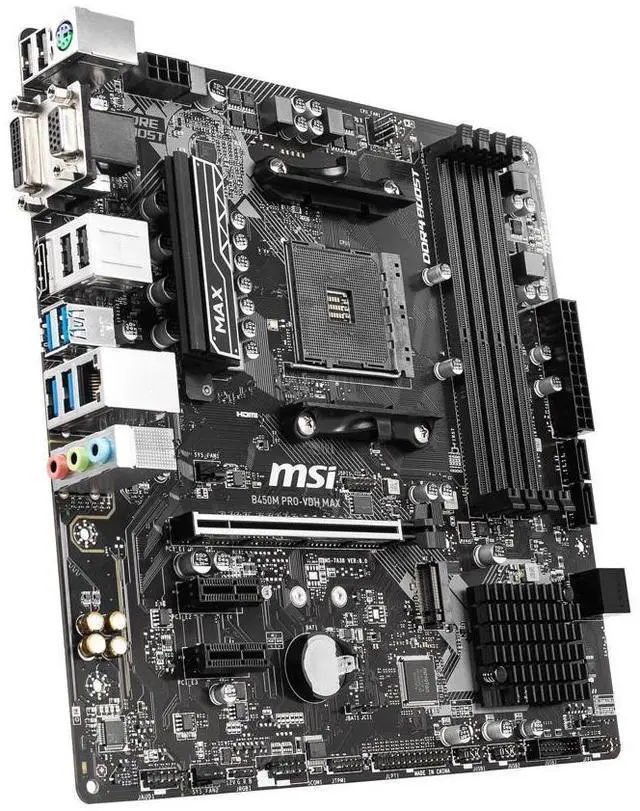

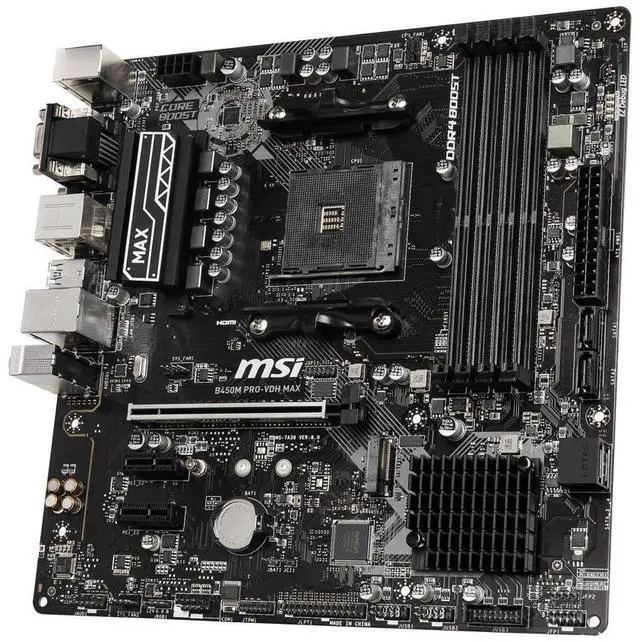

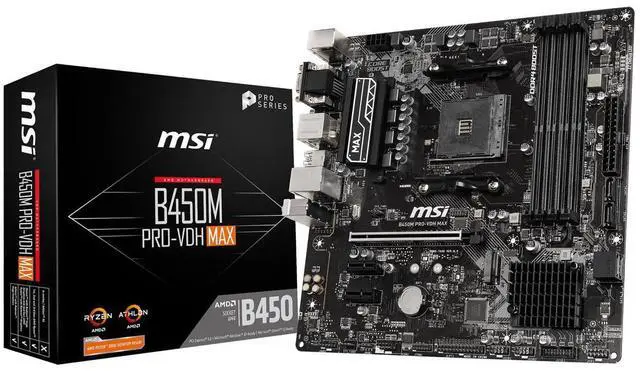

openbox MSI PRO B450M PRO-VDH MAX AM4 AMD B450 SATA 6Gb/s Micro ATX AMD Motherboard

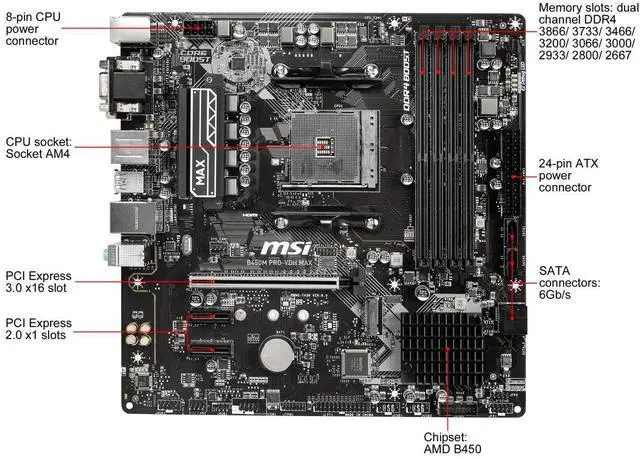

Model Brand MSI Series PRO Model B450M PRO-VDH MAX Supported CPU CPU Socket Type AM4 CPU Type Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 Chipsets Chipset AMD B450 Memory Number of Memory Slots 4×288pin Memory Standard For AMD Ryzen Gen3 (R5/R7/R9): Supports DDR4 3866/ 3733/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz (by A-XMP OC MODE) For AMD
Other Processors: Supports DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz (by A-XMP OC MODE) Supports DDR4 2667/ 2400/ 2133/ 1866 MHz (by JEDEC) * Please refer www. msi. com for more information on compatible memory. Maximum Memory Supported 64GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 1 x PCIe 3.0 x16 slot - 1st, 2nd and 3rd Gen AMD Ryzen support x16 mode - Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode - Athlon with Radeon Vega Graphics support x4 mode PCI Express x1 2 x PCIe 2.0 x1 slots Storage Devices SATA 6Gb/s 4 x SATA 6Gb/s M. 2 1 x M. 2 slot (Key M) Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s Supports 2242/2260/2280 storage devices SATA RAID 0/1/10 Onboard Video Onboard Video Chipset Supported only by
CPU with integrated graphic: 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz1, 2 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1, 2 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz1, 2
1. Only support when using Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics processors

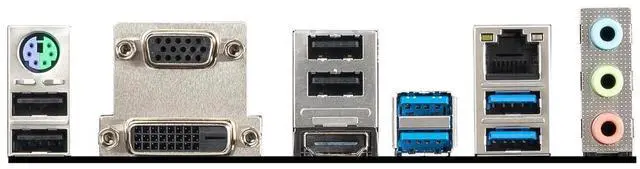

2. Maximum shared memory of 2048MB Onboard Audio Audio Chipset Realtek ALC892 Audio Channels 7.1 Channels Onboard LAN LAN Chipset Realtek 8111H Max LAN Speed 10/100/1000Mbps Rear Panel Ports Back I/O Ports 1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 3 x Audio Jacks / 4 x USB 2.0 / 1.1 / 4 x USB 3.2 Gen 1 Internal I/O Connectors Onboard USB 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) Other Connectors 1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x Parallel port connector 1 x RGB LED strip connector 1 x Clear CMOS jumper Physical Spec Form Factor Micro ATX LED Lighting RGB Dimensions (W x L) 9.6" x 9.6" Power Pin 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector Windows 11 Compatibility Windows 11 Supported Features Features Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 Supports DDR4 Memory, up to 3466+ (OC) MHz Turbo M.

2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based
SSDs DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
Audio Boost: Reward your ears with studio grade sound quality
EZ Debug LED: Easiest way to troubleshoot
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
PCI-E Steel Armor: Protecting VGA cards against bending and EMI
