    Raspberry Pi Pico With Soldered Headers

    • Raspberry Pi Pico Board with 2 20 Pin Pre-soldered Headers
    • Also includes NON Soldered 3 Pin header.
    • Can be used on the SWD Pads if desired.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

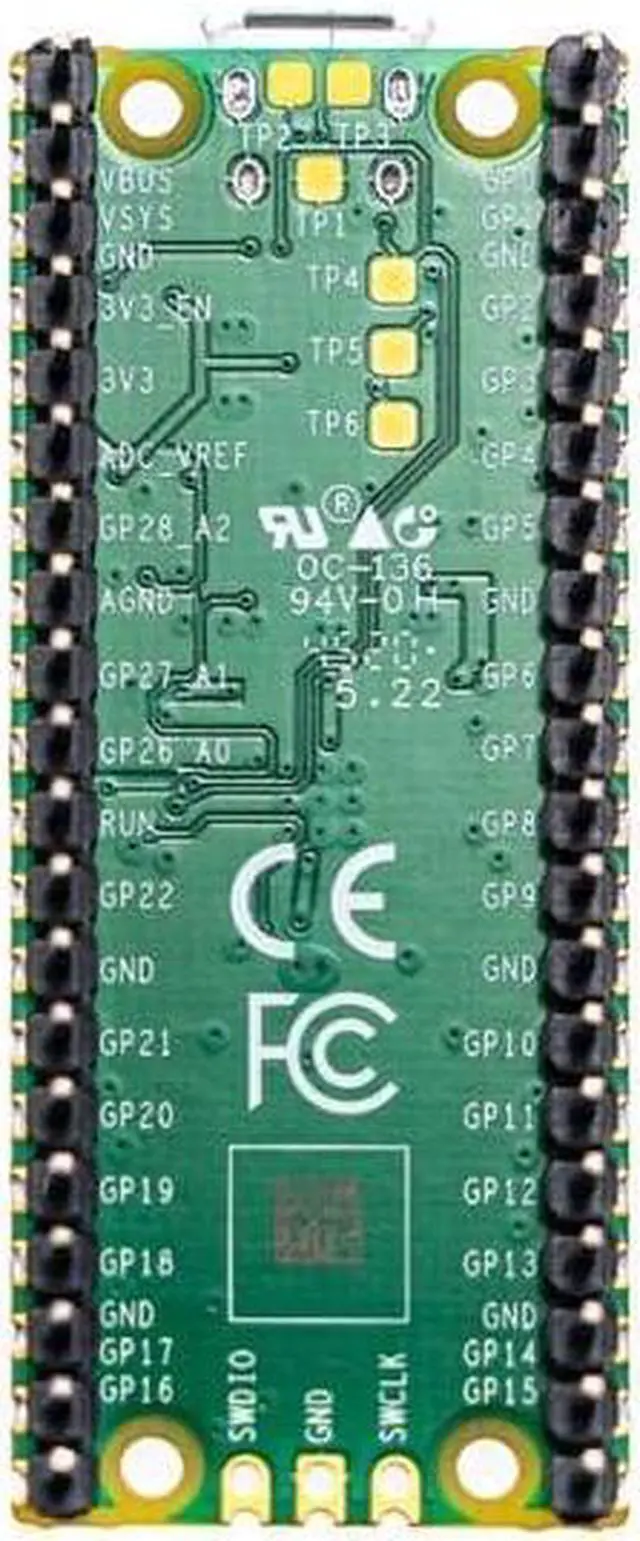

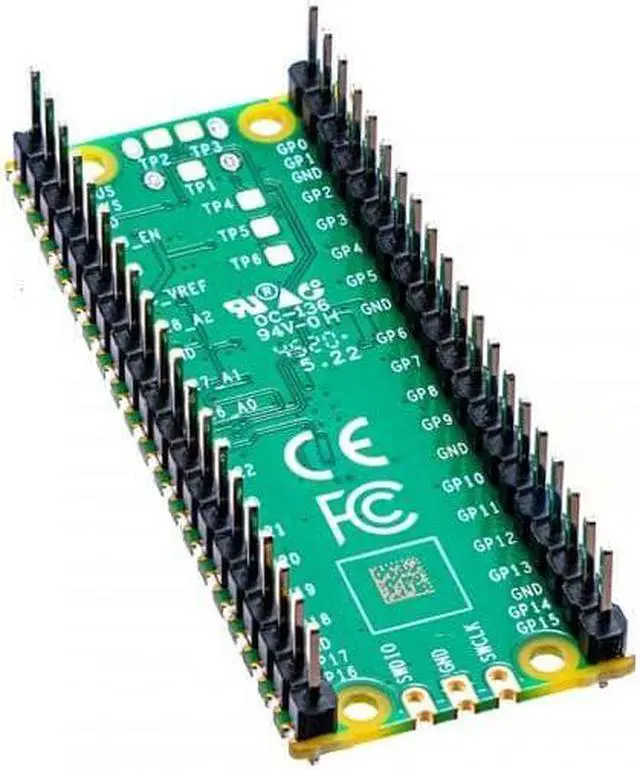

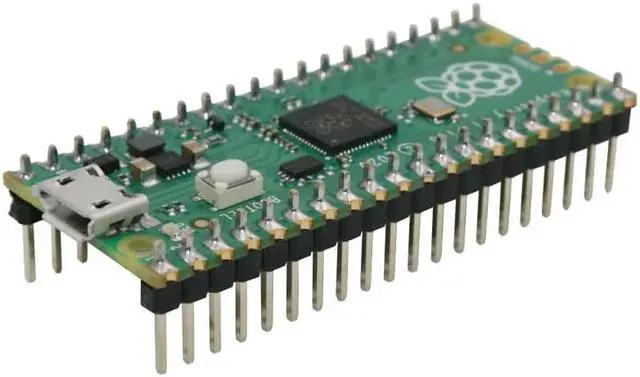

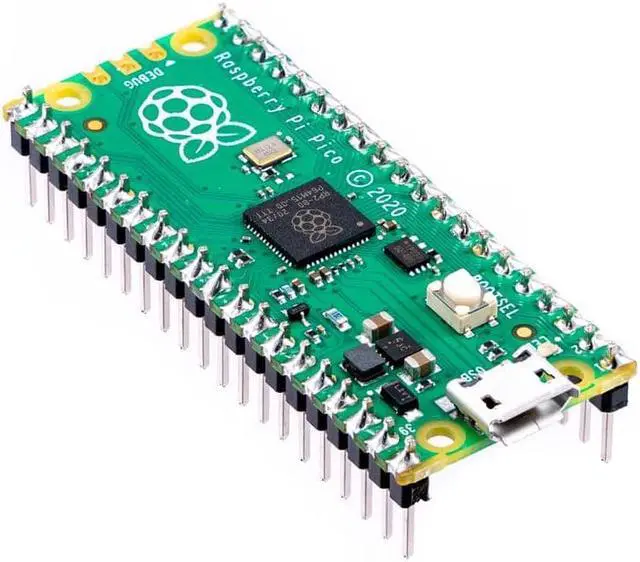

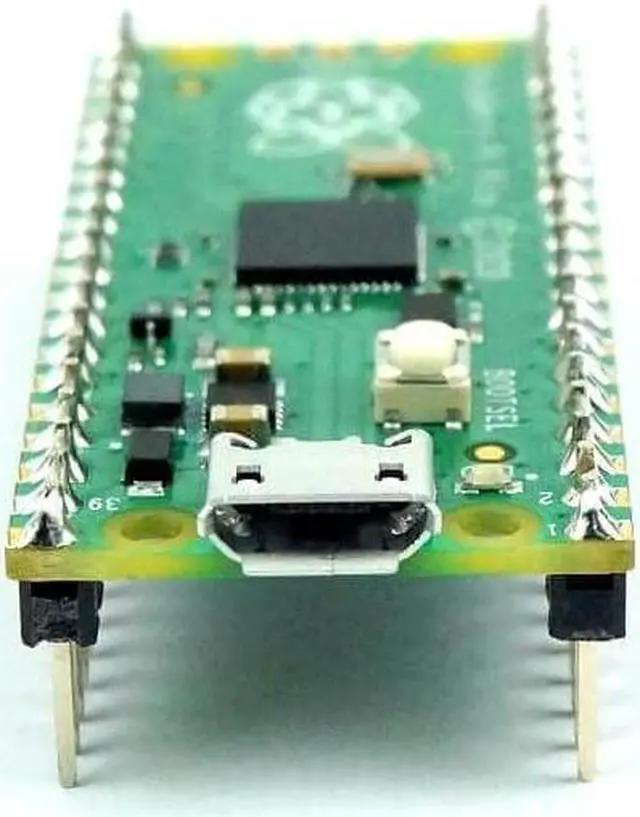

    Raspberry Pi Pico Board with 2 20 Pin Pre-soldered Headers

    Board specifications
    Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces. Key features include:

    RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
    Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
    264KB of SRAM, and 2MB of on-board Flash memory
    Castellated module allows soldering direct to carrier boards
    USB 1.1 with device and host support
    Low-power sleep and dormant modes
    Drag-and-drop programming using mass storage over USB
    26 × multi-function GPIO pins
    2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
    Accurate clock and timer on-chip
    Temperature sensor
    Accelerated floating-point libraries on-chip
    8 × Programmable I/O (PIO) state machines for custom peripheral support

    Also includes NON Soldered 3 Pin header.
    Can be used on the SWD Pads if desired.
