Multifunction Diagnostic Card TL611 PRO PCI-E LPC Motherboard Diagnostic Test for Laptop Computer Mobile Phone - OEM

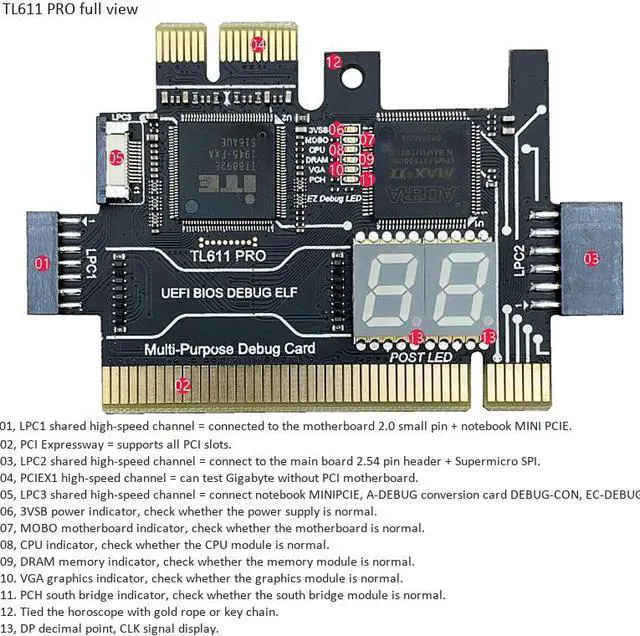

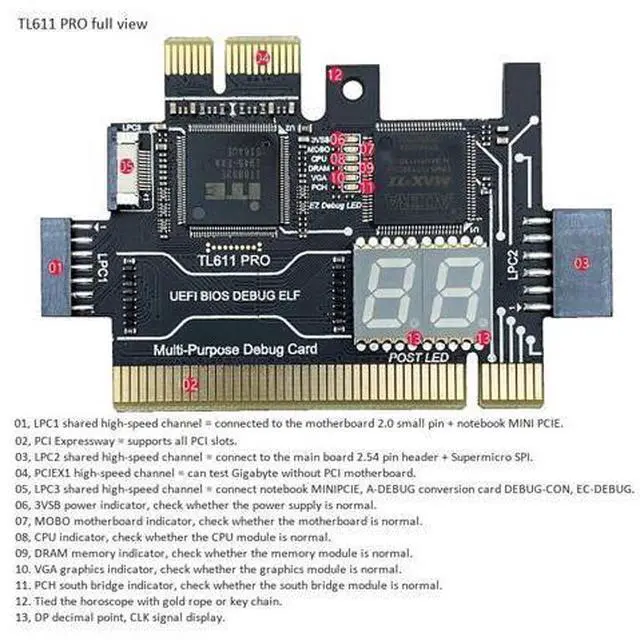

01. LPC1 shared high-speed channel = connect motherboard 2.0 small row needles + notebook MINI PCIE. 02. PCI high-speed channel = support all PCl slots. 03. LPC2 Shared high speed channel = connected mainboard 2.54 large row pin + supermini SPl 04. PCIEX1 high-speed channel = can test GIGABYTE no PCI motherboard. 05. LPC3 shared high-speed channel = connect notebook MINI PCIE, A-DEBUG conversion card, ASUS DEBUG-CON, EC-DEBUG. 06.3VSB power indicator, check if the power is normal. 07. MOBO motherboard indicator light, check if the motherboard is normal.

08. CPU indicator, check if the CPU module is normal. 09. DRAM memory indicator, check if the memory module is normal. 10. VGA image indicator, check if the image module is normal. the memory module is normal. 11. PCH south bridge indicator, check if the south bridge module is normal. 12. Bonding golden rope or with keychain. 13. DP decimal point, CLK signal is displayed.
colour: Random
Color Material: plastic
Package Contents: 1 x TL611 PRO Diagnostic Test (Random Color)
Note: Random color, don't accept the specified color. Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
