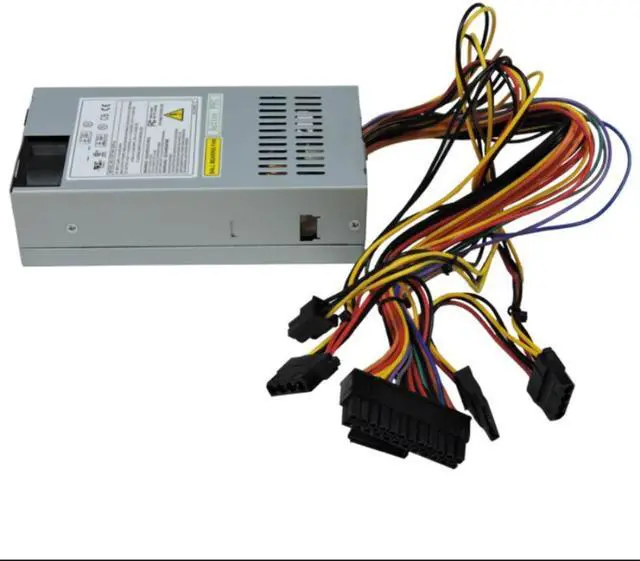

270W 1U Power Supply FLEX HTPC NAS POS Cash Register FSP270-60LE 270W Mini ITX 1U Server Power Supply PSU Flex ATX Shuttle 24Pin

Approvals:see below
80 PLUS Certification:Other Certification
Output:see below
Application:Server
Interface Type:20 + 4Pin
CPU Power Connector:4 pin
Number of SATA Ports:2
Rating Power:251W - 300W
Package:Yes
PFC Type:Active
D-type Bus Number:2
Model Number:FSP270-60LE
Modular:Non-Modular
Input Voltage:184-264V
Graphics Card 12V Pin Number:0

270W Flex-ATX 1U Power Supply FLEX HTPC NAS FSP270-60LE 270W Mini ITX 1U Server Power Supply PSU Flex ATX Shuttle 24Pin
Part/Model Number:
FSP270-60LE /
9PA2700725
Warranty:
1 Year Warrenty
Item details/specification.
GENERAL SPECIFICATIONS:
Specific  Part Code:
9PA2700725
COOLING Fan(s):
Single, 40mm ball-bearing fan linked with Thermal Sensor
TOTAL OUTPUT POWER: 270-WATT TOTAL CONTINUOUS OUTPUT @ 30°C
OUTPUT CONNECTORS: Main 20+4 Pin ATX*1+4PIN*1+SATA*2 +IDE*2
SAFETY APPROVAL: UL, CSA, IEC, CE, TUV/VDE, NEMKO
MBTF: 100,000 HOURS @ TYPICAL
UNIT SIZE: 80.0mm (W) X 150.0mm (D) X 40.0mm (H)
INPUT SPECIFICATIONS:
Input Voltage: 115V AC to 230V AC, 47 ~ 63Hz
Power Factor Correction (PFC): ACTIVE PFC | FULL RANGE
Input Current: 5.0A @ 115 Vrms, 60 Hz. | 3.0A @ 230 Vrms, 50 Hz.
OUTPUT SPECIFICATIONS:
+12V RAILS: 2
Output Voltage: +3.3V DC, +5V DC, +12V1 DC, +12V2 DC, -12V DC, +5Vsb DC (Standby),
Output Current: 16.0A @ +3.3V DC, 18.0A @ +5V DC, 16.0A @ +12V1 DC, 10.0A @ +12V2 DC, 0.8A @ -12V DC, 2.5A @ +5Vsb DC Standby
