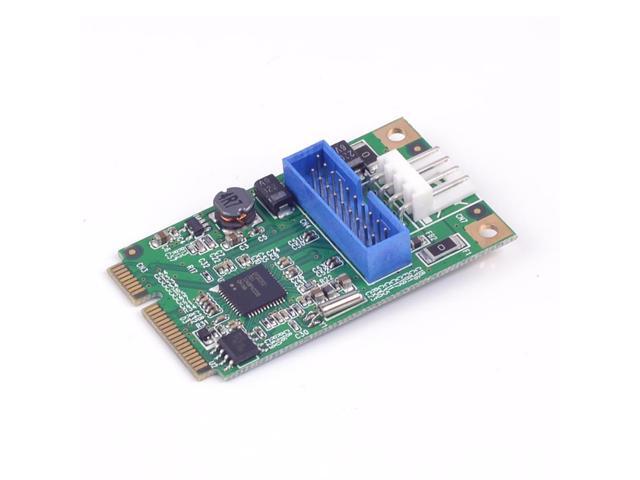

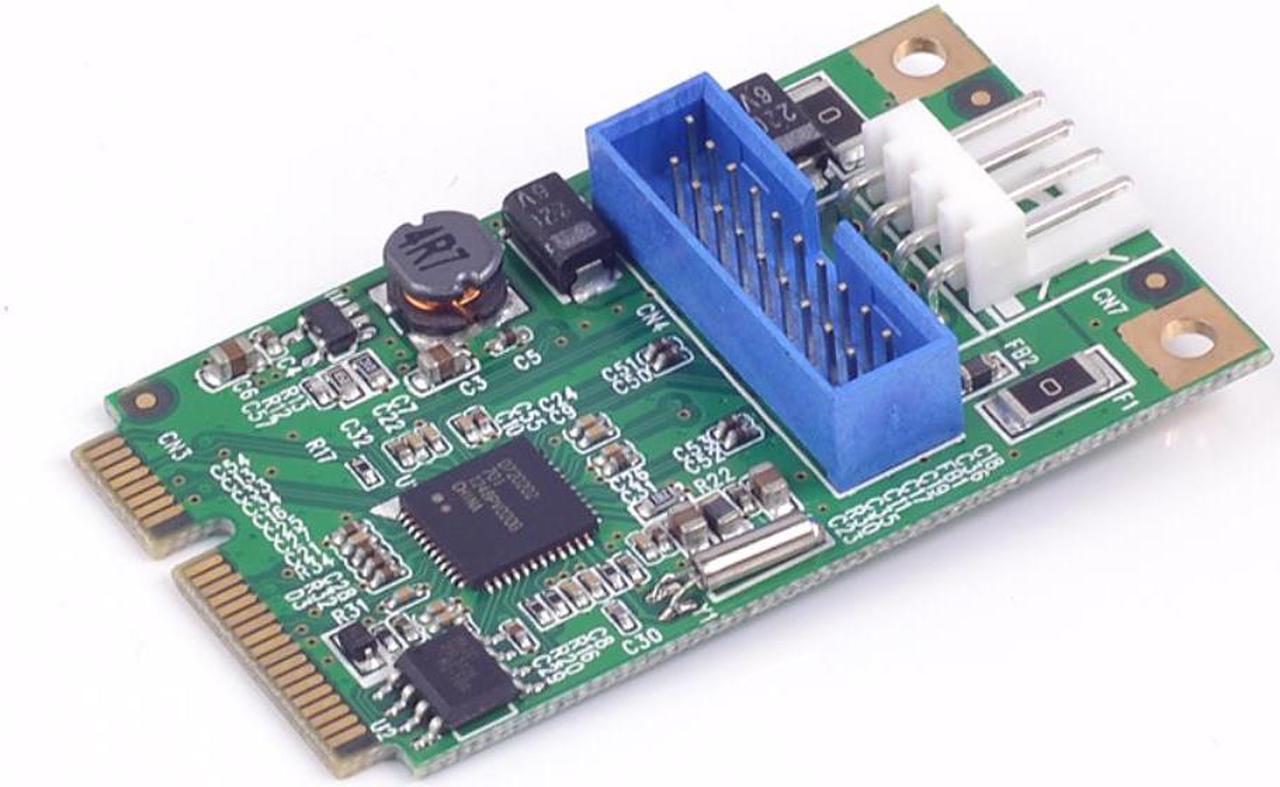

Mini PCIE USB Adapter Mini PCI-e to 2 port USB3.0 20PIN 19pin to mpcie Adapter Card usb 3.0 HUB

Package:Yes
Interface Type:PCI Express

A native PCI-Express single chip design
Supports an internal USB3.0 socket capable for two expansion ports
Compliant with PCI Express base spec. revision 2.0 backward compatible to revision 1.0a
Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
Supports PCI-Bus Power Management Interface specification revision 1.2
Compatible with PCI-E Mini Card Electromechanical specification revision 1.2
Compatible with Full-Mini (F1) card type form factor
Supports Windows 10 / 8.x / 7 / Vista / XP / Server 2003-2008 32/64-bit, Linux Kernel 2.6x or later
USB3.0 Interface
Complies with Universal Serial Bus 3.0 specification revision 1.0
Backward compatible to USB 2.0 and PCI-Express 1.0
Compliant with Intel's Extensible Host Controller Interface(xHCI) specification revision 1.0
Supports USB compliant data transfer types(Control/Bulk/Interrupt/Isochronour)
Supports the following data transfer rate:
- USB 2.0 mode up to 480 Mbps*
- USB 3.0 mode up to 5 Gbps*
Max. 5V/900mA power output to each USB 3.0 Port
Support up to two USB3.0 ports on a standard internal 2 x 10(19 pins) box header
4-pin internal FDD power connector for extra power to the USB devices(optional)
Fully Plug and Play compatible
* This term does not represent actual data rate of 480Mbps, 5Gbps & 3Gbps and simply indicates compliance with USB 2.0, USB 3.0 & SATA II standards. Actual maximum data rate depends on PC configurations, cable conditions as well as connected devices.
System Requirement
Computer system with one Mini PCI-Express slot available
Properly installed one of the supported OS mentioned above
package content:
Mini PCI-Express to USB3.0 Host Controller Card x 1
User Manual x 1
Software Driver CD x 1
