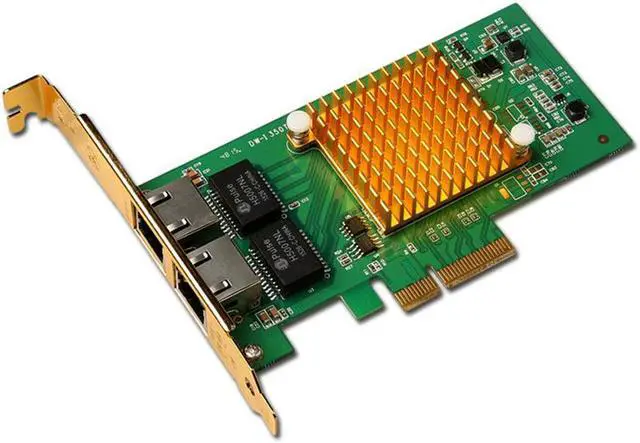

I350 - T2 Network Card PCI - E 2 Ports Gigabit Ethernet Server Nic InteI350T2 Chip

Type:Wired
Transmission Rate:10/100/1000Mbps
Kind:Internal
Application:Desktop
Transmission Speed:600 Mbps
Package:Yes
Adapter Socket:RJ45
Wireless Protocol:802.11n
Lan Transmission Rate:1000M Ethernet
Applicable Network Type:Gigabit Ethernet
Model Number:I350 - T2
Interface Type:PCI Express
Certification:CE

Product performance and features:
1.Each port can send and receive eight queue
2.Up to 86 pieces of queue receiver to adjust (RSS) in multiple processor system can
minimize the use of the CPU
3.Support 8 pool of each port ‘s (a single queue) virtual machine device queue (VMDq)
4.Support the SR - IOV function
5.Support direct cache access (DCA)
6.Support the Intel I/O V3.0 acceleration technology
7.TSO interleaved technique is to reduce the delay
8.To minimize the equipment I/O interrupt using MSI and MSI - X
9.The UDP and TCP and IP checksum partial load
10.The UDP and TCP send piecewise load (TSO)
11.SCTP receiving and sending check and partial load
12.The packet combination of interrupt and timer (packet timer) and absolute -
interruption delay timer is to send and receive operation
13.Support PCI Expess base specification 2.0 (5 GTs)
14.Intel I350AM4 double integrated MAC + PHY and SERDES chip controller with high
performance, high reliability and low power consumption characteristics
15.Super depth, based on the packet buffer per channel can reduce the use of the CPU
16.Hardware acceleration can be partial load task from the main processor.The controller
can be used for partial load TCP/UDP/IP checksum TCP segment
17.Server level of reliability, availability and performance characteristics:
Link aggregation and load balancing
Relevant switches: 802.3 AD (LACP), common Trunking (GEC/FEC)
Exchange and NIC no related
failover
Prioritization - 802.1 p layer 2 priority coding
Virtual local area network (LAN) 802.1 q VLAN
Large frame (9.5 KB)
802 x flow control
Multicast/broadcast packet replication
Main chipset: Intel i350-AM2
Applicable Network: Gigabit Ethernet
Transmission speed: 10/100/1000Mbps
The bus type: PCI-E X2
Transmission distance: 10 base / 10 base - TX / 1000 base - T Category 5 e maximum distance of 100 meters
Support the Boot Room
Both Full/half duplex: both/half duplex adaptive
Applicable fields: desktop computers, workstations and servers
The system supports:
