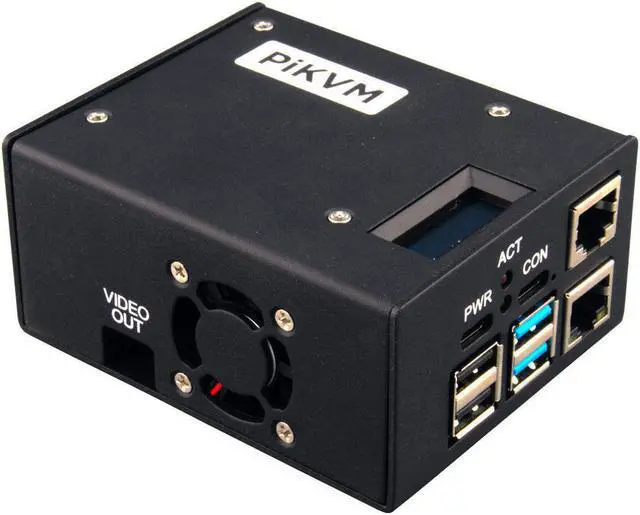

PiKVM V3 Pre-Assembled

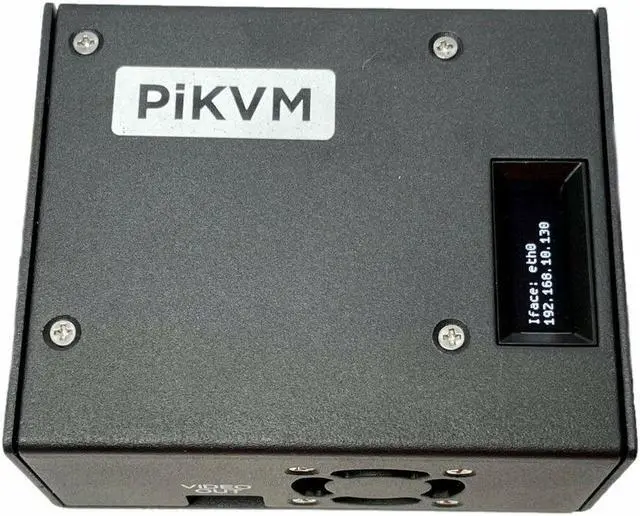

Features Control a computer/device using a web browser! Low bandwidth usage - 6Mbps for Full-HD approximatively Full HD 1920 x 1080p 50Hz max resolution HDMI capture device with future audio support Mass storage emulation - Simulate a virtual flash drive or CD drive using an image file uploaded to PiKVM! Ability to initiate removal and insertion of USB devices ATX controller - Switch the machine on or off, reset it, and monitor power & storage LED activity remotely Automatic variable-speed 5V PWM fan for silent operation USB & RJ-45 (Cisco-like) serial console for configuration and debugging OLED display with name, IP address, temperature, CPU load, and uptime
Software: Linux-based, regularly updated by a dedicated team Technical specifications Includes a Raspberry Pi 4 with 2GB
RAM Video/Resolution: 1920x1080p at 50Hz or lower
Power: USB-C 5.1V, 3A power supply required (not included) Real-time clock with rechargeable
Super Capacitor Enclosure: robust 1.6 mm (1/16") steel case
Product dimensions: 92mm x 75mm x 45mm (4"x3"x2")
Product weight: 410 g ( 14.5 oz.
) Warranty: 1 year limited

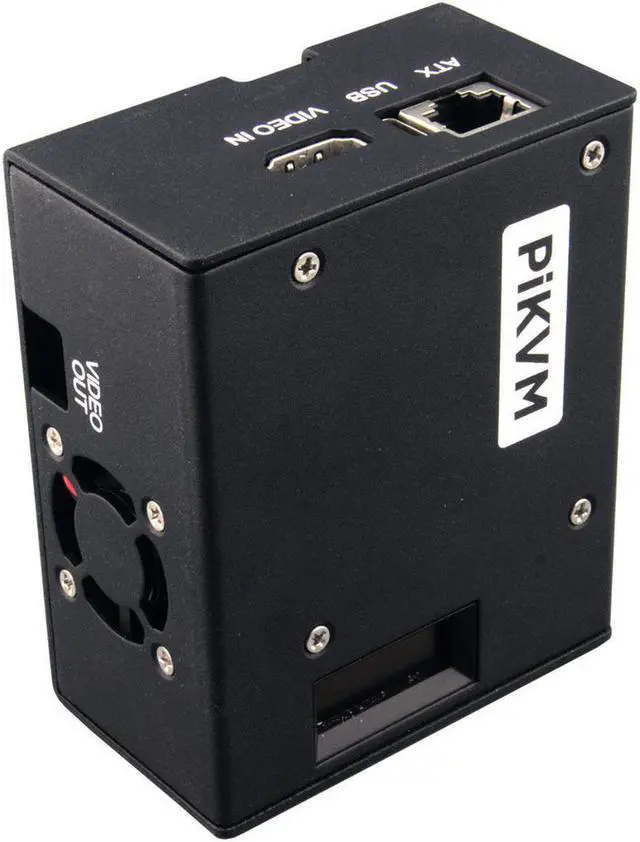

Connectors Front:
Back:
Side:
Power: USB-C ATX
Control Video Out: micro HDMI

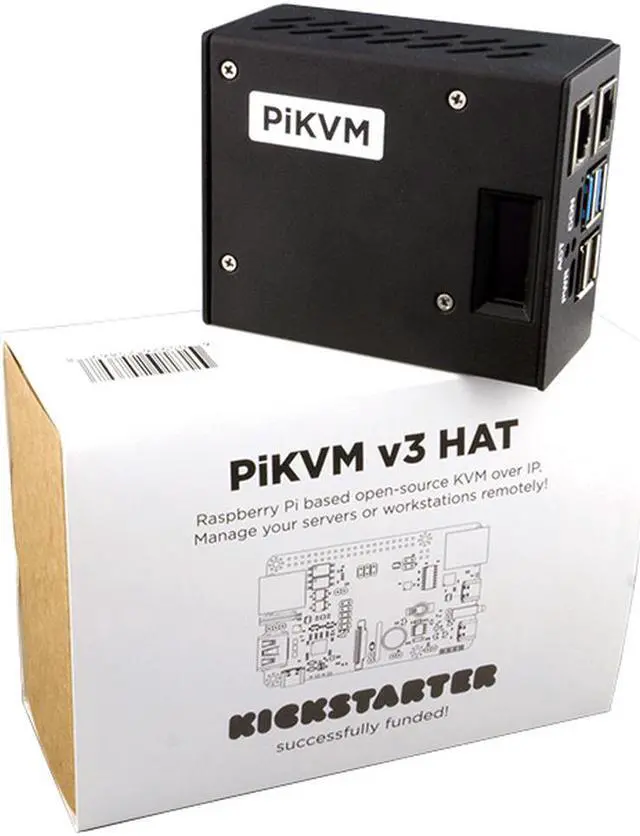

Serial Console: USB-C + RJ45 (one active at a time) OTG Host USB (USB-C) 2x USB 2.0, 2x USB 3.0 HDMI Video input & output Gigabit Ethernet What's in the Box PiKVM v 3.3 Pre-Assembled ATX adapter board with motherboard interface wiring A 32 GB MicroSD card pre-imaged with the PiKVM software Essential accessories 5.1 v 3A power supply with USB-C, Raspberry Pi compatible A regular HDMI cable USB-C to USB-A cable with DATA lines (for keyboard and mouse emulation) Straight Ethernet cable (NOT crossover, to connect the PiKVM and ATX board)
