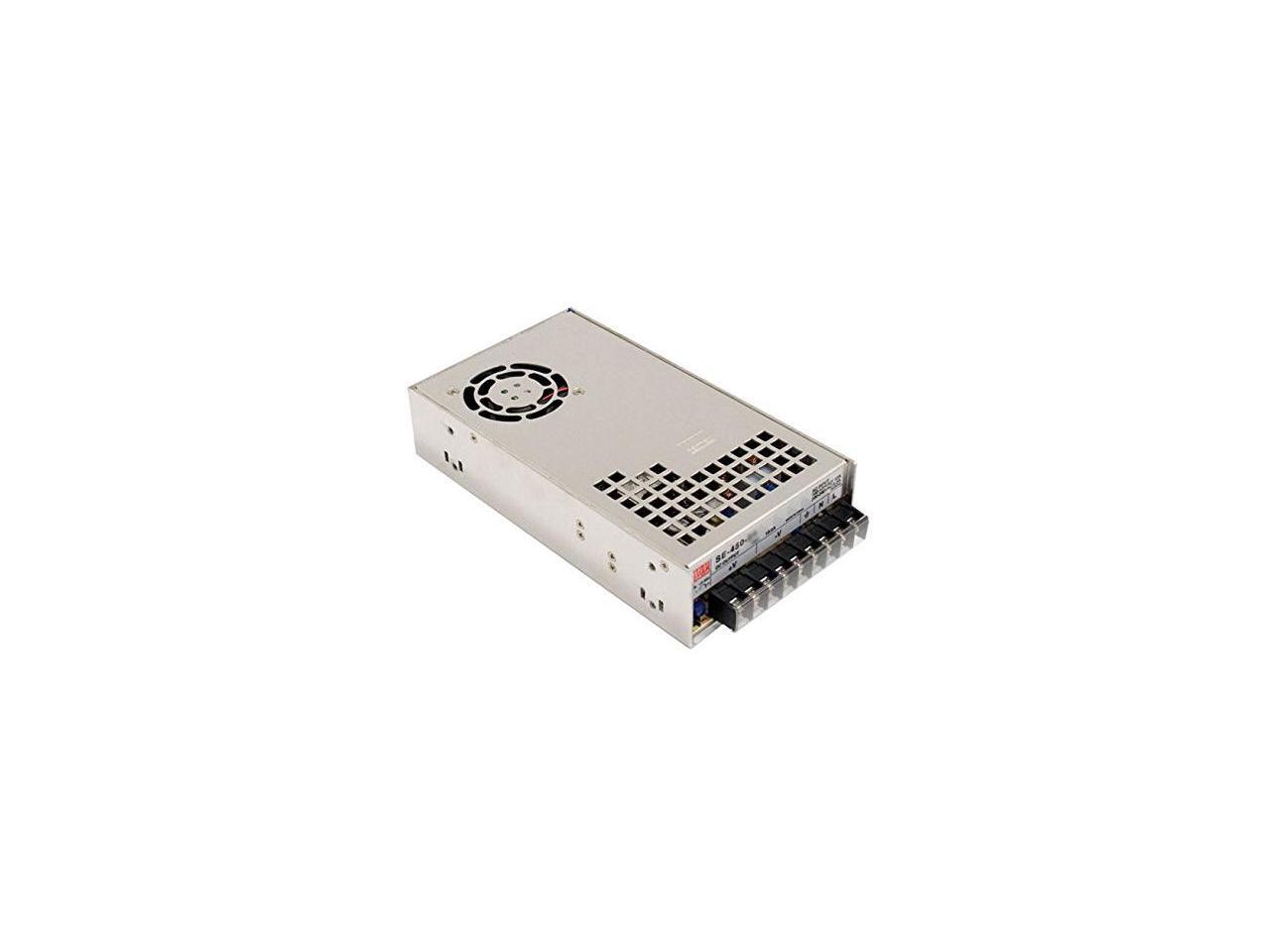

451.2W AC/DC enclosed switching power supply 48Volts 9.4A mps specifications: size
(L x W x H) (inches): 8.9 x 4.9 x 2.0 ripple and noise (mV p-p): 200
load regulation: 0.5
percent line regulation: 0.2
percent input: 90-264vac
47-63hz switch-selectable input protections: short circuit/overload/overvoltage/over temperature 2-year warranty certifications: UL
detailed specifications: primary
output voltage (VDC): 48
output current (a): 9.4
maximum output power (W): 451.2
family: se-450
input voltage (VAC): 90
to 264 input frequency: 47 to 63 maximum input current (a): 10 output connector
Type: screw terminal block number of outputs: 1 product
Type: AC to
DC power supply efficiency ( percent ): 88
minimum isolation voltage: 3000V
operating temperature-min (CEL): -10
operating temperature-max (CEL): 60
Length (inch): 8.9
width (inch): 4.9
height (inch): 2
agency approvals: UL
color: silver
Type: switch
selectable style: enclosed.
